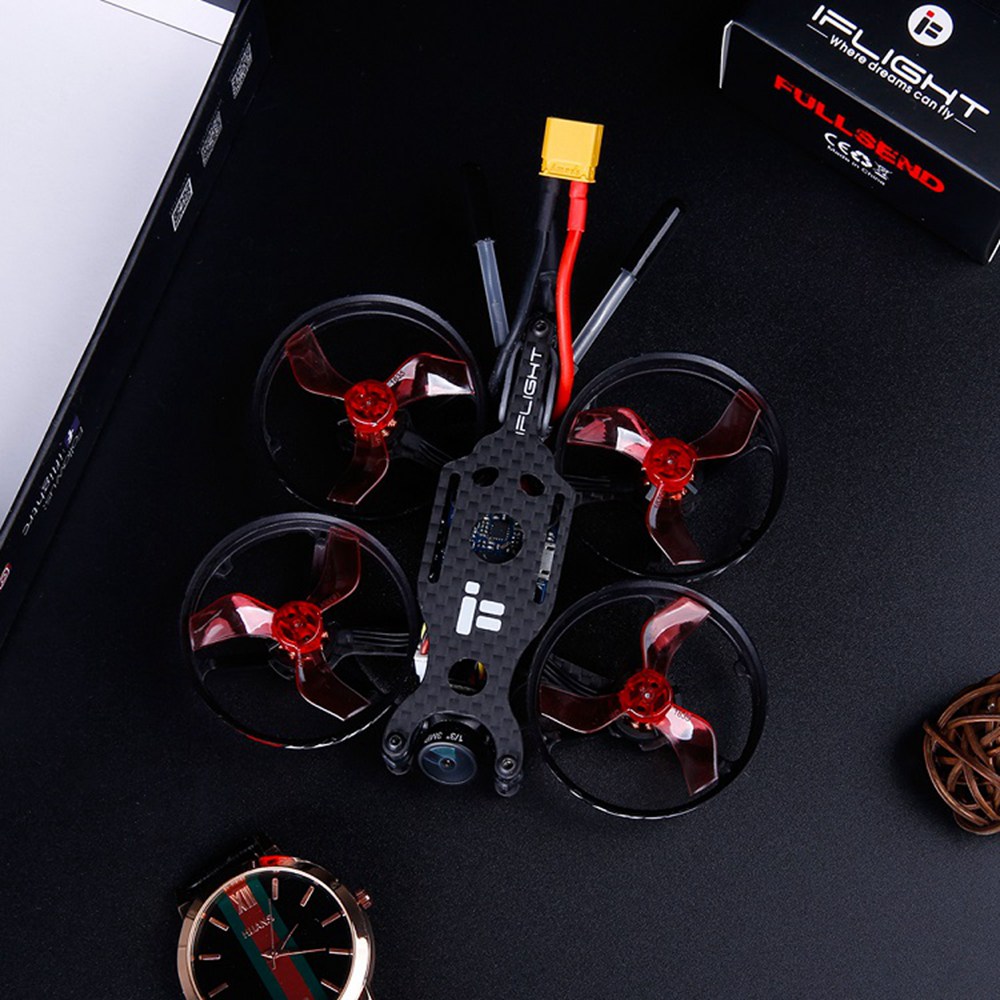

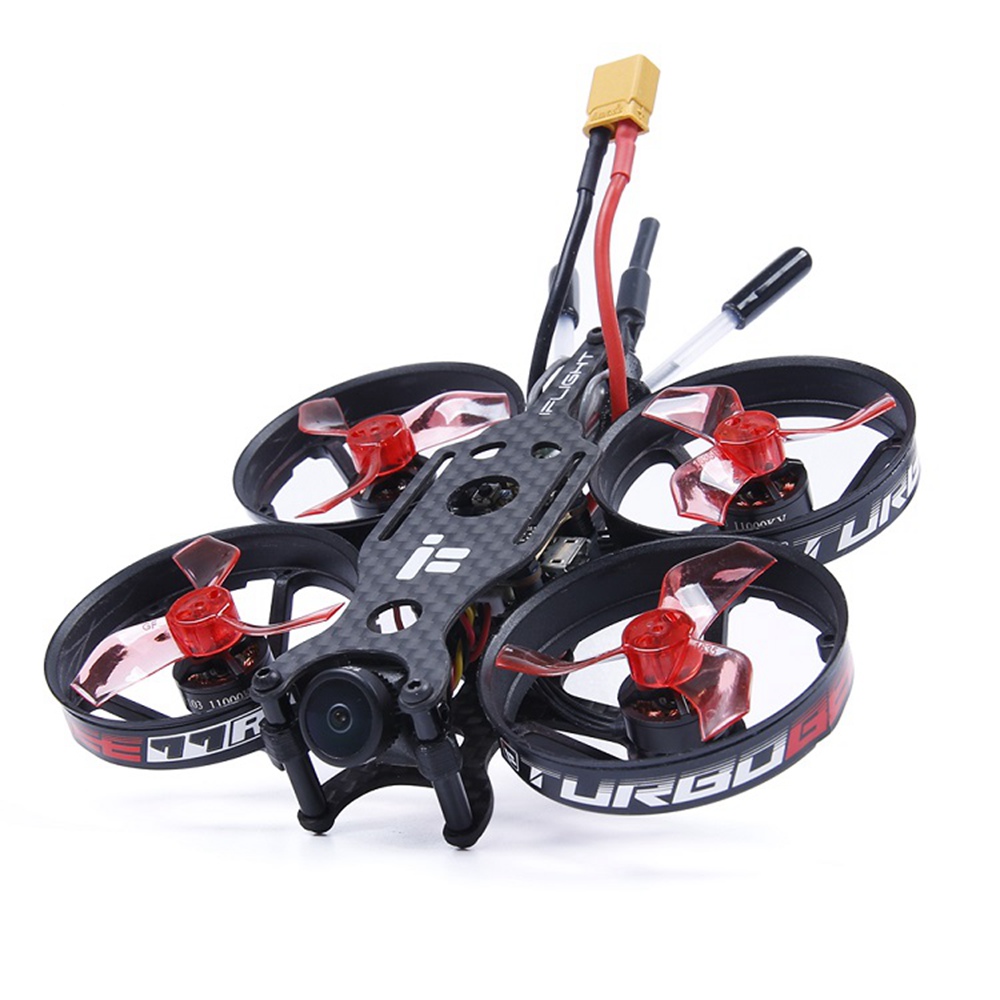

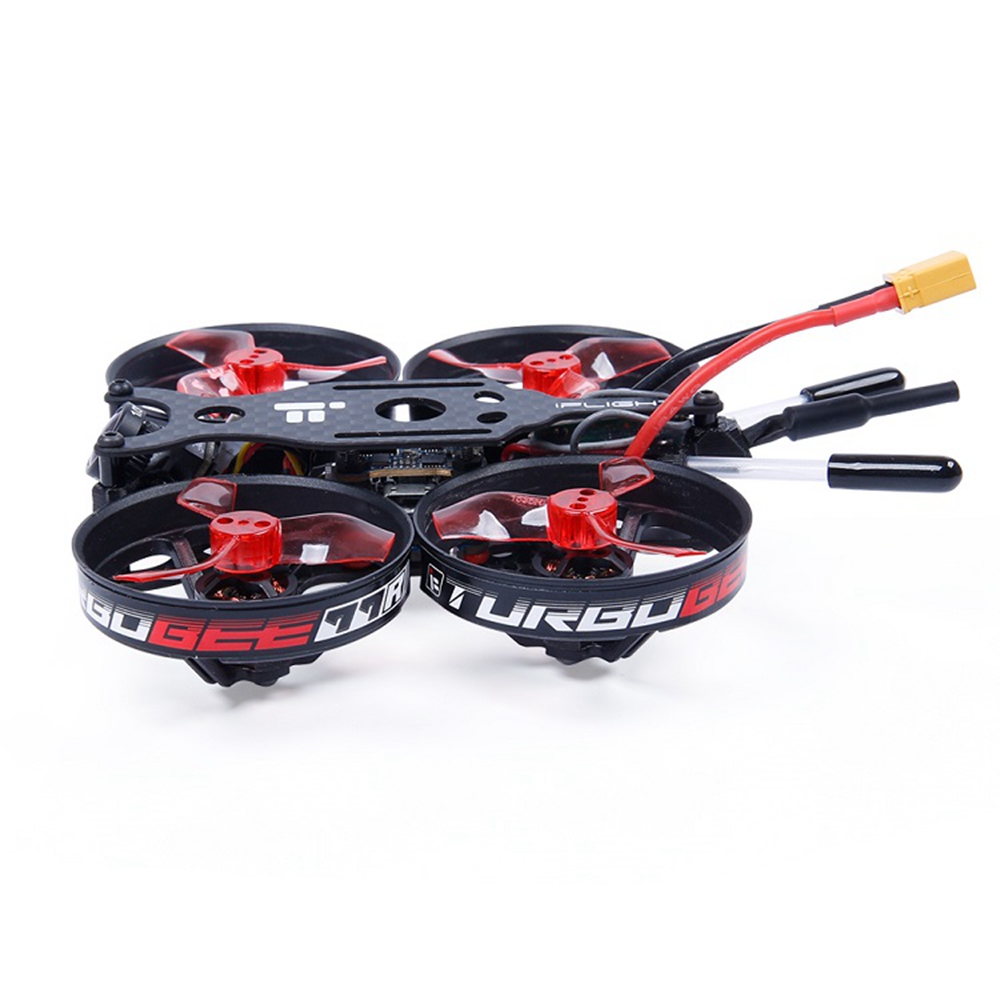

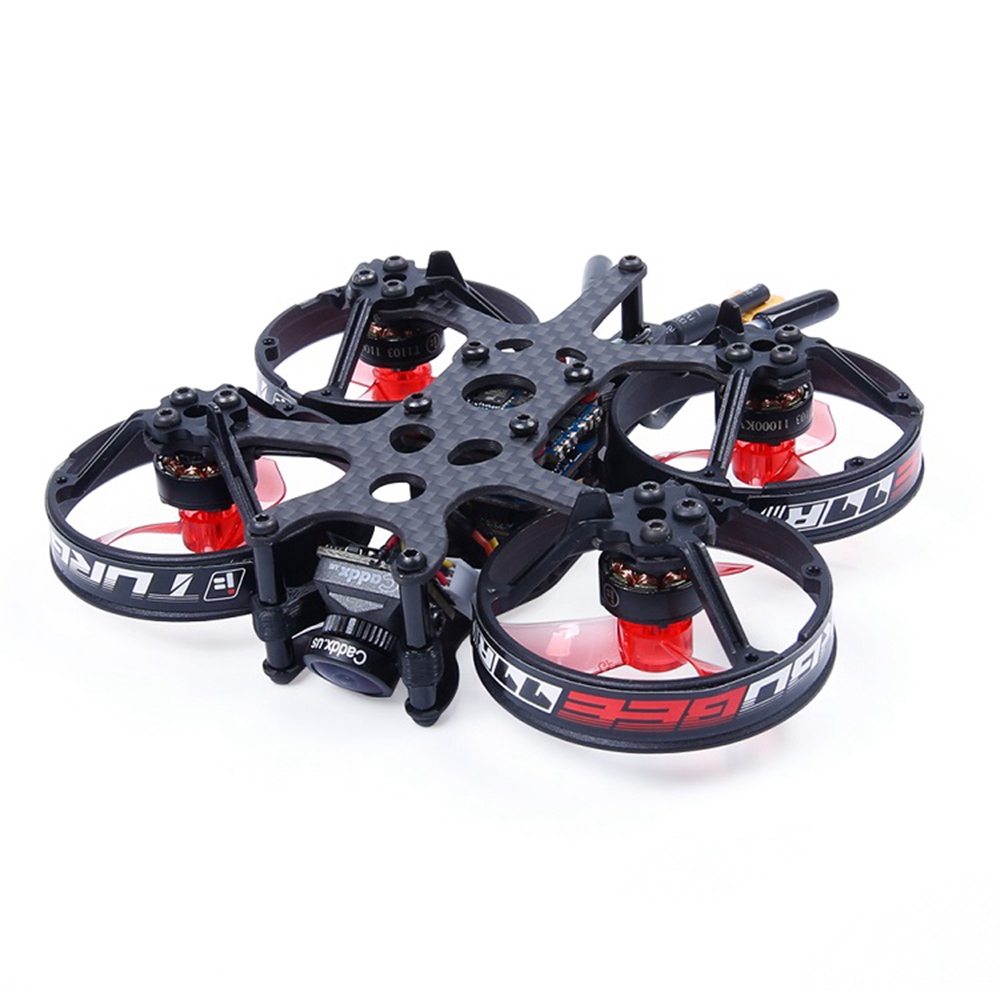

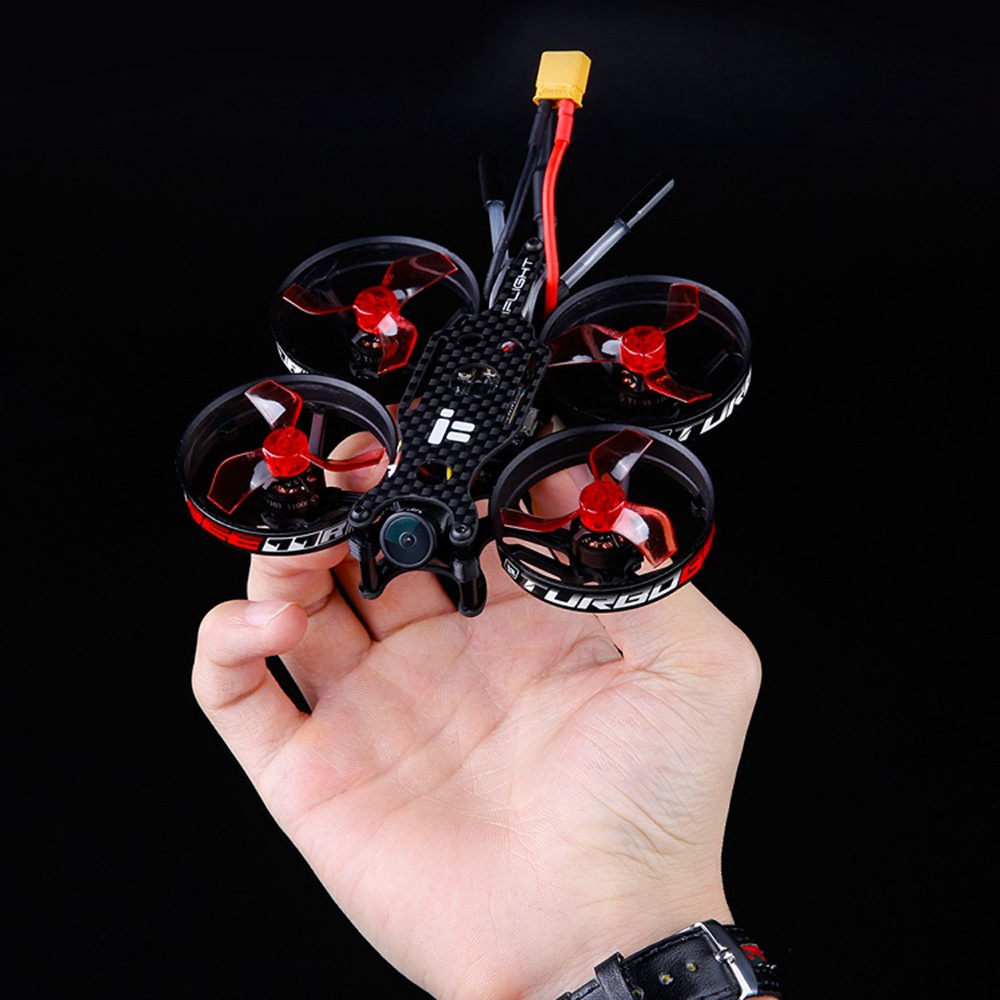

Iflight TurboBee 77R 77mm 2-4S Whoop FPV Racing Drone SucceX Micro F4 12A ESC Caddx Turbo EOS 2 BNF - Frsky XM+ Receiver

General

Brand: Iflight
Item Name: TurboBee 77R
Version: BNF (With Frsky XM+ Receiver)
Color: Black

Specification

TurboBee 77R Frame:

Frame Wheelbase: 77mm
Bottom plate thickness: 1.5mm
Top board thickness: 1mm
Flight control pitch: 16x16mm 20x20mm
Fpv cam spacing: 19mm
Top and bottom plate spacing: 22mm (aluminum column height

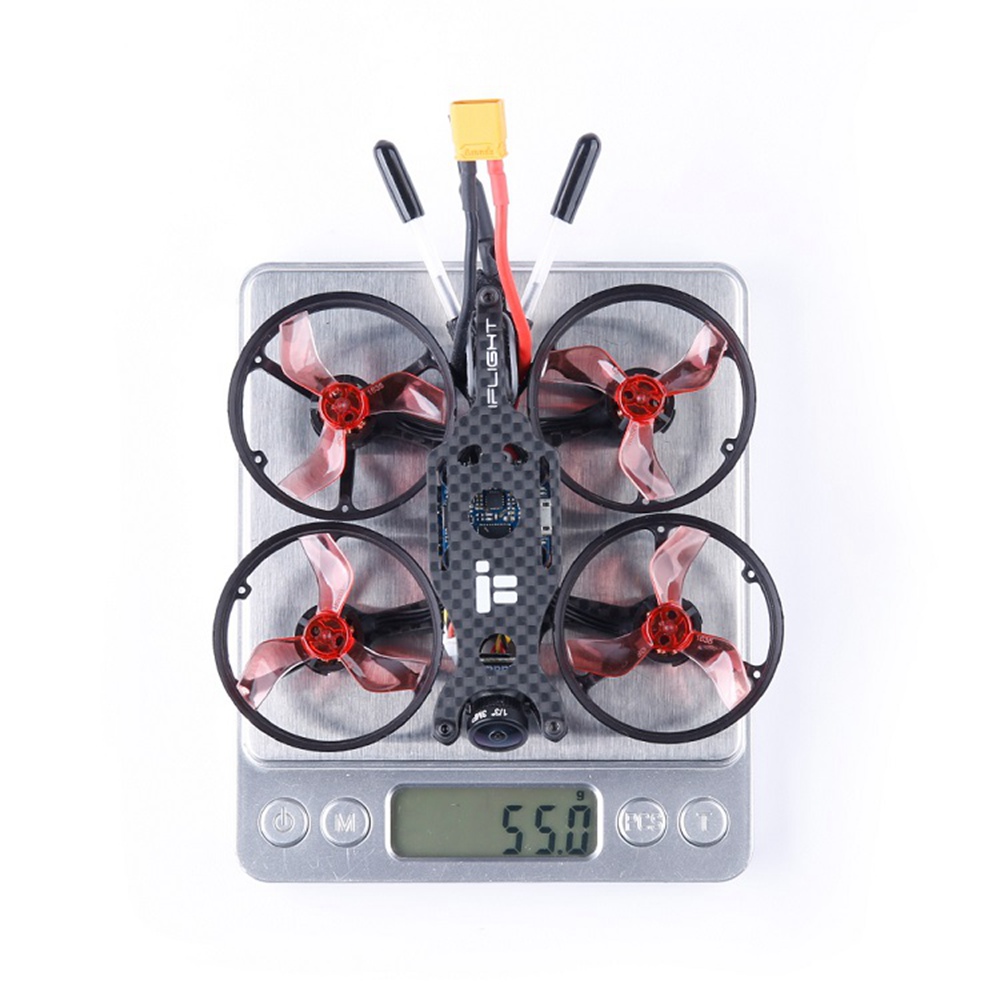

Build Weight: 55g

SucceX Mirco F4 Flight Tower System 16x16mm

SucceX F4 Flight Controller

STM32F411
Input voltage 2-4S LIPO
Gyro: MPU6000
2x UART ports
4x motor outputs
OSD inbuilt
No Blackbox FLASH
BEC 5V 2A Cont.
Size: 21mm*21mm
Mounting Holes: 16*16
Weight: 2.5g
BF target: MATEKF411

SucceX Mirco 12A Brushless ESC

Firmware: BlheliS
Input voltage : 2-4S LIPO
Continuous current: 12A
MCU: BB21F16G
BEC: None
ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.
Size: 23mm*21mm
Mounting hole 16*16mm
Weight: 2.7g

SucceX Mirco VTX-Power: PIT/25/100/200mW

Antenna interface: IPEX (UFL)
Telemetry: IRC Tramp
Size: 17mm*27mm
Mounting holes: 16*16mm
Weight: 1.6g

VTX control implementation:
VTX can be conveniently set up in your OSD.

Motor: iFlight 1103 motors (1.5mm shaft)
Propeller: Gemfan 1635 40mm 3 blades 1.5mm shaft propeller
Prop Guards: iFlight Prop Guards 40mm
Camera: Caddx.us Turbo Eos2

Weight & Dimensions

Package Contents

1 X Iflight TurboBee 77R Racing Drone (BNF Version)
