JJRC JJPRO P175 5.8G 48CH Raceband FPV With Skyline32 CMOS 800TVL Camera RC Racing Drone RTF

Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

Ready to fly

Ready to fly, no need of assembly and calibration.

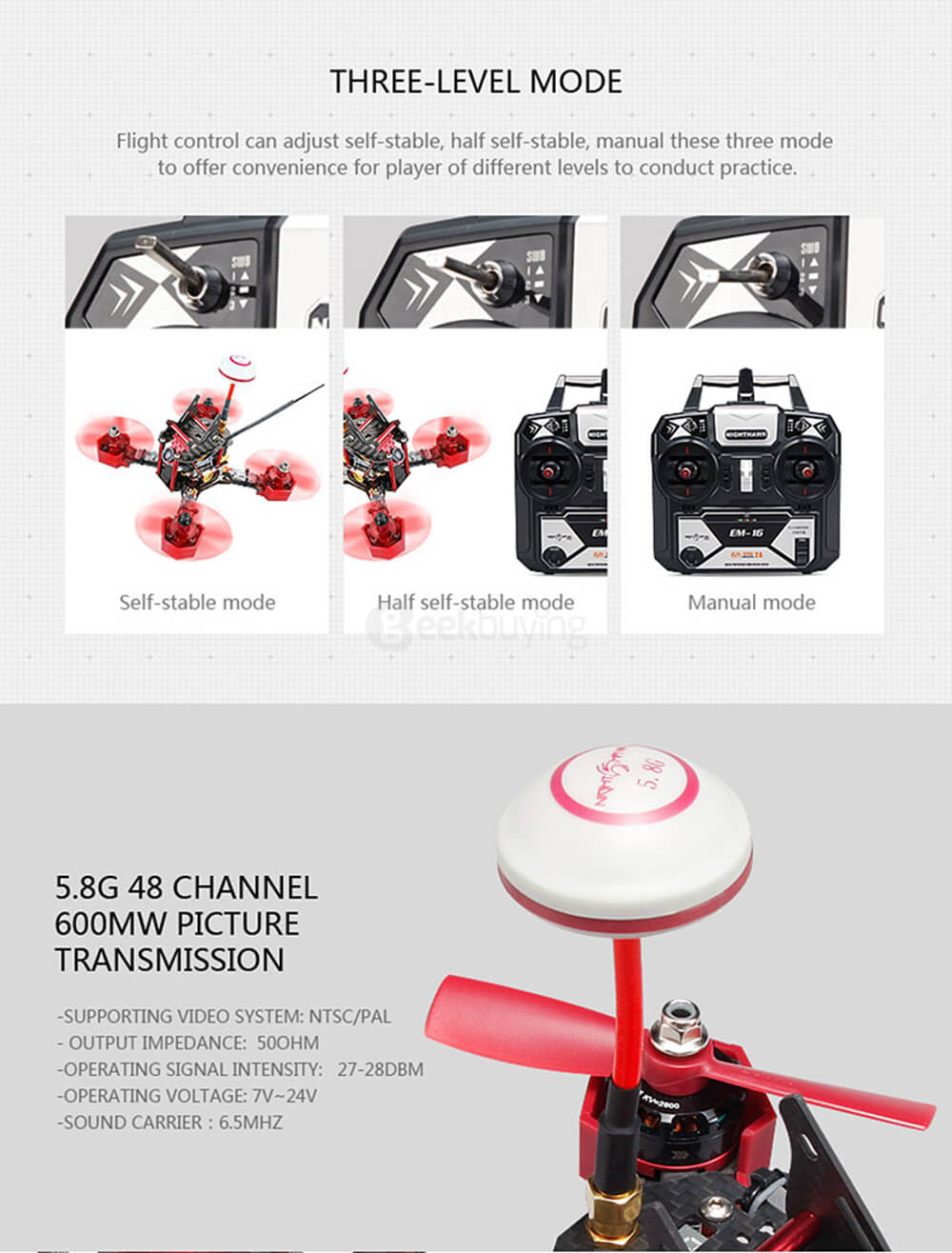

48CH Transmitter

Designed for professional competitions, adopts standard motor, upgraded 48CH image transmitter, 40CH of them meet the competition standard, RaceBand VTX CAM, compatible with 8 Fatshark channels, transmitter, goggles and display.

PDB

PDB supports 3S-6Sintegrates XT60, low volatage alarm, LED lights, 5V/12V double circuit BECthe ESC can be soldered directly.

Emax Skyline32 Acro

Emax Skyline32 Acro flight controller supports manual mode, angle mode, horizon mode, head-holding mode, head-free mode to adapt to players of different proficiency levels.

Motor Dock

Equipped with motor dock to protect the motor against external impact.

GOPRO Holder

Includes GOPRO carbon fiber holder with adjustable tilt angle from 30-45°, wider field of vision.

Specification

General
Brand JJPRO
Model P175
Quantity 1 Piece
Specification
Battery

3S 11.1v 1500mAh 30C

XT60 Plug

Size:70*35*22mm
Weight:113g

Motor

Brands: Emax
Model: RS2205

KV:2600
MAX Thrust:1024G

Length: 31.7MM
NO.OF Cell:3-4S

Diameter: 27.9MM
Framework: 12N14P

Shaft:M5
Propeller:5-6 inch

Weight: 30G

ESC

Brand:Emax

Model: Lightning 20A
Continuous Current:20A
Instantaneous Current(10S):30A
BEC: No
Input Voltage: 3-4S
MCU: F396
Weight: 5.5G
Size(without plug): 24.5x12.5x5mm

Power Output: 50Ohm
RF Impedance: 27-28dBm
Operating Voltage: 7V-24V
Audio carrier: 6.5MHz

Camera

Resolution: 800TVL

Operating Voltage: 7-12V
Image Sensor: 1/3 CMOS
Power consumption: 30mA 12
Lens: 2.2mm
Min.illumination: 0.1Lux/F1.2
Electronic Shutter Speed: 1/50(1/60)~1/100000 sec
Angle: 120°diagonal FOV, 80°horizontal FOV
Signal System: NTSC/PAL(default PAL)
Video Output:1.2Vp-p
External Signal Control Black & White Shift: Support
Filter Switch Drive: Support
Size:18.5mm*18.5mm

Flight controller Emax Skyline32 Acro
Product Specifications: 35x35x5mm
Weight: 4.5g

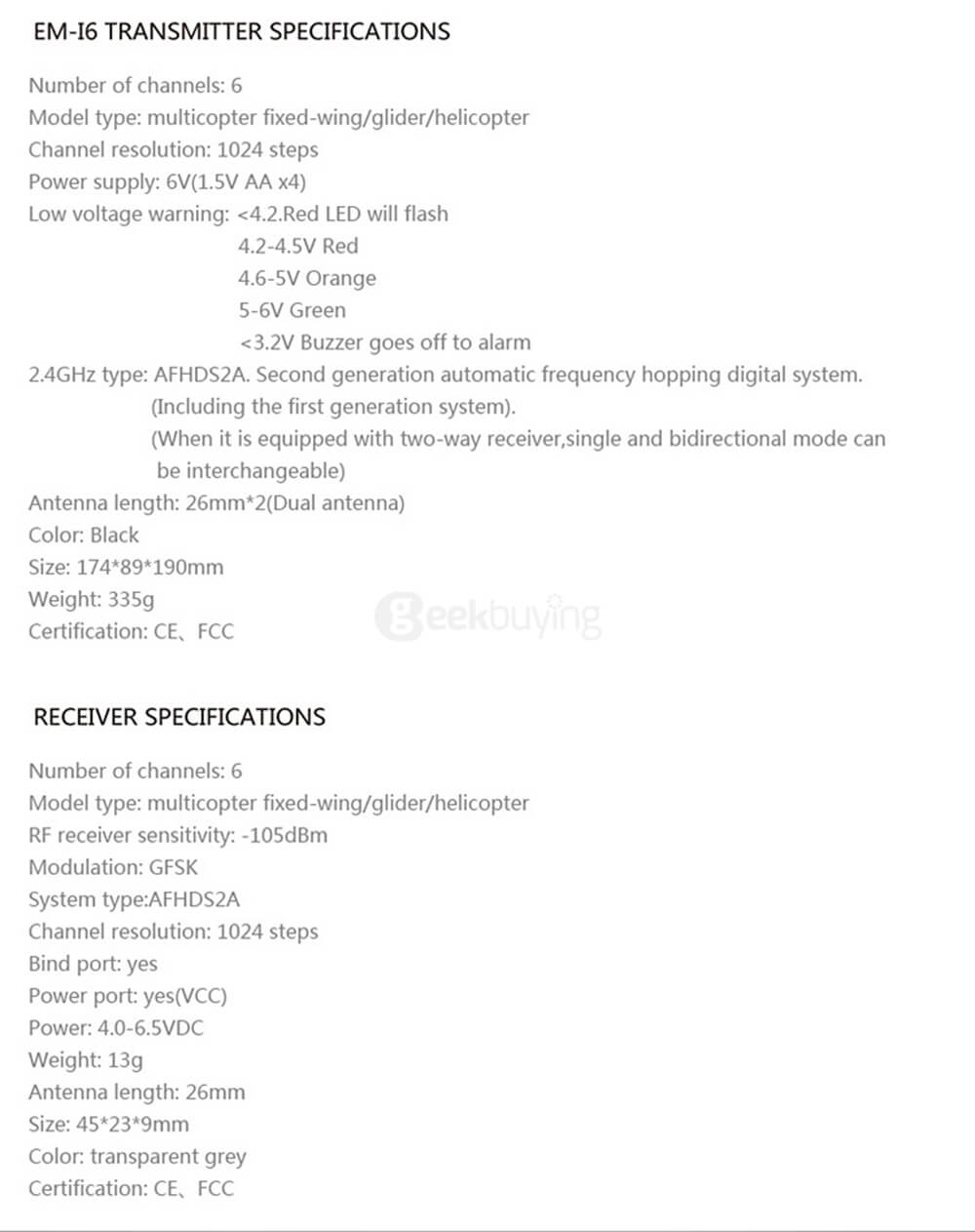

Transmitter

Channels: 6CH

Model type: multicopter fixed-wing/glider/helicopter
Channel resolution: 1024 steps
Power supply: 6V(1.5V AAX4)

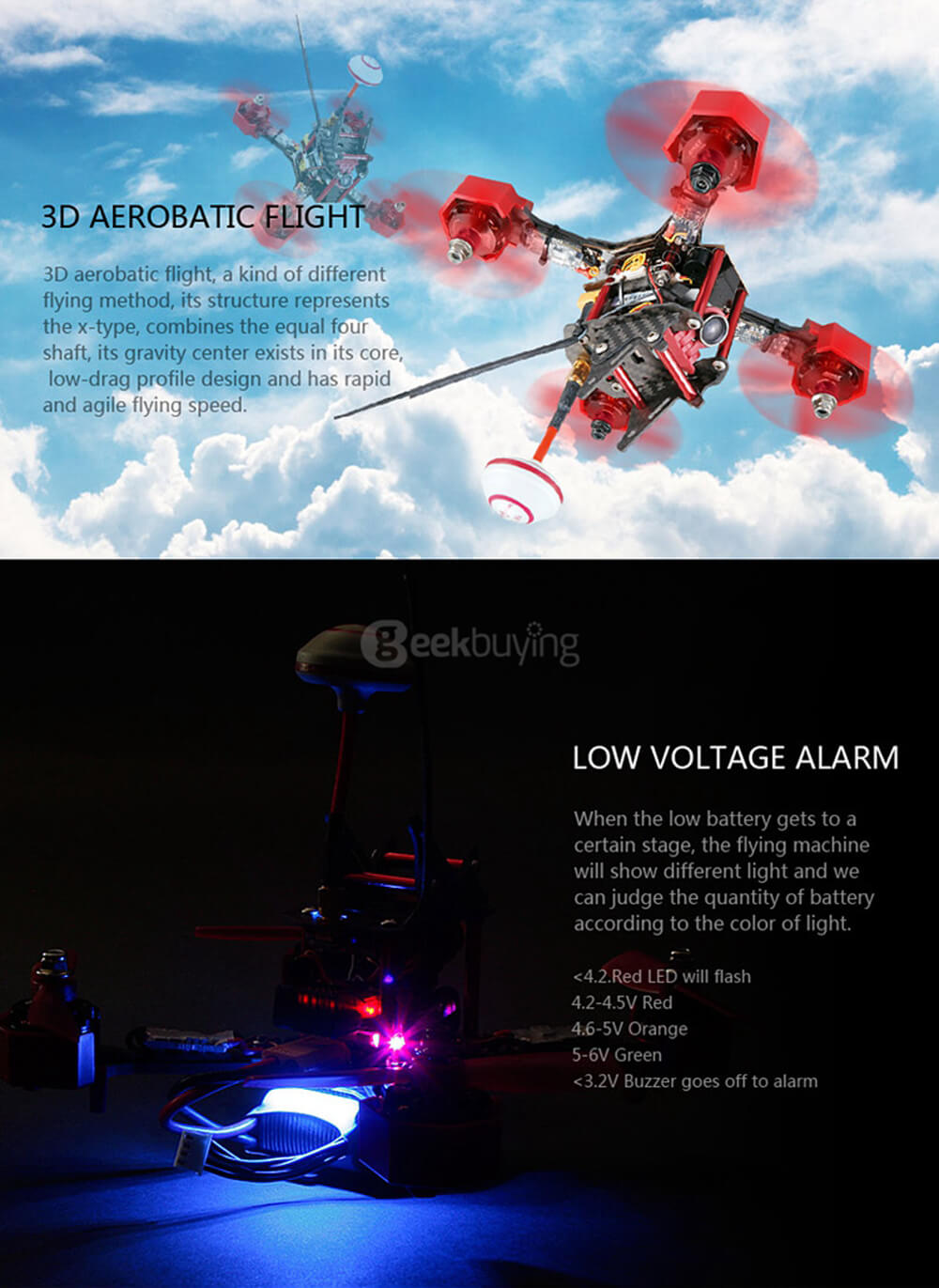

Low voltage warning: <4.2.Red LED will flash
4.2-4.5V Red
4.6-5V Orange
5-6V Green
<3.2V Buzzer goes off to alarm
2.4GHz type: AFHDS2A.Second generation automatic
frequency hopping digital system
(Including the first generation system)
(when it is equipped with two-day recei
single and bidirectional mode can be interchangeable)
Antenna length: 26mm*2(dual antenna)
Color: Black
Size: 174*89*190mm
Weight: 335g
Certification: CE,FCC

Receiver  Channels: 6CH
Model type: multicopter fixed-wing/glider/helicopter
RF receiver sensitivity: -105dBm;
Modulation: GFSK
System type: AFHDS2A
Channel resolution: 1024 steps
Bind port: yes
Power port: yes(VCC)
Power: 4.0-6.5VDC
Weight: 13g
Antenna length: 26mm
Size: 45*23*9mm
Color: transparent grey
Certification: CE,FCC
Dimensions & Weight (Main Product)
Dimension Wheelbase: 200mm
Weight: 134g
Main board: 3.5mm
Take off Weight: 351g
Weight(with box): 1.8KG
Weight
Package Contents
1 x JJRCPRO P175 Frame Kit

1 x EM-i6 Transmitter

1 x FS-A6 Receiver

1 x Skyline32 Acro Flight Controller
4 x RS2205 2600kv Motor
4 x Lightning 20A ESC
1 x 3S 11.1V 1300mAh 30C Battery
1 x 800TVL Camera
8 x 4045 Propeller (4*CW 4*CCW)
4 x Red Motor Base
1 x Power Connector
1 x Camera Mount
1 x Bracket for Gopro
1 x Antenna
1 x Charger
1 x Manual
