Highlights

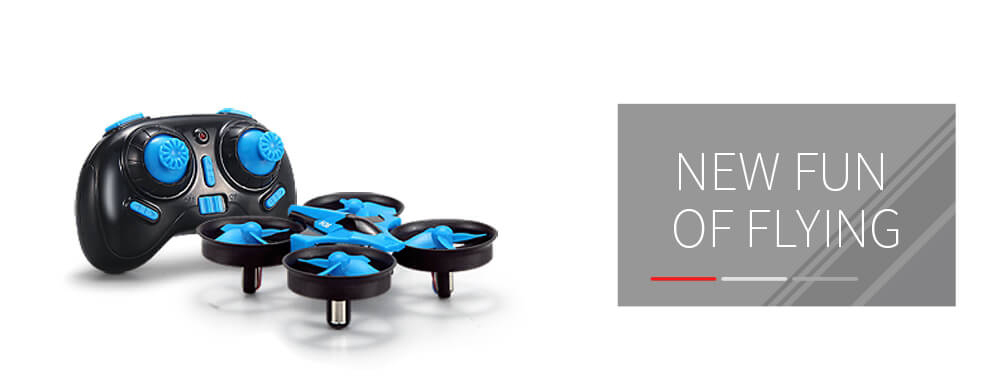

Easy to Build Tiny Whoop
This is a very simple build, just mount FX797T micro camera on top of the main board of JJRC H36, This combo is the perfect tiny whoop plug & play solution.
FX797T Camera
The FX797T Micro FPV Camera & 5.8GHz 40CH 25mW VTX is extremely small and could be installed on JJRC H36. The image quality is surprisingly good for such a micro camera.
Headless Mode
Headless mode ensures that the quadcopter will always follow controls from your perspective all the time, regardless of which way the quad is facing.
One Key to Return
One key to return function makes it easily to find the way home.
3D Roll
Just press the button on transmitter, and you get 360-degrees Flip, continuous roll for perfect action and wonderful performance.
LED Lights
The creatively designed LED lights are fitted for night flight possibilities, leaving a beautiful landscape in the night sky.
Function
Up / down / left turn / right turn / forward / back / left side fly / right side fly / speed file/ 360 ° flip/ a key return / headless mode / memory function
Specification
| General | |
|---|---|
| Brand | JJRC |
| Model | H36 |
| Quantity | 1 Piece |
| Color | Blue |
| Specification | |
| Frequency | 2.4G |
| Channel | 4CH |
| Gyro | 6 Axis |
| Quadcopter battery | 3.7V 150mAh Lipo (Included) |
| Charging time | about 30-50 minutes |
| Flight time | About 5 minutes |
| Control distance | 30 meters |
| Transmitter battery | 2 * 1.5 AA(Not included) |
| FX 797T Camera | |
| General | Frequency: 5.8GHz 5 bands 40 channels, with Raceband 5658 - 5917MHz Output power: 25mW Input power: 2.5 - 5V Current consumption: 230mA Camera resolution: 600TVL Min illumination: 1 lux Field of view: 120 degree viewing angle Antenna: 3 lobes right hand circular polarized Video output: NTSC |
| Dimensions&Weight | Dimension: 20×17×38mm Product weight: 4.5g |
| Dimensions & Weight (JJRC H36 Quadcopter) | |
| Dimension | 9.5 * 9.5 * 5cm/3.74 * 3.74 * 1.96inches |
| Weight | 22.5g(with Lipo Battery)/0.79oz |
| Package Contents | |
|
1x JJRC H36 RC Quadcopter |
|
| 1x Transmitter | |
| 1x FX797T 600TVL Camera | |
| 1x Camera Mount for FX797T(Random Color) | |
| 1x USB charging cable | |
| 4x Propellers | |
| 1x Manual | |
| 5 star: | (0) | |
| 4 star: | (0) | |
| 3 star: | (0) | |
| 2 star: | (0) | |
| 1 star: | (0) |
JJRC H36 English Manual: Click here
