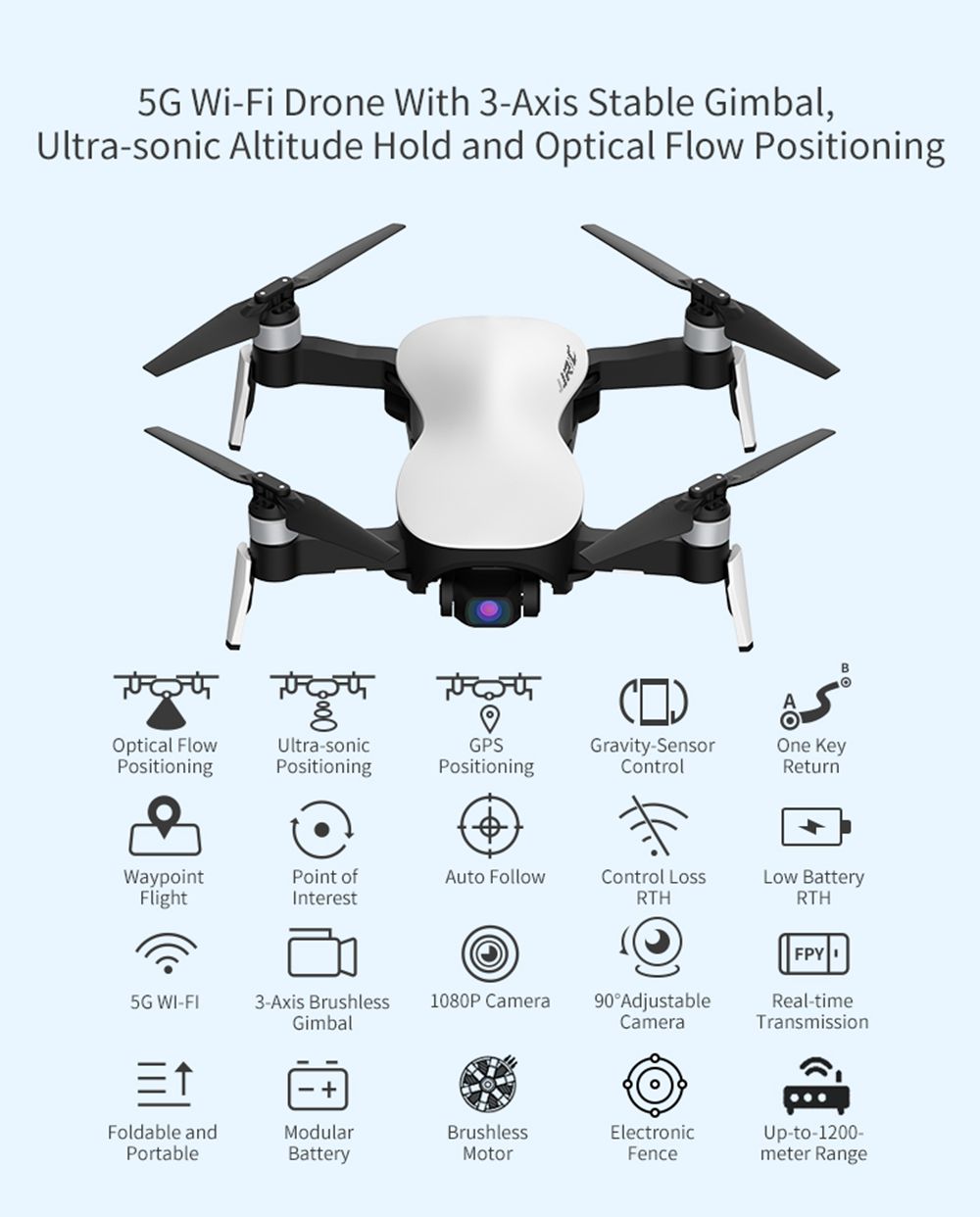

JJRC X12 AURORA 5G WIFI 1.2km FPV GPS Foldable RC Drone With 1080P 3Axis Gimbal Ultrasonic Optical Flow Positioning RTF - White One Battery With Bag

General

Brand: JJRC
Item Name: AURORA
Item No.: X12
Color: White
Version: RTF(With Bag)
Material: Electronic

Specification

Aircraft
Wheelbase: 216mm

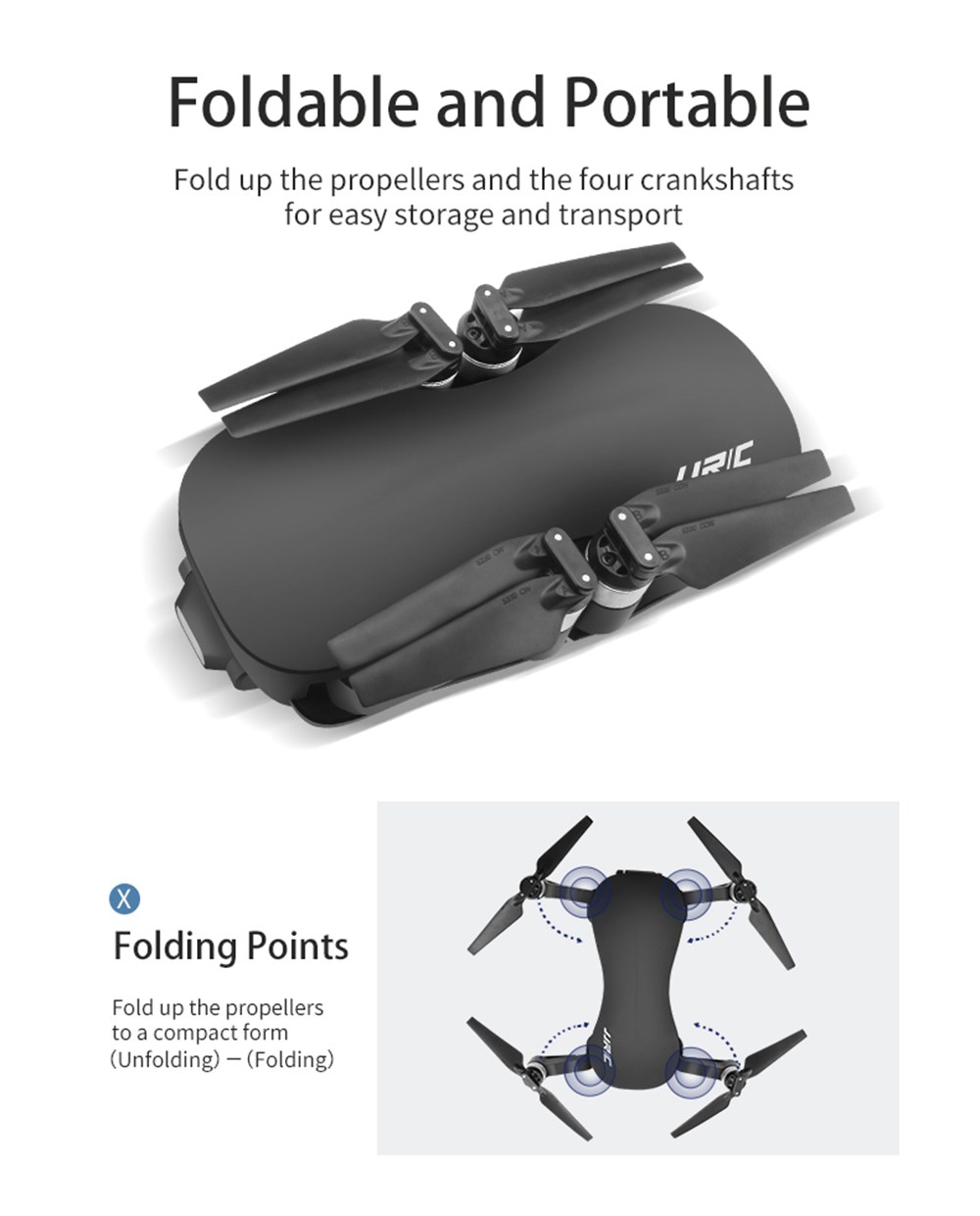

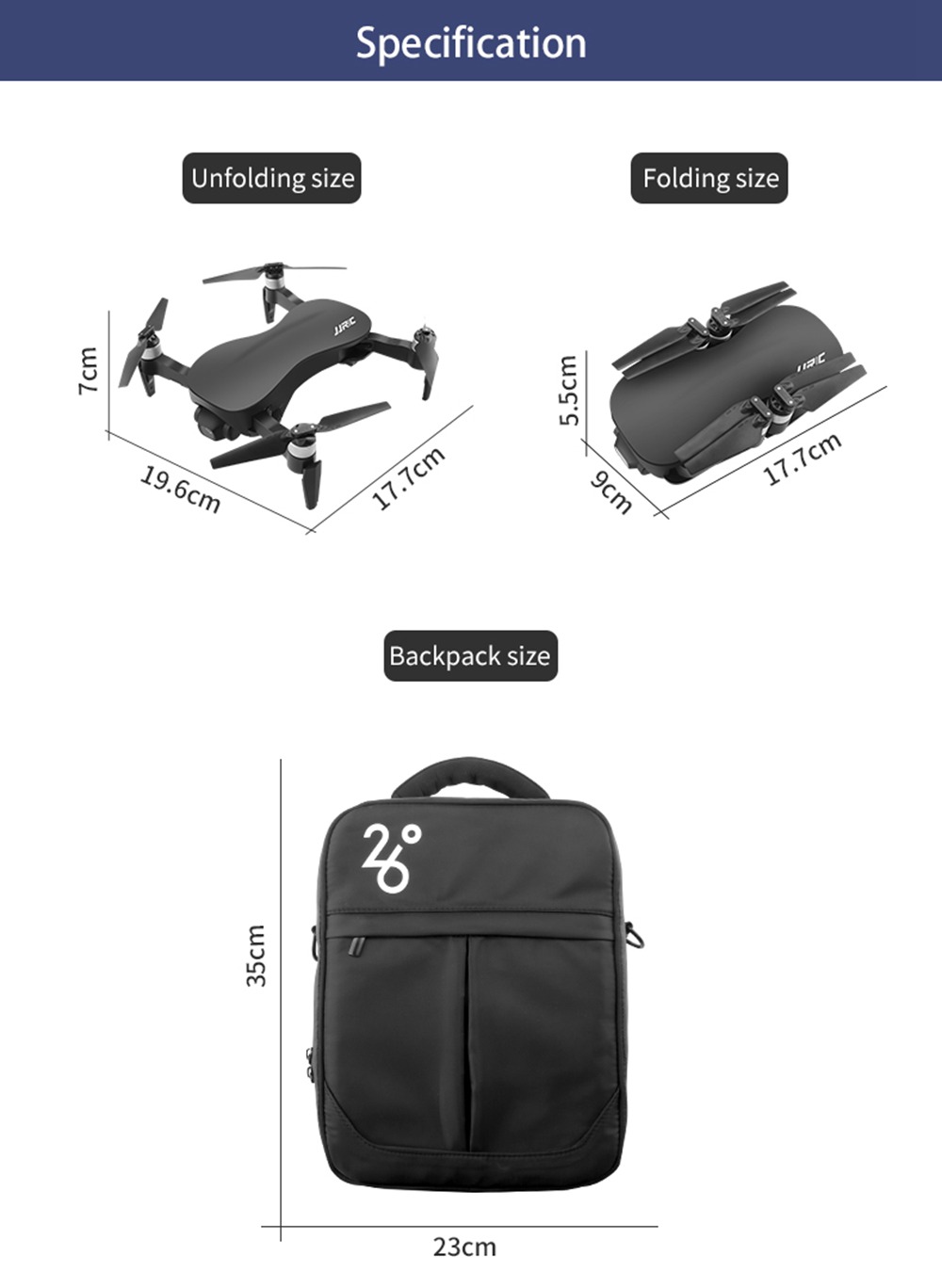

Size: 17.2 X 9 X 5.5cm(Folding Size)
         19.6 X 17.7 X 7cm(Expand Size)
Weight: 415g
Max. Ascent Speed: 2m/s
Max. Descent Speed: 1.5m/s
Max. Flight Speed: 21.6km/h
Max. Limit Height: 5000m
Hovering Accuracy Range: Vertical:  +/-0.5m,±0.2m(Optical flow positioning, ultrasonic high-level normal operation)
                                           Horizontal: +/-1.5m;±0.3m(Optical flow positioning works normally)
Working Frequency: 5745MHz or 5825MHz
GNSS: GPS/GLONASS
EIRP: FCC ≤23dBm
          CE:≤14dBm

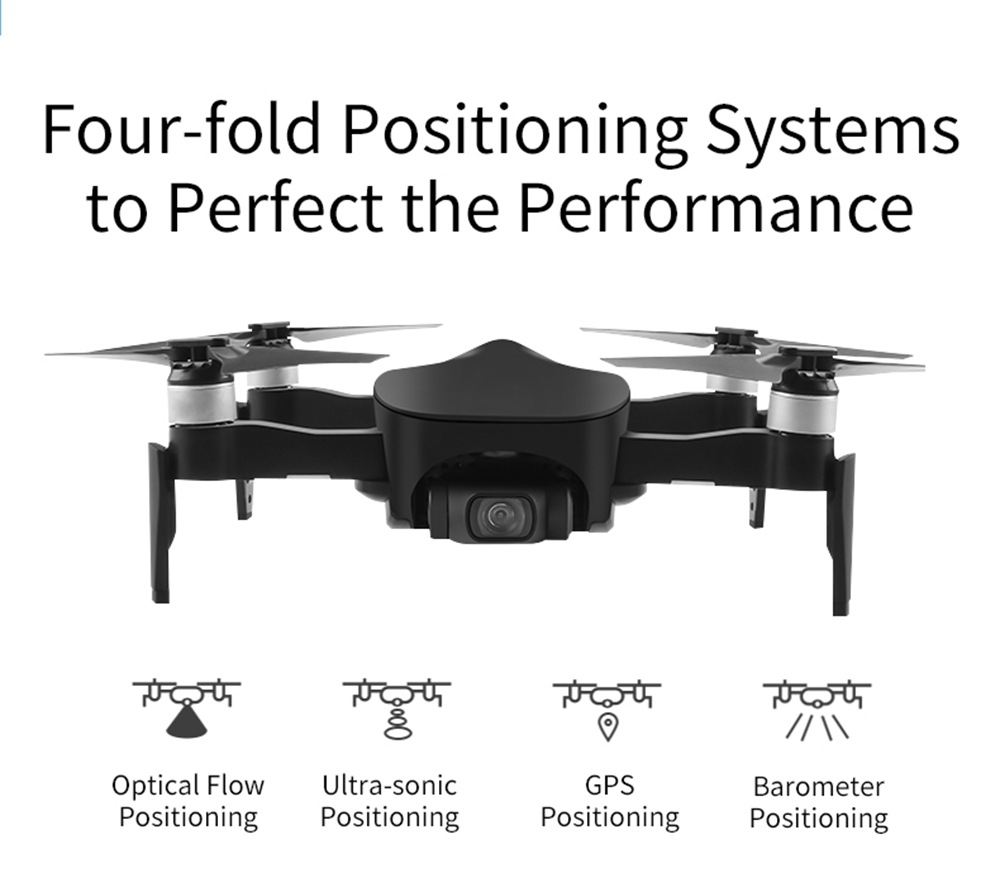

Positioning System

Optical Flow: Support
Use Environment: Rich texture on the surface, Adequate lighting conditions
                              (Less than 15lux, Indoor fluorescent lamp normal illumination environment)
Speed Measurement Range: Flight Speed 1.5m/s(height 2m,Ample light)
Height Measurement Range: 0.5-4m

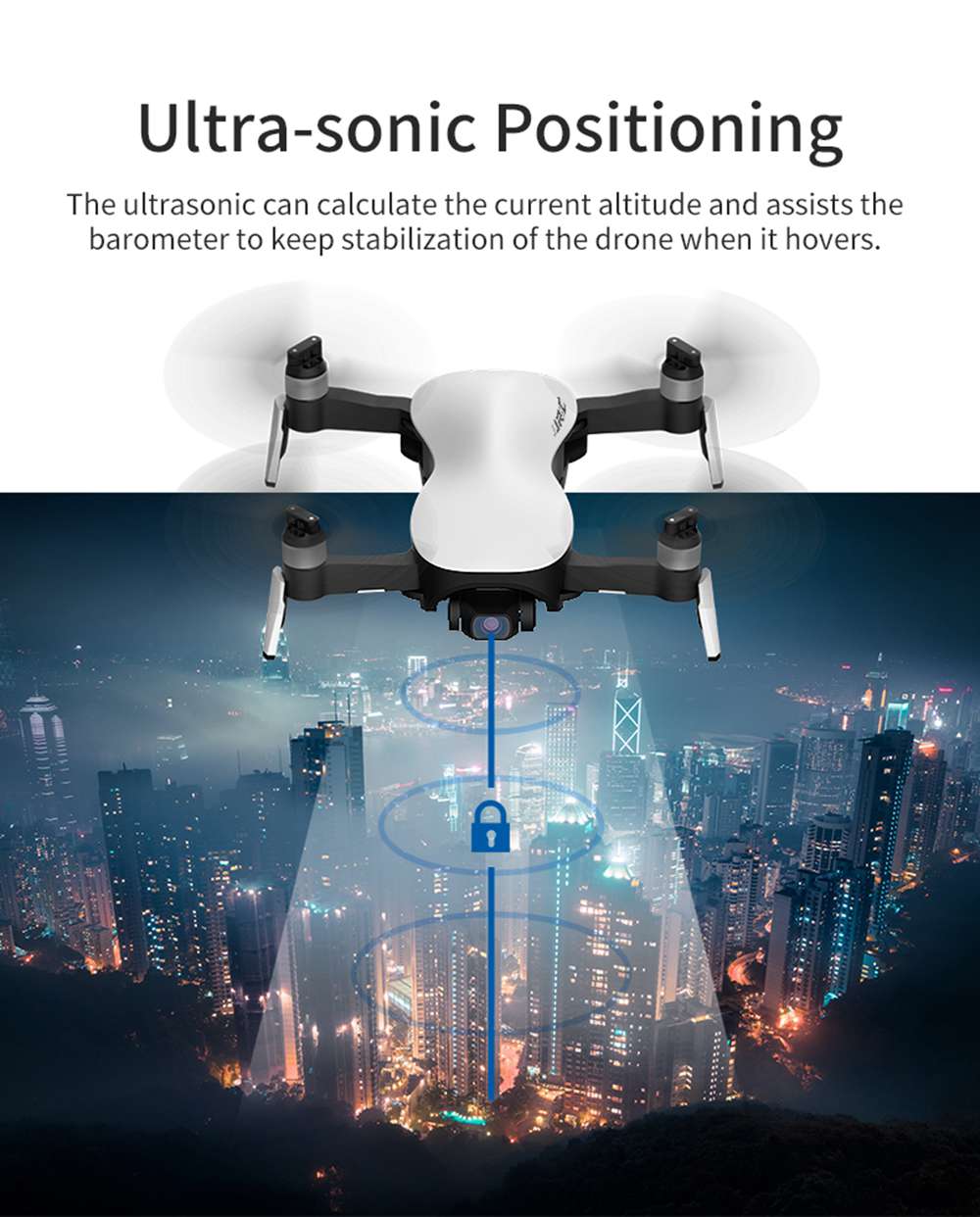

Ultra-sonic: Support
Use Environment: Except for the surface of the water or absorbing material
Speed Measurement Range: Flight Speed ≤3m/s
Height Measurement Range: 0.2-4m

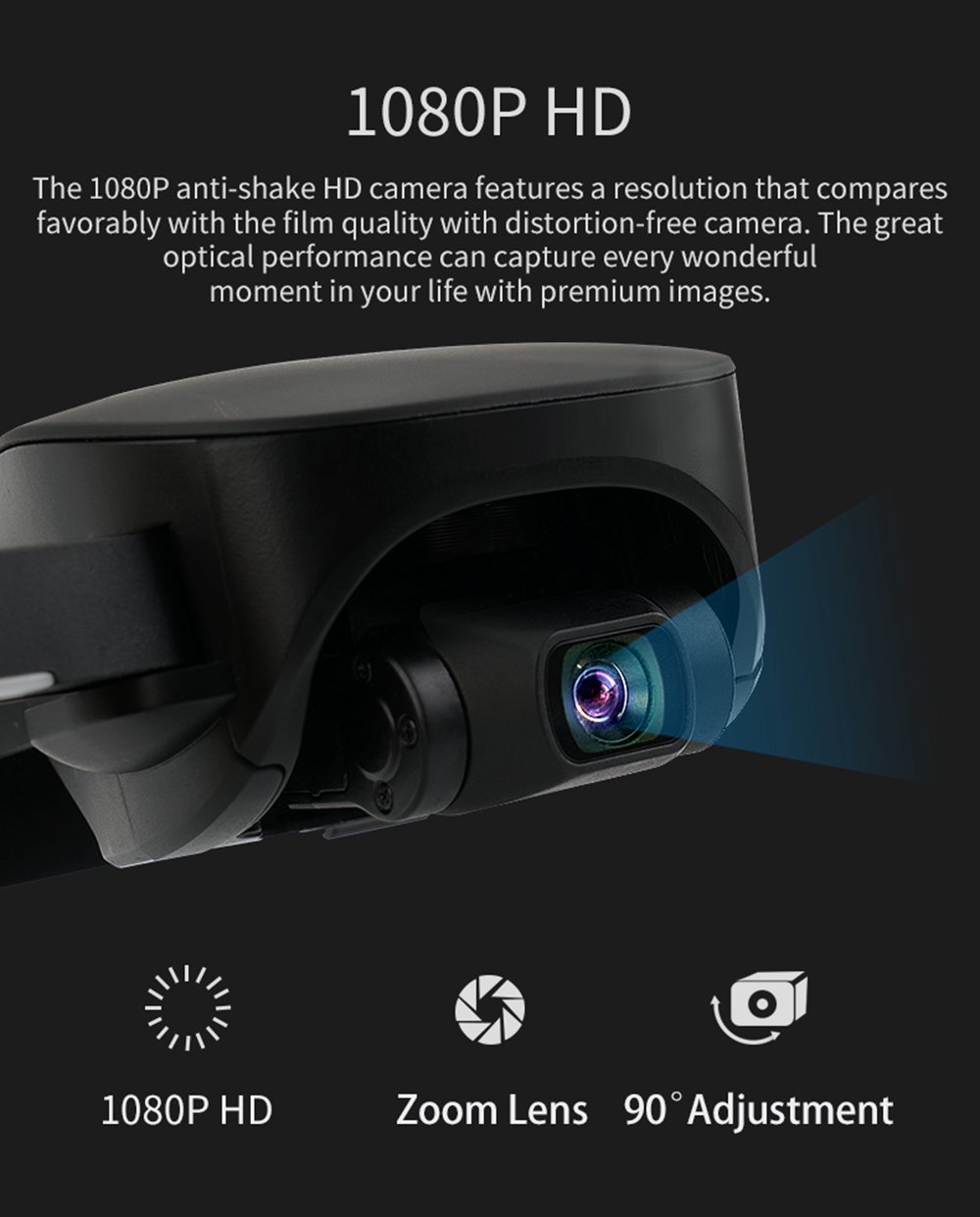

Camera
Effective Pixels: 1080P
Video Frames: 25FPS
Sensor: 1/2.7 CMOS
Lens Angle: FOV 80°
Aperture: f/2.6
ISO: Video 100-3200
        Photo 100-1600
Photo Taking Mode: Single Shot
Max. Stream: 8Mbps
Support File System: FAT32
Image Format: JPEG
Video Format: MP4
Photo Resolution: 1920 X 1080
Video Resolution: 1920 X 1080

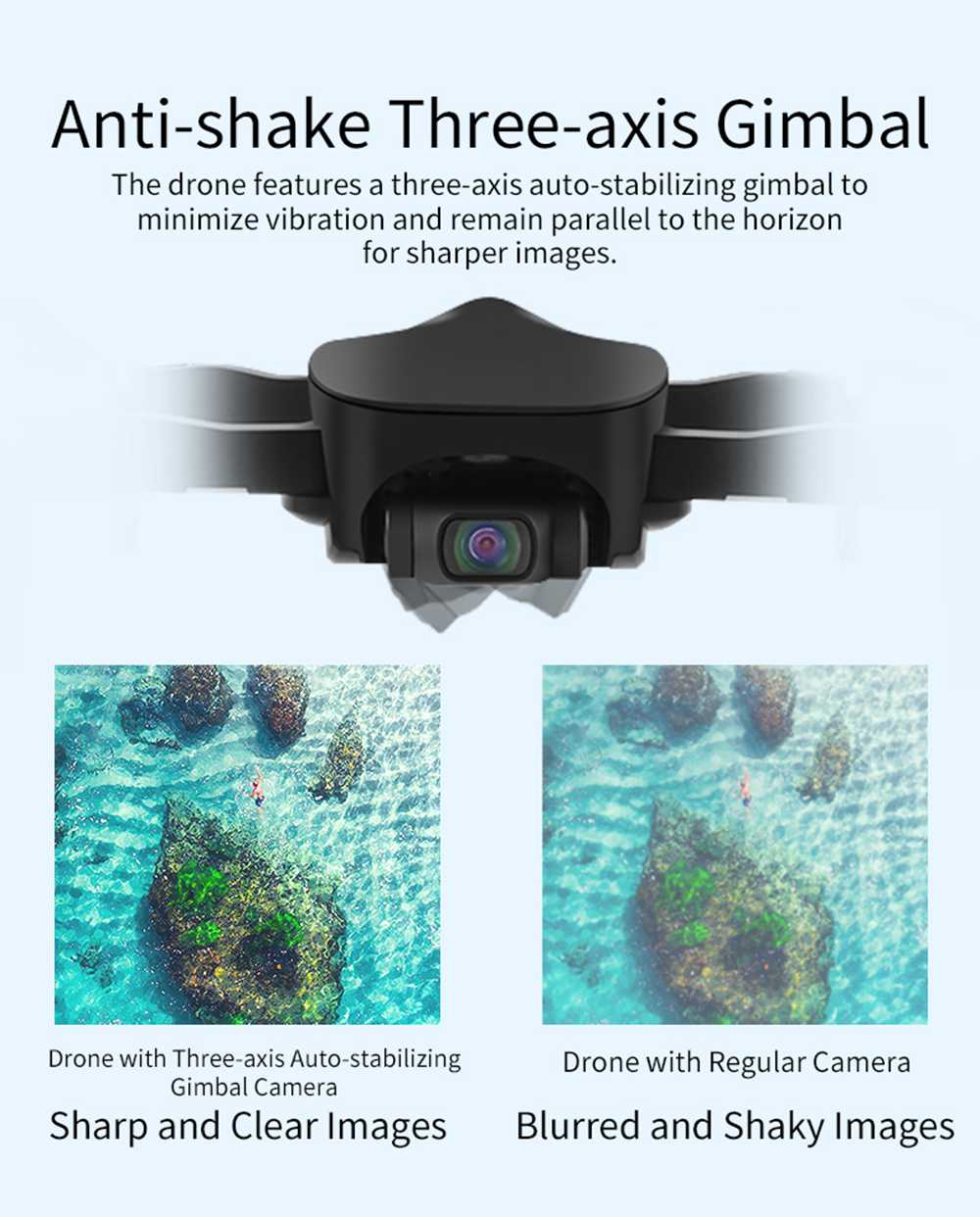

Gimbal
Stabilization Mode: Mechanical stabilization
Stabilization: 3-Axis(Tilt,Roll,Pan)
Tilt: +30/-100°
Roll: ±30°
Pan: ±15°

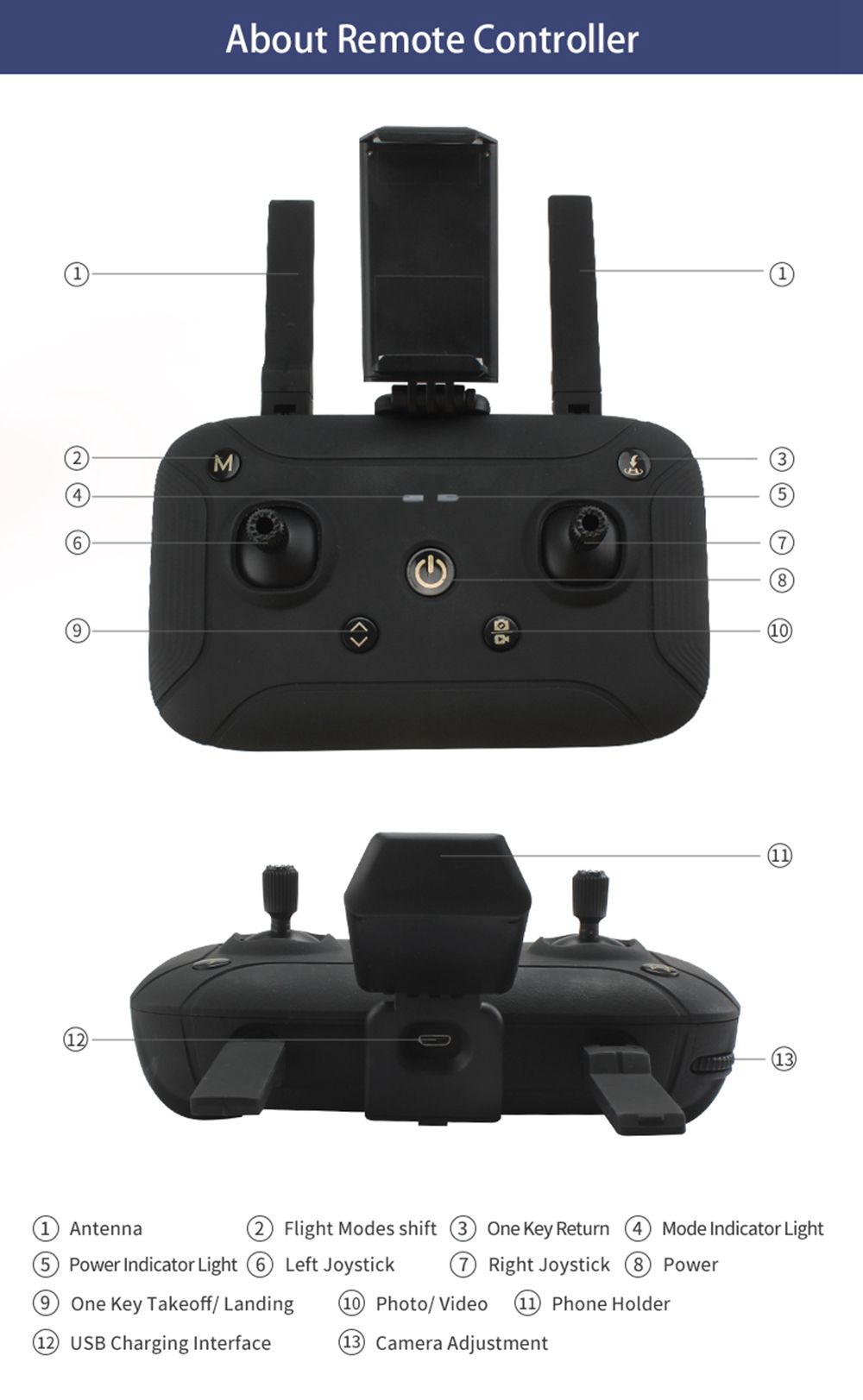

Remote Controller
Operating Frequency: 5.8Ghz
Max. signal effective distance: 2000m
EIRP: FCC:≤26dBm
          CE:≤14dBm
          SRRC: ≤20dBm
Working Current/Voltage: 300-500mA@3.7V
Transmitter Battery:
Battery Type: Lipo 18650 1S
Capacity: 2600mAh
Voltage: 3.7V
Energy: 9.62Wh
Charging Method: USB
Using Time: About 3h
Max. Power: 5W
Charging Method: USB interface
Interface Type: Micro USB
Mobile Device Bracket: Thickness: 6.5-8.5mm
                            The max. length: 80mm

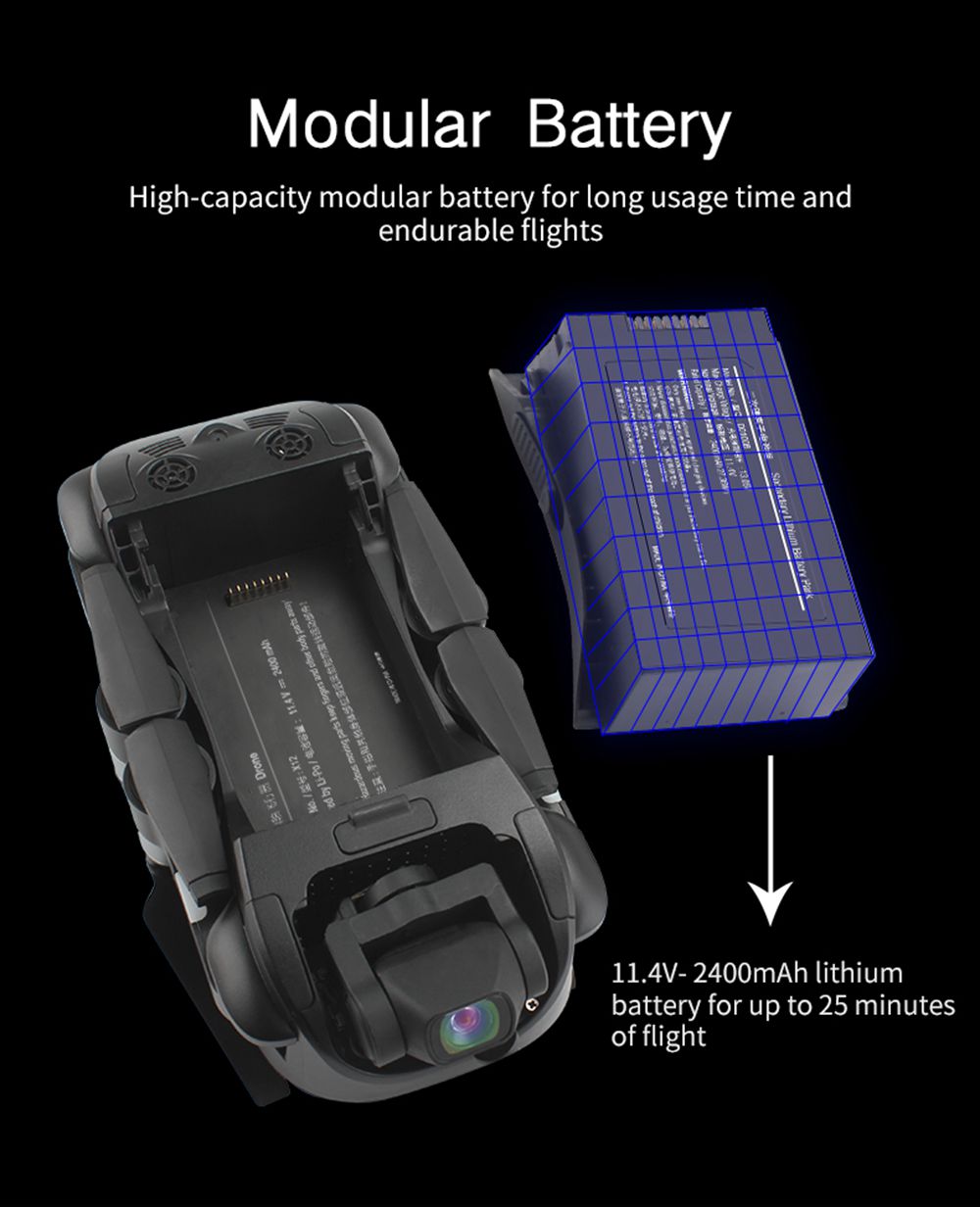

Battery
Weight: 150g
Battery Type: Lipo 3S
Capacity: 2400mAh
Voltage: 11.4V
Energy: 27.36Wh
Flying Time: About 25mins
Charging Time: About 4.5h(DC 5V/2A)
Max. Charging Power: 30W
Working Temperature: 0-40 Celsius

Charger
Input: 5V 2A
Output: 4.35V 0.7A X 3
Rated Power: 10W

WIFI Mode
Working Frequency: 5.8G
Max.signal effective distance: Horizontal: 200m
                                                     Vertical: 120m
Max. horizontal flight speed: 10km/h
Max. rising speed: 2m/s
Max. falling speed: 1m/s

APP
Name: C-fly
Video Transmission System: 5G WiFi(802.11.ac)
Live View Quality: 720P
Required Operating Systems: IOS 9.0 or later/Android 5.0 or later
FPV Distance: About 1.2km (Free interference and no occlusion)

SD Cards: Supported
Supported SD Cards: Micro SD Class10 And above or UHS-1 Micro SD Card
Max. Expansion: 64GB

Weight & Dimensions

Product Weight: 415g

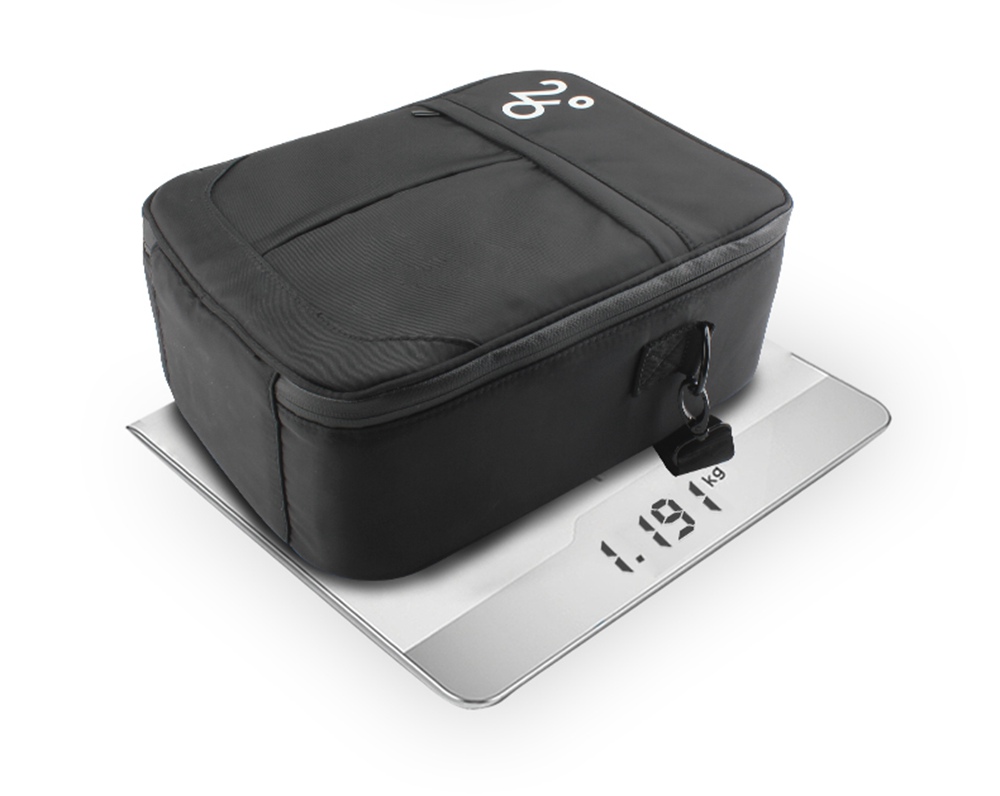

Package Weight: 1.191kg

Product Size (L x W x H): 17.2 x 9 x 5.5cm

Package Size (L x W x H): 38 x 26 x 13.5cm

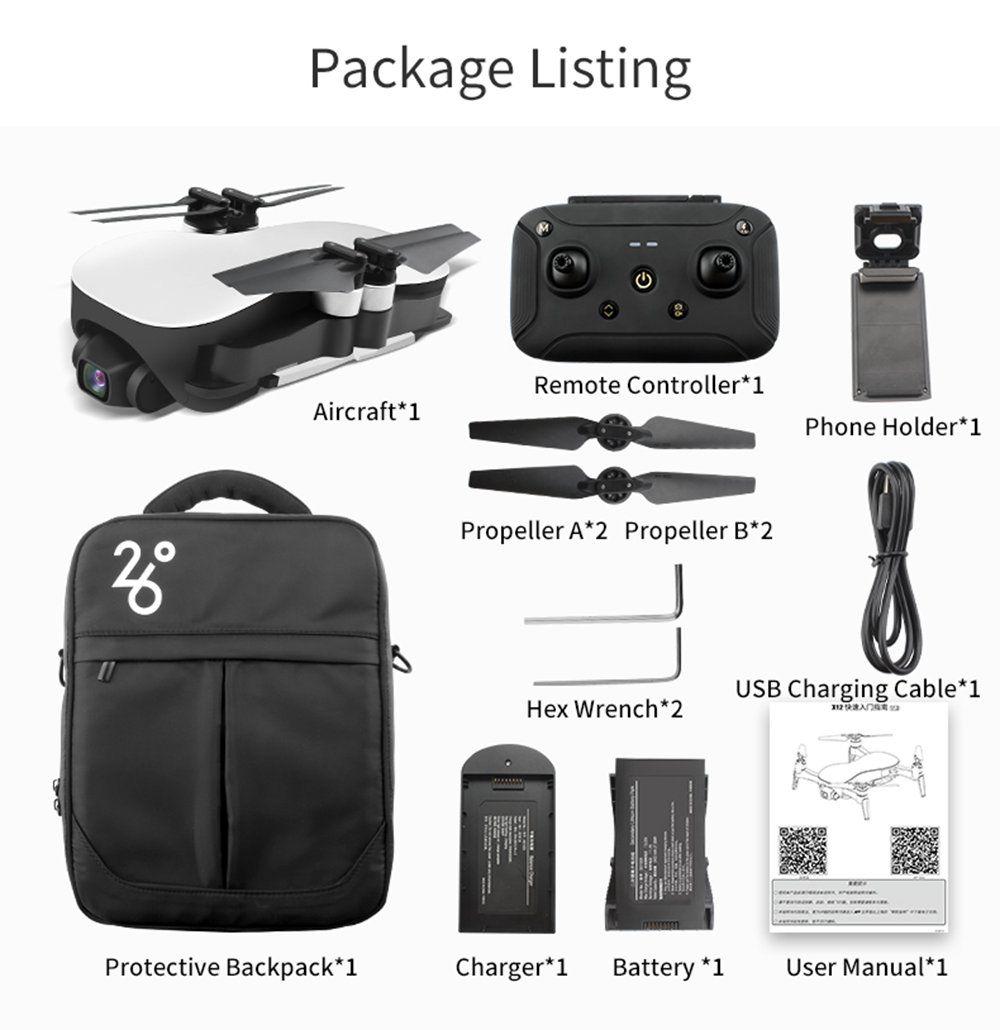

Package Contents

1 x Aircraft
1 x Remote Control
1 x Battery

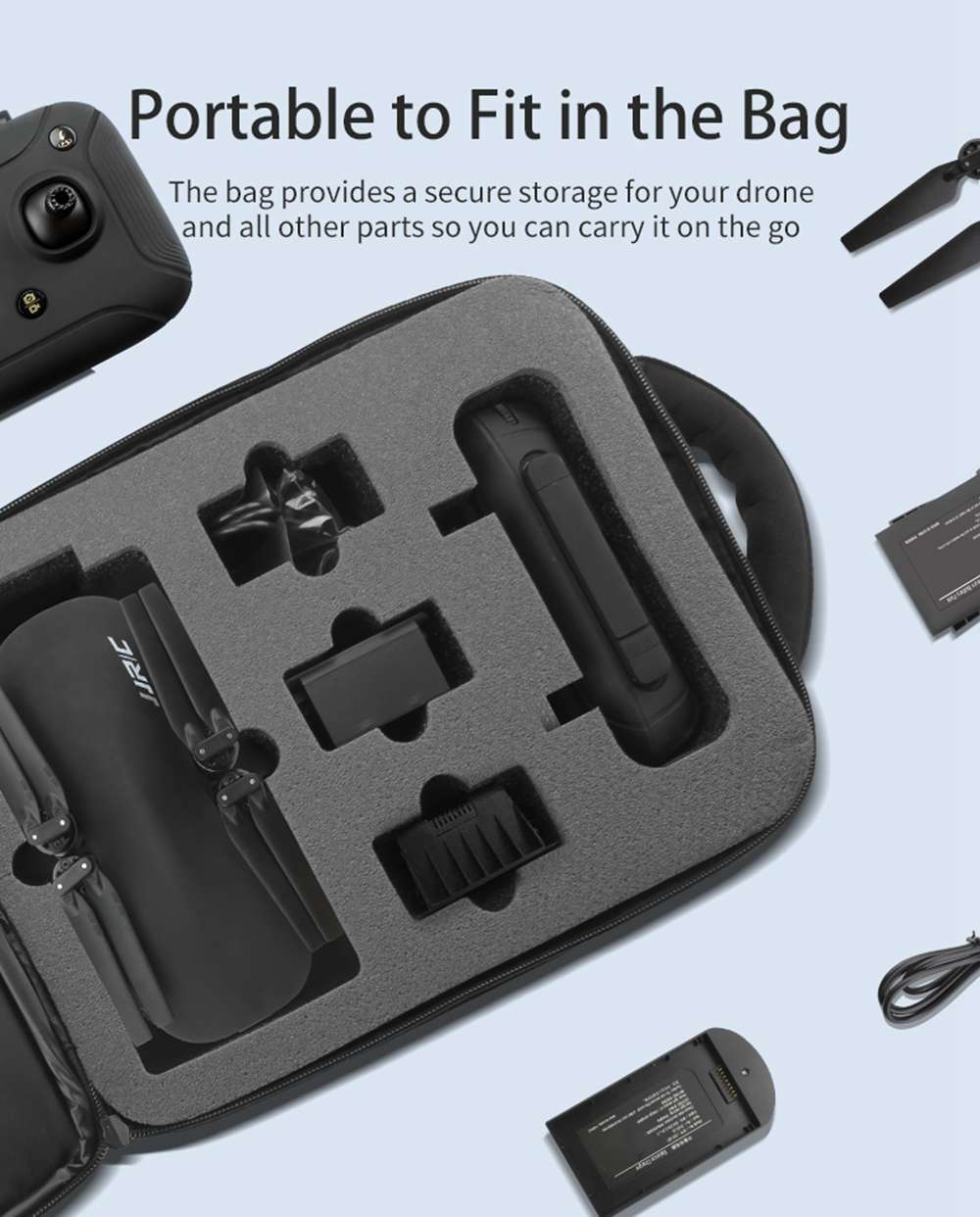

1 x Bag
1 x USB Cable
1 x Balance Charger
1 x Mobile Phone Holder
2 x Propellers
1 x Manual
