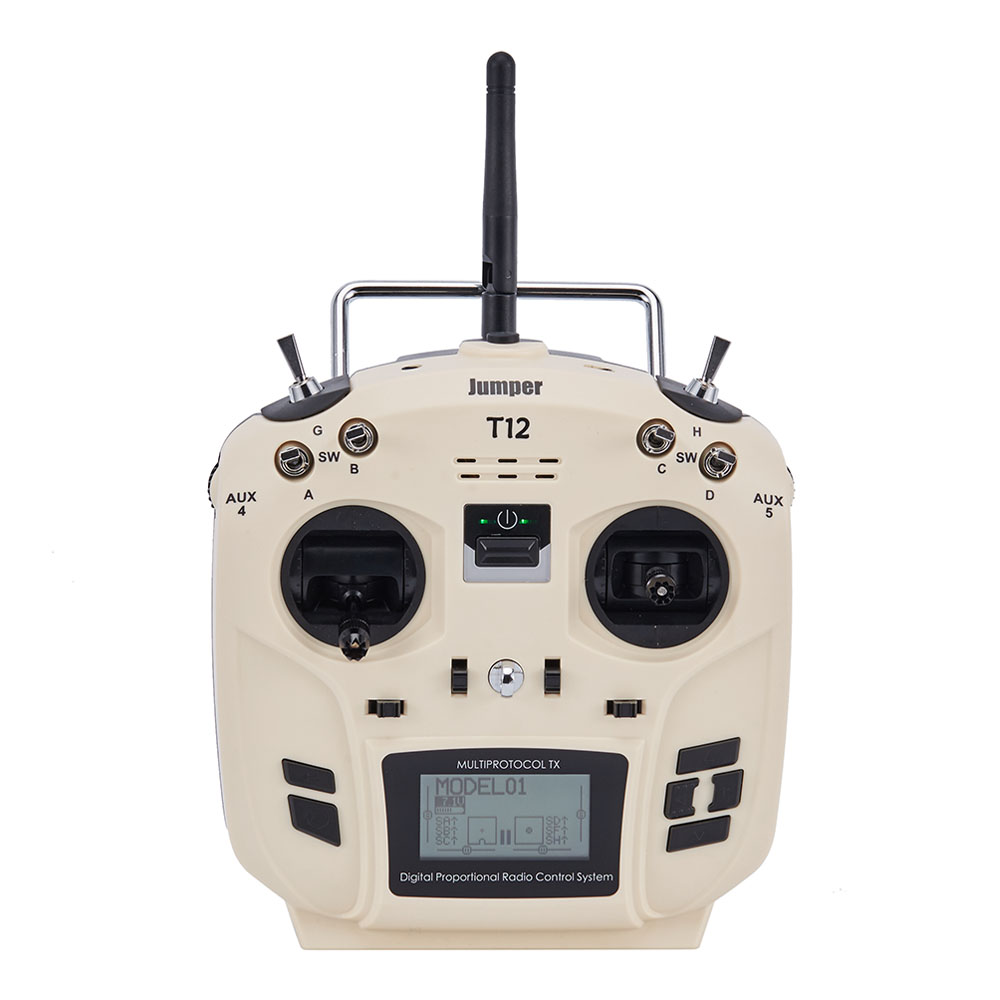

Jumper T12 2.4G 16 Channel OpenTX Transmitter Multi-protocol with Jumper JP4-in-1 Module 1.7 inch LCD - Mode 2

Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

Open Source Firmware

Open source multi-protocol firmware, Based on OpenTX

JP4-in-1 Module

With Jumper JP4-in-1 Module

Firmware Upgrade

USB online firmware upgrade

Long Using Time

Ultra-low power consumption, longer battery life

16 Channels

Up to 16 channels of output (depending on the receiver), Open Source Firmware, all channels are fully programmable

Multilingual Menu

Wide voltage input (2s lipo recommended), Multilingual menu

Vibration Reminder Function

Vibration reminder function, Support telemetry (depending on the receiver)

Excellent Compatibility

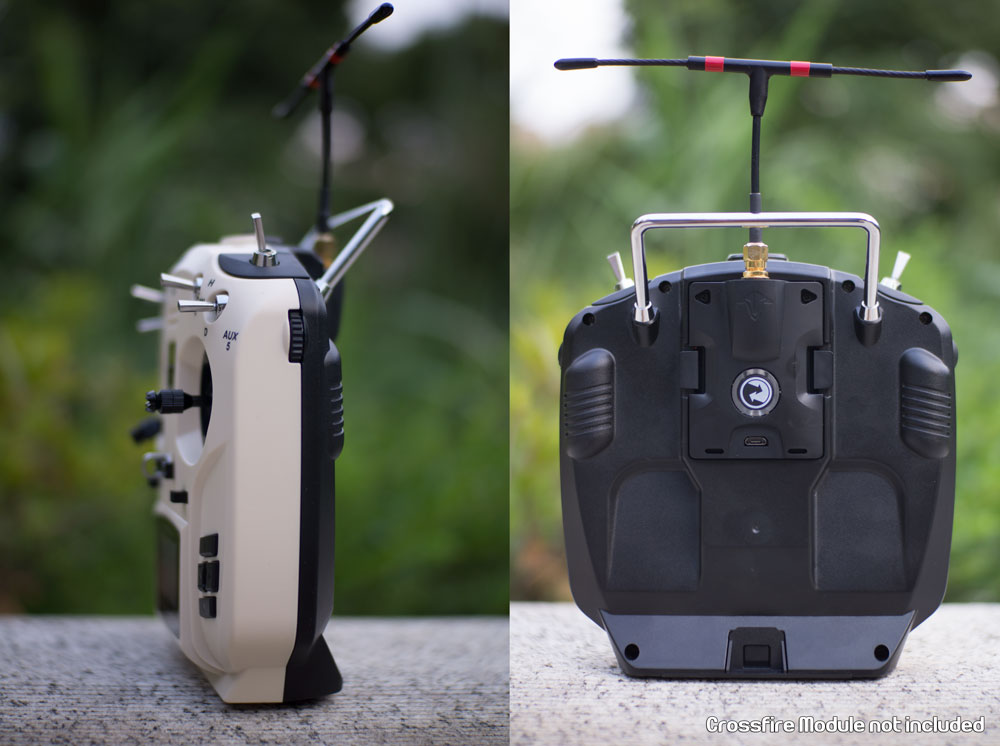

Crossfire CSRF Compatible and support LUA Script

Jumper T12 2.4G 12 Channel OpenTX Transmitter Multi-protocol with Jumper JP4-in-1 Module 1.7 inch LCD - Mode 2Jumper T12 2.4G 12 Channel OpenTX Transmitter Multi-protocol with Jumper JP4-in-1 Module 1.7 inch LCD - Mode 2Jumper T12 2.4G 12 Channel OpenTX Transmitter Multi-protocol with Jumper JP4-in-1 Module 1.7 inch LCD - Mode 2Jumper T12 2.4G 12 Channel OpenTX Transmitter Multi-protocol with Jumper JP4-in-1 Module 1.7 inch LCD - Mode 2Jumper T12 2.4G 12 Channel OpenTX Transmitter Multi-protocol with Jumper JP4-in-1 Module 1.7 inch LCD - Mode 2Jumper T12 2.4G 12 Channel OpenTX Transmitter Multi-protocol with Jumper JP4-in-1 Module 1.7 inch LCD - Mode 2Jumper T12 2.4G 12 Channel OpenTX Transmitter Multi-protocol with Jumper JP4-in-1 Module 1.7 inch LCD - Mode 2Jumper T12 2.4G 12 Channel OpenTX Transmitter Multi-protocol with Jumper JP4-in-1 Module 1.7 inch LCD - Mode 2

Specification

General

Brand: Jumper
Item No.: T12
Mode: Mode 2
Size: 15.8 x 15 x 5.8cm
Weight: 342g (without battery)
Working voltage: DC5-DC9V (factory with 4 * AA battery box, 2s Lipo recommended, batteries not included)

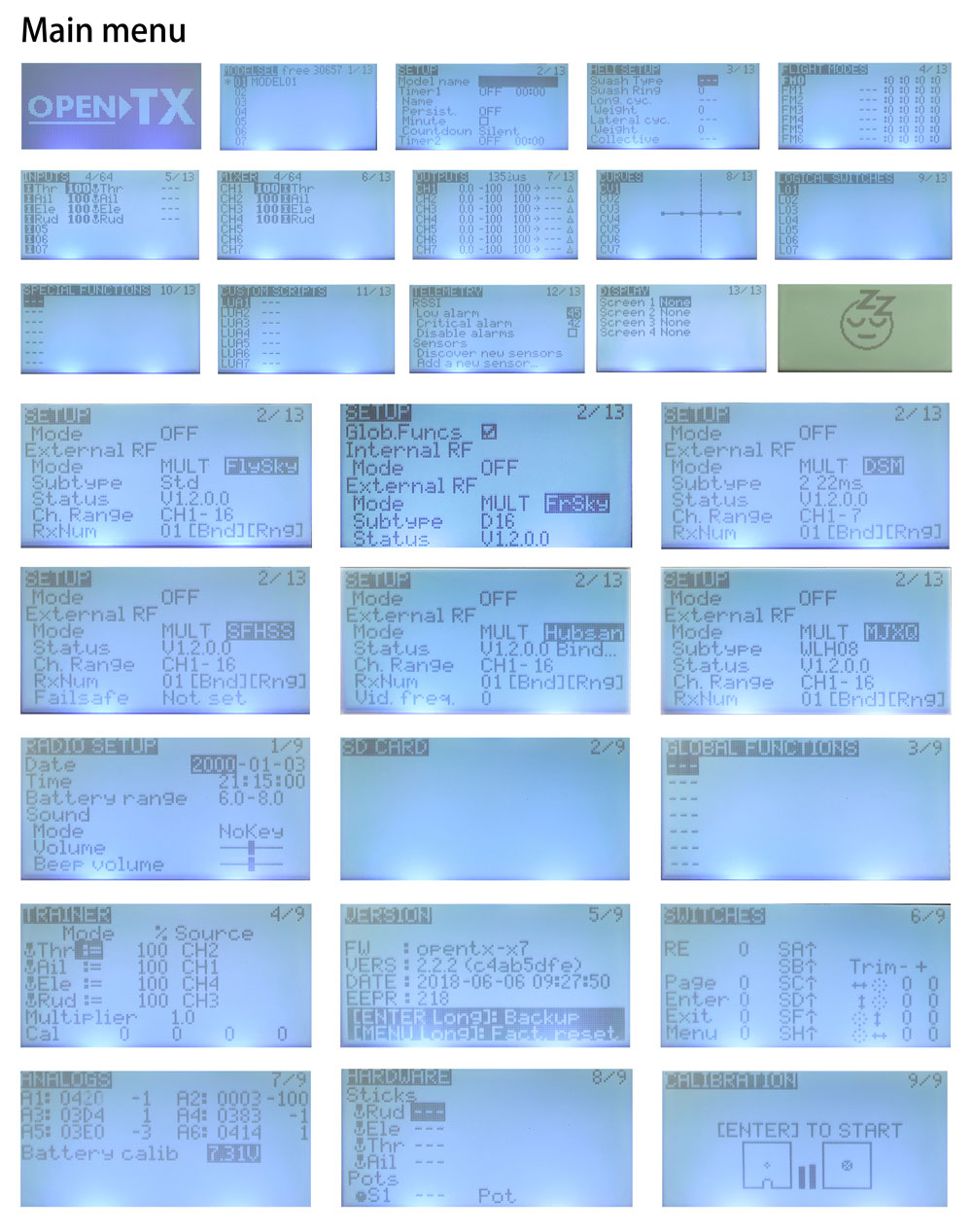

Firmware: OpenTX
Channels: up to 16 channels (depending on the receiver)
Display: 1.7-inch LCD display, 128* 64 resolution
Gimbal Type: Potentiometer
JR/FrSKY compatible module bay on rear side
Upgrade method: USB online upgrade
Simulator mode: 3.5mm standard ppm output or USB HID

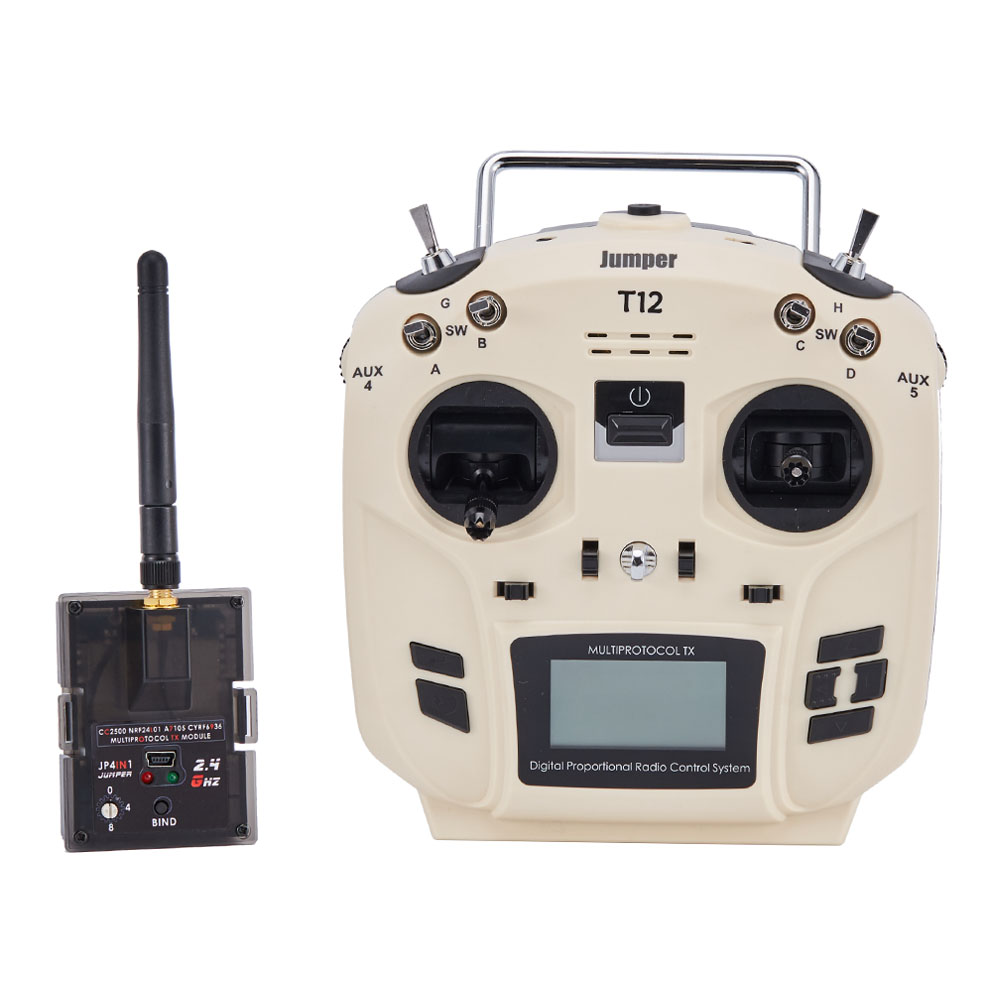

Jumper JP4-in-1 Module
The Jumper JP4IN1 Module features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module can convert standard PPM signals form module equipped radios in to the RF protocols used by most radios in the market today (See RF Chip data below). This module is plug and play with module equipped radios in the FrSKY series and requires no complex wiring or “hacking” to get running. The module is a great way to improve the enjoyment of your flying experience, using a better radio such as the FrSKY Taranis series rather than the low grade radios commonly included with most kits offers an night and day difference in performance. The Jumper JP4IN1 module is also upgradable via USB input



Working voltage: 6-9v
Working current: <=100ma
Operating frequency: 2.4G ISM band
RF power: +22DBM
Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
Module bay compatibility: FRSky, Jr and other dimensions: 64*49*33 (without antenna)
Net Weight: 42g (including antenna)
Software Compatibility: Suitable for radios using OpenTX or er9x/ersky9x
Firmware updatable: Yes, via USB.



RF Chip Data
Cyprus Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futaba SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models

Package Contents

1 x Jumper T12 Transmitter
1 x Jumper JP4-in-1 Module
