Highlights

The Jumper T8SG Plus Multi-Protocol radio features a compact size and a host of protocol options all built into one product. Four individual RF Chip modules are all integrated with the main internal RF Module.  An external module bay allows for additional proprietary protocol use for Long range flyers.The T8SG Plus Version also features backlit OLED display, smooth Hall Sensor gimbals for an enhanced user experience.

Built-in 4 in 1 RF Module

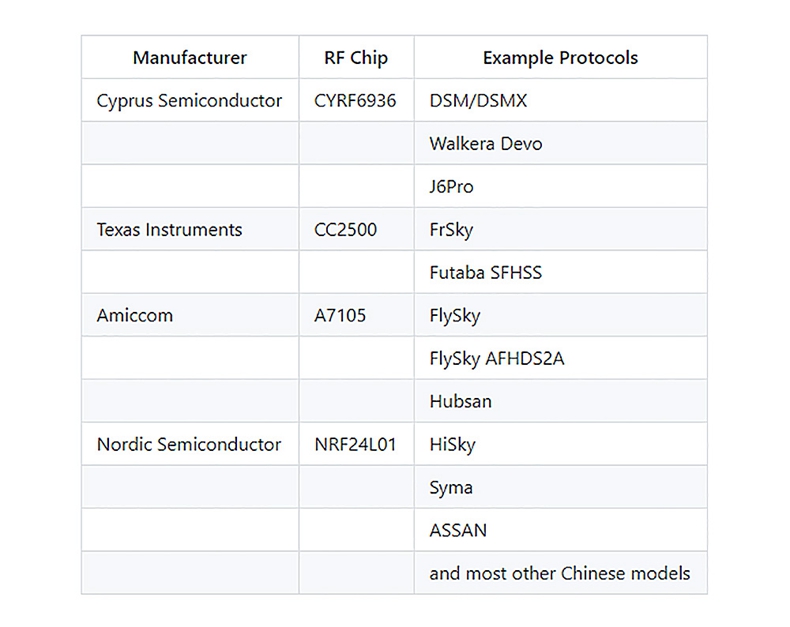

Built in four-in-1 RF Module (CC2500 CYRF6936 A7105 NRF2401).

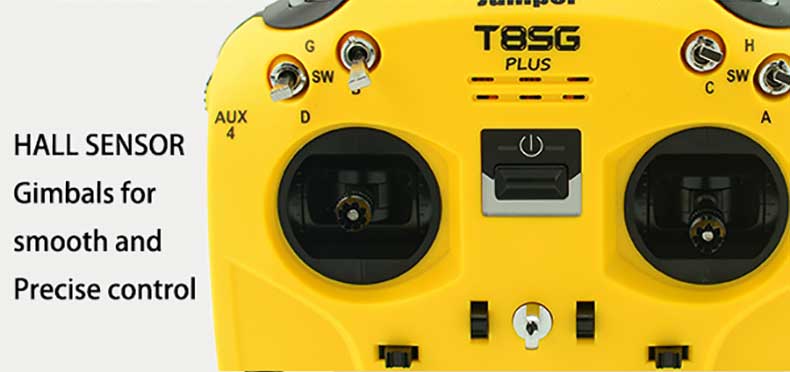

Hall Sensor Gimbals

Non-contact 3D space vector Hall remote sensing Gimbals (T8SG Plus Only).

2.42 inch OLED Display

T8SG Plus 2.42 inch OLED display, Bright display works even in direct sunlight.

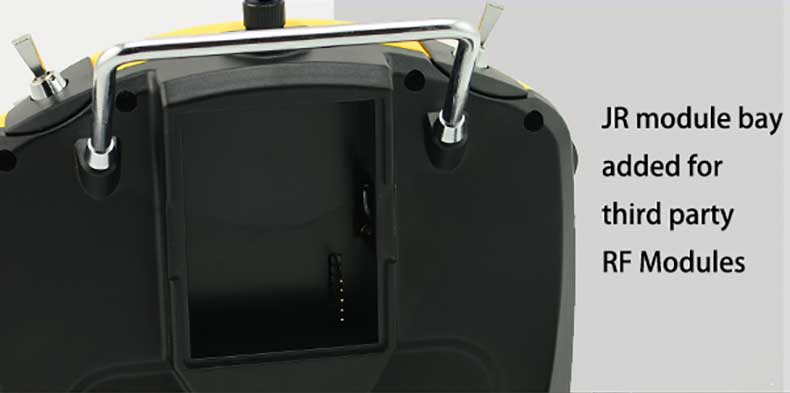

JR Module Bay

JR compatible module bay on rear side.

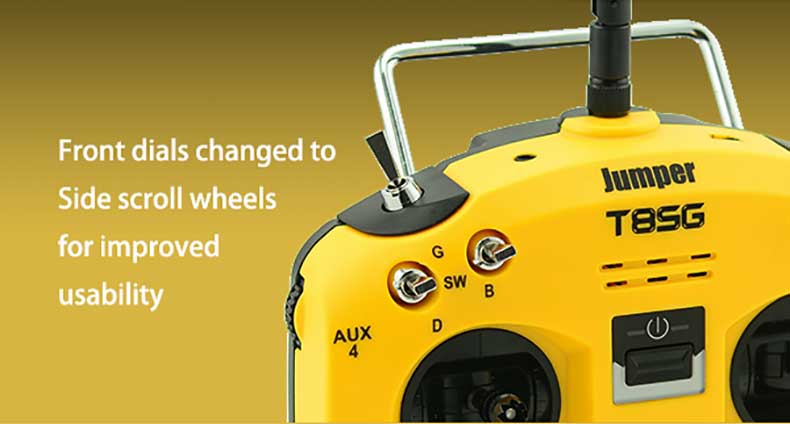

Side Scroll Wheels

Front dials changed to Side scroll wheels for improved usability.

AA Battery Box

Added AA Battery box for easy battery installation (2s Lipo optional)

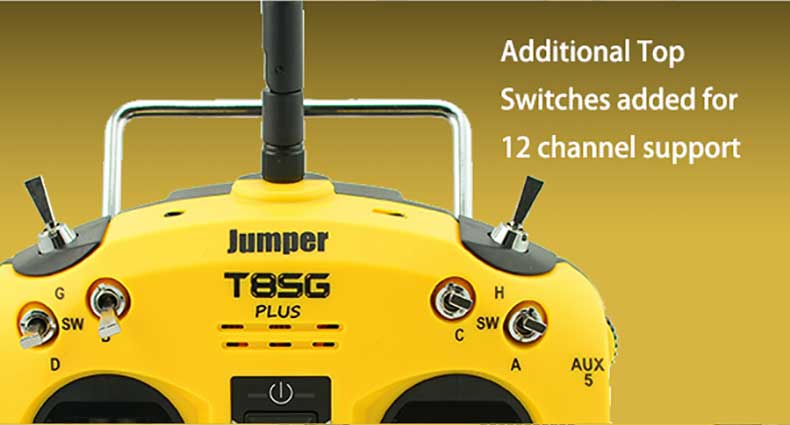

12 Channels Support

Up to 12 channels of output (depending on the receiver), Open Source Firmware, all channels are fully programmable.

Open Source Multi-protocol Firmware

Open source multi-protocol firmware, compatible with most mainstream remote controls

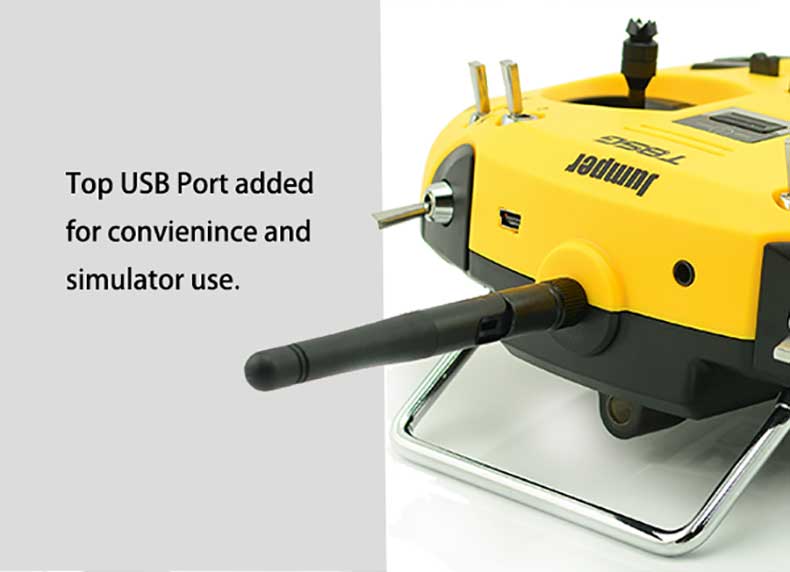

Top USB Port

Top USB Port added for convienince and simulator use.

Software information: https://www.deviationtx.com/

Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2Jumper T8SG Plus V2.0 Hall Gimbal OLED Display Advanced Multi-protocal Transmitter JR/FrSKY Compatible Module - Mode 2

Specification

General

Brand: Jumper
Item No.: T8SG Plus V2.0
Size: 158 x 150 x 58mm
Weight: 338g (without battery)
Transmission frequency: 2.400GHZ-2.7GHZ
Transmitter Module: Four in One High Frequency Module (CC2500 CYRF6936 A7105 NRF2401)
Transmit power: maximum 22dbm (transmit power adjustable)
Antenna gain: 2db (detachable antenna, easy modification)
Working current: 88Ma@8.4V
Working voltage: DC4.5-DC18V (factory with 4 x AA battery box, lithium battery recommended 2s balanced head line, batteries not included)
Remote control distance:> 2km @ 22dbm
Open source firmware:
Number of channels: up to 12 channels (depending on the receiver)
Display: 2.42-inch OLED display, 128 * 64 resolution
Rocker way: non-contact 3D space vector Hall joystick
JR/FrSKY compatible module bay on rear side
Upgrade method: USB online upgrade

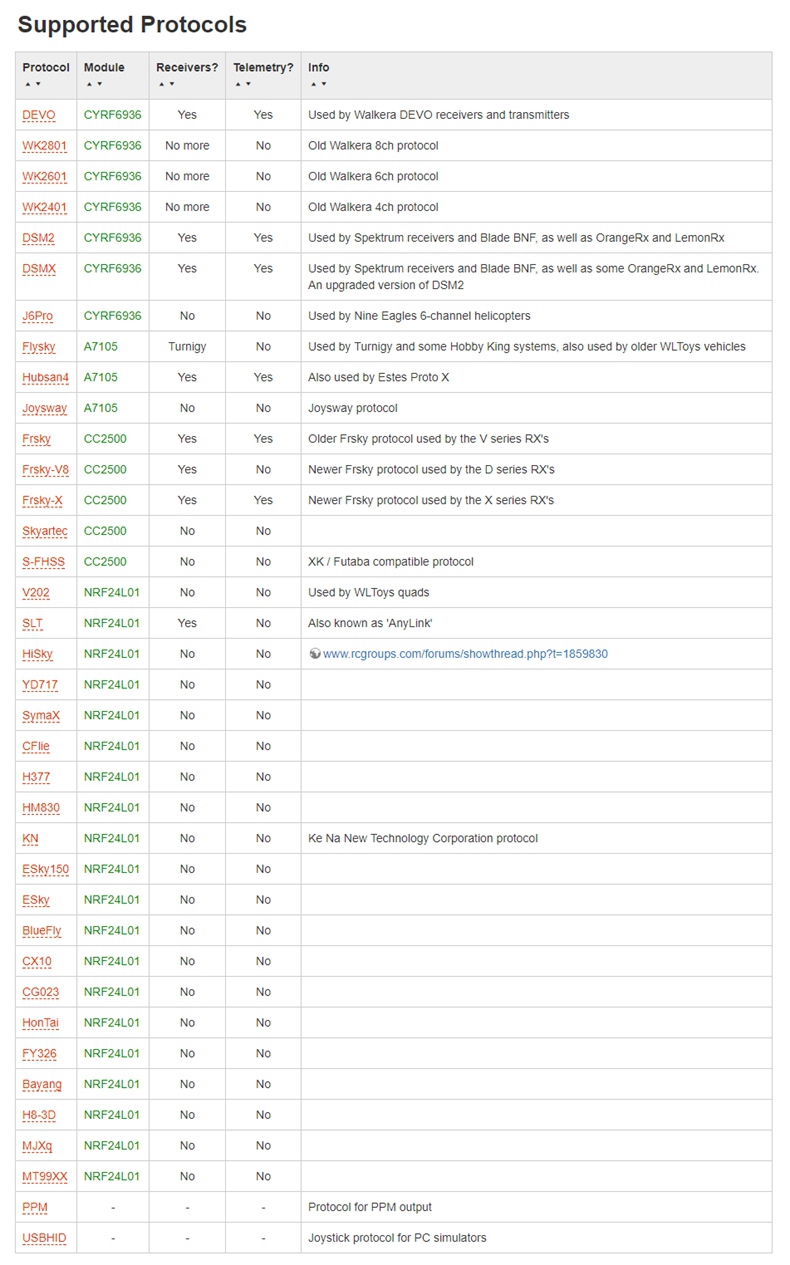

Support Protocols:
Walkera full range
DSM2/X full range
Flysky and Flysky 2A
FrSKY
FUTABA s-fhss full range
WL Toy series, Hubsan series, Esky series and many more (Currently a total of more than 40 supported protocols)
Uses open source software with continued support and development, adding new protocols regularly.
Simulator mode: 3.5mm standard ppm output
USB output.

Package Contents

1 x Jumper T8SG Plus V2.0 Transmitter
