Highlights

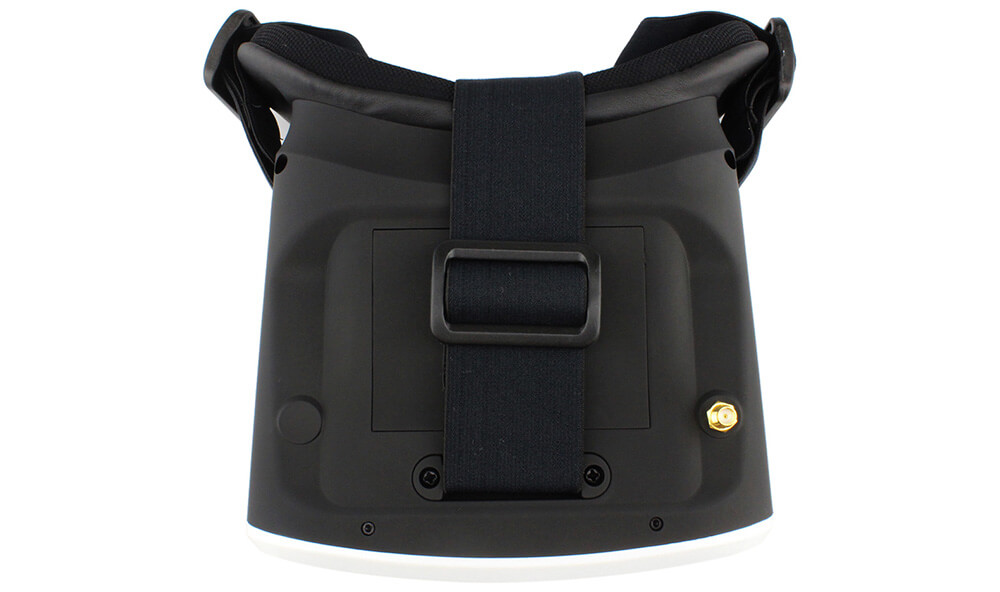

- Kylin Vision headset Goggles, which comes with a 5.8G full band reception, Supply Voltage for Kylin Vision is 4.2V- 8.4V, and 1S lipo battery is suggested.
- 5.8G 40CH, full-band 5645M~5945M, automatic research and scan to match the transmitter.
- Adjustable brightness, contrast and saturation.
- Built-in loudspeaker with volume control.
- Manual download: Click here
Specification
| General | |
|---|---|
| Type | KDS |
| Model | Kylin |
| Quantity | 1 Piece |
| Frequency | 5.8G 40CH,full-band 5645M~5945M |
|
Screen |
5 inch |
| Resolution | 600X480(WVGA) |
| Brightness | 300cd/m2(adjustable) |
| Contrast | Adjustable |
| Saturability | Adjustable |
| Sensitivity | -90dBm±1dBm |
| Antenna | SMA, 50 Ohm |
| Video format | NSTC/PAL |
| Audio | Adjustable |
| Battery | 1S 2000mAH, USB charge |
| Power Supply | 4.2V- 8.4V |
| Working Voltage | 4.2V |
| Consumption | 300 mA |
| Charging Voltage | DC 5V/1A |
| Dimension/Weight | Dimension: 169*169*109mm Weight: 480g |
| Package Contents | |
| 1 x Kylin Vision 5" FPV Goggle | |
| 1 x 3.7V 2000mah battery w/JST connector | |
| 1 x FPV Mushroom Antenna | |
| 1 x USB Charging Cable | |
Click Here for the Detailed Review of KDS Kylin FPV Goggles
