Highlights

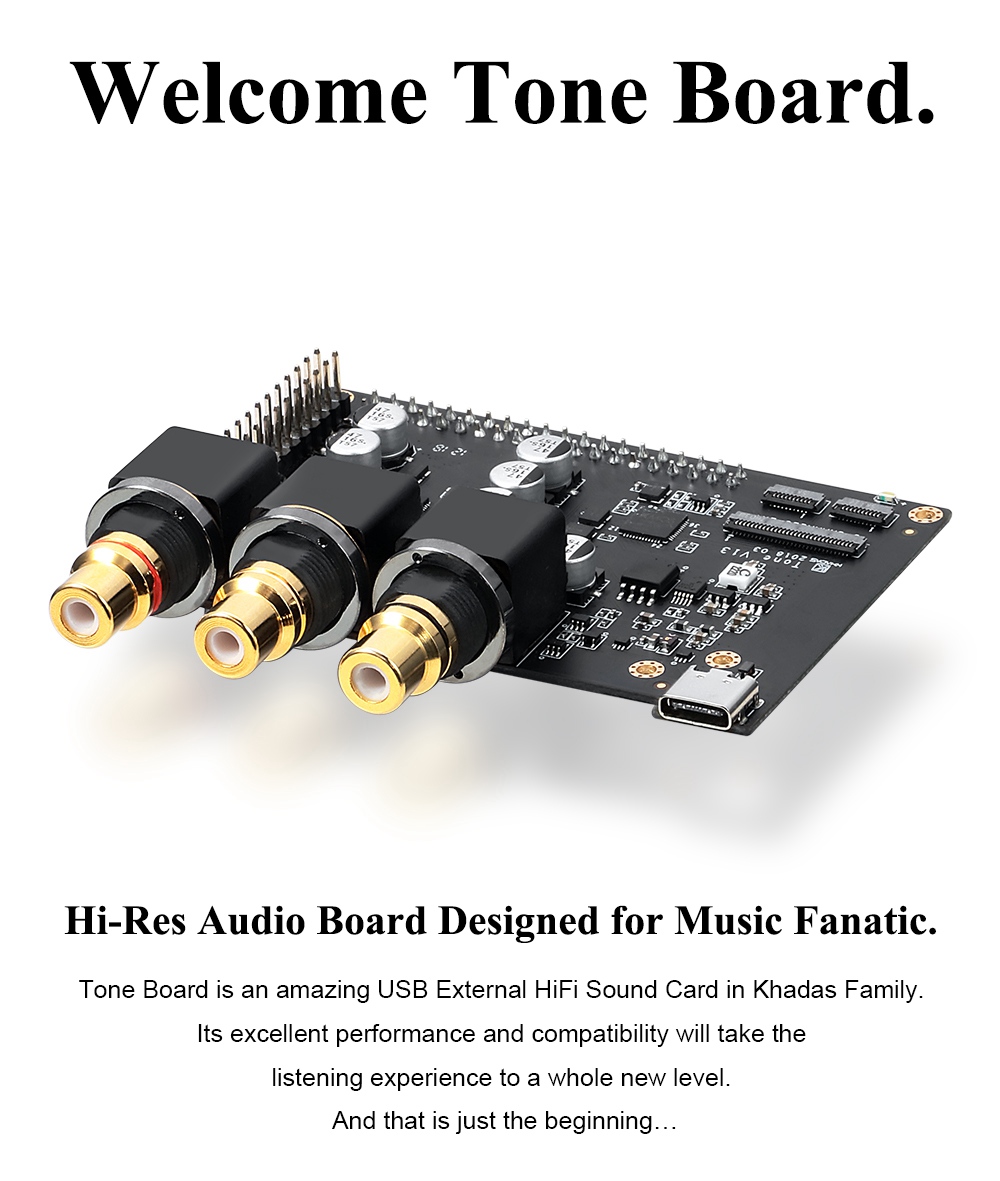

Hi-Res Audio Board Designed for Music Fanatic.

Tone Board is an amazing USB External HiFi Sound Card in Khadas Family.

Its excellent performance and compatibility will take the listening experience to a whole new level. And that is just the beginning

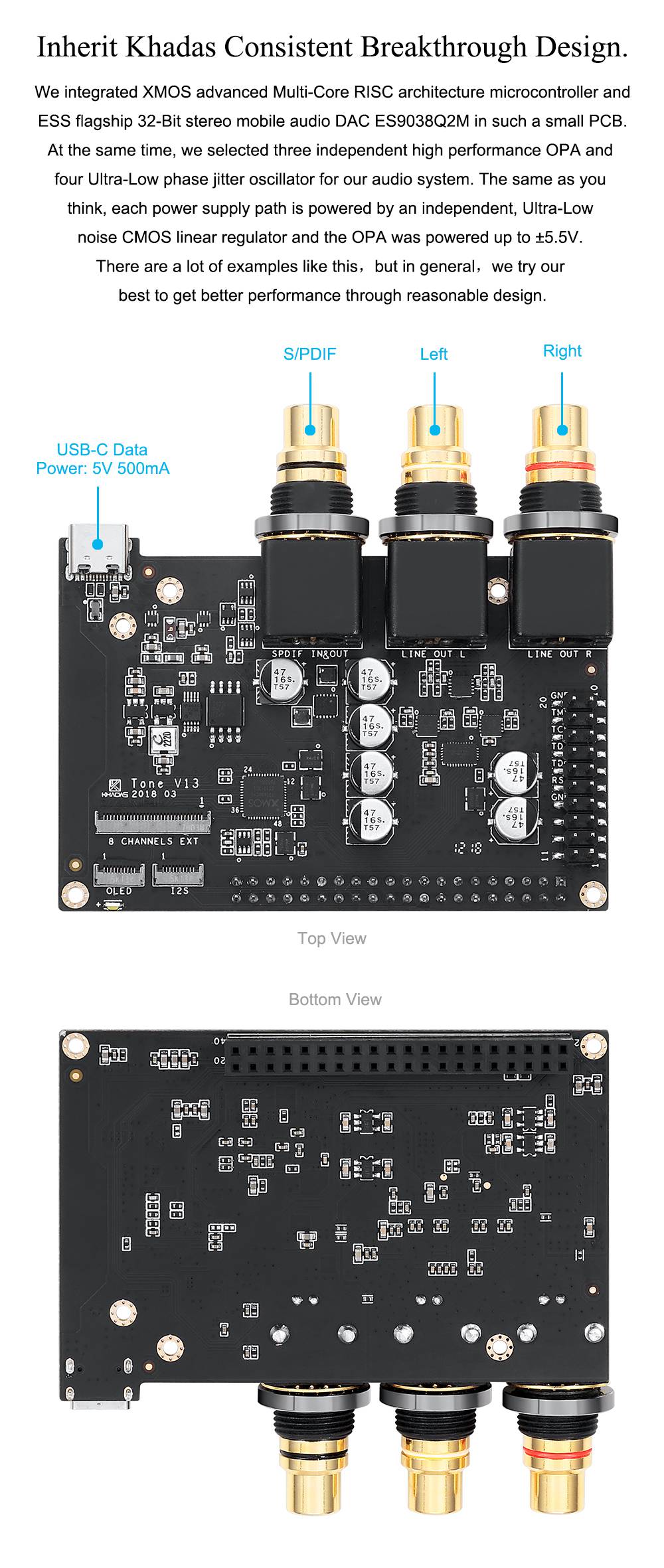

Khadas Consistent Breakthrough Design

We integrated XMOS advanced Multi-Core RISC architecture microcontroller and ESS flagship 32-Bit stereo mobile audio DAC ES9038Q2M in such a small PCB.

At the same time, we selected three independent high performance OPA and four Ultra-Low phase jitter oscillator for our audio system.

The same as you think, each power supply path is powered by an independent, Ultra-Low noise CMOS linear regulator and the OPA was powered up to ±5.5V.

There are a lot of examples like thisbut in generalwe try our best to get better performance through reasonable design.

Khadas Tone Board VIMs Edition Hi-Res Audio XMOS ES9038Q2M DAC DSD256 384KHz 32 Bit Stereo Mobile Audio DAC

Specification

General	Brand: Khadas Edition: VIMs Edition Type: Tone Board

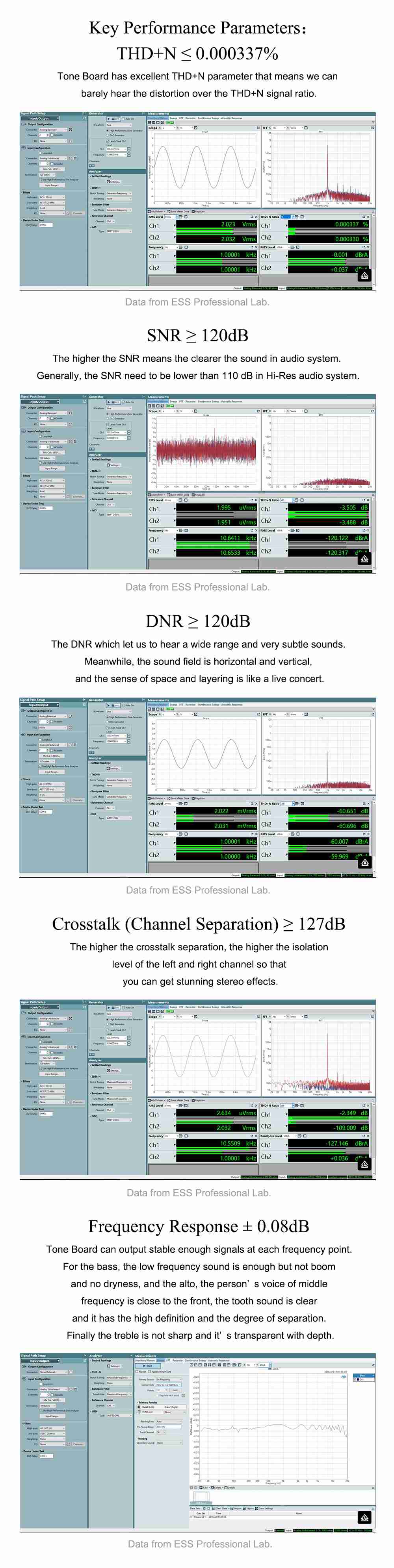

Tone Board	XMOS: XU208-128-QF48,8 xCores, Core Share up to 500 MIPS DAC: ES9038Q2M,32 Bit Stereo Mobile Audio DAC THD+N: ≤ 0.000337% @1KHz SNR: ≥ 120dB @ 10Hz~20KHz DNR: ≥ 120dB @ 10Hz~20KHz Crosstalk: ≥ 127dB @ 10Hz~20KHz Frequency Response: ±0.08 dB @ 10Hz~20KHz Sampling Frequency: PCM: Up to 768KHz @ 32bit, DSD: Up to DSD256 @ 1bit Clock Jitter: Reference Clock Jitter < 3ps, Data Clock Jitter < 30 ps Audio Formats: APE2/FLAC/OGG/WAV/ACC/ALAC/MP3/WMA… Line Out: 1x Red RCA for Right, 1 x White RCA for Left Indicator: White LED x1 Mounting Holes: Size M2 x 5 FPC Connector: 30-Pin 0.5mm Pitch: for 8 Channels Extension FPC Connectors: 10-Pin 0.5mm Pitch: for VIMs I2S Extension, 10-Pin 0.5mm Pitch: for OLED Display S/PDIF IN: Up to 192KHz S/PDIF OUT: Yes USB-C Port: NC 40PIN Header: 2.54mm Pitch Female 20PIN Header: 2.54mm Pitch Female Compatibility: Android,LibreELEC,Linux Distros(Support Volumio)
Dimensions	82.0 x 74.5 x 24.0 mm

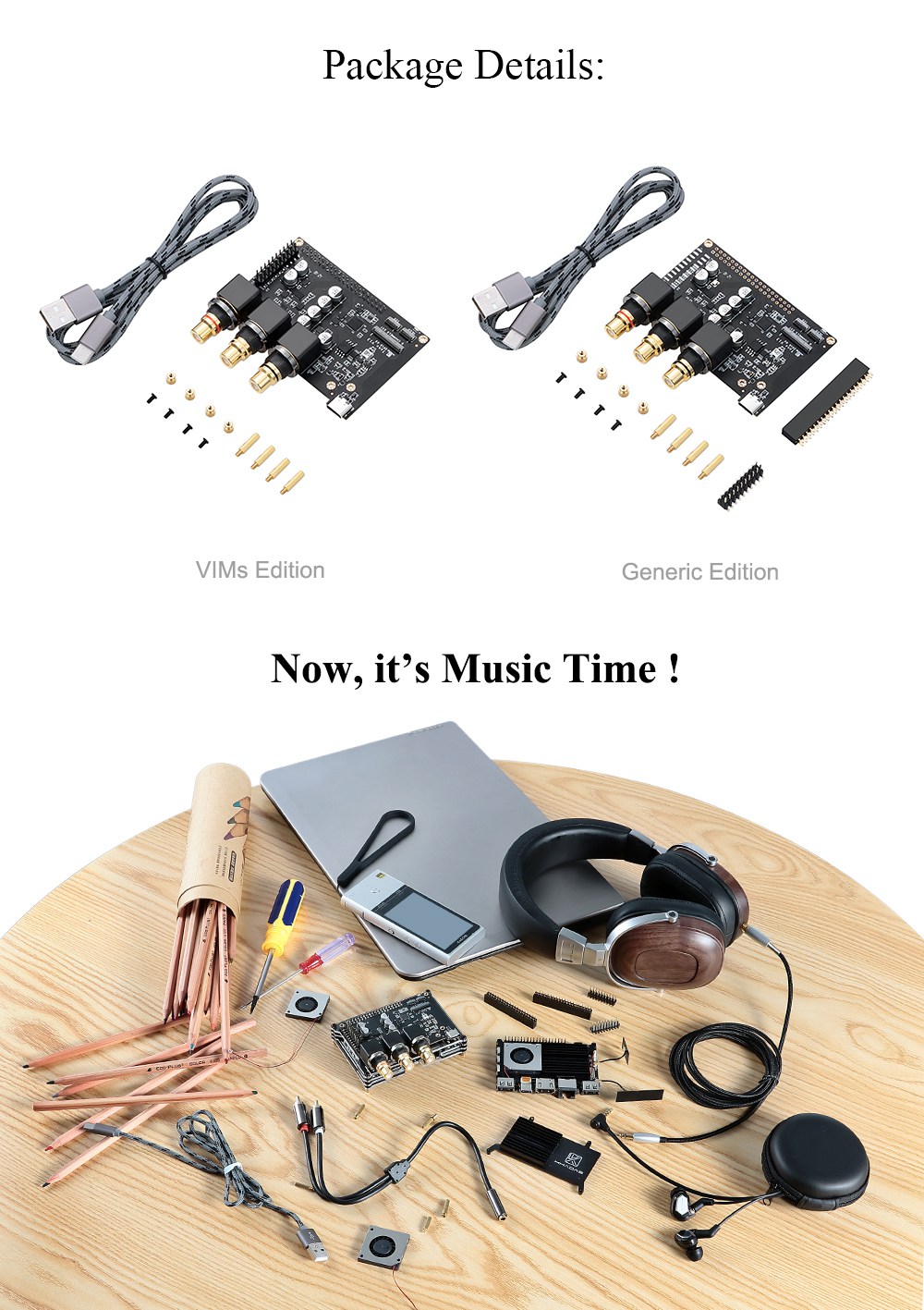

Package Contents	1* Tone Board VIMs Edition 1* User Manual 1* Screws set
