Highlights
Android 7.1 + Ubuntu + Buildroot + Docker Multi-OS
Pre-installed with Android, you can also install Ubuntu, Buidroot, Docker OS, it will bring you a surprise of using experience.
Amlogic S912 Octa-core CPU
Rapid and stable performance can give you a high-speed feedback and smooth response.
DDR4 3GB RAM, eMMC 64GB ROM
It is configured with DDR4 3GB RAM, and eMMC 64GB ROM, thus it can provide enough room and freedom to install Apps without worrying about running out of space.
Bluetooth 4.2 Connectivity
Easy pairing with most Bluetooth-enabled devices.
Gigabit LAN
Gigabit LAN can improve the internet speed and the performance to a great extent.

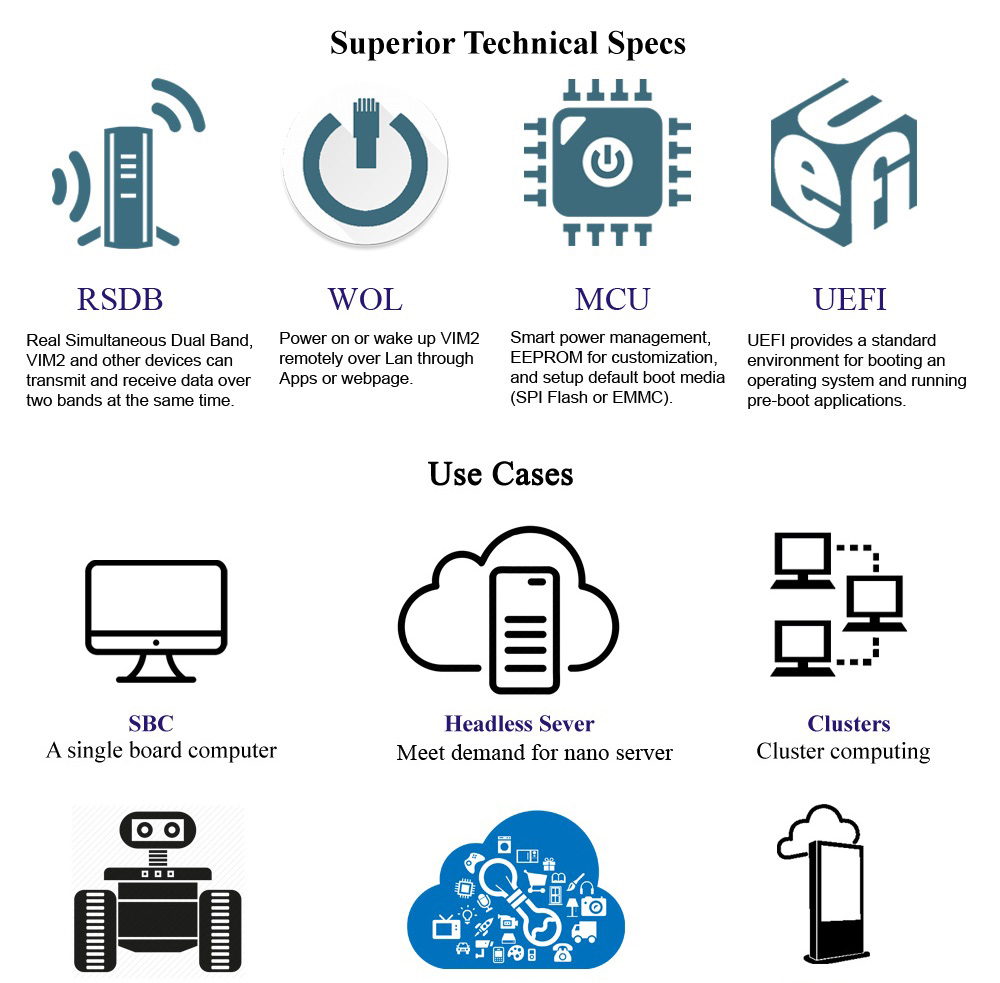

Multiple Use Case
You can turn Khadas VIM2 Max Development Board into SBC, Clusters, Digital Signage, Robotics, IoT, TV Box.
Specification
| General |
Brand: Khadas |
| Hardware | System: Android Nougat 7.1, Ubuntu 16.04+, Buidroot, Docker CPU: Amlogic S912 1.5 GHz 64Bit Octa Core ARM Cortex-A53 GPU: 750MHz ARM Mali-T820MP3 RAM: 3GB DDR4 ROM: 64GB EMMC TF Card: Molex Slot SPI Flash: 2MB MCU: STM8S003 with Programmable EEPROM |
| Communication | WiFi: AP6359SA, 2X2 MIMO with RSDB Bluetooth: 4.2 LAN: 10/100 / 1000M |
| Media | HW UHD H.265/VP9 60fps 10Bit video decoder HDR10 and HLG HDR video processing |
| Interface | HDMI 2.0a: Type-A Female, up to 4K@60Hz USB2.0 HOST x 2 (900mA & 500mA Load) USB Type-C: USB2.0 OTG & DC IN |

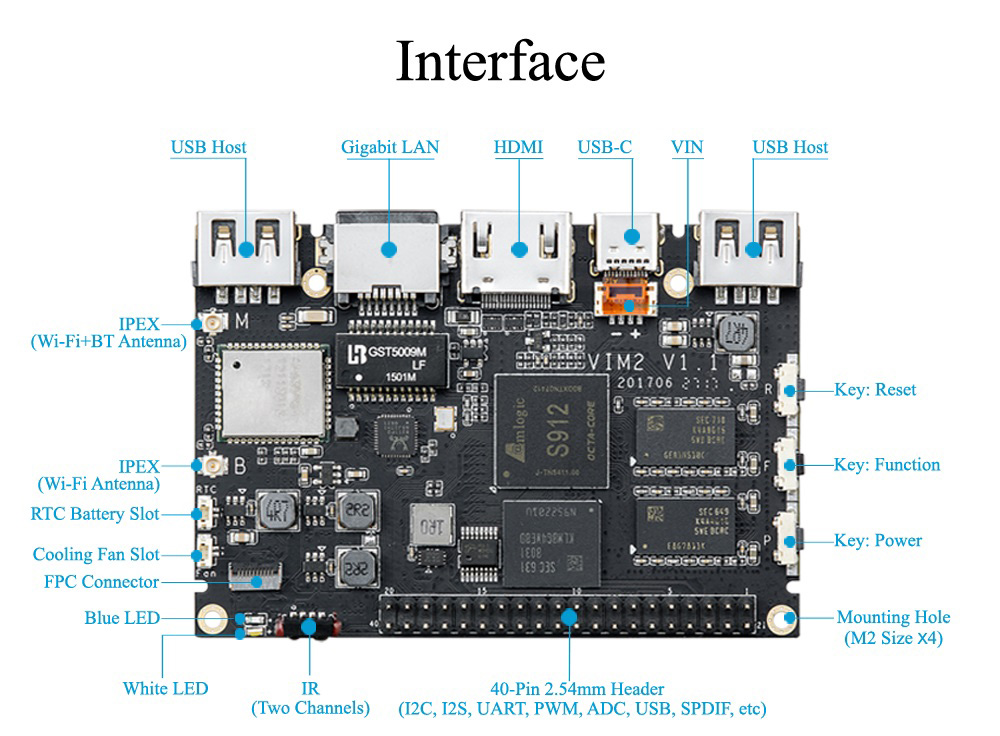

| Other Features | Wide Input Voltage: Range from 5V to 9V, Recommend 5.0V Current Limit Switch: Programmable, 3.0A as default (up to 4.0A) VIN (Extra Power IN): 4-Pins, 1.25mm Pitch Header RTC & Battery Header: 0.8mm Pitch Header Cooling Fan Header: 3 Levels Speed, with a 0.8mm Pitch Header 40-Pins I/O Header: 2.54mm, USB, I2C, I2S, SPDIF, UART, PWM, ADC, ISO7816 FPC Connector: 10-Pins, 0.5mm Pitch, with I2C, IOs Pogo Pads Array: USB, I2C, DVB-Bus, IOs Pogo Pads MCU: SWIM, UART, ADC, NRST Pogo Pads for VIN: System Power Input Buttons: x3 (Power / Func / Reset) LEDs: Blue LED x1, White LED x1 Mounting Holes: Size M2 x 4 UEFI: Developing WOL: Wake up & on Lan IR Receiver: 2 Channels |
| Dimensions&Weight | Product weight: 0.071 kg Package weight: 0.150 kg Product size: 82.0 x 57.5 x 11.5 mm Package size: 160 x 90 x 20 mm |
| Package Contents | 1 x Khadas VIM2 Max TV Box 1 x USB-C Cable |
