Highlights
Display real-time performance of your car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position and air intake temperature.
If the communication is terminated, this item will automatically switch to sleep mode in half a hour.
The adapter adopts fast and reliable chips which promise its stable wireless connection.
It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 - 2, KWP2000 and CAN.
Small size and compact structure, plug and play.
Specification
| General |
Brand: Konnwei |
| Product Details | Supply voltage(VDD):12V RF sensitivity(Basic Rate): -85db Modulation Mode:GFSK Frequency Range:2402 ~ 2480MHZ Transmission Range:10M UART Params:38400,8,n,1 Small size, compact structure. Plug and never unplug Stable wireless connection No wires or batteries (adapter is powered by the diagnosis size sockets) Stop communication, wait half an hour, auto sleep Supports all OBDII protocols The adapter uses the fastest and most reliable ARM chips |
| Multi-protocol Support | 0.Automatic 1.SAE J1850 PWM(41.6Kbaud) 2.SAE J1850 VPW(10.4Kbaud) 3.ISO9141-2(5 baud init,10.4Kbaud) 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud) 5.ISO14230-4 KWP(fast init,10.4 Kbaud) 6.ISO15765-4 CAN(11bit ID,500 Kbaud) 7.ISO15765-4 CAN(29bit ID,500 Kbaud) 8.ISO15765-4 CAN(11bit ID,250 Kbaud) 9.ISO15765-4 CAN(29bit ID,250 Kbaud) A.SAE J1939 CAN(29bit ID,250*Kbaud) B.USER1 CAN(11*bit ID,125*Kbaud) C.USER2 CAN(11*bit ID,50*kbaud) |
| Dimension & Weight | Package Weight: 0.045kg Pacakge Size: 6.5 x 2.5 x 10CM |
| Package Contents |

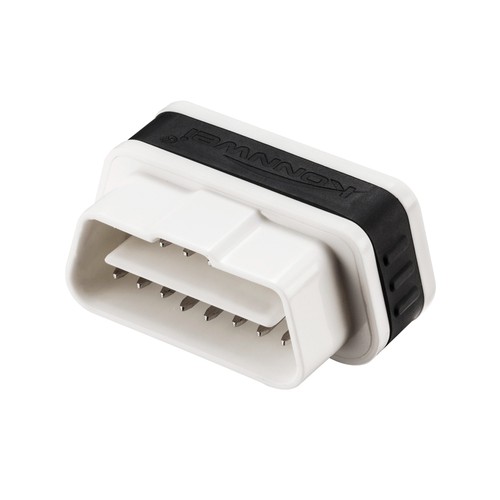

1 x KONNWEI KW901 ELM327 OBD2 |
