Highlights
- Key uses ultra-stretch with a clear indication buzzer sound,easy to operate.
- Password,card,card + password,remote switch and a variety of ways to open the door.
- Directly external standard WG26 reader, low cost single-sided and out door access control functions.
- Flexible operation, no need to enter a user ID can directly continuous increase user card, perfect set of features to make your installation easier.
- Wide input voltage range, small size, high reliability, electromagnetic compatibility, and high efficiency, perfect protection, with remote control to open the door, the temperature rise of electric locking (when compared with power-frequency) greatly reduce.

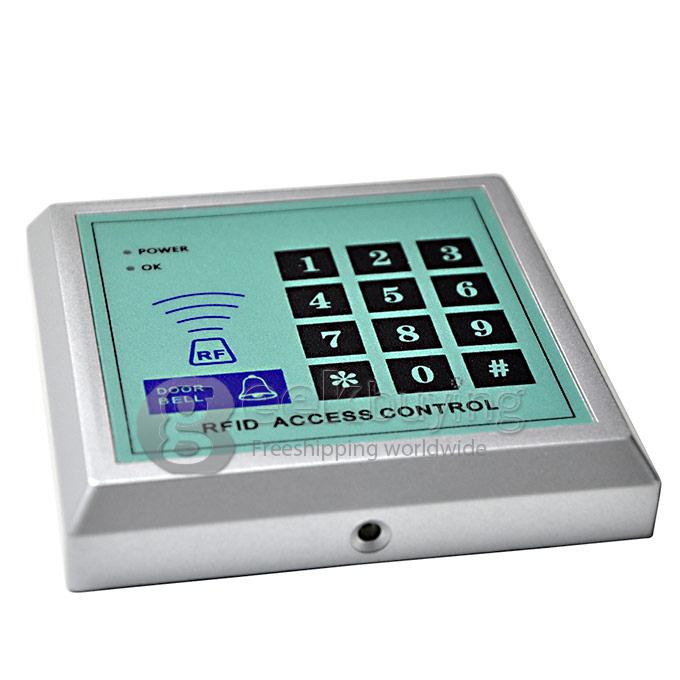

Specification
|
Voltage |
DC+8V-+15V |
|
Current |
<70mA |
|
Working temperature |
-10°C-70°C |
|
Frequency |
125KHz(EM card)13.56MHz(M1 card) |
|
1 card to open the door; 2, password to open the door; 3, card + password to open the door |
|

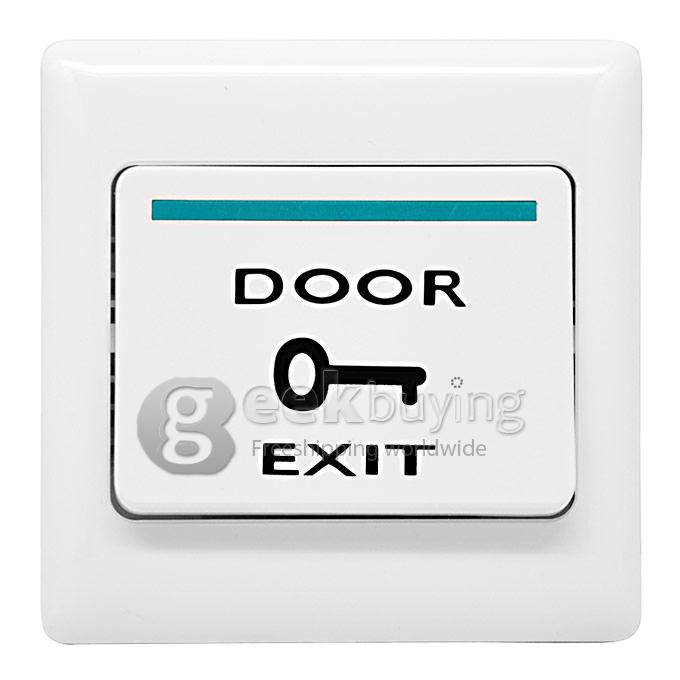

Out of the door switch
|
Boundary dimension |
86mm*86mm*20mm |
|
Standard structure |
Fireproof material mixed resin |
|
Behaviour of electricity |
Most durable current 3 a 36 VDC |
|
OWNA |
NO\COM |
|
Durability test |
One hundred thousand times aging test qualified |
|
Application type |
Apply the hollow frame and embedded type electric appliance box use |
|
Operating Humidity |
0~95% |
|
Panel processing |
Fire prevention materials off surface treatment |
|
Product weight |
0.07kg |
|
Packing quantity |
100 |

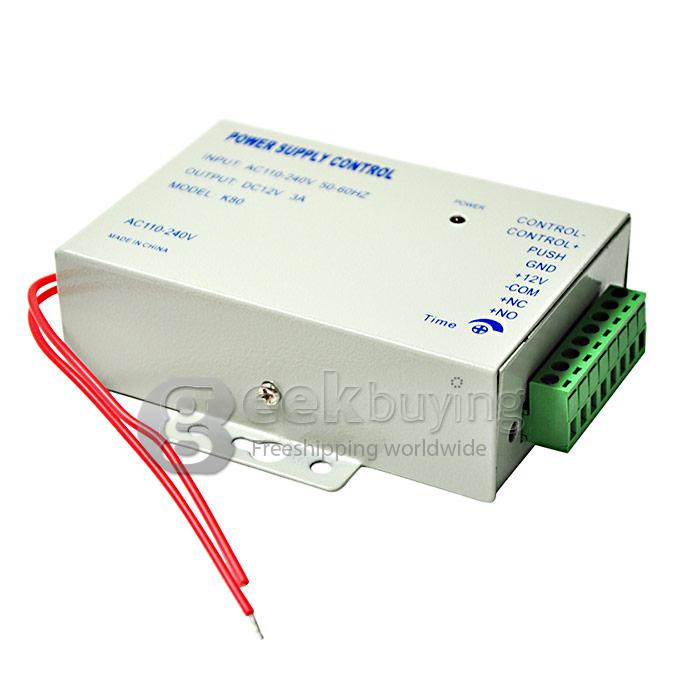

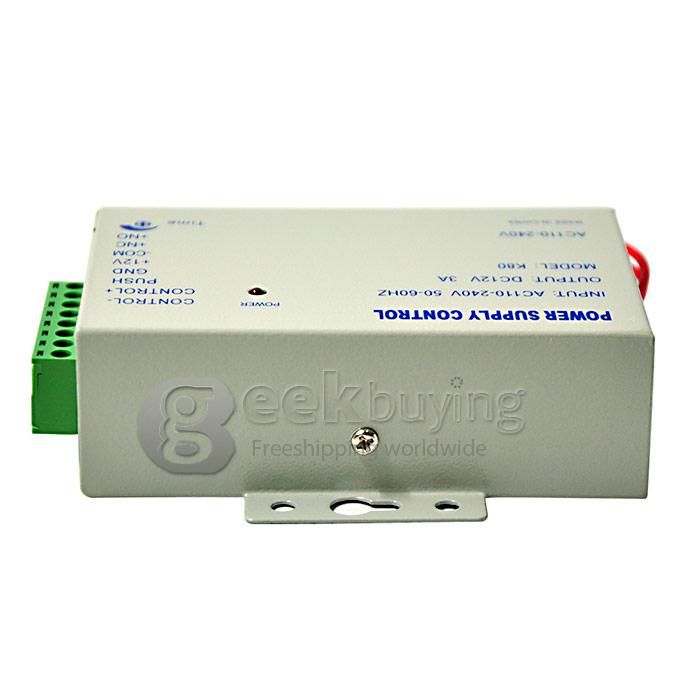

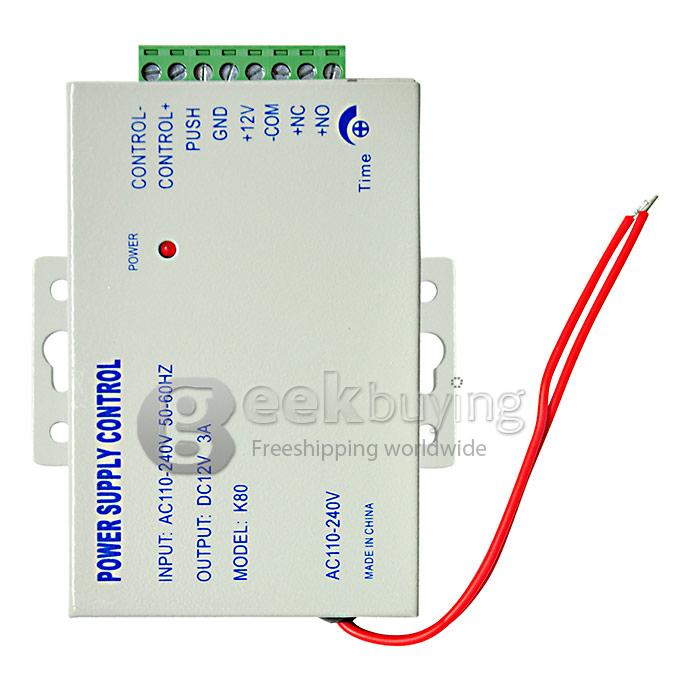

Entrance guard dedicated power supply
|
Voltage input |
240V |
|
Incoming frequency |
50-60 |
|
Output voltage |
DC12V |
|
Output power |
30W |
|
Electricity |
3A |
|
Ripple voltage |
Up<50mV |
|
Voltage accuracy |
1% |
|
Insulation resistance |
>50MΩ |
|
Operating ambient temperature |
-20/50°C |
|
Time delay adjustment range |
0-15S |
|
Opened the door remote control distance |
50-100M |
|
Weight |
0.4kg |
|
External dimension |
120×95×38mm |

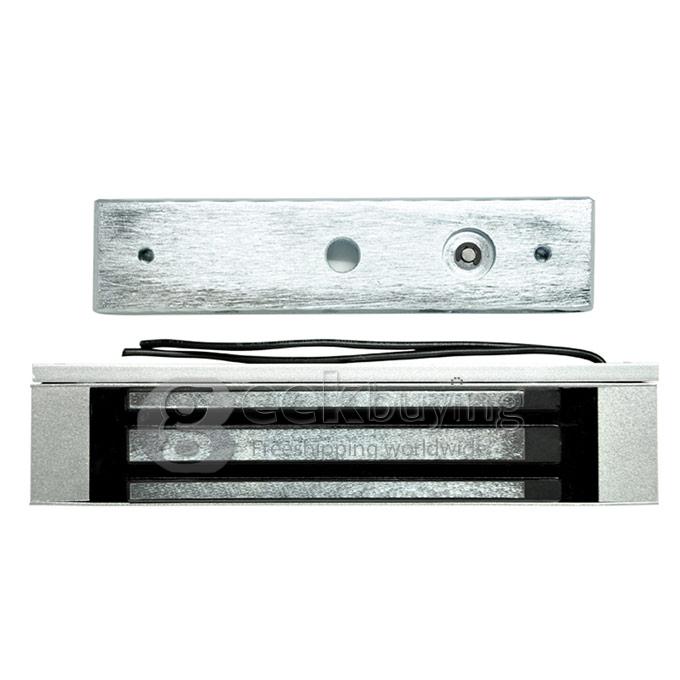

Line electric mortise lock
|
Voltage |
DC12V |
|
Working current |
320mA |
|
Bear holding power |
0.18kg |
|
Size |
204*34*34mm |
|
Applies to 90 degrees to open any door frame, no residual magnetism, no mechanical wear, two-door |
|
|

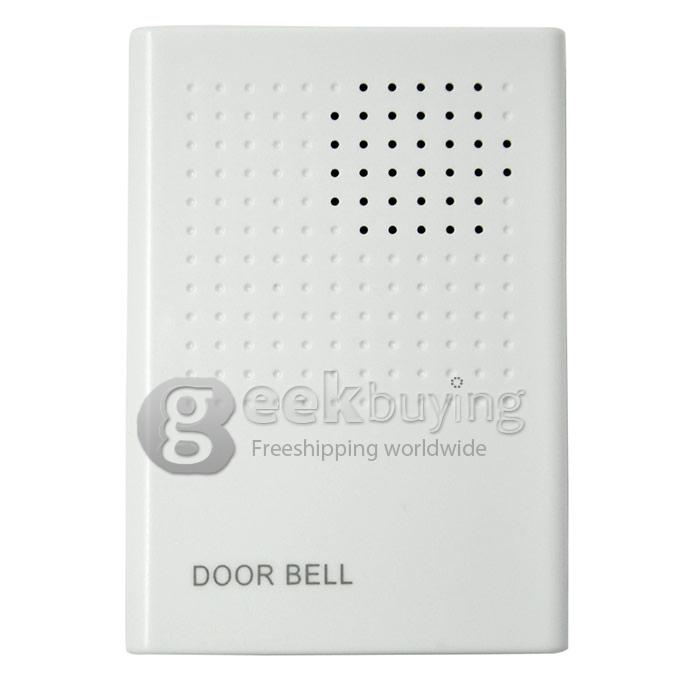

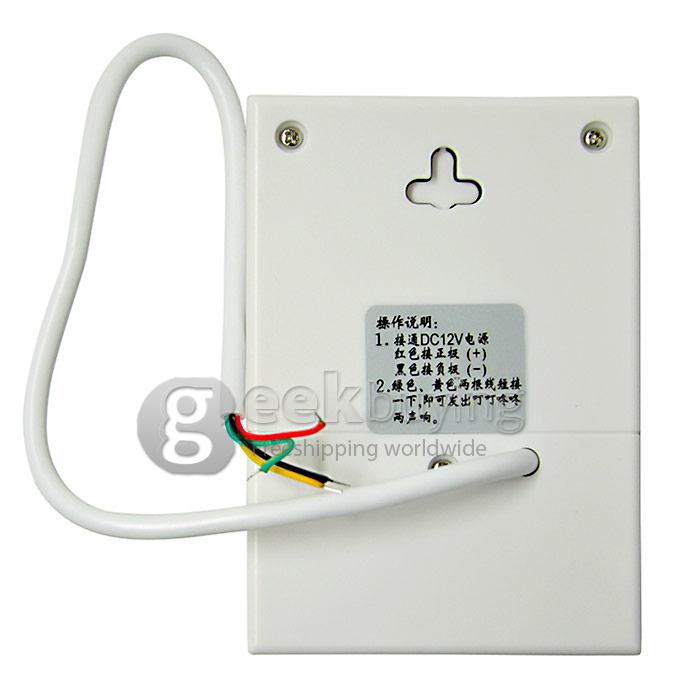

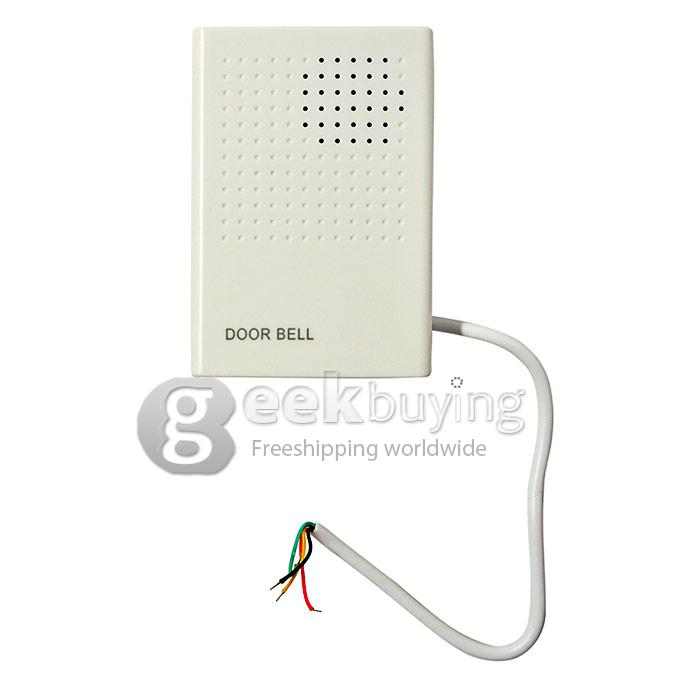

Doorbell Ding dong doorbell installed battery cable, appearance, crisp tones, soft A bell ringer boom. |

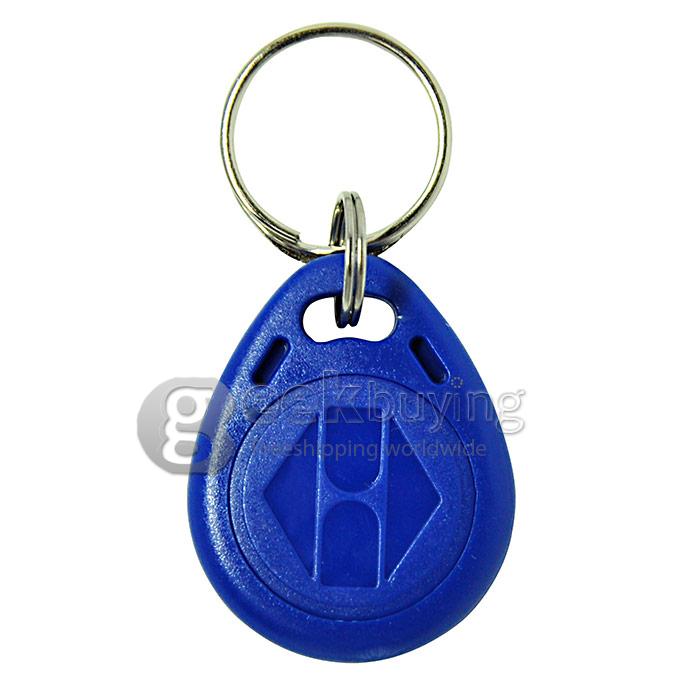

ID Keychain
|
Big coil, TK4100 chip, than an ordinary card from 1 to 3 cm, no bad card |
ID Thin card
|
Size |
85mm 54 mm 2mm |

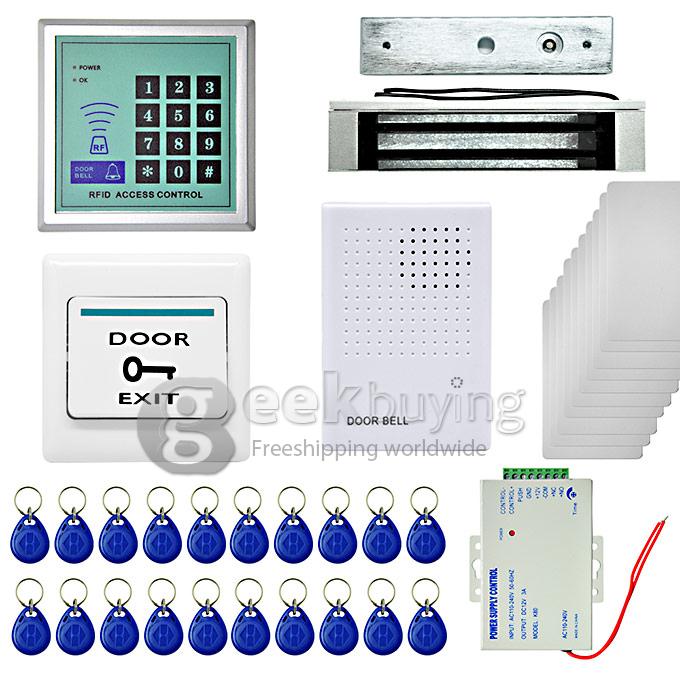

What's in the box?
- 1 x entrance guard host
- 1 x door switch
- 1 x door dedicated the doorbell
- 1 x door dedicated power supply
- 1 x magnetic locks
- 20 x ID card (125 KHZ)
- 10 x 1 d thin card
