Highlights
Intel Apollo Lake N3350

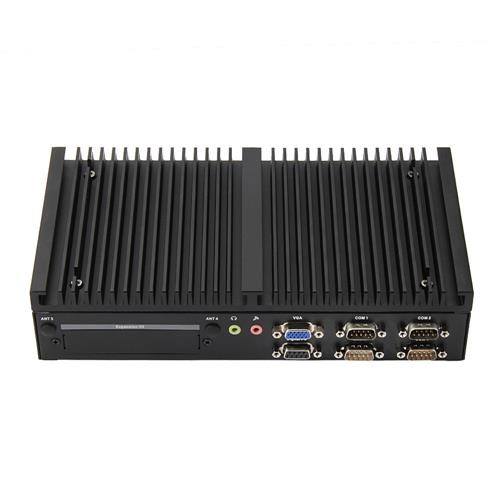

MP200A Mini PC is powered by the Intel Apollo Lake N3350, a dual-core 64bit processor based on Goldmont architecture. The chip operates at 1.1 GHz with burst frequency of 2.4 GHz. In addition to that, it incorporates Intel's HD Graphics 500 GPU operating at 200 MHz with a burst frequency of 650 MHz.
DDR3 4GB RAM, eMMC 32GB ROM, M.2 2280 SSD
It is configured with DDR3 4GB RAM, and eMMC 32GB ROM. On top of that, it supports M.2 2280 SSD and SATAIII HDD memory of unlimited size. Thus it can provide excellent performance for your favourite applications and games.
Dual Band WiFi
MP200A Mini PC carries 802.11ac WiFi. With support for 2.4Ghz and 5Ghz band, it can transmit higher amounts of data, and it's naturally less congested.
1000M LAN
1000M LAN can improve the Internet speed and the performance to a great extent.
Specification
| General |
Model: MP200A |
| Hardware | System: Support Linux/Win10 home/Win10 pro/Win10 IOT CPU: Intel Apollo Lake N3350 Dual Core Soc, L2 Cache, 1.10GHz(turbo burst 2.4GHz) GPU: Intel HD Graphics 500, 200MHz(up to 650MHz), Up to 2560 x 1600 @ 60Hz RAM: 4GB LPDDR3 1866MHz ROM: 32GB eMMC5.0 SSD: M.2 2280 SSD HDD: SATAIII 2.5' 5/7/9.5mm HDD |
| Communication | WiFi: Type: Intel 3165 M.2 2230 CERTIFIED: 2.4G/5G Dual Mode, IEEE 802.11a/b/g/n, 802.11ac Bluetooth: Type: Intel 3165 M.2 2230 Bluetooth Version: Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 4.1, 4.2 (BLE) LAN: LAN1/ LAN2: 10M/100M/1000Mbps Intel i210-IT GBE, support Wake On Lan |
| Interface | USB: 4 x USB2.0, 2 x USB3.0 HDMI: HDMI 1.4A x 1 VGA: VGA x 1 RJ45: RJ45 x 2 Uart: RS232 DB9 x 4 DIO: 8bit DIO DB9 x 1 Audio: Realtek ALC269, support Line-in, Line-out Audio-in: Line-in 3.5mm Phone Jack x 1 Audio-out: Line-out 3.5mm Phone Jack x 1 DC IN: 5.5/2.5mm DC Jack x 1 Antenna: WiFi+BT x 2 SIM: Full Size SIM x 1 Button: Power Key x 1, Reset x 1 |
| Other Features | Watch Dog Timer: Support Timer Switch: Support Wake On Lan: Support High Temperature Alarm Light x1 Hard Disk Light x1 |
| Power | DC 12V/4A 5.5/2.5mm |
| Package Contents | 1 x Mini PC 1 x Power Adapter(A right power adapter will be sent as your shipping country.) 1 x HDMI Cable 1 x User Manual |
