Highlights
DVB-T2 DVB-S2 DVB-C
DVB-T2, the world’s most advanced DTT system, offers more robustness, flexibility and at least 50% more efficiency than any other DTT system. It supports SD, HD, UHD, mobile TV, or any combination thereof.
A Brief Introduction of DVB Standards:
DVB = Digital Video Broadcast
DVB - T = T for Terrestrial, that means you pick up the signals with a terrestrial aerial.
DVB -S = S for Satellite, you pick up the signal from a satellite dish.
DVB - C = C for Cable, a card like this can get signals from a cable fed system.
Runs on Android 7.1
Magicsee C300 PRO is based on the Android 7.1 OS, with high speed and smooth, designed to turn your regular TV into a smart one.

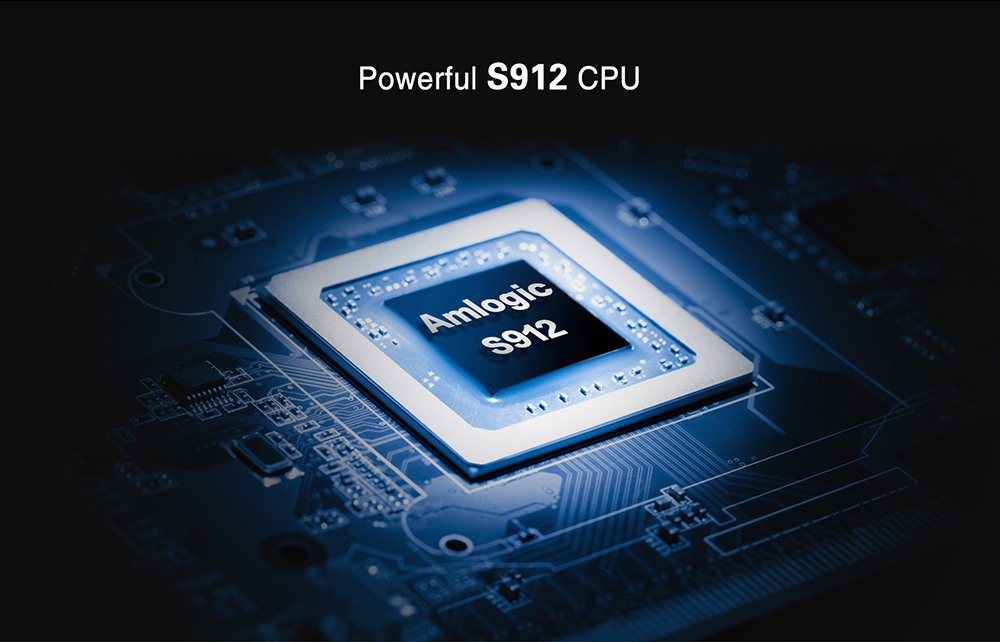

Amlogic S912
Magicsee C300 PRO comes with Amlogic S912 CPU which is a high performance octa core 64bit chipset which is known for a maximum clock speed of up to 1.5GHz. Apps will never run so smoothly in other chipset devices. People can easily enjoy many hot games and APKs with its 2GB DDR3 RAM and 16GB Flash ROM.
DDR3 2GB RAM, eMMC 16GB Flash
It boasts DDR3 2GB RAM, and eMMC 16GB Flash, advantageous in performance, security and reliability, ascribing to the eMMC memory, ultimately delivering a richer end-user experience.
IEEE 802.11ac
IEEE 802.11ac, one of the wireless networking standards in 802.11 family, is developed in the IEEE Standards Association process for the purpose of high-throughput wireless local area networks (WLANs) on the 5 GHz band.
Specification
| General |
Brand: Magicsee |
| Hardware |
OS: Android 7.1 |
| Communication | WiFi: Built in 2.4G/5G WiFi Support IEEE 802.11 b/g/n/ac Blutooth: Bluetooth 4.0 LAN Ethernet: 10/100M |
| Media |
Video decorder: H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K @30fps, AVS+ 1080P @60fps |
| DVB-S2/S | DVB-S2 system standard: ETS 302 307 Symbol rates: QPSK, 8PSK Forward error correction rate 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 Symbol rates: 1- 55 Msps Code rates: 1/2, 2/3, 3/4, 5/6, 7/8 Input signal level: -84 dBm to 0 dBm (average power) ANT. connector: IEC TYPE F |
| DVB-T2/T | DVB-T2 system standard: ETSIEN 302 755 Support MPLP Demodulation: QPSK,16QAM, 64QAM or 256QAM Forward error correction rate 1/2, 2/3, 3/4, 3/5, 5/6 Guard interval :1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 Bandwith: 6/7/8MHz Input frange range: 54-860MHz Input Impedance: 75 Ω Input signal level: -84 dBm to 0 dBm (average power) ANT. connector: IEC TYPE, female |
| DVB C | DVB C system standard: ETSI EN300 429 v1.2.1 Demodulation: 16/32/64/128/256QAM Input frange range: 48-860HMz Input Impedance: 75Ω Input signal level: -48 dBm to 0 dBm (average power) ANT connector: F TYPE, Loop Output: F TYPE |
| Interface | HDTV 2.0: 4K/2K HDTV2.0, HDCP2.2 2*USB HOST: 2* High speed USB 2.0,support U DISK and USB HDD 1*TF CARD: Micro TF Card (Maximum support 32GB) 1*AV: CVBS&L/R output 1*SPDIF: Digital Audio output 1*RJ45: 10/100M BaseT 1*DC IN: DC Adapter 12V/1A |
| Other Features | Network Function: Miracast, Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc. Language: Chinese, English, Germany, Japanese, Korea etc. 24 languages |
| Power | 12V/1A Power ON: Blue; Standby: Red |
| Package Contents | 1 x TV Box 1 x IR Remote Control 1 x HDTV Cable 1 x Power Adapter (A right AC Adapter will be sent as your shipping country) 1 x User Manual |
