Highlights

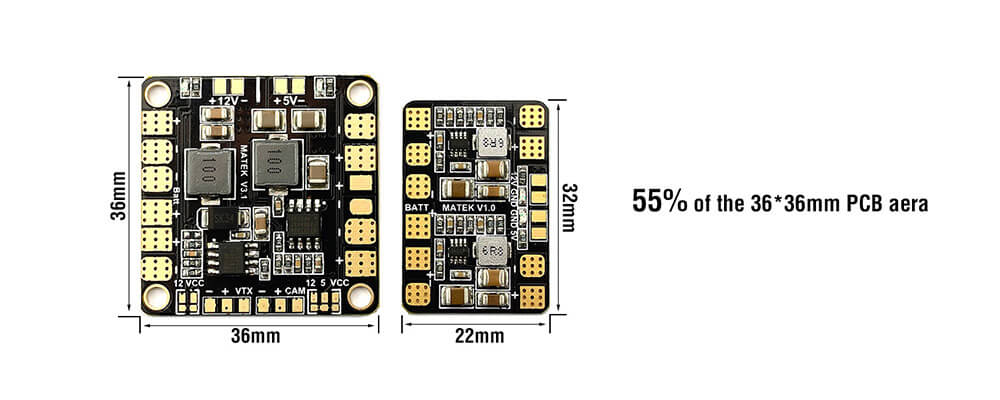

- The Micro PDB has been engineered to provide the highest possible performance and reliability in a 32*22mm & 4 layers PCB.

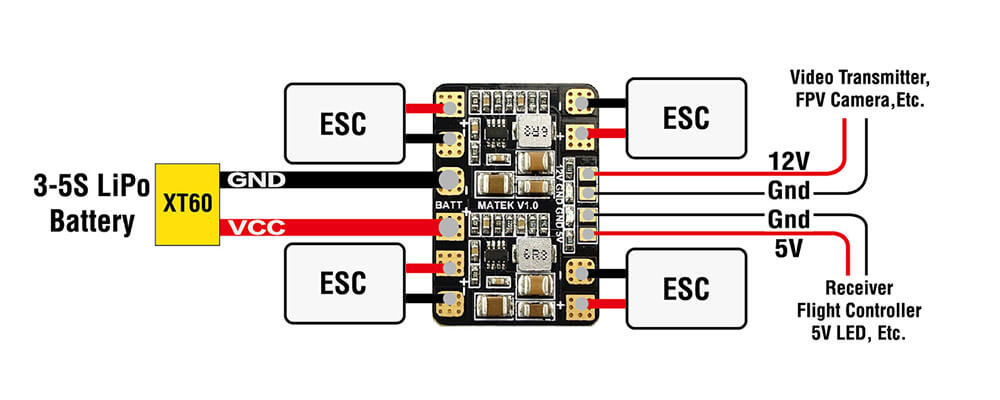

- It distributes power from a battery pack to 4 ESCs, as well as providing dual synchronised & regulated DC outputs for powering
- Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.
- It offers a very compact solution to achieve 2A continuous output current over a wide input supply range(3S to 5S LiPo).
Specification
| General | |
|---|---|
| Type | Power Distribution Board |
| Power Distribution Board | Input voltage range (3S-5S operation): 7 - 21V DC Regulated 5V and 12V outputs LED power indicators ( 5V & 12V outputs ) 4 ESC outputs |
| ESC output | Continuous current: 20A per output Peak current (10 seconds/minute): 25A per output |

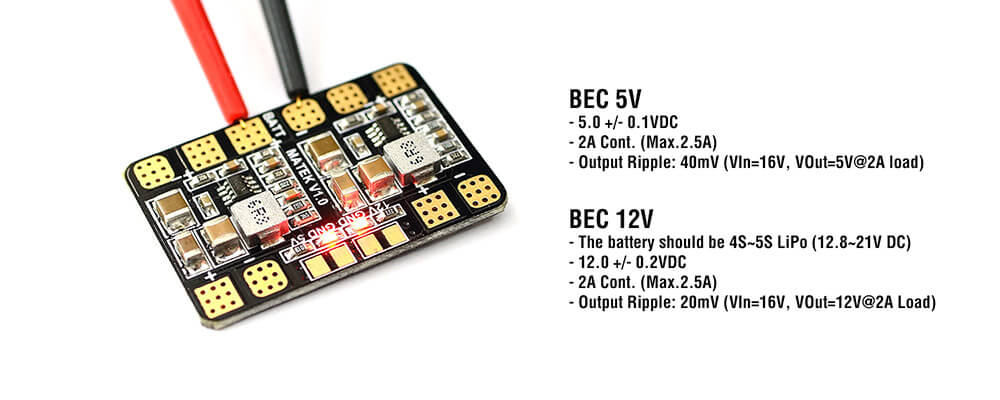

| BEC 5V output | Designed for RC Receivers, Flight controllers, OSD, and Servos. DC/DC synchronous buck regulator. Voltage: 5.0 +/- 0.1VDC Continuous current: 2 Amps (Max.2.5A 5s/minute) Output Ripple: 40mV (VIn=16V, VOut=5V@2A load) Short-circuit tolerant (5 seconds/minute) |
| BEC 12V output |
The battery should be 4S~5S LiPo (12.8~21V DC) BEC 12V @ 3S LiPo |

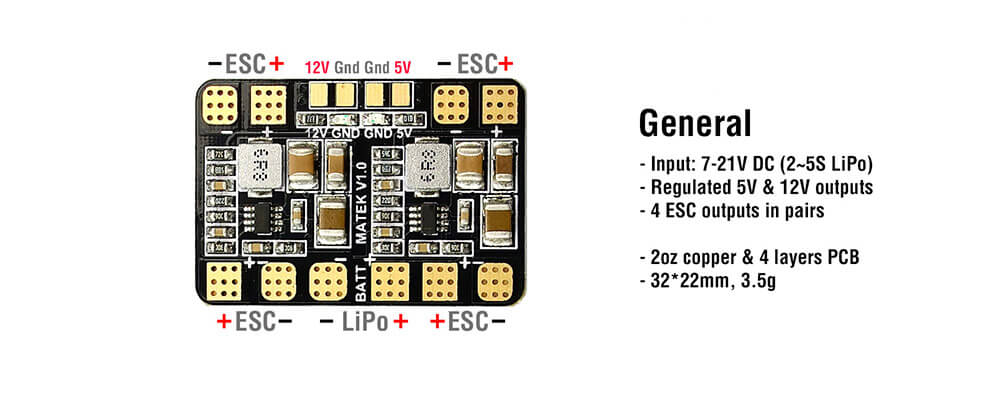

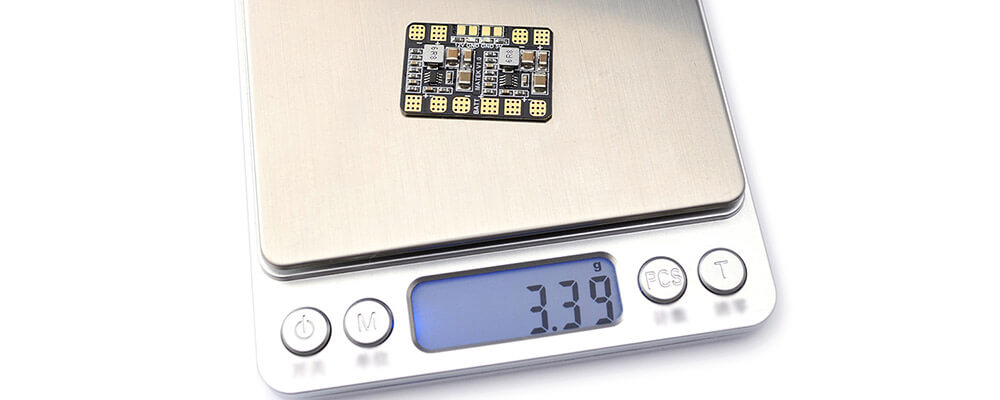

| Features | 2oz copper & 4-layers PCB ESC & Battery solder tabs in pairs 5V & 12V Output LED indicators & Short circuit tolerant Micro size & lightweight |
| Package Contents | |
| 1 x Matek Micro PDB With 5V 12V Dual BEC Output | |
