Highlights

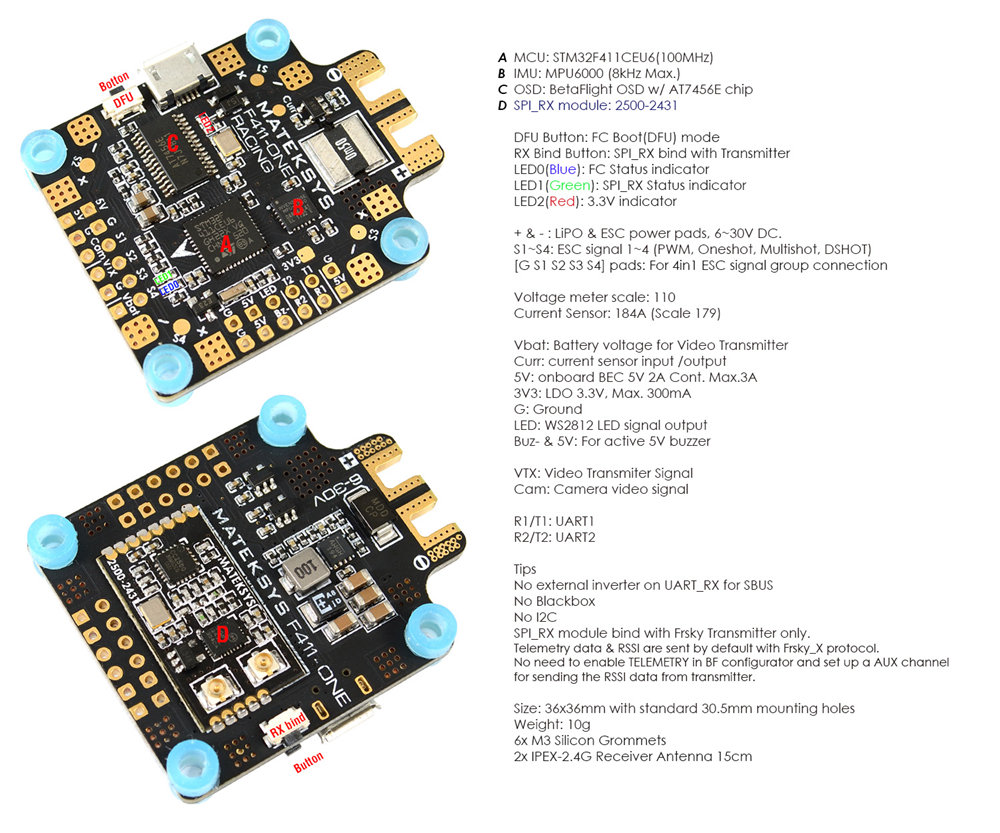

3 x LEDs for FC STATUS (Blue) , RX (Green) and 3.3V indicator(Red)
4 x PWM / DShot outputs
2 x UARTs
1 x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
4 x pairs of corner pads for ESC Power connections
1 x Side-press button for BOOT(DFU) mode

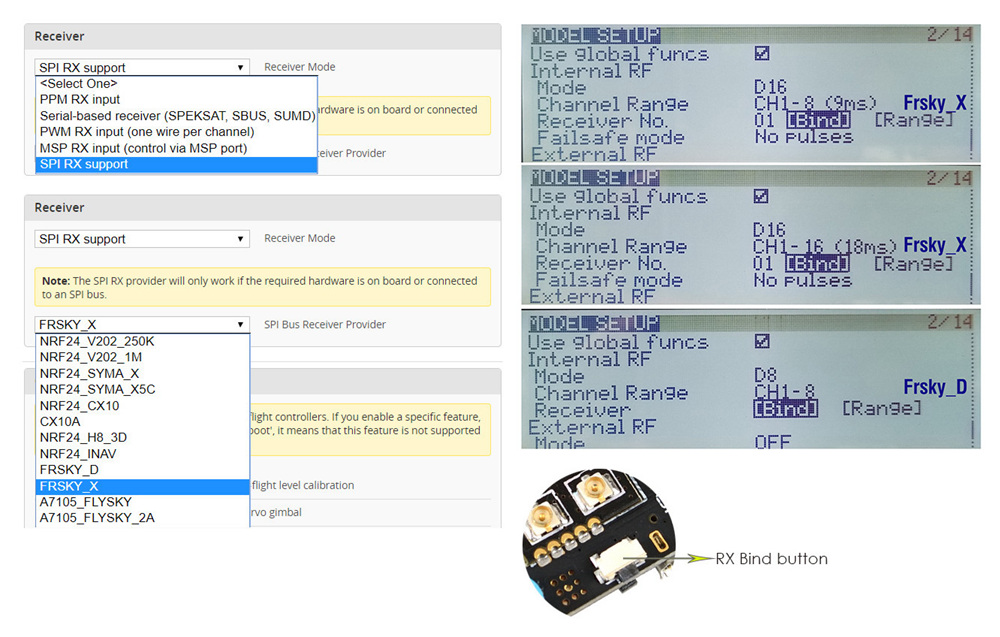

1 x Side-press button for RX bind
Specification

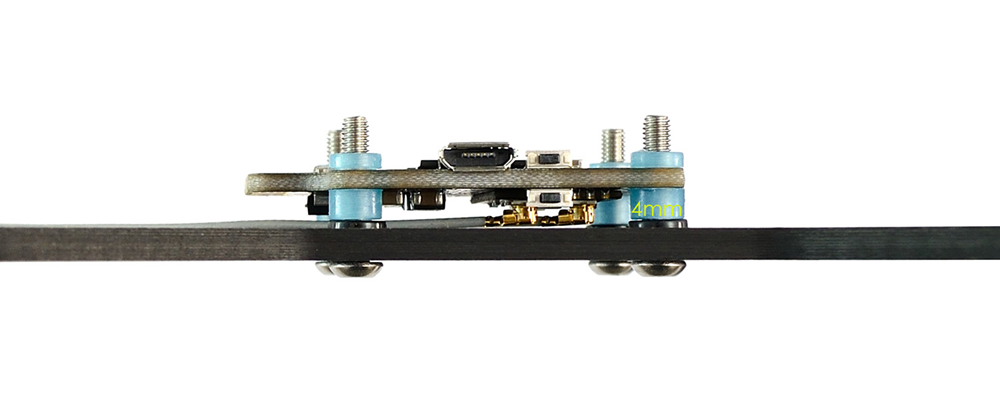

| General | Brand: Matek System Item No.: F411-ONE MCU: 100MHz STM32F411CEU6 IMU: MPU6000 gyro/accelerometer (SPI) OSD: BetaFlight OSD w/ AT7456E chip SPI RX: module 2500-2431, Frsky_X or Frsky_D protocol VCP, UART1, UART2 WS2812 Led Strip : Yes Beeper : Yes PPM: RX2 pad Blackbox: No SBUS input: No I2C1 SDA & SCL: No 36x46mm PCB with 30.5mm mounting holes 10g |
| PDB Specifications | Input: 6~30V (3~6S LiPo) w/TVS protection PDB: 4x30A (Max.4x46A) BEC: 5V 2A cont. (Max.3A) LDO 3.3V: Max.300mA Current Sensor 184A (Scale 179) Battery Voltage Sensor: 1:10 (Scale 110) |

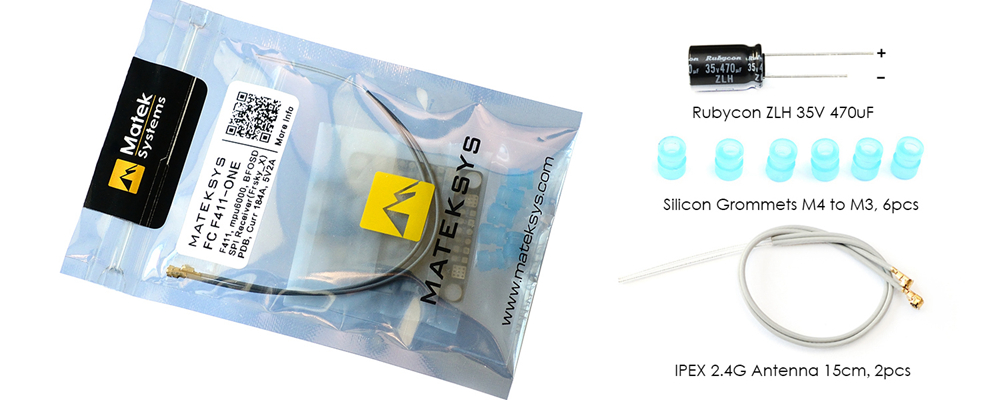

| Package Contents | 1 x Flight Controller 1 x Rubycon ZLH 35V/470uF (Low ESR) 6 x Silicon grommets M4 to M3 2 x IPEX- 2.4G antenna 15cm |
