Specification

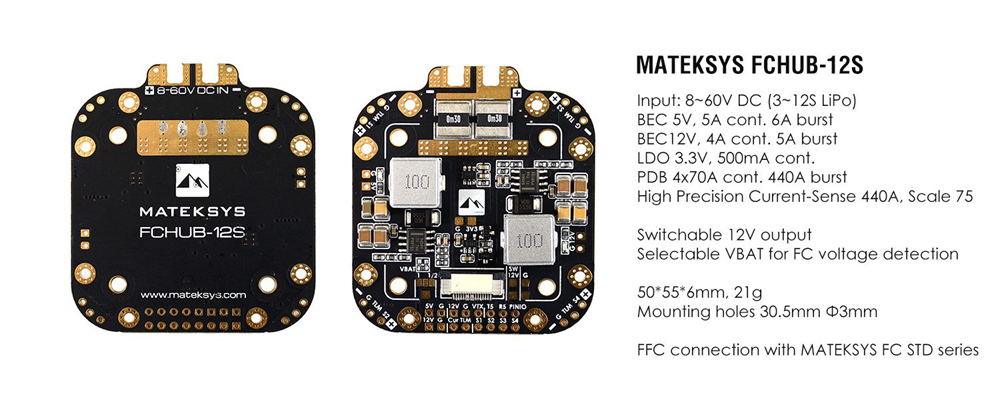

| General | Brand: Matek System Item No.: FCHUB-12S Mounting: 30.5 x 30.5mm (M3) Dimensions: 55 x 50 x 6 mm Weight: 21g |
| PDB | Input voltage range: 8~60V (3~12S LiPo) 4x70A cont, 4x110A burst 4x ESC power /signal/ telemetry pads Current Senor: 440A, 3.3V ADC, Scale 75 2x LED indicators for 5V, 12V |

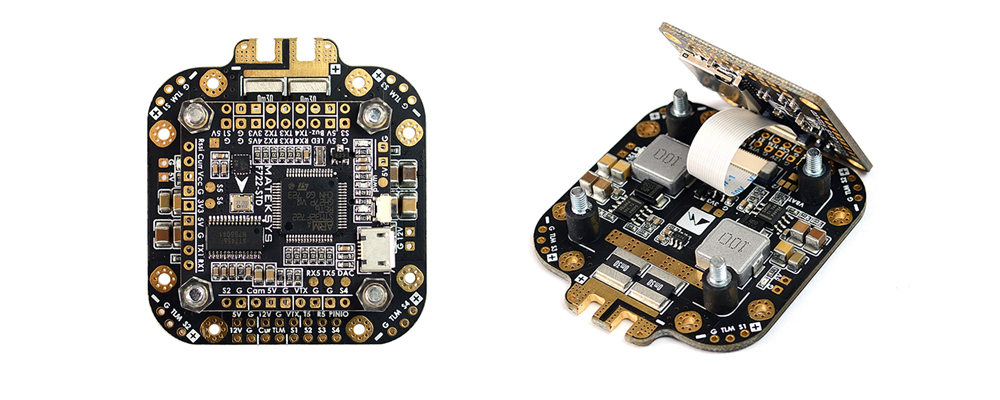

| FFC connection | Compatible with MATEKSYS FC F405-STD, F722-STD VTX: Video Transmitter signal T5 & R5: TX5 and RX5 of F405-STD/F722-STD |
| BEC 5V output (5V pad) | Voltage: 5.0 +/- 0.1VDC Continuous current 5 Amps, Max.6A Short-circuit tolerant (2 seconds) Overcurrent protection & self-recovery |
| BEC 12V output (12V pad) | Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V) Continuous current 4 Amps, Max.5A Input voltage<12V, Output voltage = Input voltage Probably there is audible sound in the BEC12V inductor when Input voltage<12V Short-circuit tolerant (2 seconds) Overcurrent protection & self-recovery |
| Switchable 12V output (SW12V pad) | 12V ON/OFF can be switched via PINIO can be use for powering VTX,LED etc. |
| BEC 3.3V output | Linear Regulator Continuous current: 500mA |

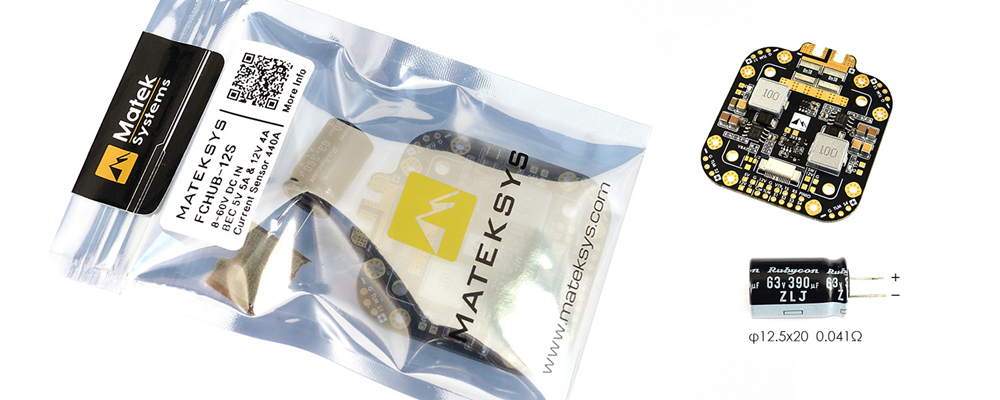

| Package Contents | 1 x FCHUB-12S PDB Board 1 x Capacitor |
