Specification

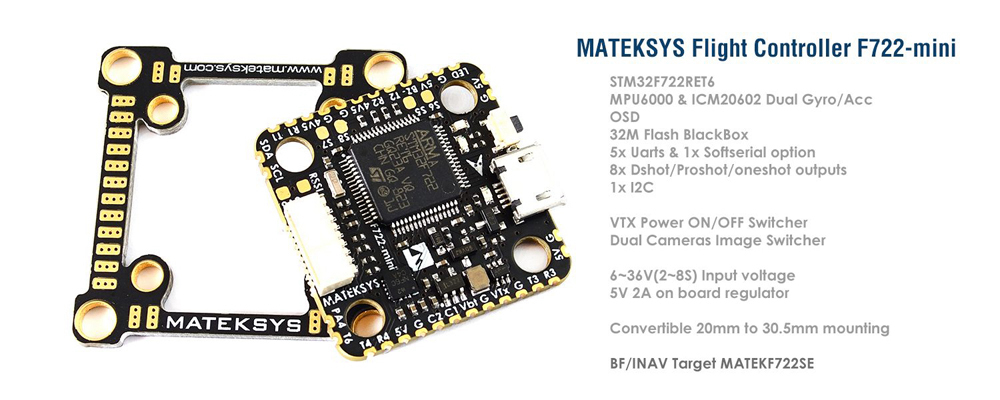

| General | Brand: Matek Systems Item No.: F722-Mini MCU: 216MHz STM32F722RET6 IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI) OSD: AT7456E (SPI) Blackbox: 32M-byte Flash memory (SPI) Baro: No barometer built-in. support external barometer module (I2C) 5 x Uarts (1,2,3,4,6) with build-in inversion 1 x Softserial supported 8 x Dshot/Proshot/oneshot outputs 1 x I2C 1 x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4) 3 x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1) Dual Camera image switchable via AUX (modes tab-user2) Convertible 20mm to 30.5mm mounting Camera control: Yes Smartaudio & Tramp VTX protocol: Yes WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes Additional ADC for INAV analog airspeed Dimensions: 28 x 28 mm Weight: 5g |
| Power | Input: 6~36V (2~8S LiPo) BEC: 5V 2A cont. (Max.3A) LDO 3.3V: Max.200mA Battery Voltage Sensor: 1:10 (Scale 110) No Current Sensor built-in, supports external current sensor of PDB/4in1 |
| FC Firmware | BetaFlight / INAV Target: MATEKF722SE |

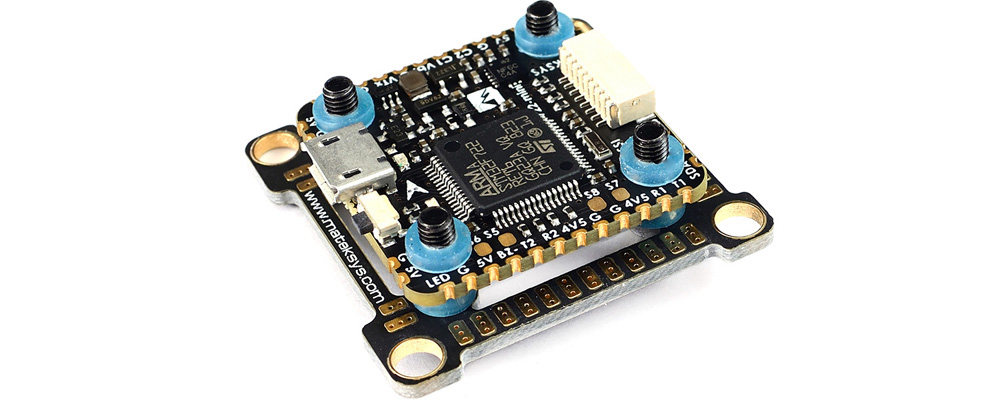

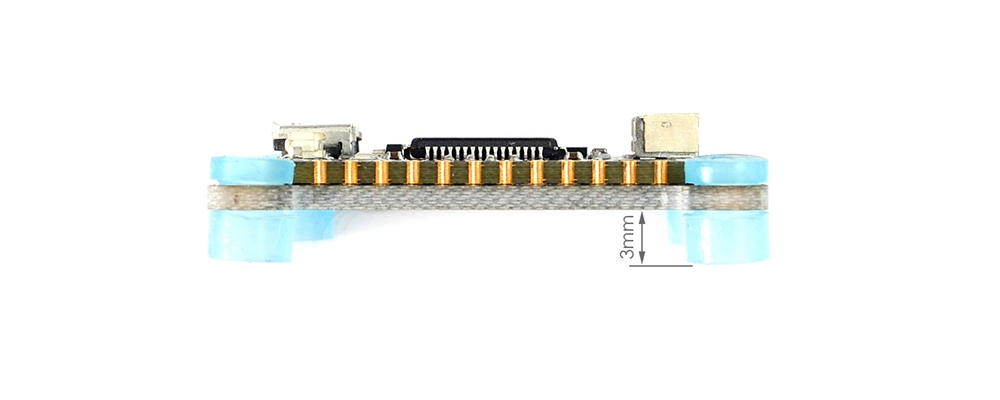

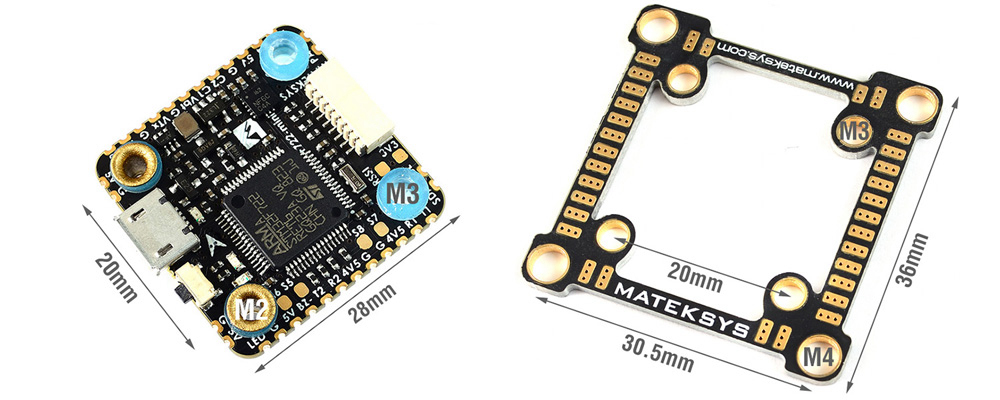

| Mounting | 20 x 20mm/Φ3mm with Silicon Grommets 20 x 20mm/Φ2mm with Silicon & Brass Grommets 30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets |

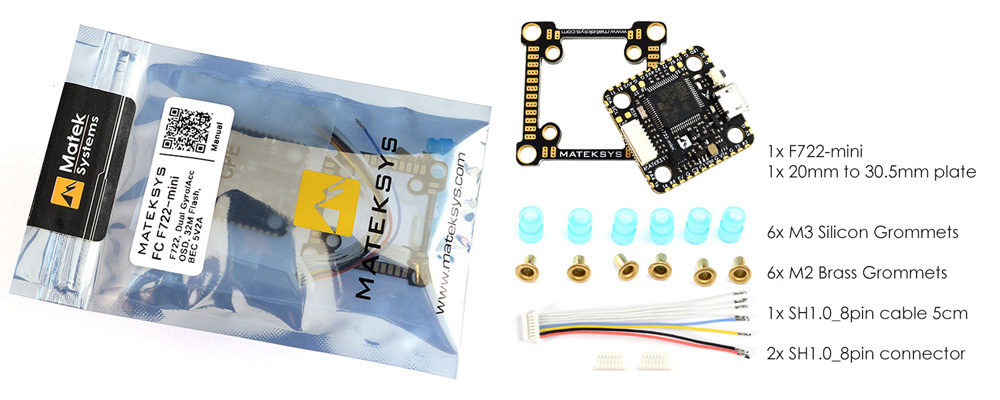

| Package Contents | 1 x FC F722-mini 1 x 20mm to 30.5mm conversion plate 6 x Silicon grommets M4 to M3 6 x Brass grommets M3 to M2 1 x SH1.0_8pin cable 5cm 2 x SH1.0_8pin connectors |
