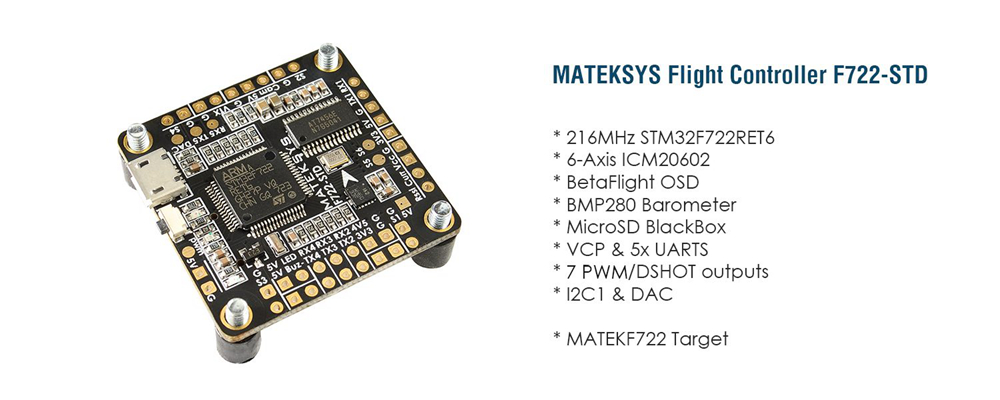

Highlights

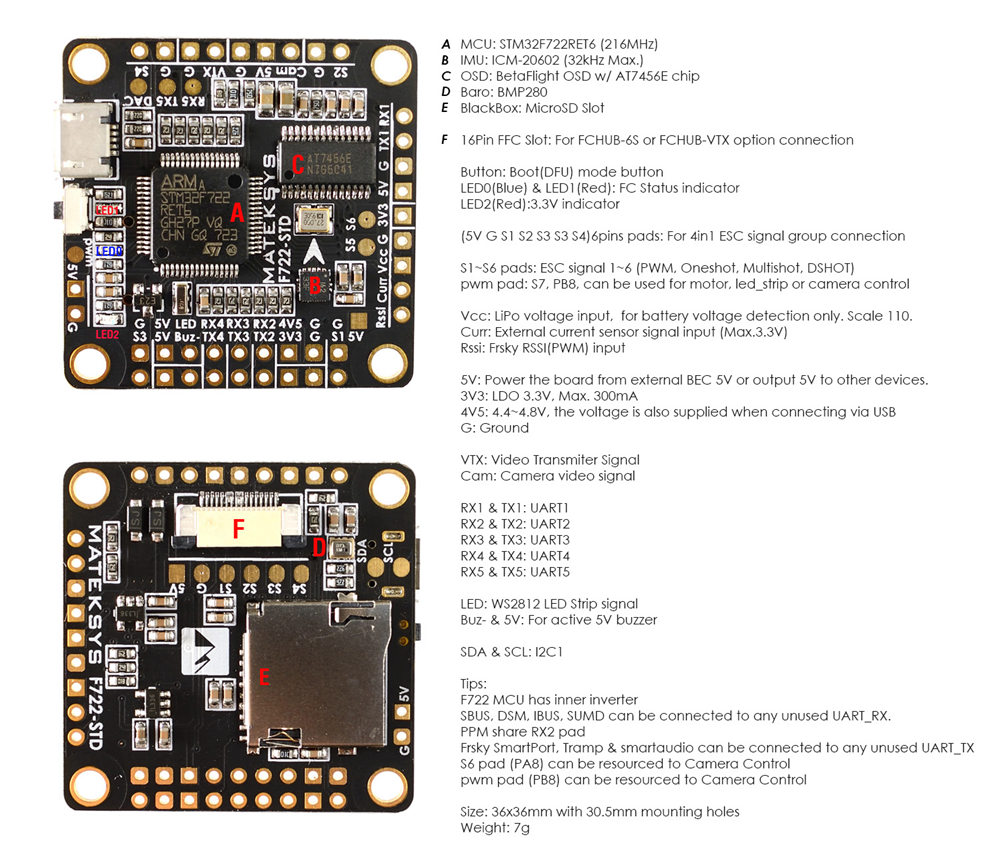

3 x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
7 x PWM / DShot outputs without conflict
5 x UARTs
1 x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
1 x I2C1
4 x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
1 x Side-press button for BOOT(DFU) mode

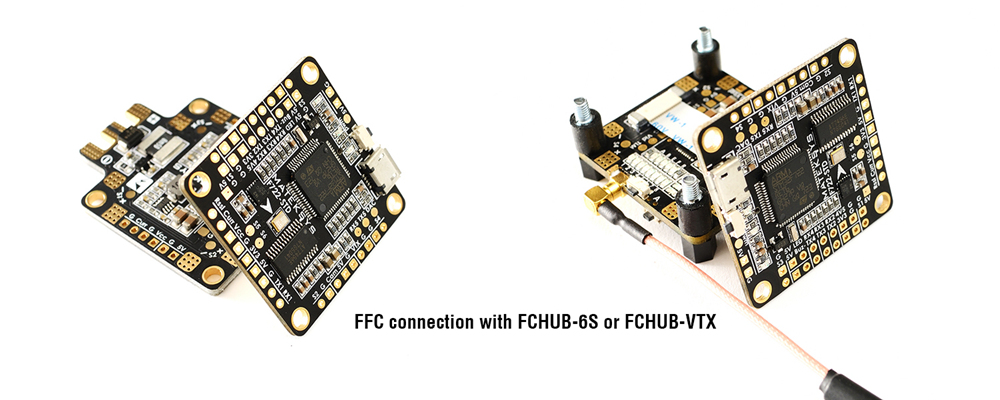

1 x 16pin bottom mounted FFC Slot for FCHUB-6S or FCHUB-VTX connection
Specification
General | Brand: Matek System Item No.: F722-STD MCU: 216MHz STM32F722RET6 IMU: 32K ICM20602 gyro/accelerometer (SPI) Baro: BMP280 (I2C) OSD: BetaFlight OSD w/ AT7456E chip Blackbox: MicroSD card slot (SD/SDHC) VCP, UART1, UART2, UART3, UART4, UART5 PPM/UART Shared: UART2-RX Battery Voltage Sensor: 1:10 Current Sensor: No (FCHUB-6S, FCHUB-VTX option) BEC 5V: No (FCHUB-6S, FCHUB-VTX option) LDO 3.3V: Max.300mA I2C1 SDA & SCL: Yes Camera control: Yes DAC: Yes WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes 36x36mm PCB with 30.5mm mounting holes |

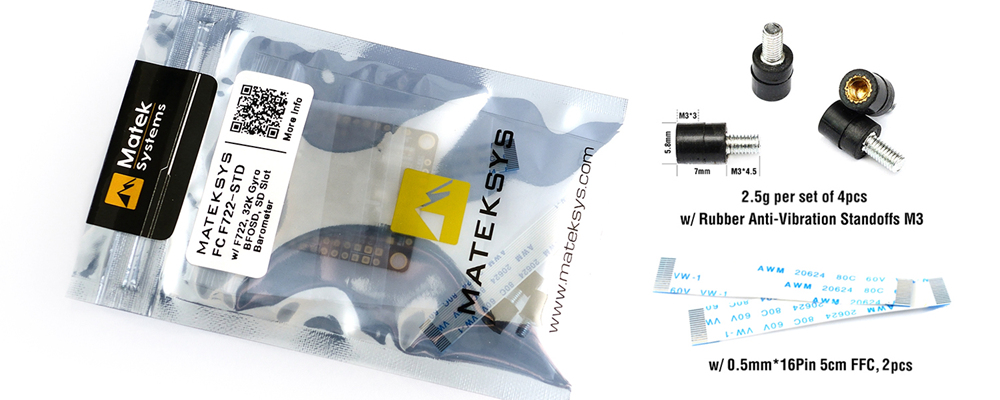

Package Contents | 1 x Flight Controller 2 x 0.5mm*16Pin 5cm Flexible Flat Cable 4 x M3 Anti-vibration Standoffs |
