Specification

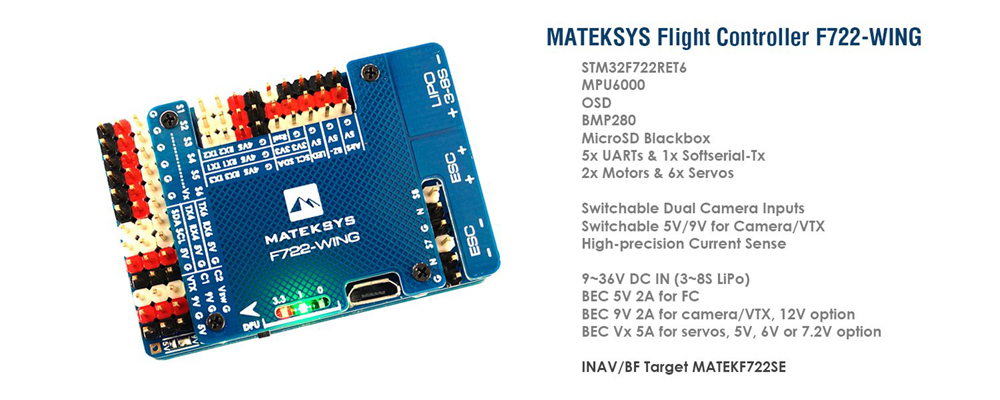

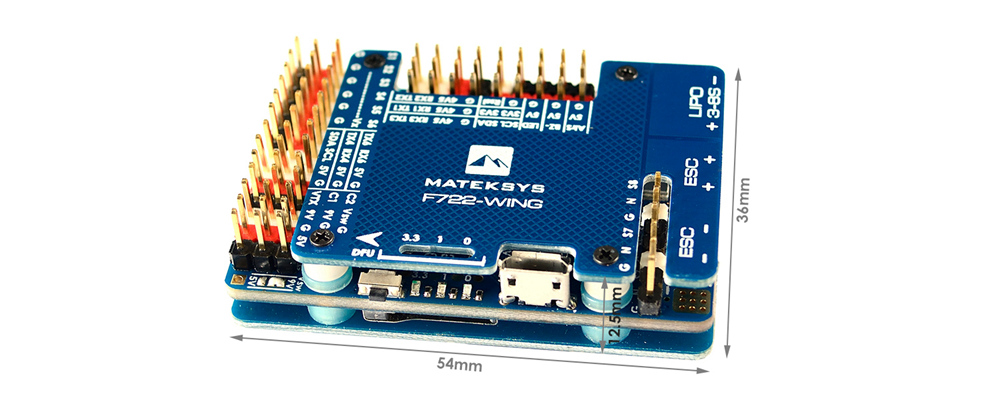

| General | Brand: Matek System Item No.: F722-WING MCU: 216MHz STM32F722RET6 IMU: MPU6000 (SPI) Baro: BMP280 (I2C) OSD: AT7456E (SPI) Blackbox: MicroSD card slot (SPI) 5 x Uarts (1,2,3,4,6) with built-in inversion 1 x Softserial-Tx 2 x Motors, 6x Servos outputs 1 x I2C 4 x ADC (VBAT, Current, RSSI, AirSpeed) 3 x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) Switchable Dual Camera Inputs Switchable 5V/9V for Camera/VTX High-precision Current Sense TR/SA VTX control: Yes WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes Analog Airspeed sensor: Yes Digital Airspeed sensor: Yes Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm Dimensions: 54 x 36 x 13 mm Weight: 25g |
| FC Firmware | INAV Flight/BetaFlight Target: MATEKF722SE |
| PDB | Input voltage range: 9~36V (3~6S LiPo) w/TVS protection 2x ESC power pads Battery Voltage Sensor: 1:10 (Scale 1100) Current Senor: 132A, 3.3V ADC, Scale 250 |
| BEC 5V output | Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed Continuous current: 2 Amps, Max.3A |

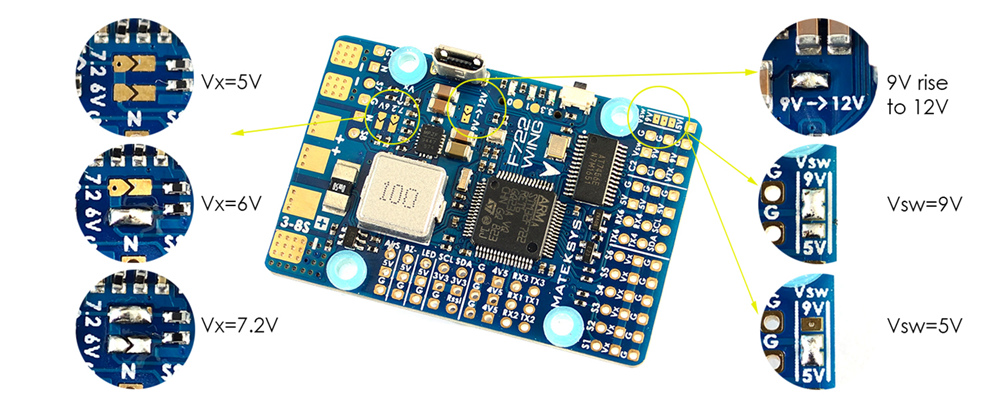

| BEC 9V /12V output | Designed for Video Transmitter, Camera, Gimbal ect. Continuous current: 2 Amps, Max.3A 12V option with Jumper pad |
| BEC Vx output | Designed for Servos Voltage adjustable, 5V Default, 6V or 7.2V via jumper Continuous current: 5 Amps, Max.6A Output Ripple: 50mV (VIn=24V, VOut=5V@5A load) |
| BEC 3.3V output | Designed for Baro / Compass module and Spektrum RX Linear Regulator Continuous current: 200mA |

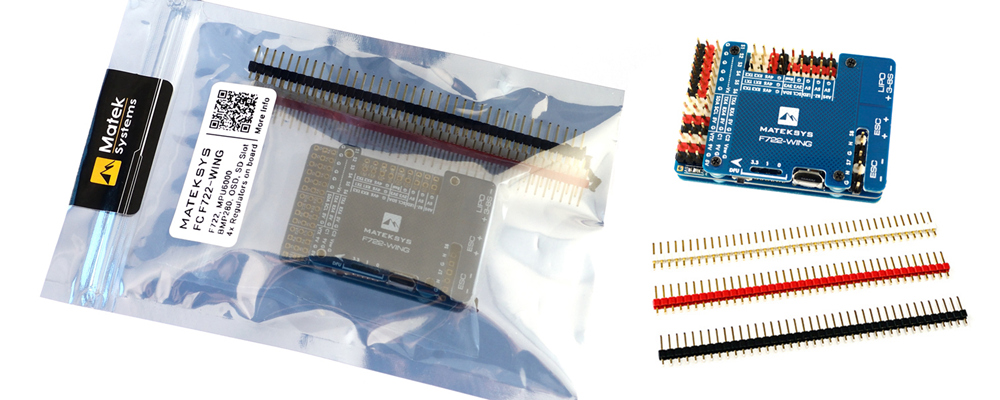

| Package Contents | 1 x Matek Systems F722-WING Flight Controller |
