Transmit uncompressed 1080P video to TV wirelessly.
Plug and play, no software installation required, no setting required.
Stream HD 1080P and 3D video pass through.
Support the highest rate 1.485G, and TMDS clock is up to 148.5MHz.
Transmission distance is up to 30 meters.

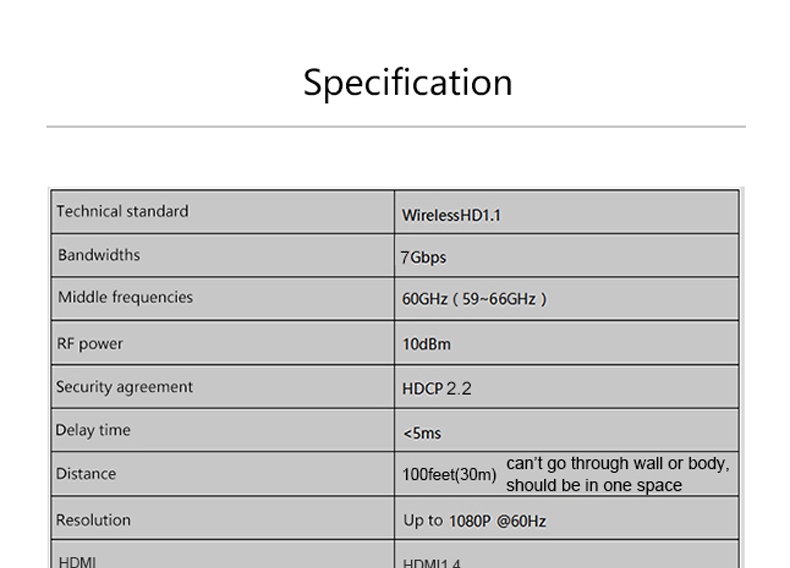

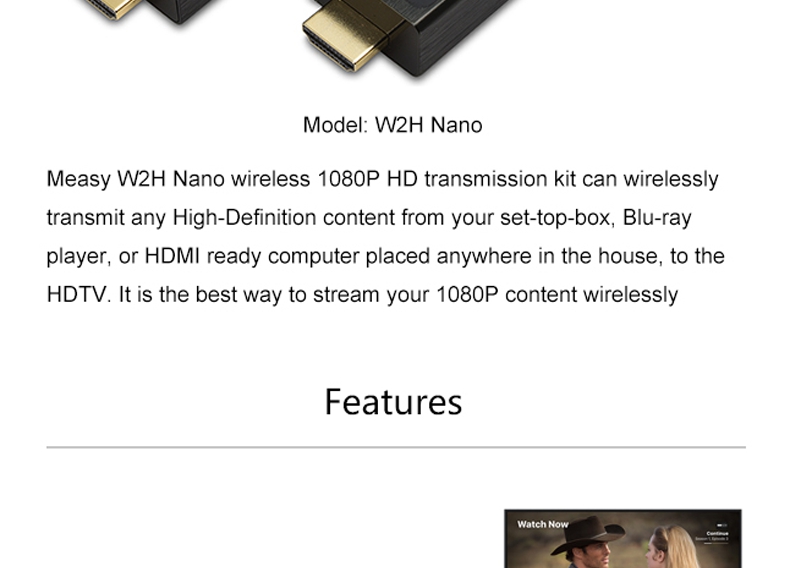

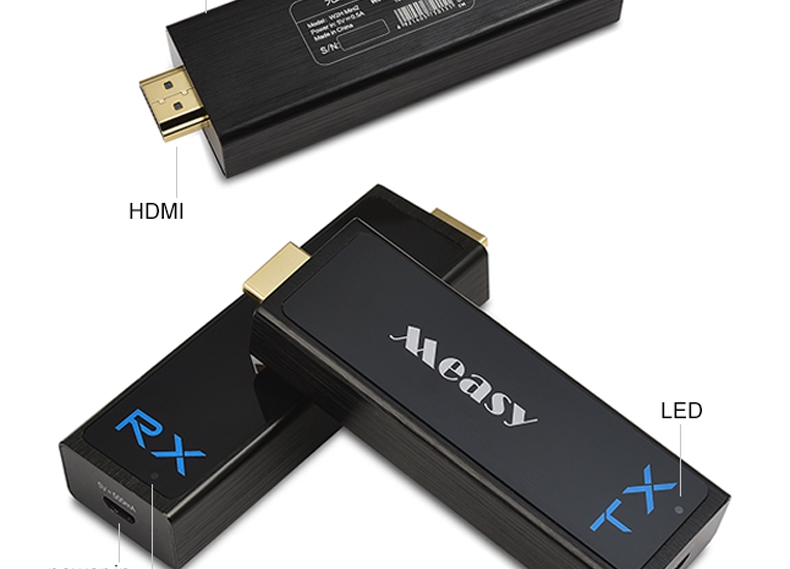

Model: W2H NANO
Technical Standard: Wireless HD 1.1
Middle Frequences: 60GHz(59~66GHz)
RF Power: 10dBm
Security Agreement: HDCP 2.2
Delay Time: <5ms
Distance: 100Feet(30M) Can't go through wall or body, should be in one space.
HDMI: HDMI 1.4

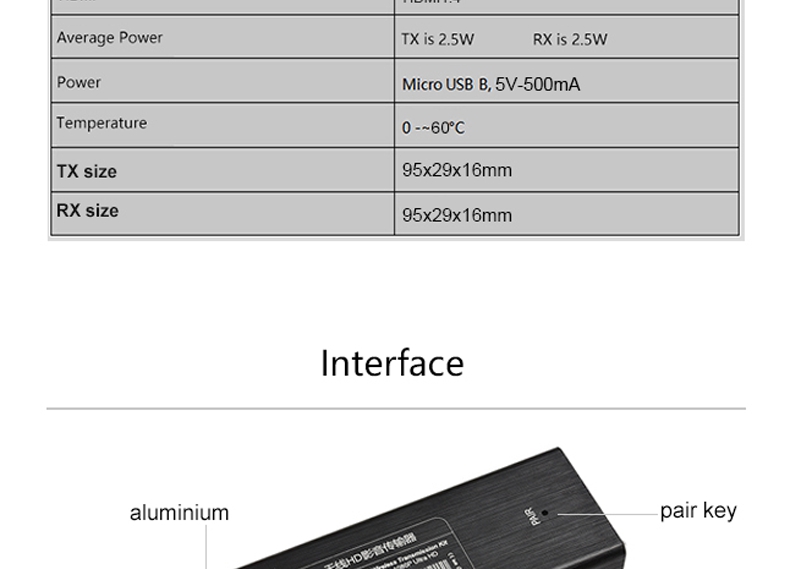

Average Power: TX is 2.5W, RX is 2.5W
Power: Micro USB B, 5V-500mA
TX Size: 95 x 29 x 16mm
RX Size: 95 x 29 x 16mm
Support 3D video format
Support 8/10/12 bit deep color
The longest distance can be 30m when the resolution is 1080p.
Working in the 60Ghz frequency band, it is not subject to interference by WIFI signals, microwave radiation,
or cordless phone.

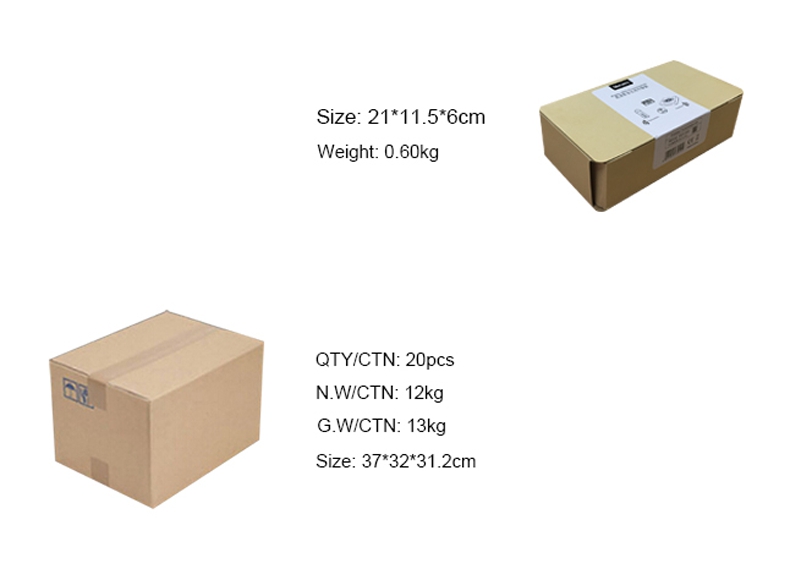

Dimensions & Weight
Size: 21 x 11.5 x 6cm

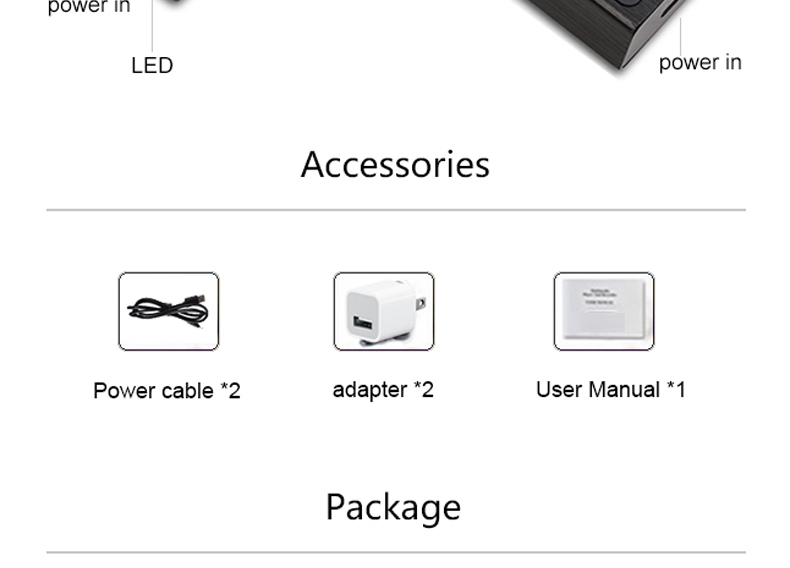

1 x Transmitter
1 x Receiver
2 x Power Cable
2 x Power Adater(A right AC Adapter will be sent as your shipping country)
1 x User Manual
