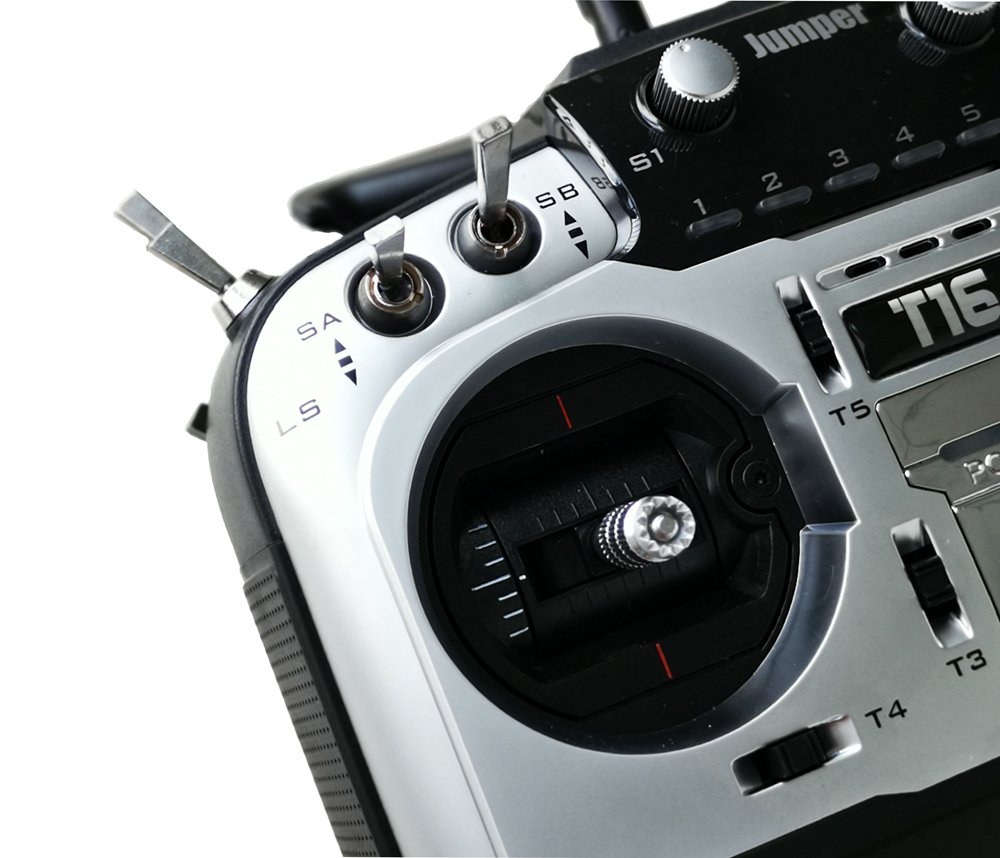

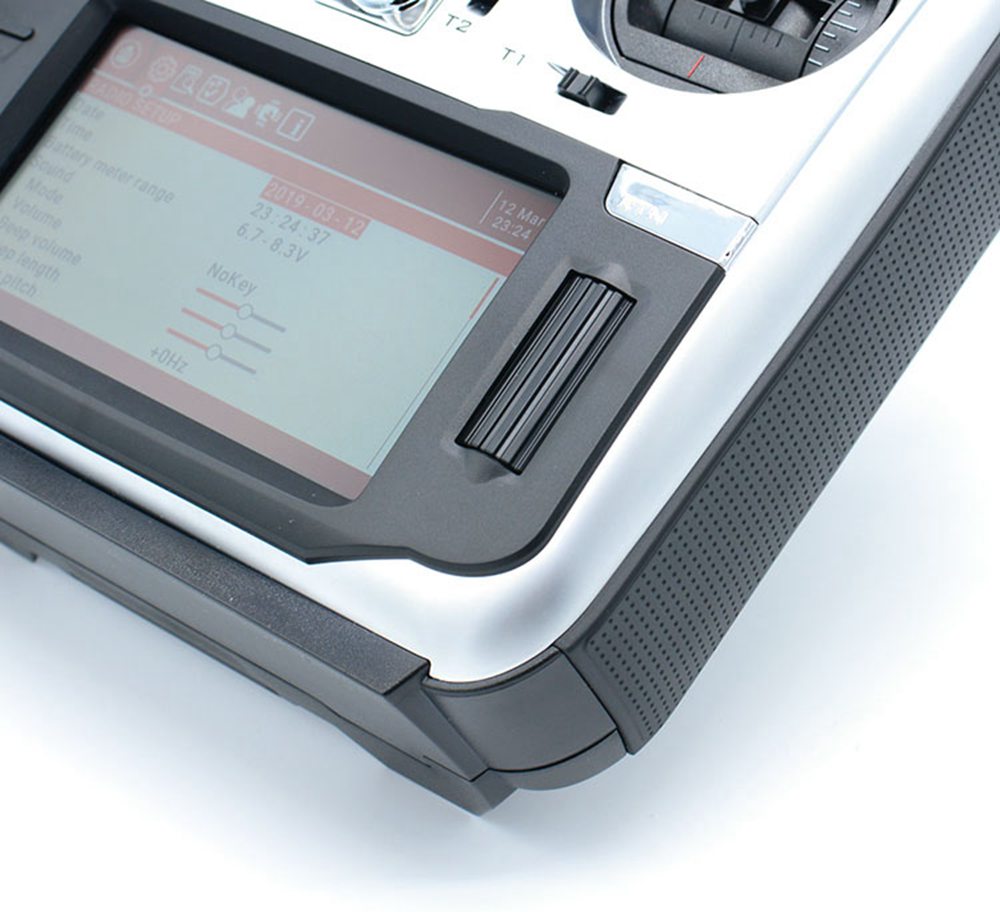

Jumper T16 Plus Open Source Multi-protocol Radio Transmitter With HALL Sensor Gimbal For FPV Racing Drone - Mode 2

General

Brand: Jumper
Item No.: T16 Plus
Mode: Mode 2

Specification

Size: 180*190*58
Weight: 798g (with 2 x 18650 batteries installed)
Voltage: DC7-8.4V
Battery: 2 x 18650 (tray supplied) or 2S lipo (batteries not included)
Current: 350mah (NO CRSF)
Channel: 16ch
Micro SD Slot: Card Included

Jumper JP4-in-1 Module
The Jumper JP4IN1 Module features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module can convert standard PPM signals form module equipped radios in to the RF protocols used by most radios in the market today (See RF Chip data below). This module is plug and play with module equipped radios in the FrSKY series and requires no complex wiring or “hacking” to get running. The module is a great way to improve the enjoyment of your flying experience, using a better radio such as the FrSKY Taranis series rather than the low grade radios commonly included with most kits offers an night and day difference in performance. The Jumper JP4IN1 module is also upgradable via USB input

JP4-in-1 Specifications:
Working voltage: 6-9v
Working current: <=100ma
Operating frequency: 2.4G ISM band
RF power: +22DBM
Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
Module bay compatibility: FRSky, Jr and other dimensions: 64*49*33 (without antenna)
Net Weight: 42g (including antenna)
Software Compatibility: Suitable for radios using OpenTX or er9x/ersky9x
Firmware updatable: Yes, via USB.

RF Chip Data
Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futaba SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models

Weight & Dimensions

Product weight: 798g
Product size (L x W x H): 180*190*58mm

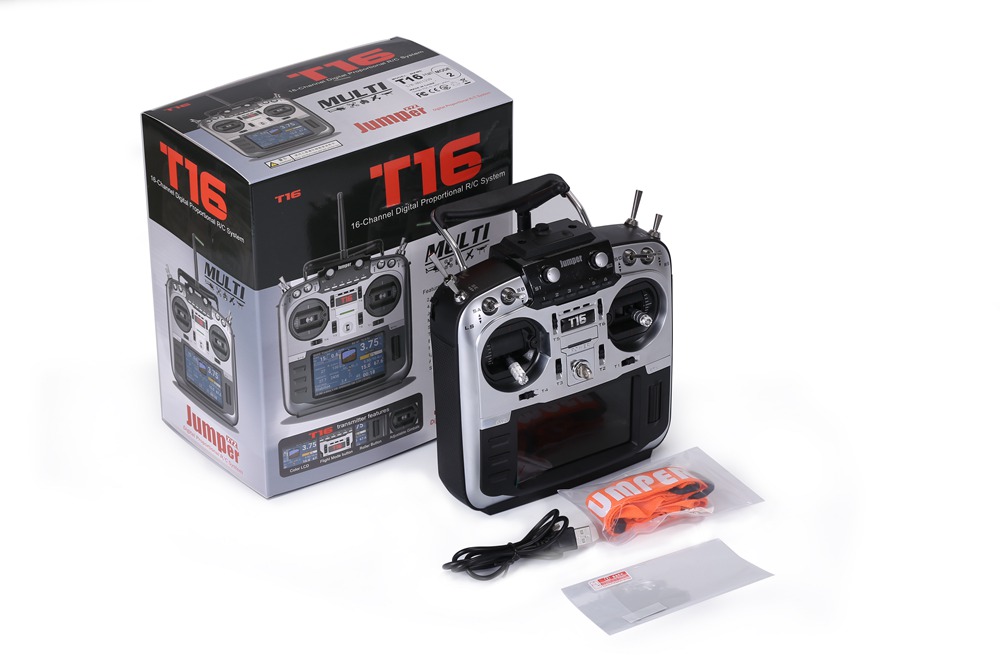

Package Contents

1 X Transmitter
1 X JP4-in-1 Module
1 X USB Cable
1 X Lanyard
1 X Manual
