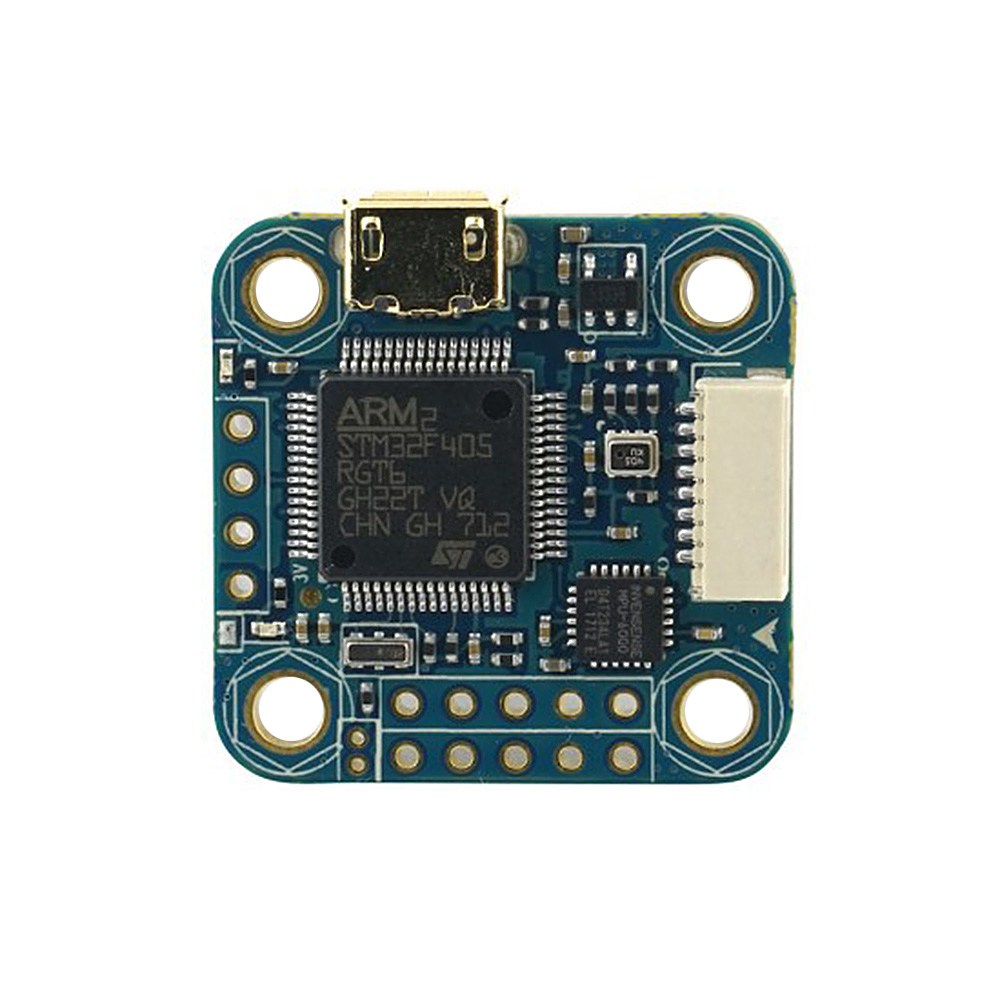

AIRBOT OMNIBUS F4 Nano V3 with LC Filter Flight Controller 2-6S STM32 F405 MCU Built_in Betaflight OSD

Highlights

2-6s direct input (adaptor to connect to Wave 4in1 ESC providing power and ESC signal connection (note Wave is 2-4s))

MPU6000 gyro connected by SPI for low noise, clean, high frequency gyro samples

BMP280 Barrometer to enable altitude hold

Betaflight OSD

Onboard voltage sensor

On board 5v regulator, components rated to 2A - recomended 1A max to prevent heat build up)

Built in L-C filter to provide clean power to FPV kit

STM32 F405 MCU running betaflight 3.2

Pin headers for SBUS/PPM input

output for 4 motors on JST-SH 1.0 8pin plug connects to Airbot Wave 4in1 ESC (The Option 8pin 4in1 Cable)

25x25mm (20x20mm M3 mount holes)

Specification
