Highlights

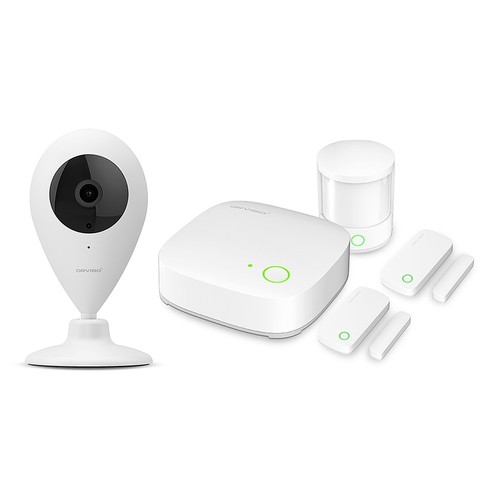

The ORVIBO Smart Home Suit Equipment including ZigBee Mini Hub / Windows Door Sensor / PIR Motion Sensor
Powered by ZigBee wireless communication technology, highly reliable and stable.
This door window sensor can be installed on doors, windows or other openable objects.
This ORVIBO motion sensor is based on the human infrared spectrum detection technology.
The sensor detects human or pet activity by sensing the infrared heat from the human or pet body.
When used with smart hub and HomeMate APP, it operates as home a security system with customizable equipment linkage function.
Work with HomeMate App to remind you no matter where you are if someone unwanted break into your house.
Synchronize with other ZigBee devices, can realize if you open the door, then turn on lights scenes.
The windows door sensor is a powered by 1 x CR2032 button battery (included), the motion sensor is powered by 2 x AA battery (included).
Ultra low power consumption, the battery can last more than 1 year.
If it's low battery, the LED of the sensor will blink once every 3 seconds.
Specification
| ZigBee Hub | |
|---|---|
| Brand | ORVIBO |
| Size | 88*90*27mm |
| Power Supply | 5V-1A Micro USB |
| Communication Protoco | ZigBee HA |
| Wireless standard | IEEE 802.15.4 |
| Working frequency and channel | Frequency: 2.4GHz |
| Channel | 11.14.15.19.20.24.25 |
| Modulation mode | OQPSK |
| Wireless transmitting power | ≤18dBm |
| Wireless receiving sensitivity | ≥-90dBm |
| Encryption | AES128 |
| Communication rate | 250Kbps |
| Product List | 1 x Orvibo ZigBee Mini Hub ;1 x English User Manual ; 1 x Warranty Card |
| PIR motion sensor | |
| Model | SN10ZW-1NO |
| Power Supply | Includes batteries |
| Standby current | ≤50uA |
| Alarm current | ≤50mA |
| Communication Protoco | ZigBee HA |
| Working frequency | 2.4GHz |
| Wireless standard | IEEE 802.15.4 |
| Channel | 11.14.15.19.20.24.25 |
| Modulation mode | OQPSK |
| Encryption | AES-128 |
| Communication speed | 250 Kbps |
| Transmission power | ≤4.5dBm |
| Receiver sensitivity | ≥=90dBm |
| Detaction range | 120 degrees horizontally, |
| Detection distance | 7m |
| Communication distance | 80m(in open area) |
| Casing material | PC+ABS |
| Operating environment | -10-50degree |
| Operating humidity | 10%-90% RH |
| Dimension | 52.6x63mm |
| Product List | 1 x ORVIBO motion PIR sensor ;1 x ORVIBO sensor bracket ;1 x Setting screws pack ;1 x Engligh user manual ;1 x Warranty Card ;1 x Battery |
| Door/window sensor | |
| Model | SM10ZW-1NO |
| Power Supply | Includes CR2032 button battery |
| Standby current | ≤1uA |
| Alarm current | ≤15mA |
| Communication Protoco | ZigBee HA |
| Wireless standard | IEEE 802.15.4 |
| Working frequency | 2.4GHz |
| Channel | 11.14.15.19.20.24.25 |
| Modulation mode | OQPSK |
| Encryption | AES-128 |
| Communication speed | 250 Kbps |
| Transmission power | ≤4.5dBm |
| Receiver sensitivity | ≥-90dBm |
| Communication distance | 80m(in open area) |
| Casing material | PC+ABS |
| Operating environment | -10-50degree |
| Operating humidity | 10%-90% RH |
| Transmitter dimensions | 61x30.3x11.7mm |
| Magnet dimensions | 44.8x140.9x7.9m |
| Product List | 1 x Door/Window Sensor 1 x Zigbee Mini Hub 1 x Motion Sensor 1 x WiFi Camera |
