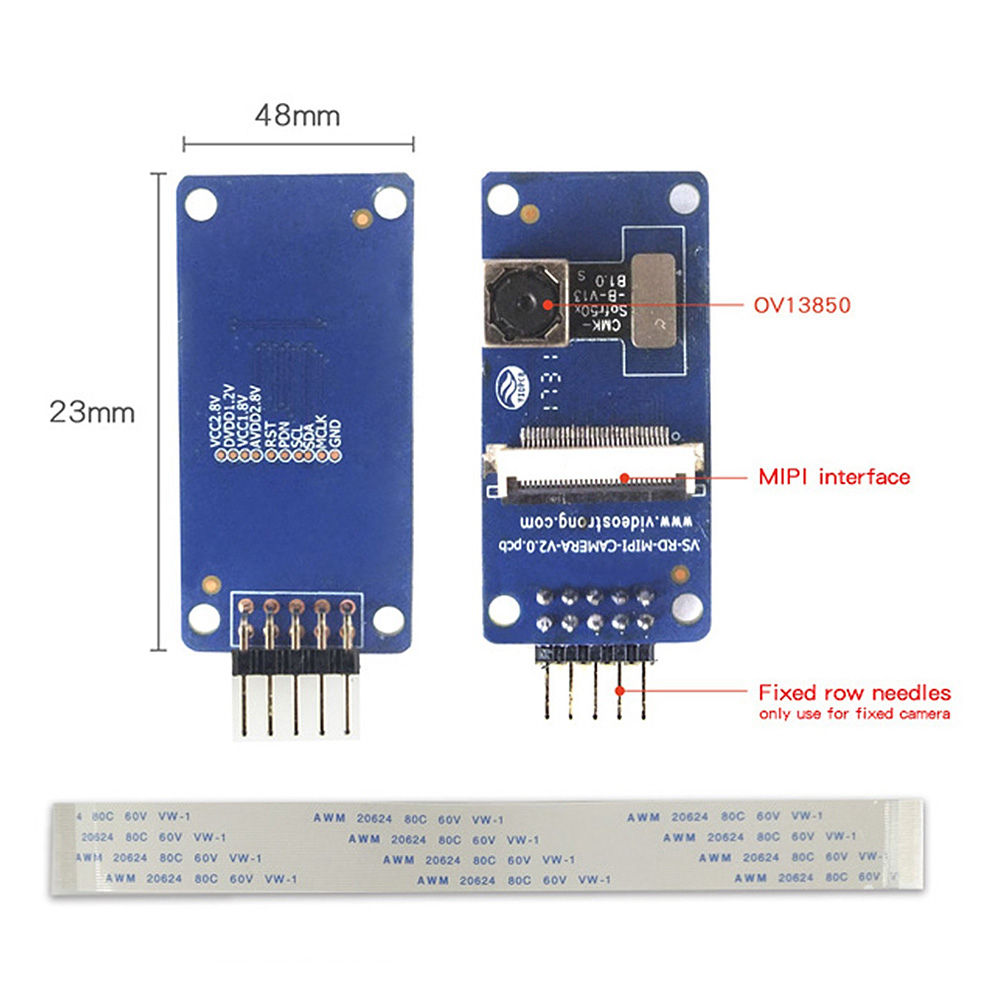

OV13850 Camera Module 130m Pixel MIPI Interface for Smartphones/Tablets/DIY BOX

Model: OV13850
Type: Camera Module
Quantity: 1 Piece

Resolution: 130m Pixel
Interface: 30 MIPI
Active array size: 4224 x 3136
Power supply:
Core: 1.14 ~ 1.26V (1.2V nominal)
Analog: 2.6 ~ 3.0V (2.8V nominal)
Input/Output: 1.7 ~ 3.0V (1.8V or 2.8V nominal)
Power requirements:
Active: 223 mW
Standby: 300 µW
Shutdown: 1 µW
Temperature range:
Operating: -30°C to +85°C junction
Stable image: 0°C to +60°C junction
Output interfaces: up to 4-lane MIPI serial output
Output formats: 10-bit RGB RAW
Lens size: 1/3.06"
Lens chief ray angle: 31.2°
Input clock frequency: 6 ~ 64 MHz
Maximum image transfer rate: 30 fps
Scan mode: progressive
Pixel size: 1.12 µm x 1.12 µm
Image area: 4815 µm x 3678.3 µm
Die dimensions: 6210 µm x 5517 µm
