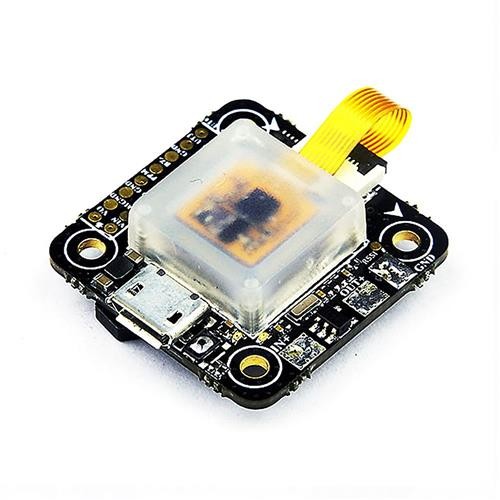

    Omnibus F4 Corner Nano AIO Flight Controller STM32 F405 MCU Built_in Betaflight OSD 5V/1A BEC

    Ship to:
    Germany
    Select the desired shipping method
    Shipping Company Estimated Delivery Time Shipping Cost
    *Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
    0 item(s) added
    View CartContinue Shopping

    Highlights

    IMU installation with damping box.

    Up to 32k Gyro loop.

    Support programmable LED Sprit .

    Support BLheli/BLHELI_S suite Pass-through ready.

    ESC Protocol PWM, Oneshot125,Oneshot42,Multishot,Dshot150,Dshot300,Dshot600 compatible.

    Built-in voltage sensor and Current sensor.

    Built-in Betaflight-OSD, Configure by Betaflight GUI.

    Buzzer Ready (Solder pin).

    Omnibus F4 Corner Nano AIO Flight Controller STM32 F405 MCU Built_in Betaflight OSD 5V/1A BECOmnibus F4 Corner Nano AIO Flight Controller STM32 F405 MCU Built_in Betaflight OSD 5V/1A BECOmnibus F4 Corner Nano AIO Flight Controller STM32 F405 MCU Built_in Betaflight OSD 5V/1A BECOmnibus F4 Corner Nano AIO Flight Controller STM32 F405 MCU Built_in Betaflight OSD 5V/1A BEC

    Specification

    General

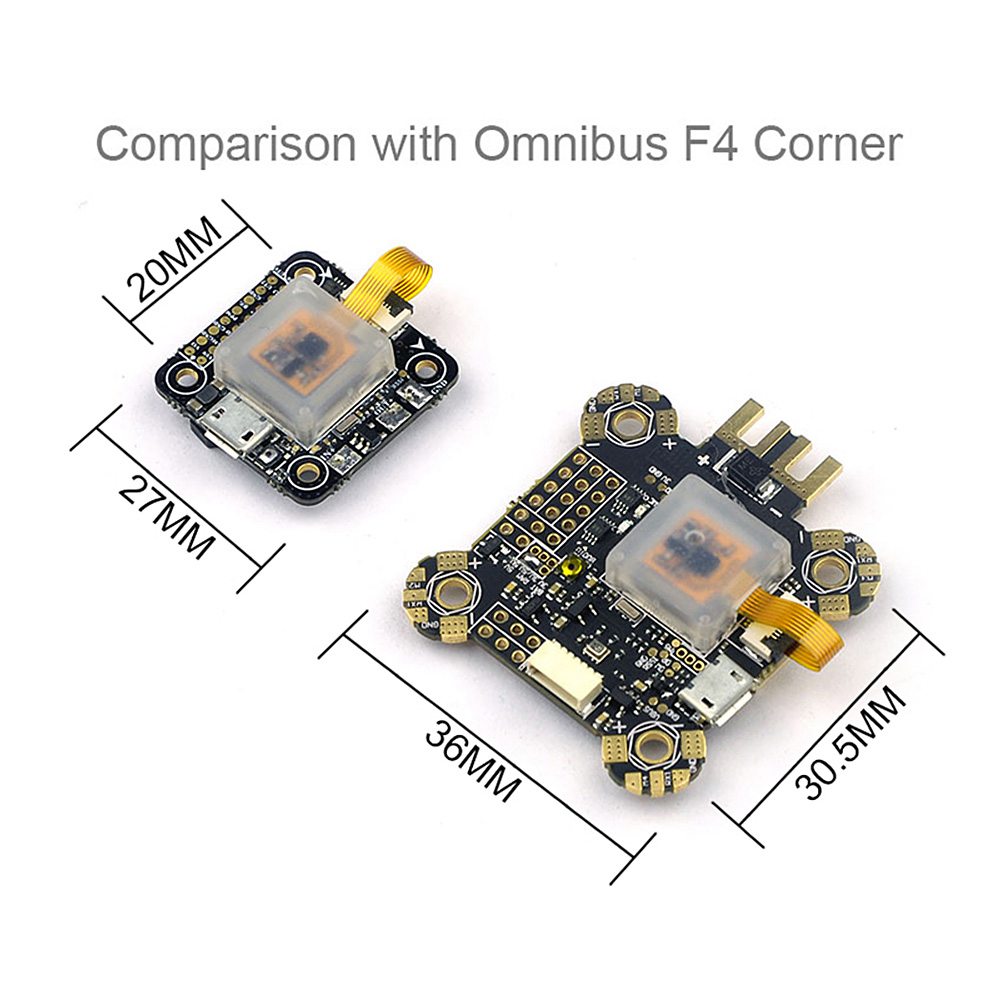

    Item Name: Omnibus F4 Corner Nano FC
    Hole Distance: 20 X 20mm
    Hole Diameter: 2.3mm
    Weight: 5g
    CPU: STM32F405RGT6
    Sensor: MPU-6000 (Connected By SPI)
    Firmware Version: Betaflight_3.2.0_OMNIBUSF4SD
    ESC: 5V 1A Output

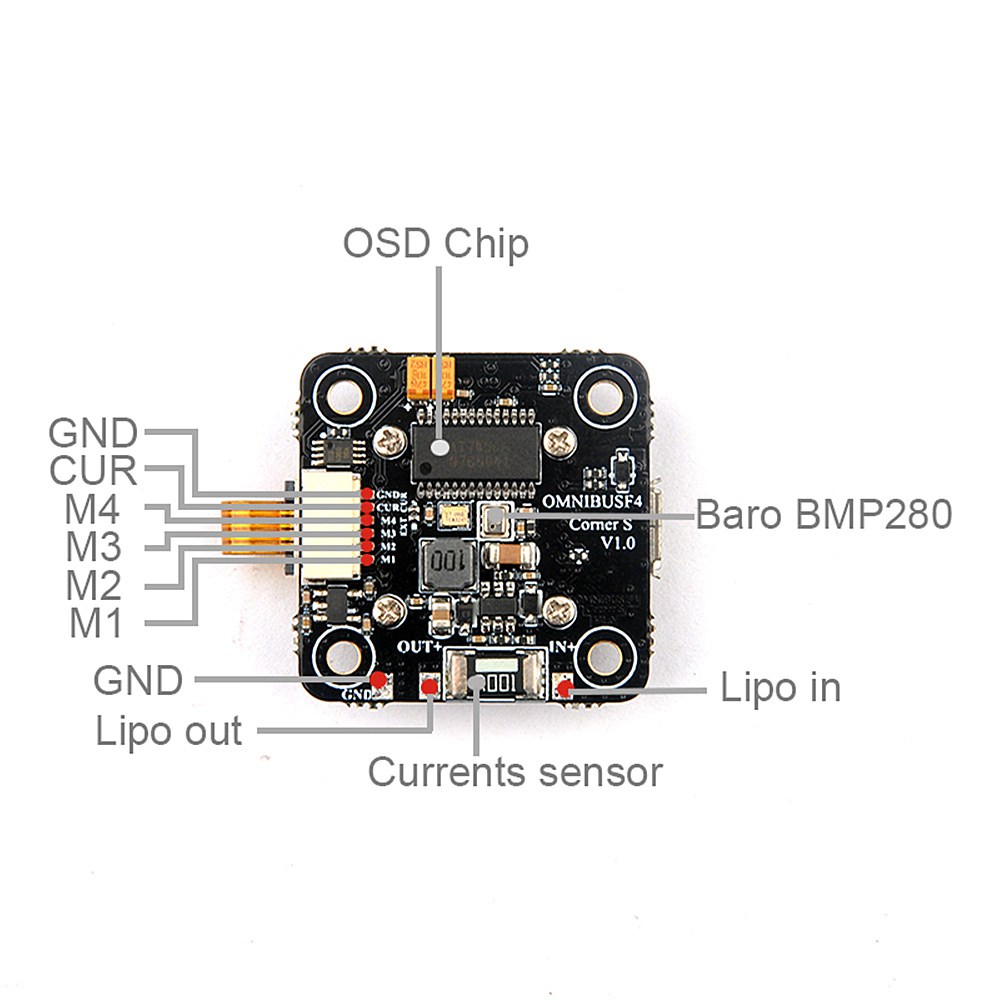

    Built-in LC filter for VTX power (max 800ma)
    Built-in Current Sensor
    Built-in Barometer BMP280
    Power Supply: 2S-4S Lipo Battery
    Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc
    Package Size: 5 X 3 X 3cm
    Package Weight: 0.007kg
    Package Contents

    1 x Omnibus F4 Corner Nano FC
    4 x Nylon Column
    1 x ESC Cable
