Highlights
- Adopt two-transmission technology of RadioLink AT10 10CH Radio Control, support signal strength, receiver voltage monitored,
- and extending battery voltage, temperature, motor RPM, GPS etc.
- Support English & Chinese Menu. Including helicopter 8 swash plate models, fixed wing 2 airfoils 3 rears, gliders 4 airfoils and
- Freely operating any styled aircraft
- Four VR switches, three three-way switches, four two-way switches, a reset trainer switch. Support multiple aerial control mode
- and PTZ control.
- Programmable mix control. Basic menu, Advanced menu,Graph view for varieties of throttle and servo curve.
- Fast response, 3ms only, which is much less than the average 20ms even 9 channels it acts synchronously.
- DSSS spread spectrum mode supplies better performance in anti-interference
- 2.8 inch 16 colors LCD resolution 240×320 distinct and magnificent
- 4096 section precision, 0.25us per section, servo anti-shake rudder
- Actual measurement: ground 600 meters, air 1000 meters
- Support USB online upgrade
- Vibration alarm

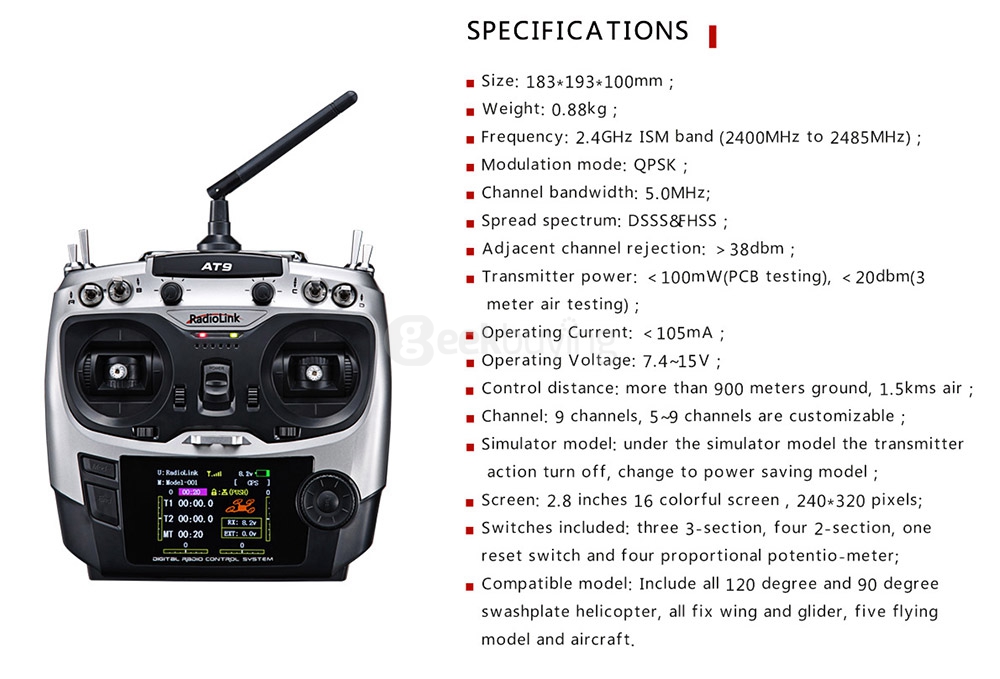

Specification
| General | |
|---|---|
| Type | Transmitter |
| Model | RadioLink AT9 |
| Modulation Mode | QPSK |
| Spread Spectrum | DSSS |
| Operating Voltage | 8.6~15V |
| Channel Bandwidth | 5.0MHz |
| Operating Current | <105mA |
| Adjacent Channel Rejection | >38dbm |
| Control Distance | Mmore than 600 meters ground |
| Channel | 9 Channel, 8~9 channel are customize |
| Screen | 2.8 inch 16 colorful screen , 240*320 pixel3 |
| Frequency | 2.4GHz ISM band (2400MHz to 2485MHz) |
| Transmitter Power | <100mW(PCB testing), <20dbm(3 meter air testing) |
| Simulator Model | Under the simulator model the transmitter action turn off, change to power saving model |
| Compatible | Include all 120 degree and 90 degree swash plate helicopter, all fix wing and glider, five flying model |
| Dimension/Weight | Weight: 880g Size: 183*193*100mm |
| Package Contents | |
| 1 x AT9 2.4G 9CH Transmitter | |
| 1 x R9D 9CH Receiver | |
