Highlights
- Raspberry Pi 2 Model B
- The Raspberry Pi 2 Model B is the second generation Raspberry Pi,replacement of original Raspberry Pi 1 Model B+ 2015. Compared to the Raspberry Pi 1,its GPU provides Open GL ES 2.0,hardware-accelerated OpenVG,and 1080p30 H.264 high-profile decoding.
- GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose computing and features a bunch of texture filtering as well as DMA infrastructure.
- ARPI600
- Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields
- XBee connector for connecting various XBee modules
- Sensor interface for connecting various sensors
- Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
Specification
| General | |
|---|---|
| Product Name | Raspberry Pi 2 Model B |
| Specification | |
| GPU | VideoCore IV dual-core |
| CPU | 900MHz quad-core ARM Cortex-A7 |
| RAM | 1GB |
| Compatible OS | Windows 10,Linux distros such as Fedora, Debian and ArchLinux,etc. |
| Boot | Micro SD card |
| Ethernet | 10/100m |
| HDMI | Yes |
| Interface | USB 2.0x4,Powered by 5v micro USB |
| Expansion Pinheader | 40-pin 2.54mm |
| Other Components | |
| Micro SD card slot | |
| 4-pole 3.5mm stereo audio jack with composite video output | |
| Camera connector | |
| Dimensions & Weight | |
| Dimensions | 85mmx56mmx17mm |
| General | |
| Product Name | ARPI600 |
| Specification | |
| Compatible Platforms | Arduino UNO, Leonardo |
| Connector | XBee,Arduino,Raspberry Pi |
| Interface | Sensor,ICSP,UART |
| Onboard USB TO UART | Serial port debugging, also can be configured as XBee USB adapter |
| TLC1543 | AD converter |
| PCF8563 | RTC |
| 32.768KHz Crystal | For RTC |
| XBee EASYLINK Button RTC Battery Holder |
For CR1220 button battery |
| Other Components | |
| Power Indicator | |
| XBee State LED | |
| XBee and Arduino Interface RESET Button | |
| CP2102 | |
| TLC1543 Reference Voltage Configuration Jumper | |
| RTC Jumper | |
| UART Jumper:when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port |
|
| Arduino AD Selection Jumper shorten 2 and 3:Arduino A0-A5 as AD input ;shorten 1 and 2:Arduino A0-A5 as digital control |
|
| Arduino I2C Selection Jumper shorten the jumper:Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened) |
|
| Arduino SPI Selection Jumper shorten 1 and 2:Arduino D11-D13 as SPI control (default);shorten 2 and 3:Arduino D11-D13 as digital control |
|

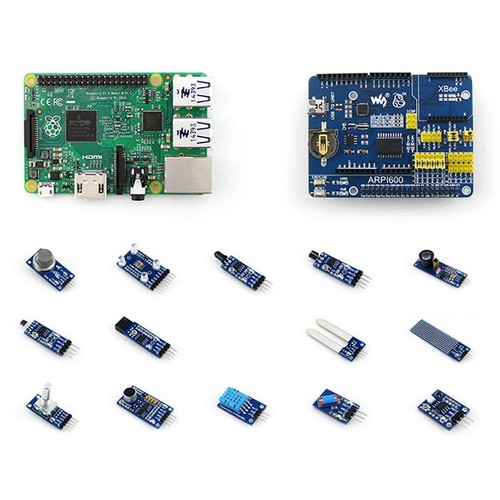

| Package Contents | |
| Raspberry Pi 2 Model B x1 | |
| ARPI600 x1 | |
| USB Type A Plug to Micro B Plug Cable x1 | |
| USB type A plug to mini-B plug cable x1 | |
| RPi screws pack (2pcs) x1 | |
| MQ-5 Gas Sensor ×1 | |
| Color Sensor ×1 | |
| Flame Sensor ×1 | |
| Metal Sensor ×1 | |
| Hall Sensor ×1 | |
| Infrared Reflective Sensor ×1 | |
| Laser Sensor ×1 | |
| Moisture Sensor ×1 | |
| Rotation Sensor ×1 | |
| Sound Sensor ×1 | |
| Temperature-Humidity Sensor ×1 | |
| Tilt Sensor ×1 | |
| UV Sensor ×1 | |
| Liquid Level Sensor ×1 | |
| 3-pin Custom Connector Jumper Wire ×3 | |
| 4-pin Custom Connector Jumper Wire ×4 | |
| 5-pin Custom Connector jumper Wire ×1 | |
What's in the box?
