Raspberry Pi RPi Model B+ Accessories Pack (Type B) Expansion Board DVK512 + Camera + PCF8591 + L3G4200D + LSM303DLHC Board

Highlights

• An accessories pack (Type B) for Raspberry Pi model B+ include: Expansion BoardDVK512, Camera, PCF8591, L3G4200D, LSM303DLHC Board

Specification

DVK512 Product introduction

1. 1.Pinheaders for connecting with the RPi
2. 2.UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
3. 3.8I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
4. 4.SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, L3G4200D Board, etc.
5. 5.I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.
6. 6.Character LCD interface: for connecting character LCDs like LCD1602
7. 7.USB connector: USB TO UART, supported by onboard converter CP2102
8. 8.Power indicator
9. 9.User LEDs
10. 10.User Keys
11. 11.Potentiometer: for LCD1602 contrast adjustment
12. 12.RTC battery holder
13. 13.PCF8563: onboard RTC chip
14. 14.32.768K crystal: RTC crystal
15. 15.CP2102: onboard USB TO UART chip, for debugging
16. 16.CP2102 jumper
17. 17.RTC jumper
18. 18.User LEDs jumper
19. 19.User Keys jumper

    Item	Description
    DVK512	Expansion Board, provides expansion interfaces and onboard components
    RPi Camera (C)	Raspberry Pi camera
    PCF8591 AD DA Board	8-bit AD/DA module
    L3G4200D Board	Angular rate sensor
    LSM303DLHC Board	e-compass

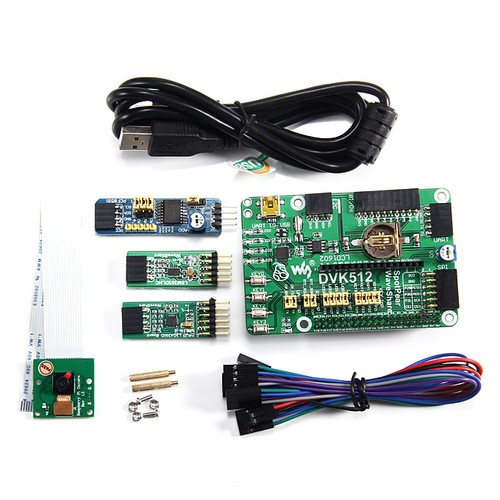

What's in the box?

• 1 x DVK512
• 1 x PCF8591 AD DA Board
• 1 x L3G4200D Board
• 1 x LSM303DLHC Board
• 1 x RPi Camera (C)
• 1 x USB type A plug to mini-B plug cable
• 1 x 4-pin 2-pin wires pack
• 1 x RPi screws pack (2pcs)
• 1 x 15-pin FFC
• 1 x User guide CD
