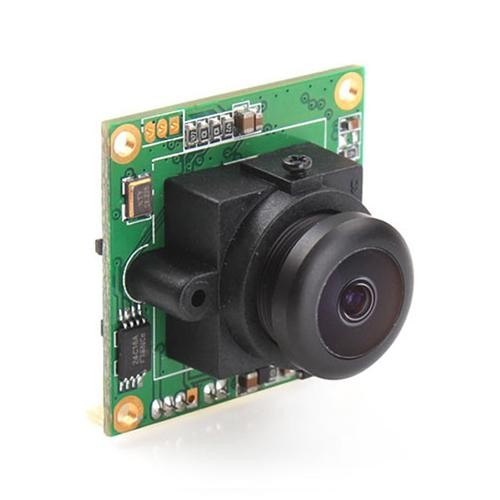

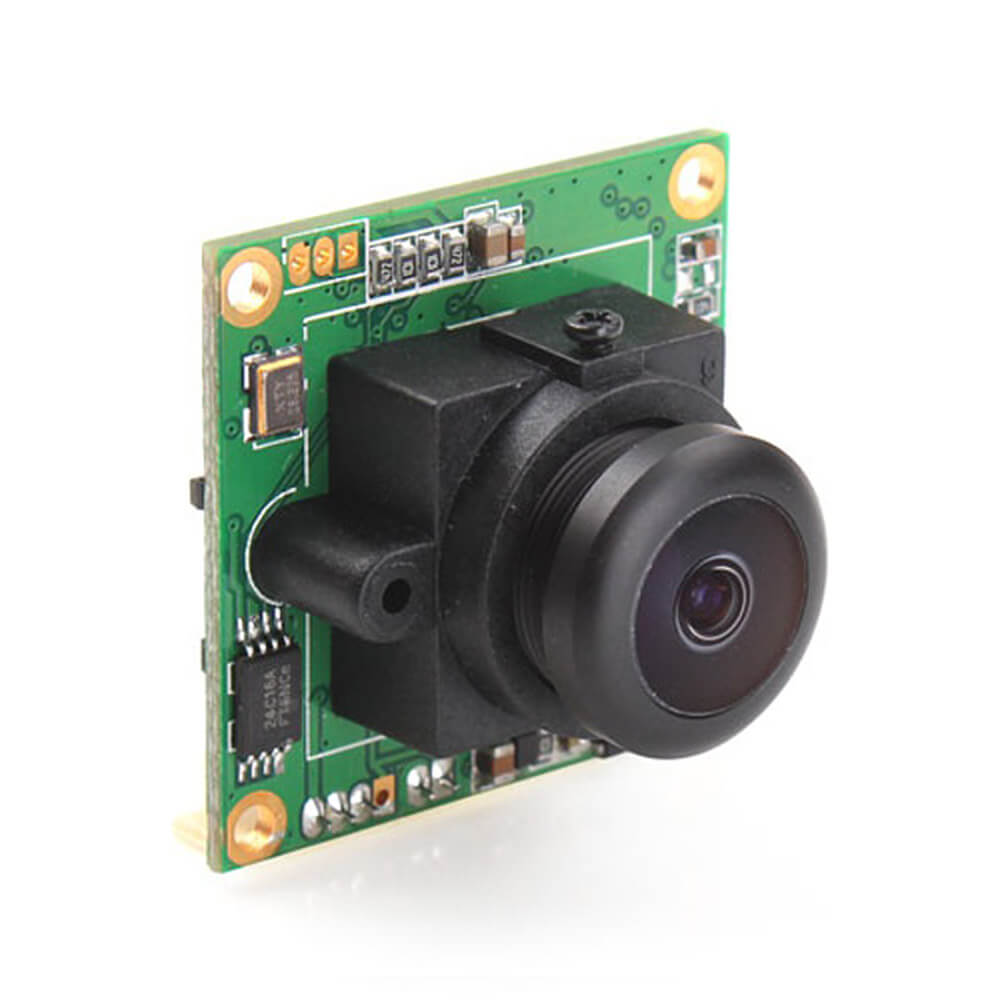

RunCam PZ0420M-L24 2.4MM 120 Degrees 3M 600TVL DC 5-17V Wide Voltage Mini FPV Camera PAL

Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

  • Support 2 to 4S battery (DC 5 to 17V) Wide voltage Power input
  • Removable 5D OSD menu
  • Digital Wide Dynamic Range(D-WDR)
  • Digital Noise Reduction(2 DNR)
  • Low Power Consumption
  • Back light compensation (BLC)
  • MIRROR
  • Anti-exposure function support car license recording(HLC)
  • Low illumination: 0.01Lux
  • White dot repair(DPC)
  • CVBS(RCA) Video output

Specification

General
Type Camera
Model RunCam PZ0420M-L24
Image Sensor 1/3 SONY SUPER HAD II CCD
Horizontal Resolution 600TVL
Effective Pixel PAL:753(H)*582(V), NTSC:768(H)*494(V)
Signal System  PAL
Synchronization Internal
Auto White Balance: Manual/Auto/Auto tracking

S/N Ratio >60dB(AGC OFF)
Electronic Shutter Speed PAL: 1/50 to 1/100,000sec; NTSC: 1/60 to 1/100,000
Auto Gain Control off/low/mid/high optional
Back light compensation (BLC) off /BLC/ anti-exposure
Motion Detection (MD) On/Off (multi-level sensitivity)
Min. Illumination 0.01Lux/1.2F
Shading Area 8
Video Output 1.0Vp-p 75 ohm
RCA Output  170mA-30mA
Supply current 170mA-30mA
Operation Temp. –10 to +50 degrees
Operation Environment 10% to 90%
Edge light compensation Yes
Display Mode LED monitor/CRT monitor
IR image optimize Anti exposure of the object in the middle
DNR 2DNR
Day/ Night Switch Auto/ Color/ B&W/ Outside control (position start and end controllable)
Day/ Night time switch 1 to 30 Switchable time
OSD Chinese/ English
White dot repair (DPC) Yes
Image adjust Yes
Function Control OSD
Size/Weight Board Size: 28 x 28mm
Weight: 12g
Compatible Suitable for Fixed-wing Aircraft, Multirotor like QAV250 etc.

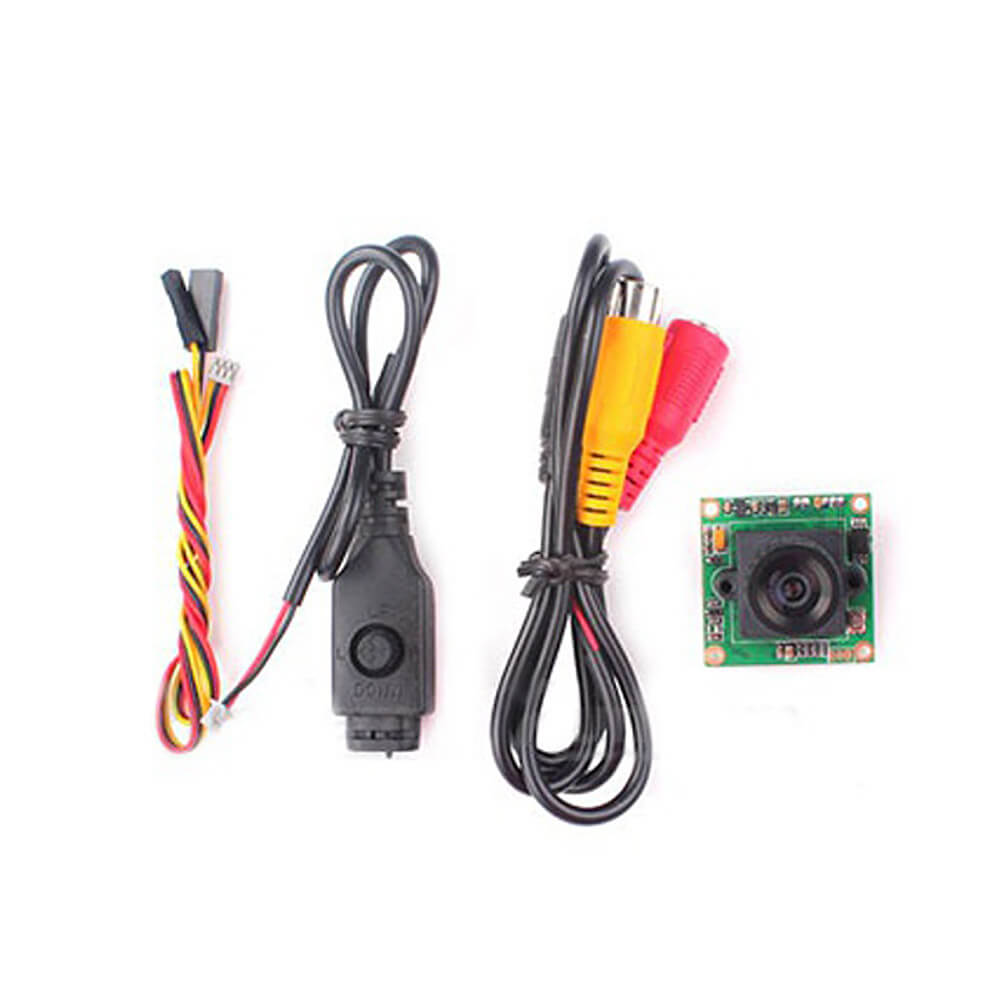

Package Contents
1 x Camera
1 x Cable
1 x OSD Menu
1 x FPV Cable
1 x Manual
