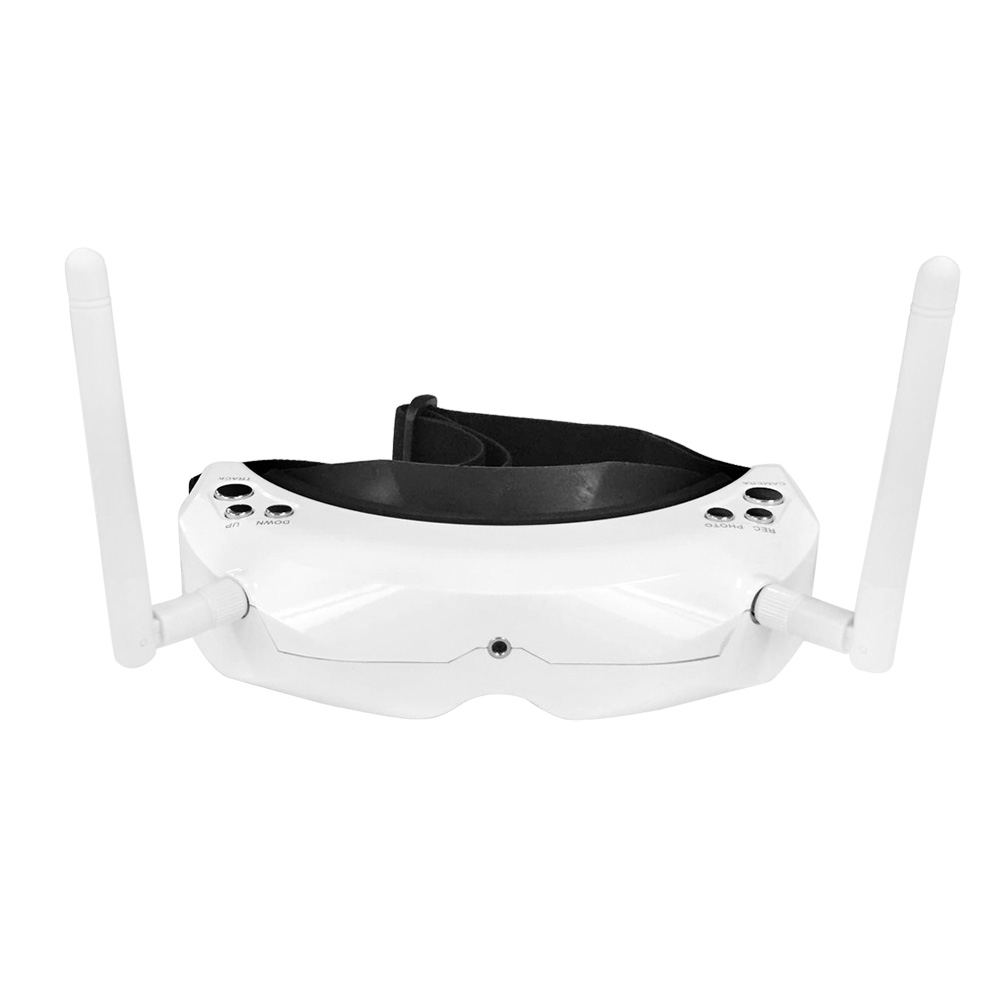

Skyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - White

Ship to:
Germany
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

Veritable 3D with Parallel Lenses

Photo-taking becomes something like looking with your eyes, with the application of two lenses. In consequence, you can enjoy the marvelous real-time FPV on the two 854 x 480 HD screens. However, 3D is only activated in RF mode, otherwise, the image is in 2D.

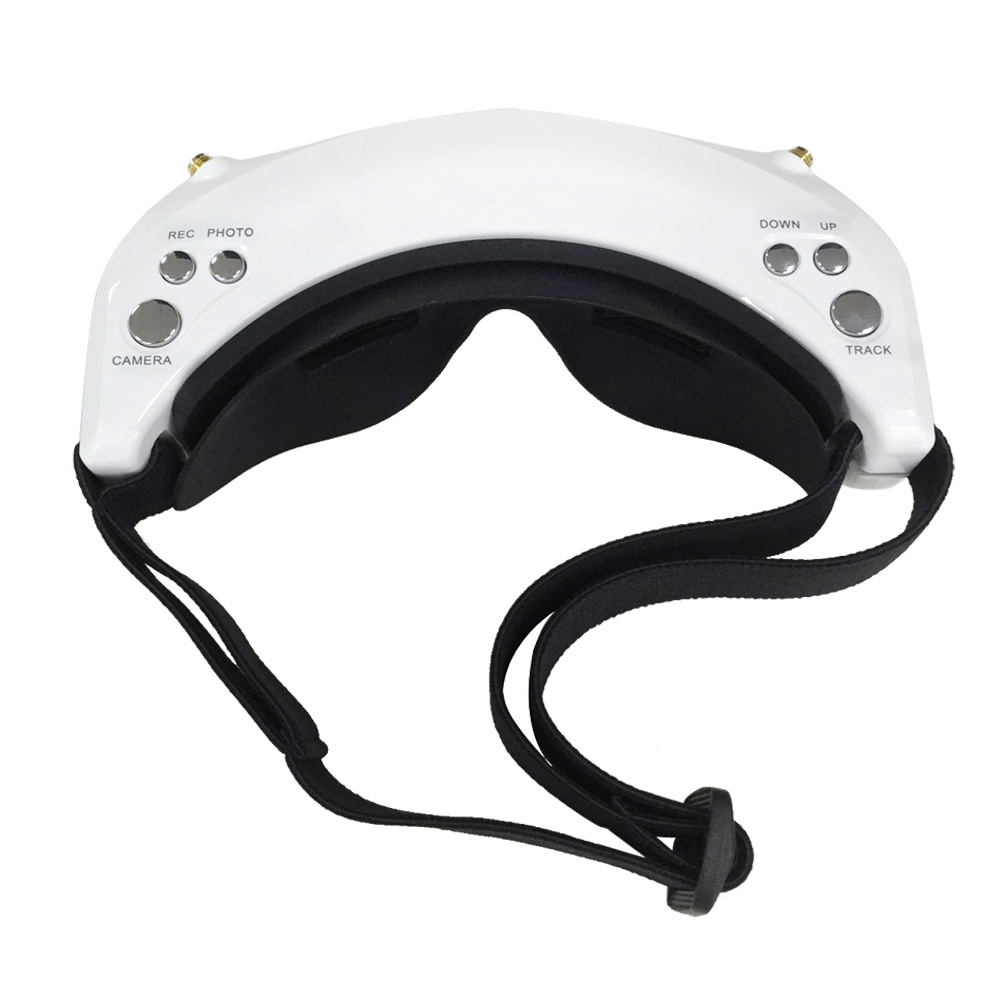

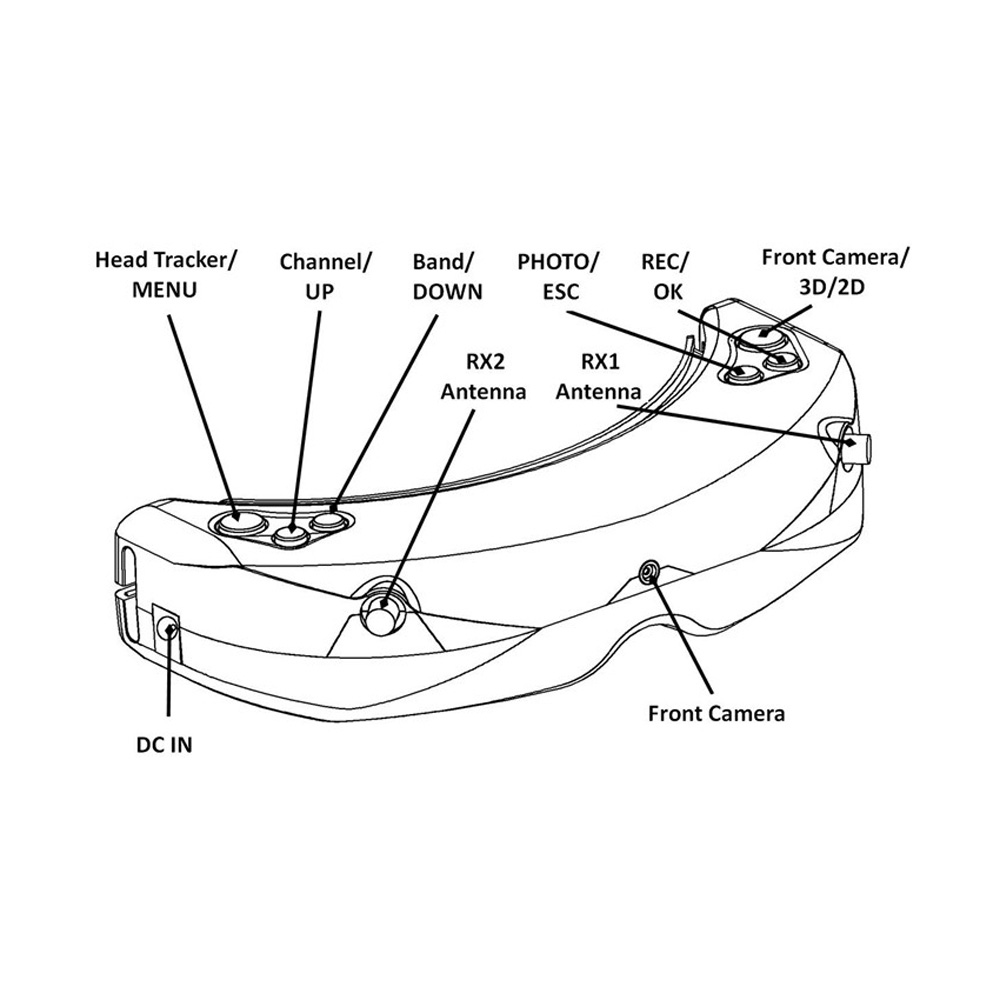

User-friendly Head Tracking and Front Camera

This pair of FPV goggles is capable of satisfying you, greatly because of its considerate design. The camera moves in the same direction as you move your head. When you need to see the surroundings, you do not even need to take it off with the front camera.

Powerful OSD Menu

With the menu, you are able to start / stop taking photos and videos, monitor the status of storage card, battery, current channel and so on. You also can easily adjust the image effects of brightness, contrast, saturation, hue, sharpness and etc.

Amazing Compatibility

Its 5.8G 40-channel receiver supports most of the video transmitters, such as those of Fatshark, DJI, Walkra, Boscam.

Skyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - WhiteSkyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles with Transmitter Camera Head Tracking HDMI DVR - White

Specification

General

Brand Name: Skyzone
Model: SKY02S
Type: 3D FPV Goggles

Product Details

Binocular Display: FOV: 30 degree(Diagonal)
Resolution: 854x480(WVGA).1,229,760 color sub-pixels
Brightness: 350cd/m²

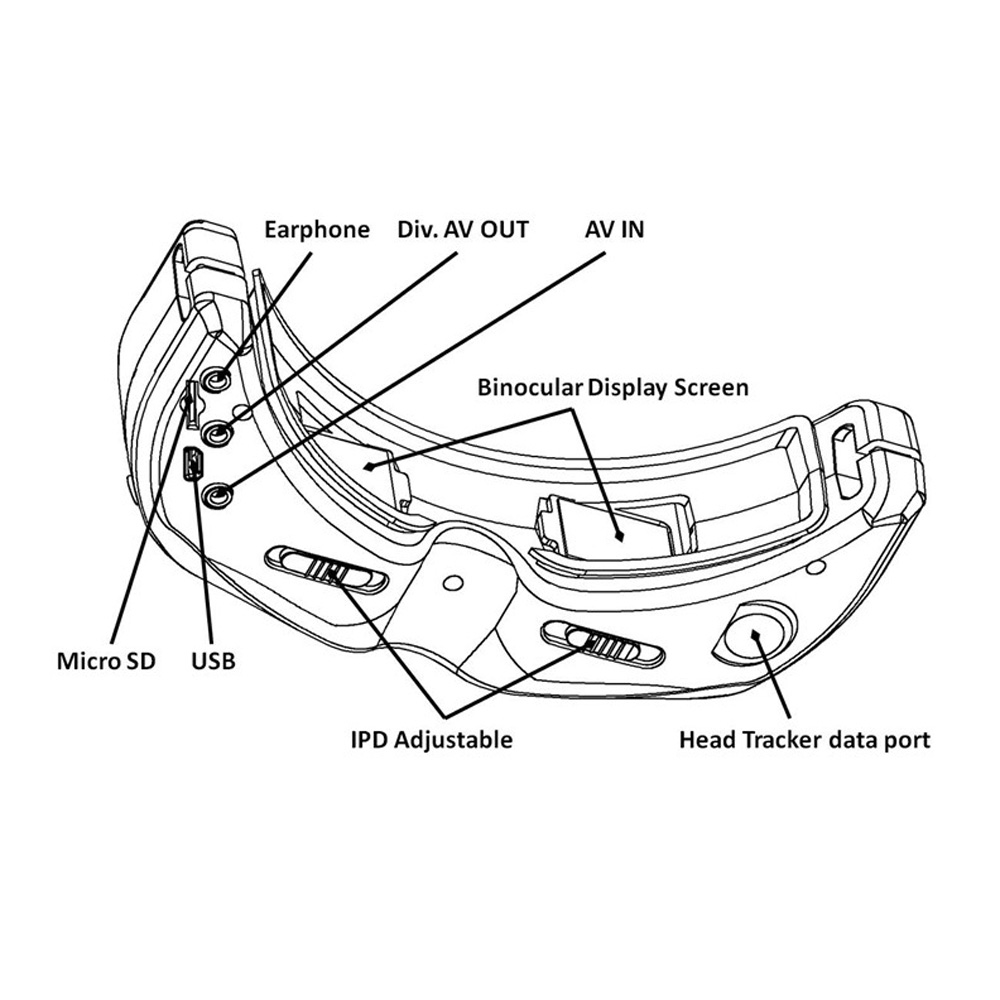

Interpupillary Distance(IPD): 59-69MM Adjustable
Sensitivity: -90dBm±1dBm
Antenna: SMA 50ohm
Front Camera: FOV: 60 degree(Diagonal)
Resolution: 640x480(VGA)
Focal Length: f=4.0mm
F/NO: =2.8
Head Tracker: Sensor: Magnetic,Inertial and gyro
Output: PPM 8CH, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH
Micro SD: Support to 32GB
Compression: MJPEG, 30fps, AVI
Picture: JPEG
Record Rate: 6Mbps
Video Standard: NTSC/PAL
Video output level: 1.0Vp-p Typ. / 75ohm
Audio output level: 1.0Vp-p Typ. / 10Kohm

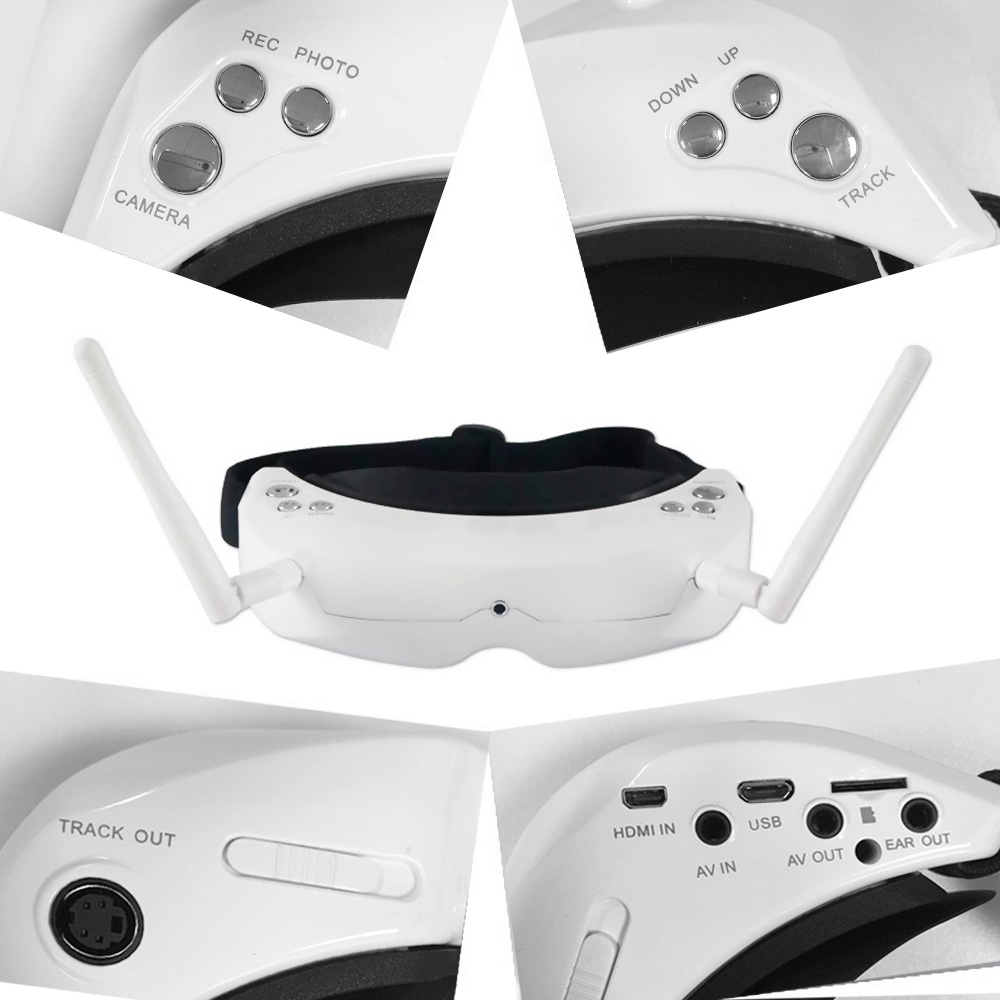

Div. AV OUT(3.5mm4P): Diversity Video, Audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video ,Audio input
HDMI IN(Micro HDMI/D-Type): HDMI 1.4 specification
1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50,
1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i, PC Format(Not all)
DC IN: DC 7~26V/ 1A
Power Consumption: 12V input, 5.4W
Dimensions: 168(L)X92.5(W)X41(H)MM
Operating Temperature: 0 °C~+60°C

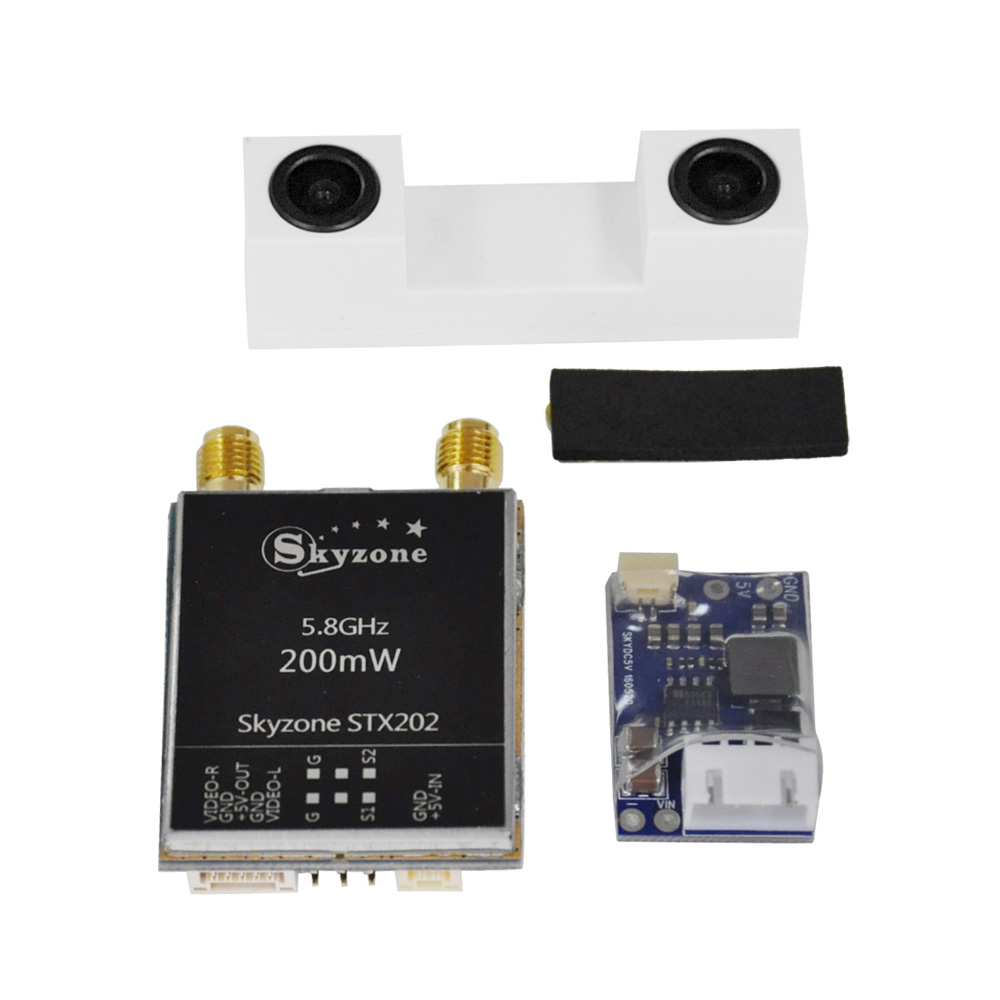

SCAM302 Camera:
FOV: 120 degree(Diagonal)
F/NO: =2.3
Interpupillary Distance(IPD): 40mm
Resolution: 720x576
Video Standard: PAL
Video Output Level: 1.0Vp-p Typ./75ohm
Power Supply: DC5V/0.5A
Power Consumption: 1.6W
Dimension: 56.5x 17.8x14mm
Weight: 12g
Operating Temp.: 0°C~+60°C

STX202 Transmitter:
Wideband FM Modulate
Video Standard: NTSC/PAL
RF Output Impedance: 50ohm
RF Output Power: 22-24dBm(Typ.23dBm)
Video Input Level: 1.0Vp-p Typ./75ohm
Video Band Width: 8.0MHz
Audio Input Level: 2.0Vp-p Typ./10Kohm
Audio Carrier Frequency: 6.5MHz
Power Consumption: 5V input 5.5W
Dimension: 38x 32x8.9mm
Weight: 14g
Operating Temp.: 0°C~+70°C

Preset Frequency: CH1 5733M/5771M, CH2 5752M/5790M, CH3 5809M/5847M, CH4 5828M/5866M

Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917

RF Mode:
3D Mode, only available under the RF mode.
2D Mode

Siez & Weight Item weight: 0.96 kg
Package size (L x W x H): 9.7 x 7.2 x 4 inches

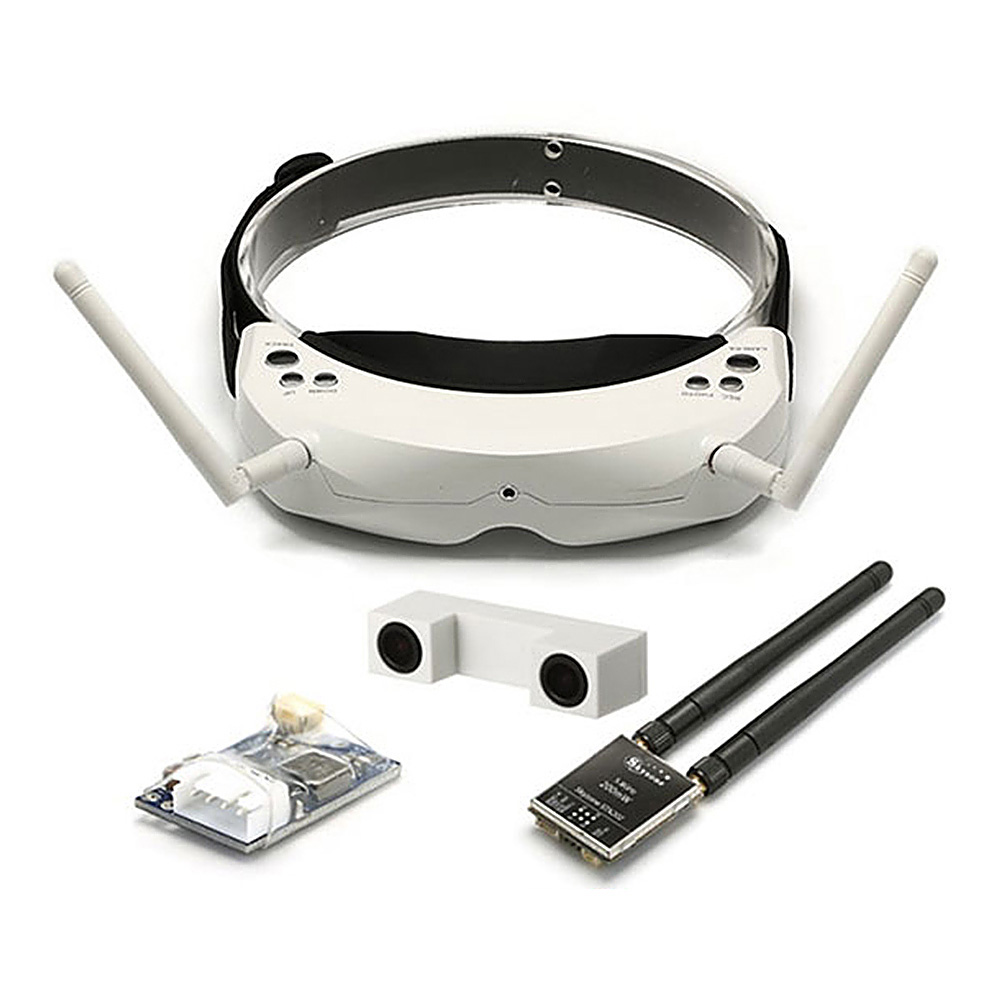

Package Contents 1 x Skzone SKY02S V+ 3D Goggles
1 x SCAM302 Camera
1 x STX202 Transmitter
1 x Futaba Data Cable
1 x JR Data Cable
1 x WFLY Data Cable
4 x 5.8G 2dBi Antenna
1 x Power Cable
1 x 2P TX Power Cable
