Highlights
- 1: Free video calls: It can realize the video call not only between two cameras,but also among smart phone,tablet PC and camera. No need to pay any other communication charge.
- 2: P2P(Plug&Play): No need DDNS, No need Port Forwarding. Plug and Play.
- 3: Simple to setup: No need PC, All setup via the camera, friendly Gui.
- 4: Mobile Terminal Device: Supports Android,iOS Mobile Terminal(Phone,Tablet PC).
- 5: Display: Comes with 3.5 inch HD display,Support live video or Playback local video.
- 6: Two way audio: Built-in microphone and speakers. compression: G.711A,High quality audio.
- 8: High image & video quality: Video compression H.264, CMOS 0.3 Megapixel.
- 9: Pan/Tilt: Supports remote Pan/Tilt control(Pan:355°& Tilt:90°)
- 10:Night Vision: Auto IR-LED illumination for night vision (up to 10 metres).
- 11:Local Storage: Support SD and U Disk video recording.(up to 64GB).

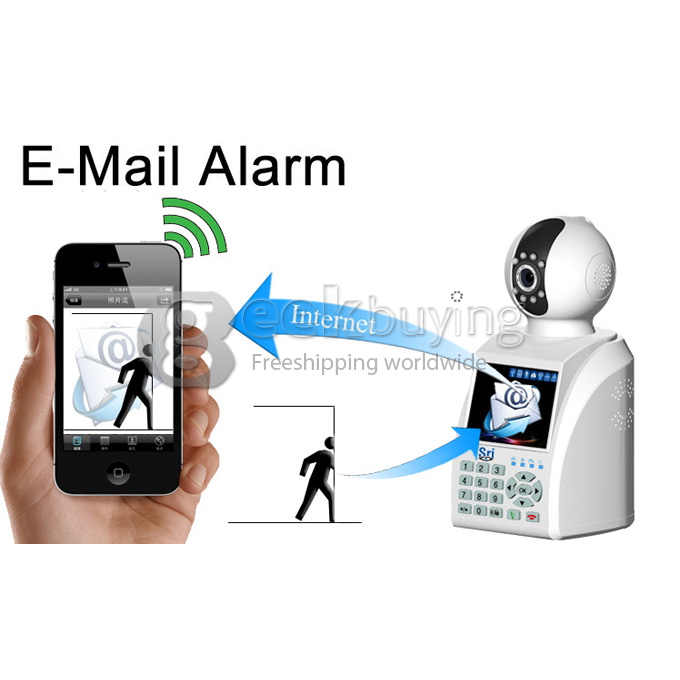

- 12:Alarm: Supports Motion detection,Phone push alarm,Email alarm.Whistle alarm.
- 13:Wireless: Wi-Fi compliant with wireless standards IEEE 802.11b/g/n .
| ITEMS | SP001 | |||||||
| System | Main Processor | High Performance ARM9 Embedded Microprocessor | ||||||
| Operating System | Embedded Linux OS | |||||||
| Image Sensor |
Image Sensor | CMOS Sensor, 0.3 Megapixel. | ||||||
| Lens | 3.6mm (IR lens) | |||||||
| Lens Vieing Angle | 90° | |||||||
| Min. Illumination | 0.3LUX/F1.2 | |||||||
| Night Vision | 7 pcs IR LEDs, Night visibility up to 10meters | |||||||
| IR-Cut | Built-in IR Cut,With self-check function,Double optical fliter automatic switch, no color deviation indoor or outdoor. | |||||||
| Video | Video Compression | H.264 | ||||||
| Signal System | PAL/NTSC | |||||||
| Frame Rate | PAL: 25 fps, NTSC: 30 fps | |||||||
| Video Resolution | VGA(640*480) | |||||||
| Video Output | 3.5 inch high definition display | |||||||
| Video Call | Realize the video call between two cameras or among Android, iOS Mobile Terminal Device and camera. | |||||||
| Audio | Compression | G.711A | ||||||
| Audio Input | Built-in microphone or an external headset | |||||||
| Audio Output | Built-in speakers or an external headset | |||||||
| Recording Manager |
Recording Mode | Manual/Timer/Motion/Schedule | ||||||
| Local Storage | Support USB Disk, Micro SD card. | |||||||
| Pan/Tilt | Rotation Angle | Pan:355°, Tilt: 90° | ||||||
| Alarm | Alarm Input | No | ||||||
| Alarm Triggered | Speakers alarm,Alarm recording,Capture,Email,Phone push alarm | |||||||
| Interface | Ethernet Interface | RJ-45 | ||||||
| USB | 1x USB 2.0 | |||||||
| TF | 1xTF | |||||||
| Wifi | 802.11 b/g/n, Support WEP,WPA,WPA2 Encryption | |||||||
| Headset | 1x3.5 headphone jack | |||||||
| Power | DC12V/1A | |||||||
| Others | Product Type | Plastic shell,Cartoon Robot/ Indoor use | ||||||
| Working Temperature | 0~55℃ | |||||||
| Working Humidity | 10%-90% RH | |||||||
| Power Consumption | 2W | |||||||
| Size | Item Size:110mmx120mmx240mm (LxWxH) | |||||||
| Package size:250mmx170mmx140mm (LxWxH) | ||||||||
| Weight | Net weight: 600 g, gross weight: 850 g(Note:Actual Weight Final) | |||||||
| Accessories | 1xAdaptor, 1x3C Card, 1xAntenna,1x User Manual. | |||||||
| Certification | Certification | CE, FCC, RoHS | ||||||
What's in the box?
- 1 x IP Camera
- 1 x Power Adapter
- 1 x 3C Smart Card
- 1 x Manual
- 1 x Antenna
