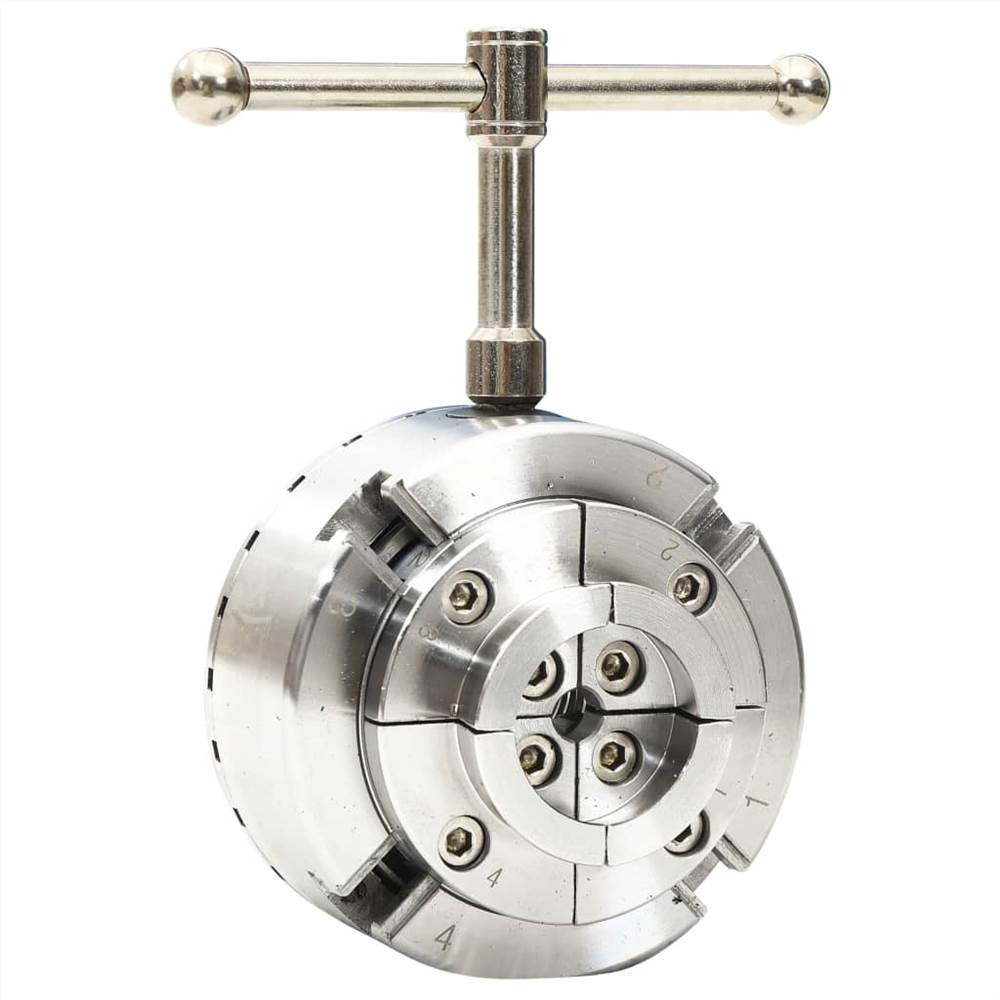

This wood chuck set for 95 mm (3,75 inches) is a mechanical device used to clamp a workpiece on a machine tool. Made of steel, the set is durable and sturdy. As a machine tool accessory, it uses the radial movement of movable jaws evenly distributed on the chuck body to clamp and position the workpiece. This wood lathe chuck set includes a 4 jaw self-centering chuck and interchangeable jaws for spindles, bowls, and work-pieces that are hard to be secured. The set will fit 1" x 8 TPI spindle.
- Colour: Red and black
- Material: Steel
- Number of jaws: 4
- Self-centering
- Chuck diameter: 95 mm (3,75 inch)
- Carrying case dimensions: 30,5 x 22,5 x 7,5 cm (L x W x H)
- Inside grip diameter range:
- #1 Step jaws: 2,5 mm - 35 mm
- #2 Round jaws: 32 mm - 64 mm
- #3 Round jaws: 76 - 108 mm
- #4 Pin jaws: 9,5 mm - 45 mm

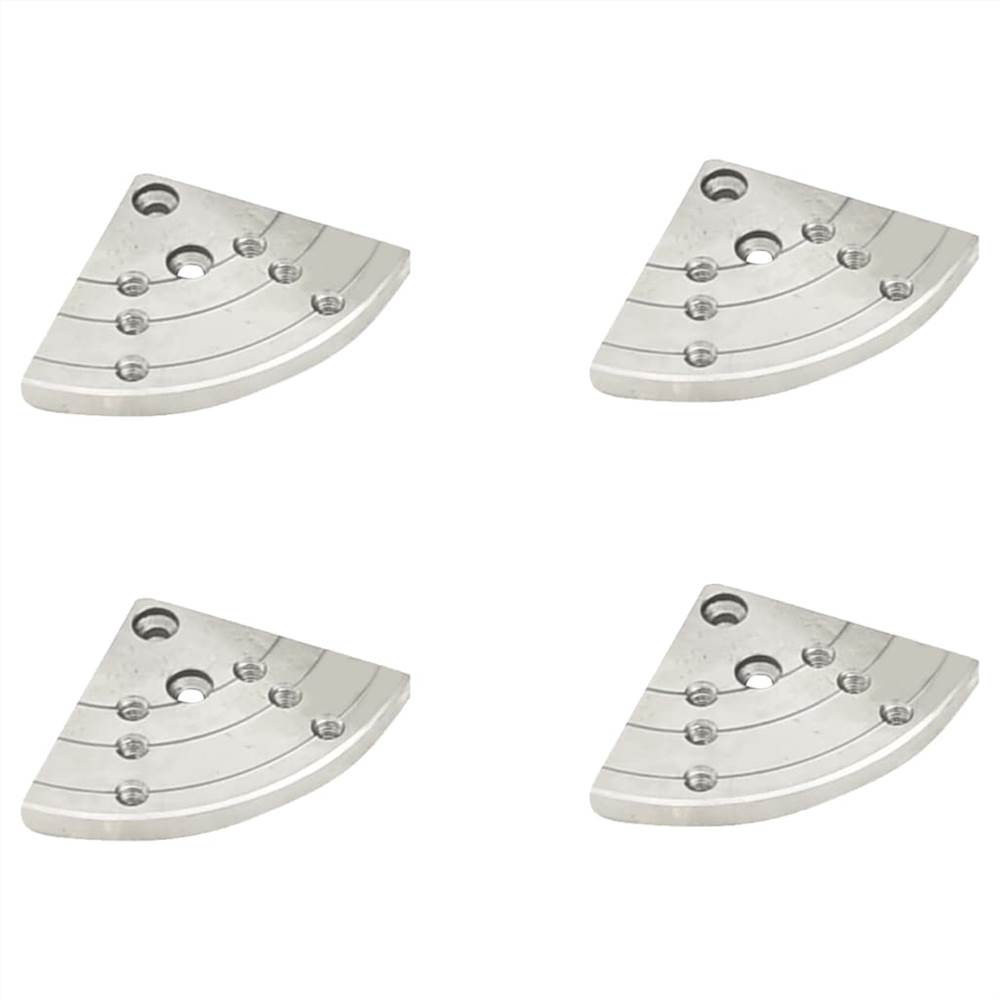

- #5 Flat jaws: 73 mm
- Outside grip diameter range:
- #1 Step jaws (Lower step): 38 mm - 73 mm
- #1 Step jaws (Upper step): 19 mm - 51 mm
- #2 Round jaws: 45 mm - 80 mm
- #3 Round jaws: 90 mm - 124 mm
- #4 Pin jaws: 25 mm - 60 mm
- #5 Flat jaws: 130 mm
- Indexed backplate: 24 and 36 positions
- Thread: 1" x 8TPI
- Maximum speed: 3000 R/min
- Net weight: 4,5 kg
- Can hold round and square stock
- Assembly required: Yes

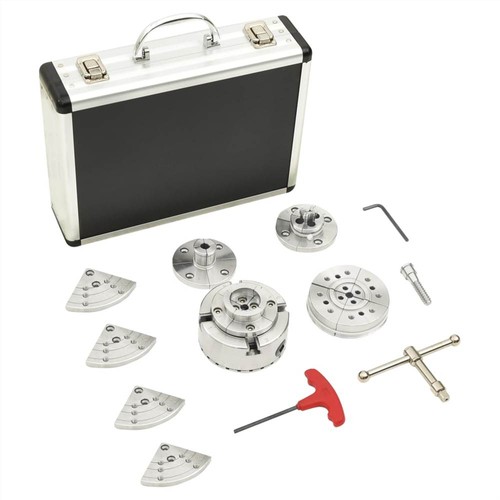

- Delivery contains:
- 1 x Chuck body

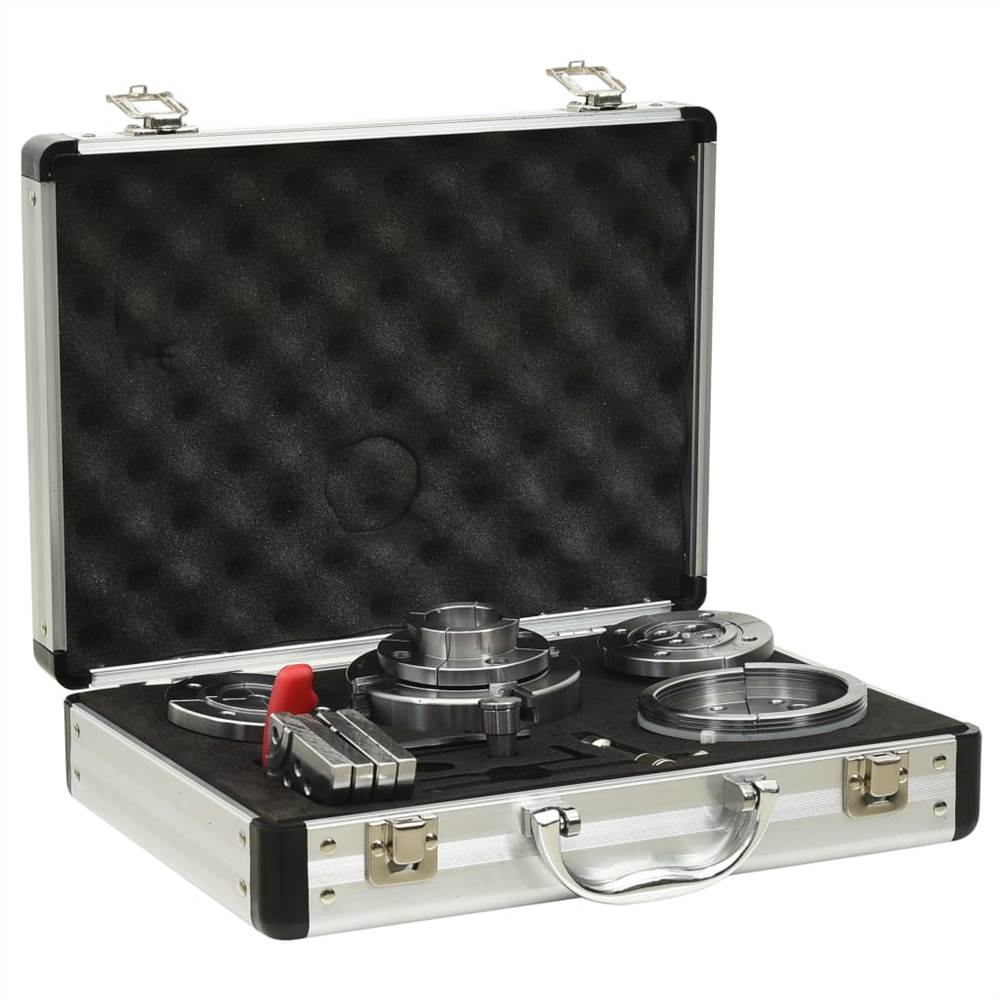

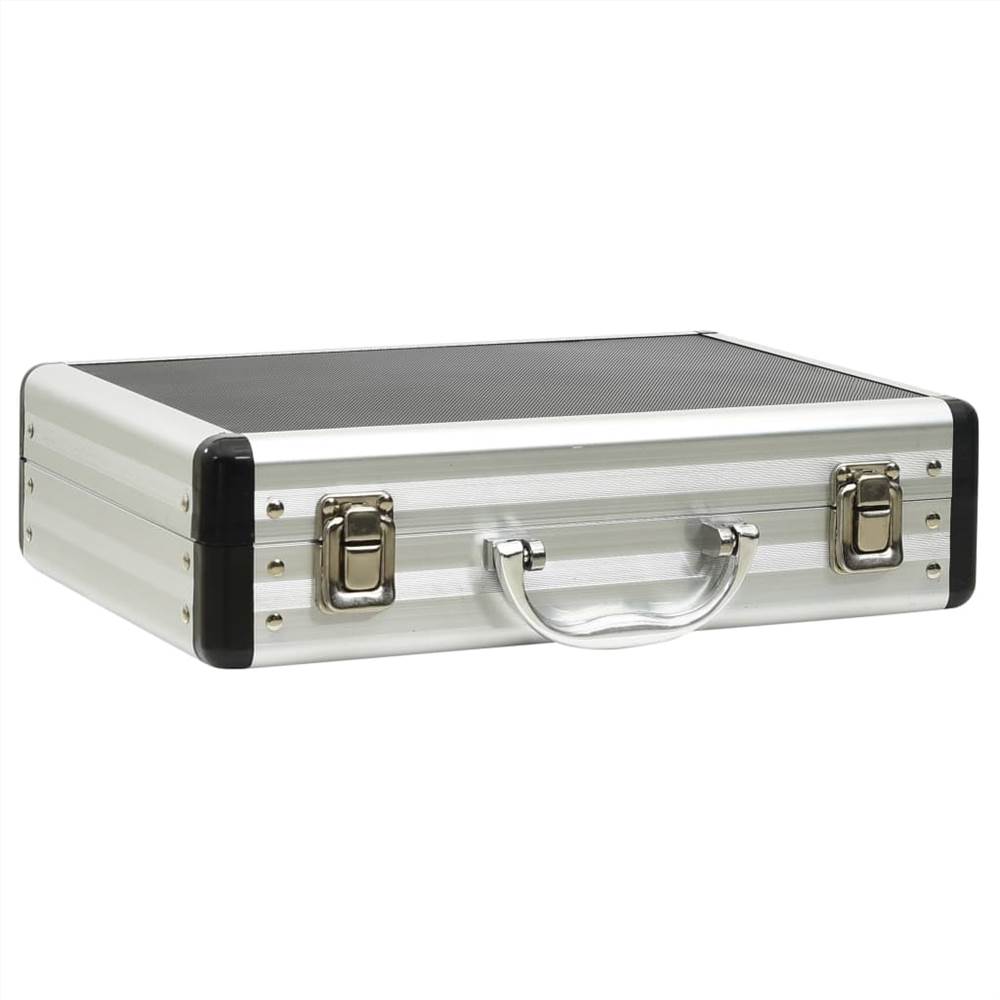

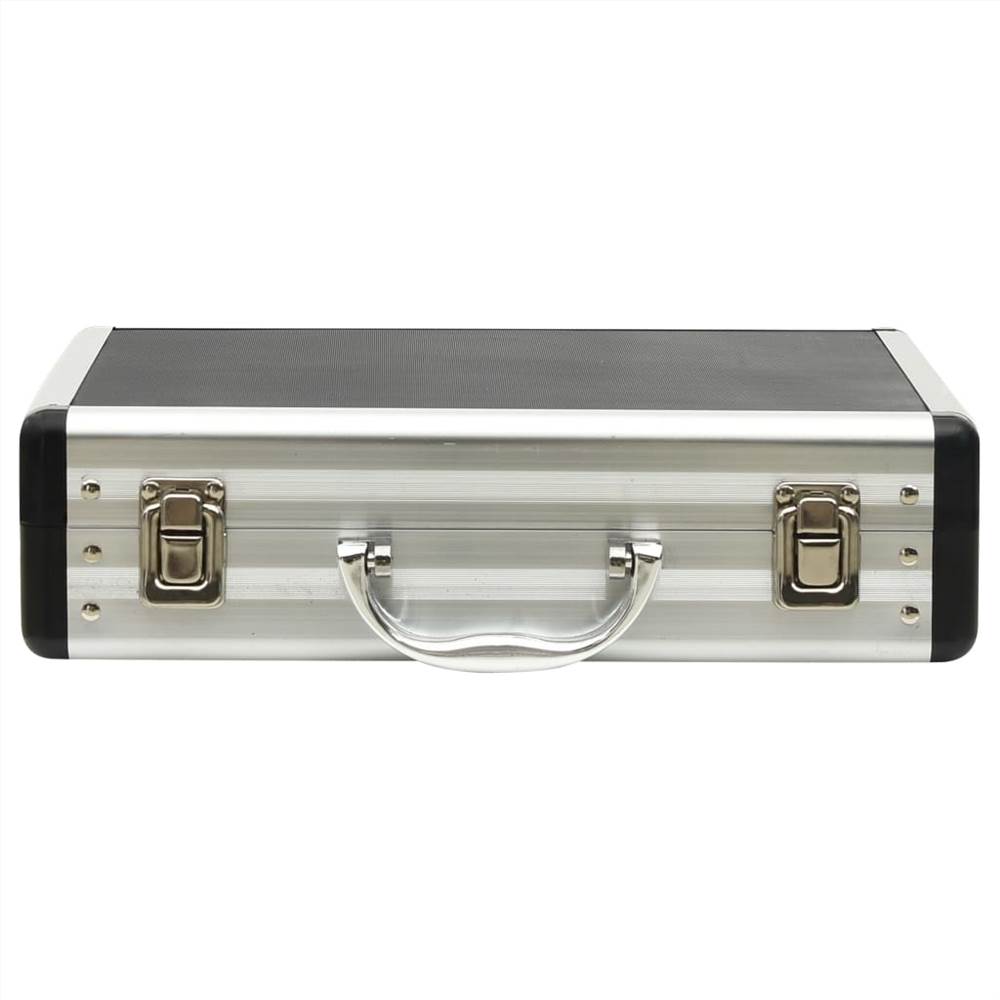

- 1 x Carrying case
- 1 x T-handle hex wrench 4mm
- 1 x Lathe chuck key 8 mm
- 1x Woodworm screw
- 1 x Hex wrench
- 4 x #1 Step jaw
- 4 x #2 Round jaw
- 4 x #3 Round jaw
- 4 x #4 Pin jaw
- 8 x Flat head cap screw M5-.8x8
- 8 x Grip studs 13 mm, M6-1x6
- 8 x Grip studs 18 mm, M6-1x6
