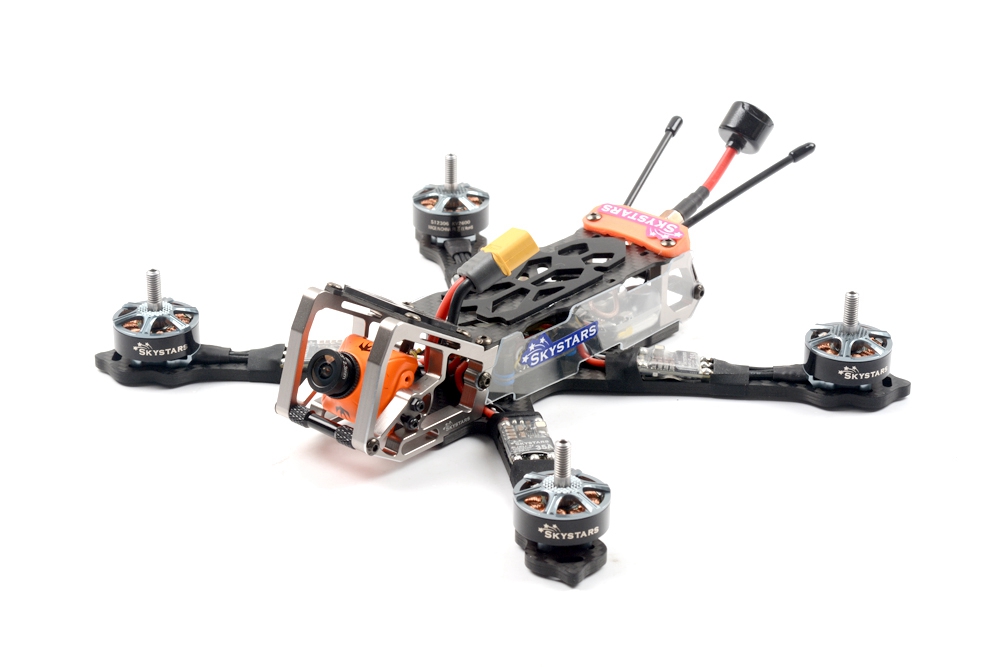

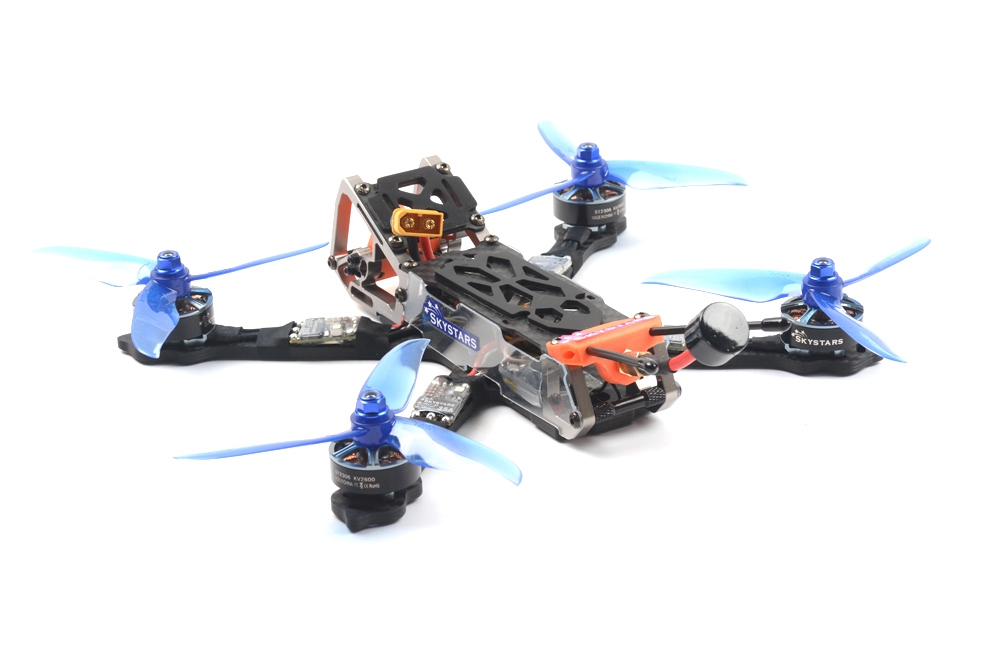

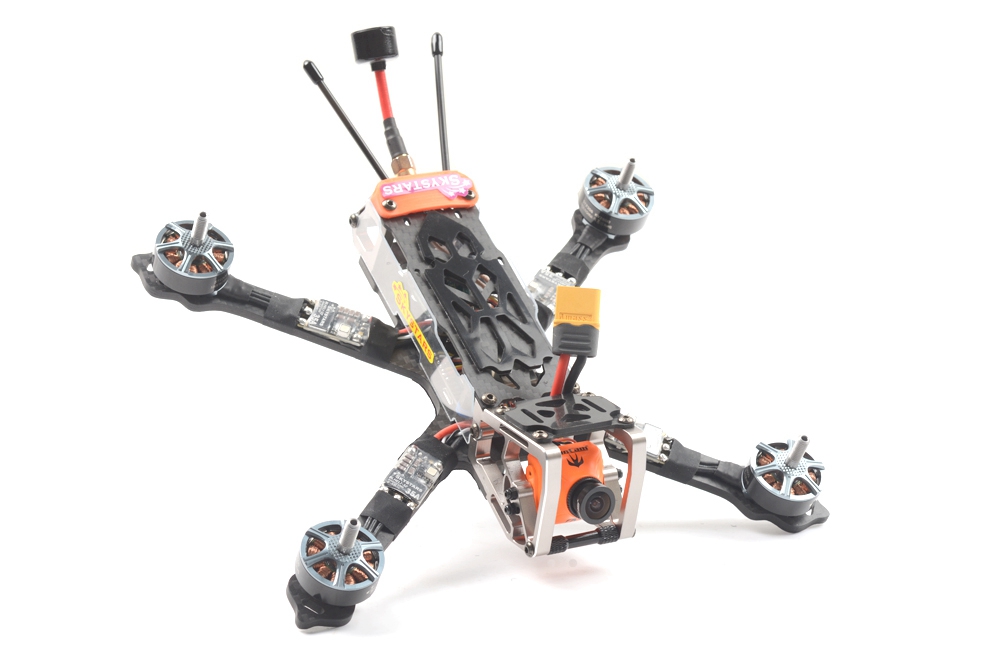

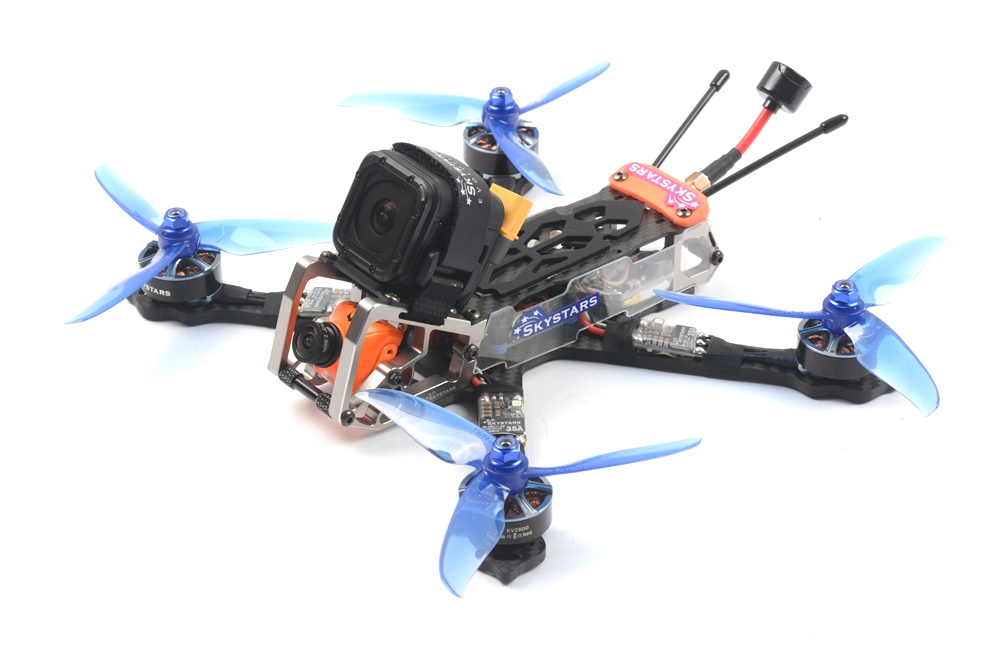

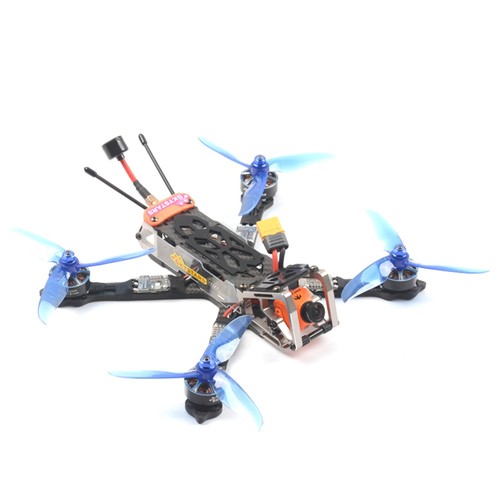

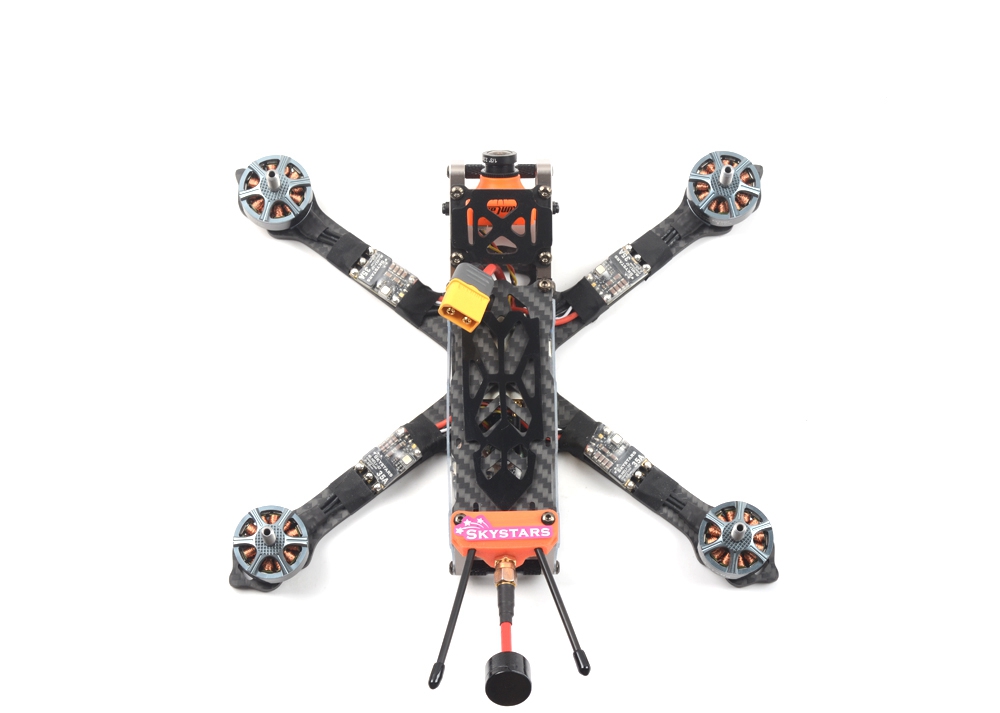

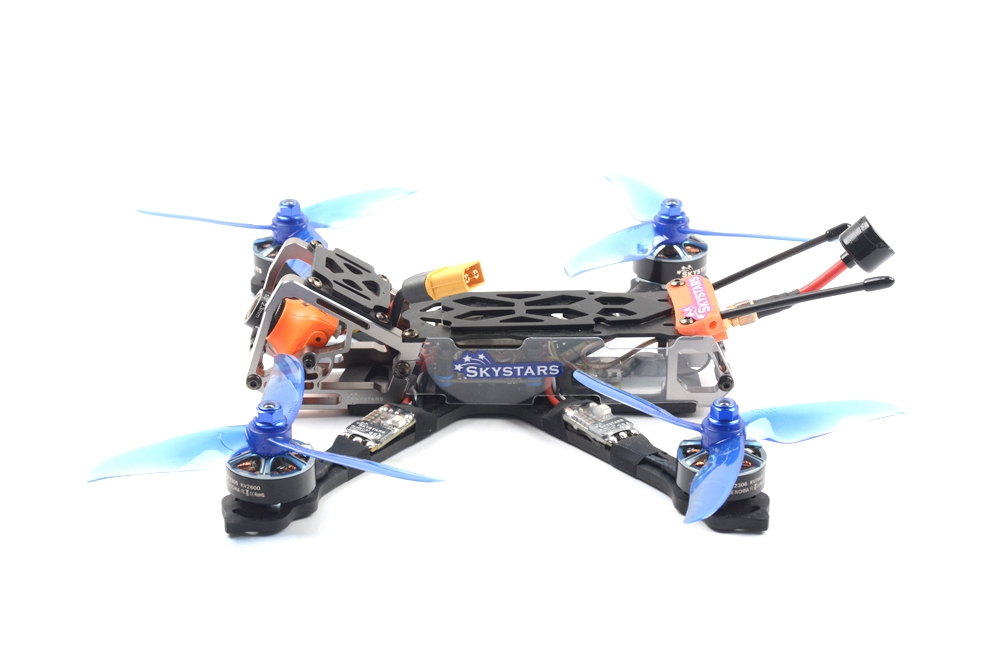

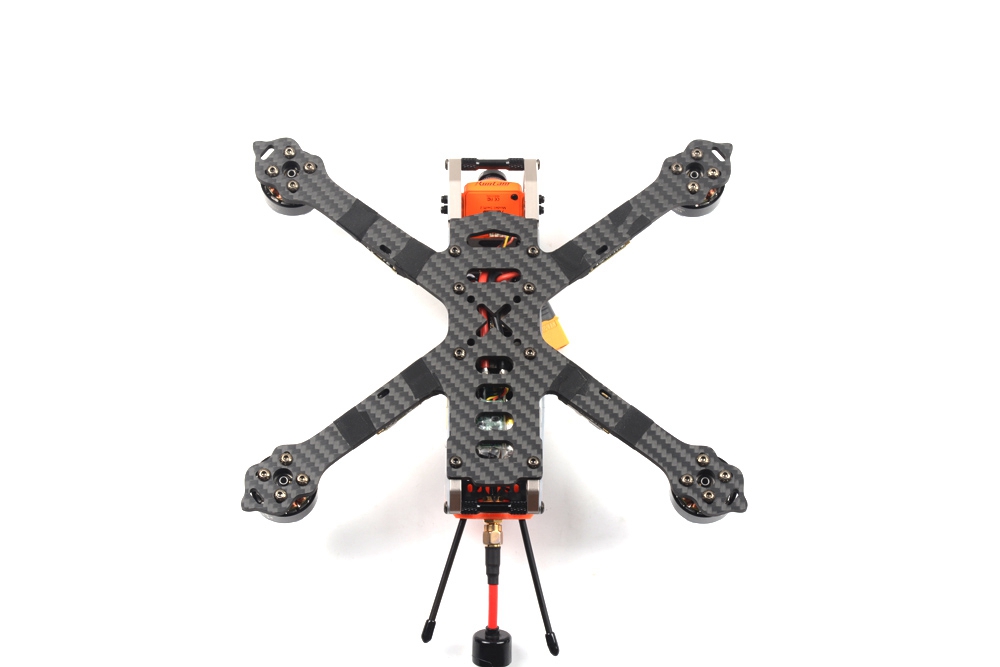

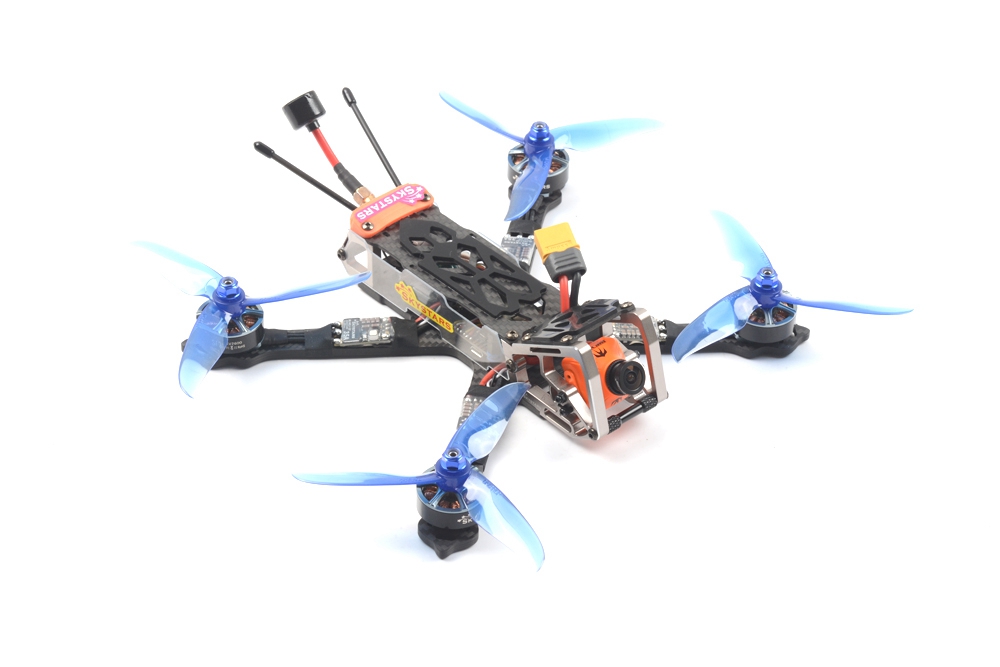

Frame Kit:
Name: G520S-AIO-2019
Material: 3K Carbon Fiber and Aluminium alloy
Wheelbase: 228mm
Weight: 130g
Props Size: 7inch
Arm Plate Thickness: 4mm
TOP Plate Thickness: 1.5mm
Screw: TAIWAN YFS BRAND SCREW 12.9 level screw
Flight Control:
MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/gyro (SPI)
Baro: BMP280 (I2C)
OSD: BetaFlight OSD w/ AT7456E chip
Blackbox: MicroSD card slot (SD/SDHC)
VCP, UART1, UART2, UART3, UART4, UART5
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial on TX2, S5 or S6 optional
Camera control on S6 or DAC optional
Smartaudio & Tramp VTX protocol supported
WS2812 Led Strip: Yes
Beeper: Yes
RSSI: Yes
PDB Specifications:
Input: 6~30V (3~6S LiPo) w/TVS protection
PDB: 4x50A , 4 layers*2oz copper PCB
BEC: 5V 3A cont.
LDO 3.3V: for Spektrum RX
Current Sensor 184A (Scale 179)
Battery Voltage Sensor: 1:10 (Scale 110)
FPV Transmitter:
Output power: 25mW/200mW/600mW switchable
Control mode: Button or Channel changes and Pitmode setting through PWM TBS SmartAudio inside
BAT: 7-26V,BEC 5V-1A
270mA----600mW
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8G 5bands 40CH
Dimension: 36 * 36 * 4.85mm
Weight: 4.2g
Mounting Hole: 30.5x30.5mm
Motor: Skystars 2306 V2 2750KV, race edition, hollow shaft, Made of NMB bearings and curved magnets for longevity and efficiency
Prop: DALPROP 5040 5INCH

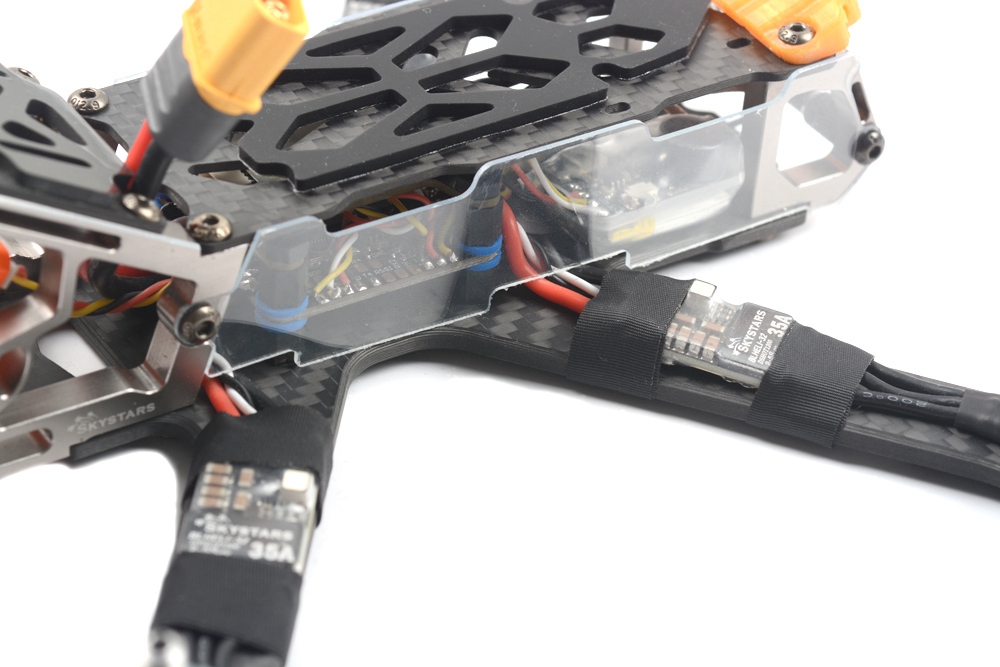

ESC:
Item Name: 35A 2-5S Blheli_32 With RGB light
Input Voltage: 2-5S Lipo battery
Constant Current: 35A
Peak Current: 50A
BEC Output: No
CPU: STM32F051 BLHELI_32 firmware
MOS Tube: TOP QUALITY MOSFET

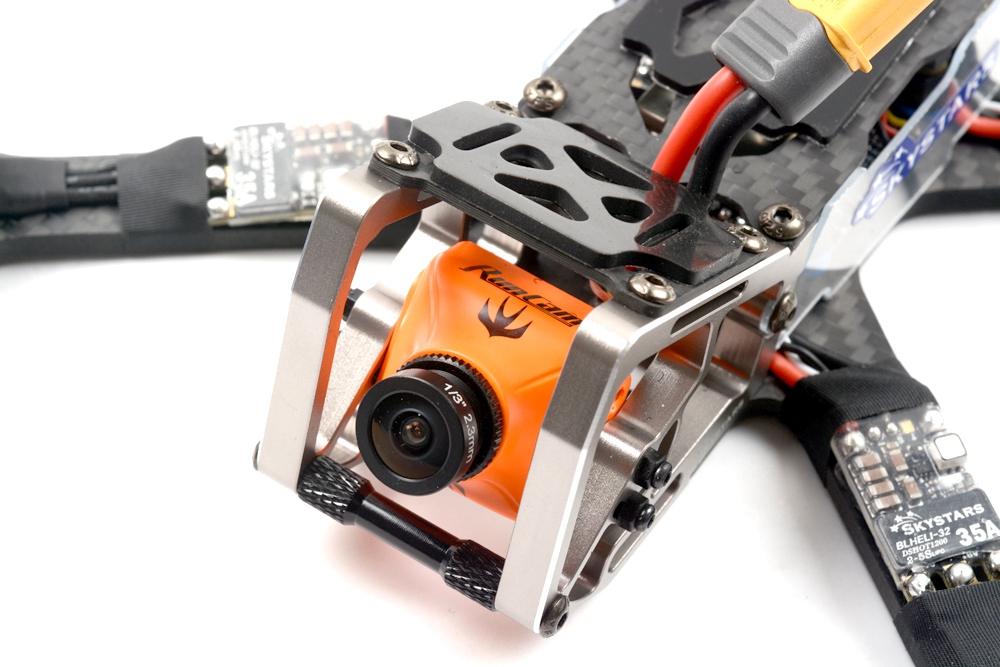

Camera:
Brand: RunCam
Item Name: Swift 2
Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution: 600TVL,4:3
Lens: 2.1mm 165°
Signal System: PAL
Integrated OSD: YES
Integrated MIC: YES
S/N Ration: >60dB(AGC OFF)
Electronic Shutter Speed PAL: 1/50~100,000; NTSC:1/60~100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR
Day/Night: Color/Auto/B&W
Power DC: 5 to 36V
Weight: 14g
Dimensions: 28.5mm * 26mm * 26mm
Antenna:
RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone
Weight: 7.4g
Size: 60 x 17mm
Gain: 2.5dbi
Axial ratio: <1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
VSWR: <=1.2
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
GPS:
Item Name: ST100 Mini M8N GPS
Size: 31*30*12mm
Weight: 22g
Positional accuracy: 50 centimeter precision when working with concurrent GNSS
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 10Hz
Mini M8N GPS Module UBX-M8030 For Mini PIX/F4/F7 Flight Controller
|
and more
