F4 FC
Item Name: Micro F4 FC AIO OSD BEC (D-Shot Version)
MPU: 6000
CPU: STM32F405RGT6
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 30.5x30.5mm board, 3mm mounting holes (M3)
Weight:7g
Support Subs/PPM/DSMX receiver
50A BL_32 ESC
Item Name: 50A 2-6S Blheli_32 RGB light ESC
Input Voltage: 2-6S Lipo battery
MOS Tube: TOP QUALITY MOSFET
Constant Current: 50A
Peak Current: 60A
BEC Ouput: NO
CPU: STM32F051 BLHELI_32 firmware
Size: 26x15x6mm
Weight: 7.4g
Motor Type: Brushless
Motor: 2306 1800KV
Propeller: DP7056C 3-Blade
FPV Transmitter
Output power: 25mW/200mW/500mW/800mW switchable
button OR Channel changes and Pit mode setting through PWM
With a microphone, you can switch the audio flexibly
BAT: 7-26V,BEC 5V-1A
310mA----800mW
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 5 bands 40 Channels
Dimension: 36x36x4.85mm
Mounting Hole: 30.5mmx30.5mm
Weight: 4.2 g

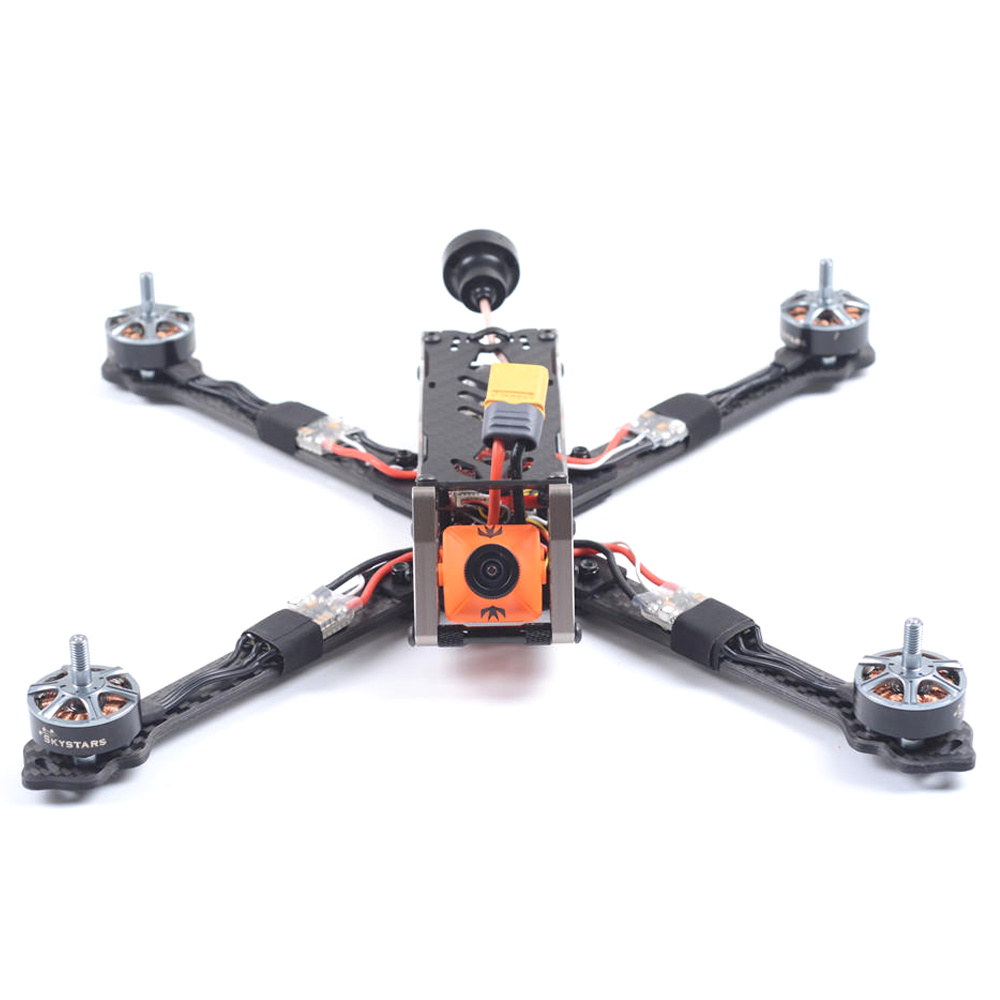

Camera:
Brand: Runcam
Model: Swift 2
Image Sensor 1/3" SONY Super HAD II CCD
Horizontal Resolution 600TVL,4:3
Signal System PAL
Integrated OSD YES
Integrated MIC YES
S/N Ration >60dB(AGC OFF)
Electronic Shutter Speed PAL:1/50~100,000; NTSC:1/60~100,000
AutoGain Control(AGC) YES
Back light compensation(BLC) YES
Min.illumination 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR
Day/Night Color / Auto / B&W
Power: DC 5 to 36V
Net Weight: 14g
Dimension: 28.5 x 26 x 26mm

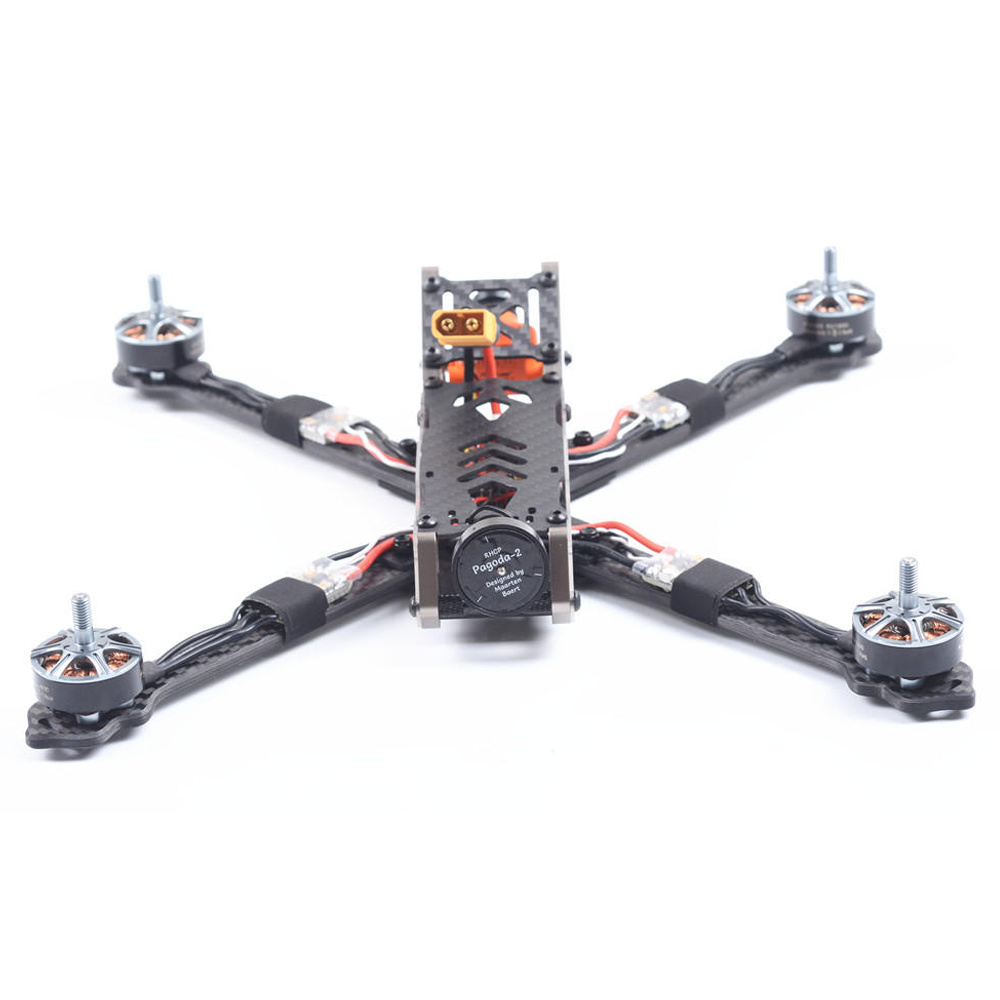

Pagoda2 FPV Antenna
Size: 25mm x 25mm
Gain: 1.6dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 95%
VSWR: <=1.22
Connector: MMCX
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
|
and more
