Specification
| General |
Brand: Skystars |

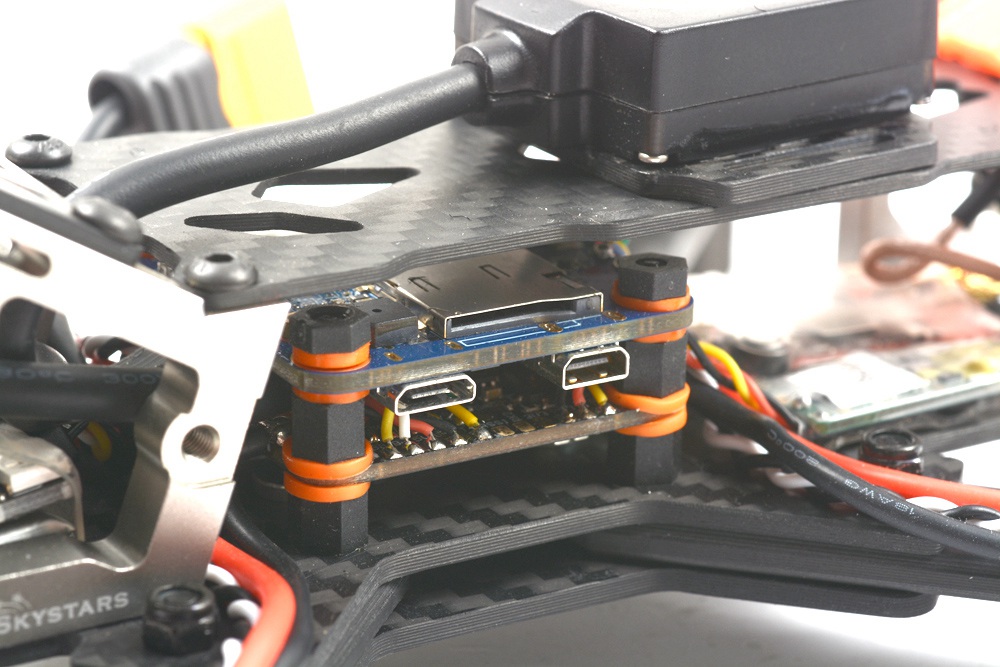

| Specification | Frame Kit Wheelbase: 300mm Arm Plate Thickness: 4mm TOP and Bottom Plate Thickness: 2mm Side Plate Thickness: 2mm Material: 3k Carbon Fiber Micro F4 Flight Control Board ( D-Shot Version) MPU: 6000 CPU: STM32F405RGT6 Baro: BMP280 (I2C) Input Voltage: 2-6S Lipo Built-in Betaflight OSD to adjust PID BEC Output: 5V@3A Size: 30.5x30.5mm board, 3mm mounting holes (M3) Weight:7g Support Subs/PPM/DSMX receiver ESC 50A 2-6S Blheli_32 RGB light ESC: Input Voltage: 2-6S Lipo battery Constant Current: 50A Peak Current: 60A BEC Output: no CPU: STM32F051 BLHeli - 32 firmware Size: 26 x 15 x 6MM Weight: 7.4g MOS Tube: TOP QUALITY MOSFET Features Support Dshot 1200 in default out from factory Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600 Ultra light and ultra small ESC The color of RGB LED can be set by Blhelisuite. Powered by high performance STM32 MCU frequency up t0 48 MHZ Composed of 3Oz gold plated PCB Flashed with the latest BLheli32 firmware Supports higher KV motor and more power load, more suitable for violent flight of racing drone Aluminum heat sink effectively slow down the temperature rise VTX: FPV Transmitter Output power: 25mW/200mW/500mW/800mW switchable Control mode: button OR Channel changes and Pit mode setting through PWM With a microphone, you can switch the audio flexibly BAT: 7 - 26V, BEC 5V - 1A 310mA - 800mW Video system: NTSC / PAL Motor Skystars 2306 KV1800, race edition Camera RunCam Split 2S FOV 170 Degree Super WDR Mini FPV Camera 1080P 60fps DVR HD Recording OSD 1080P@60fps HD recording & WDR 16:9 / 4:3 FPV camera 38x38mm@30.5x30.5 M4 holes, Standard size for a better experience Removable WiFi module for APPSpecifications: Field of View(FOV) FPV FOV 4:3@140°, 16:9@170°/HD Recording 170° Lens Thread Size M12*0.5 Video Resolution 1080@60fps/1080@50fps /1080@30fps/720@60fps Video File Format MOV Image Resolution 2 Megapixels TV Mode NTSC (720*480)/PAL (720*576) Switchable Interface Micro USB / UART Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) WiFi Module Support (Removable) Dimensions PCB 38*38mm/Lens Module 19*19mm Power Input DC 5-15V / DC 5V(USB) Working Current 650mA @5V / 270mA @12V Net Weight 19g DP7056C 7 inch Propeller RC Drone Finger Tracker Flashing LED light, buzzer Battery tie: 20MM, anti-slip pad Powered by 3.7 100mAh LiPo battery ( included ) Mini M8N GPS Module UBX-M8030 For Mini PIX / F4 / F7 Flight Controller Description: Brand name: SKYSTARS Item name: ST100 Mini M8N GPS Size: 31*30*12mm Weight: 22g Positional accuracy: 50 centimeter precision when working with concurrent GNSS Velocity precision: 0.1m/s Max height: 50000m Max speed: 515m/s Max acceleration: 4G Max update rate: up to 10Hz RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone Weight: 10g Size: 120mm x 17mm Gain: 2.5dbi Axial ratio: <1.0 (near perfect) Bandwidth: 5.5GHz-6.0GHz Radiation Efficiency: 98% VSWR: <=1.2 Connector: SMA Works great as both a transmitting or receiving antenna Compatible with other styles of 5.8GHz RHCP antennas Note: the color of the camera is random. |

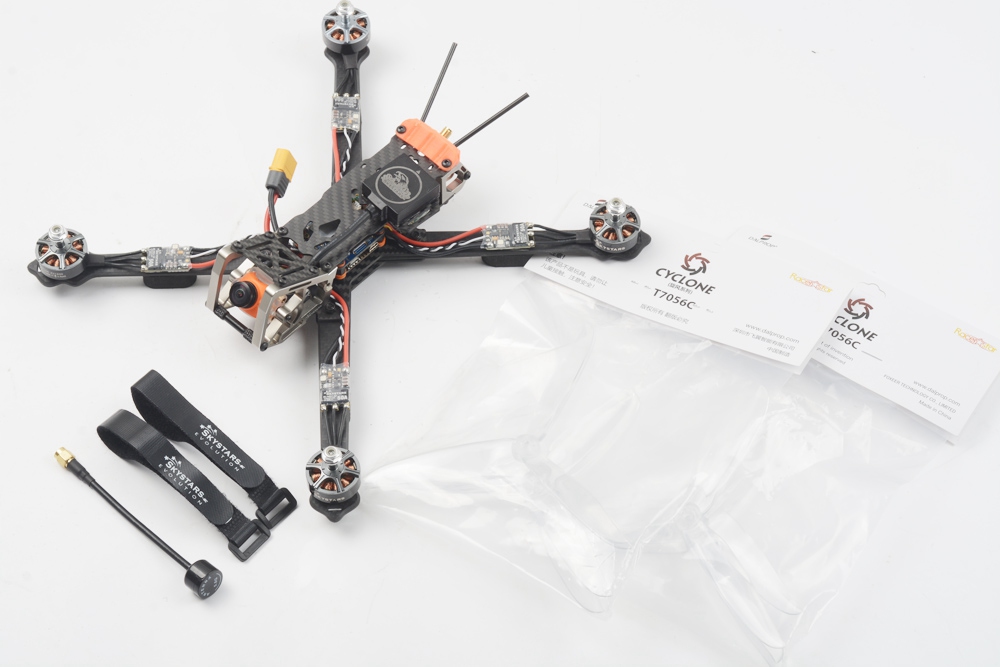

| Package Contents |

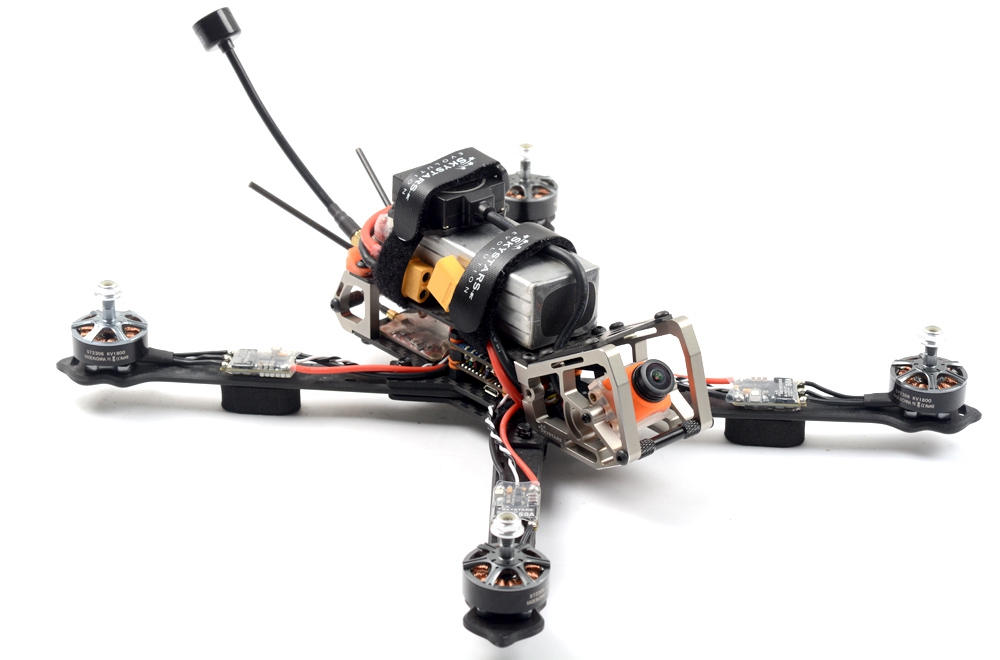

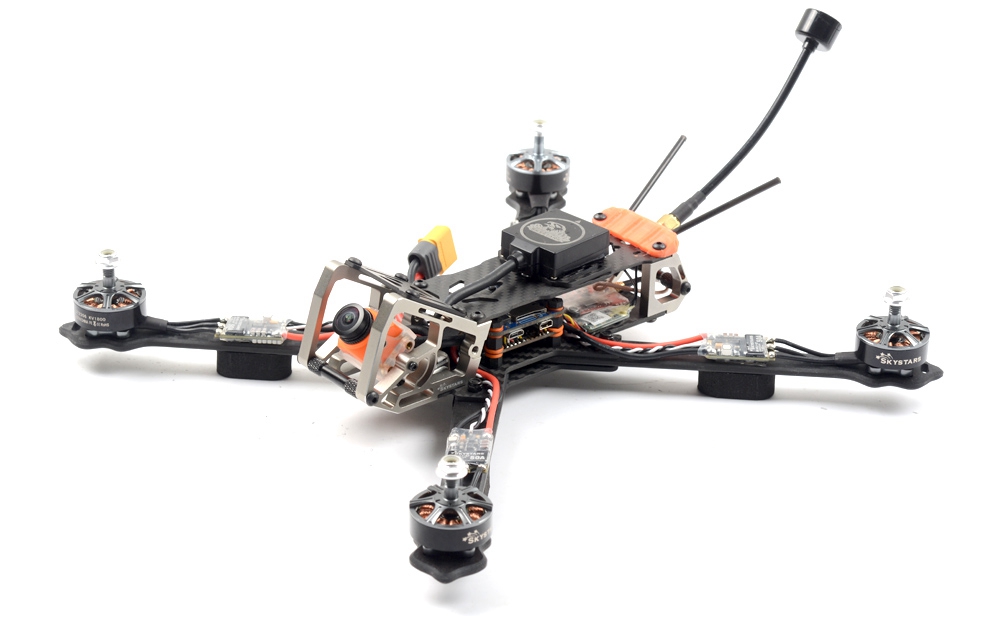

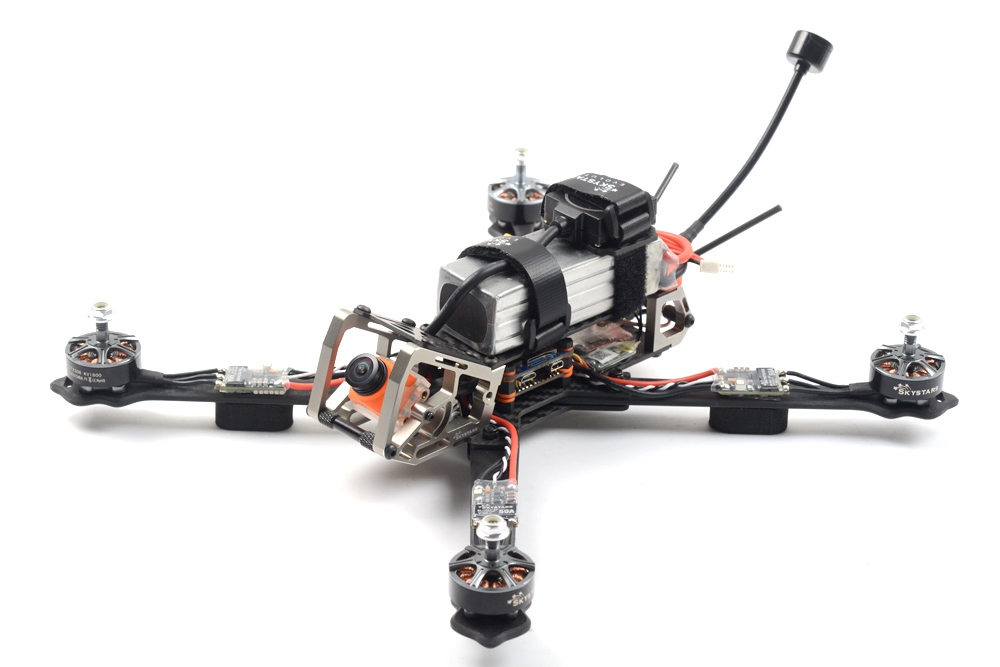

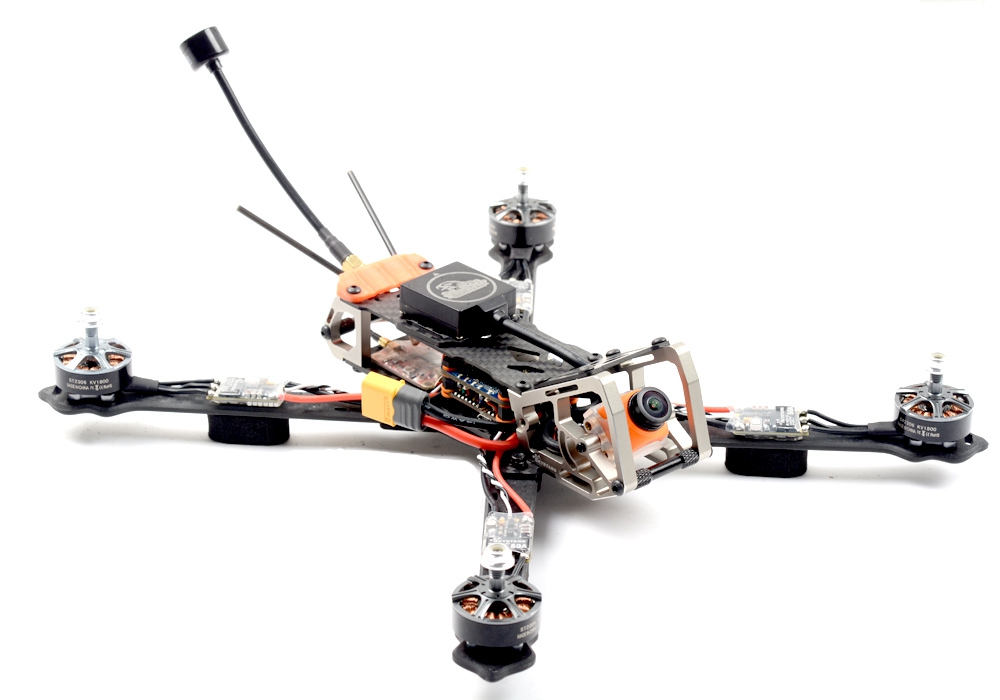

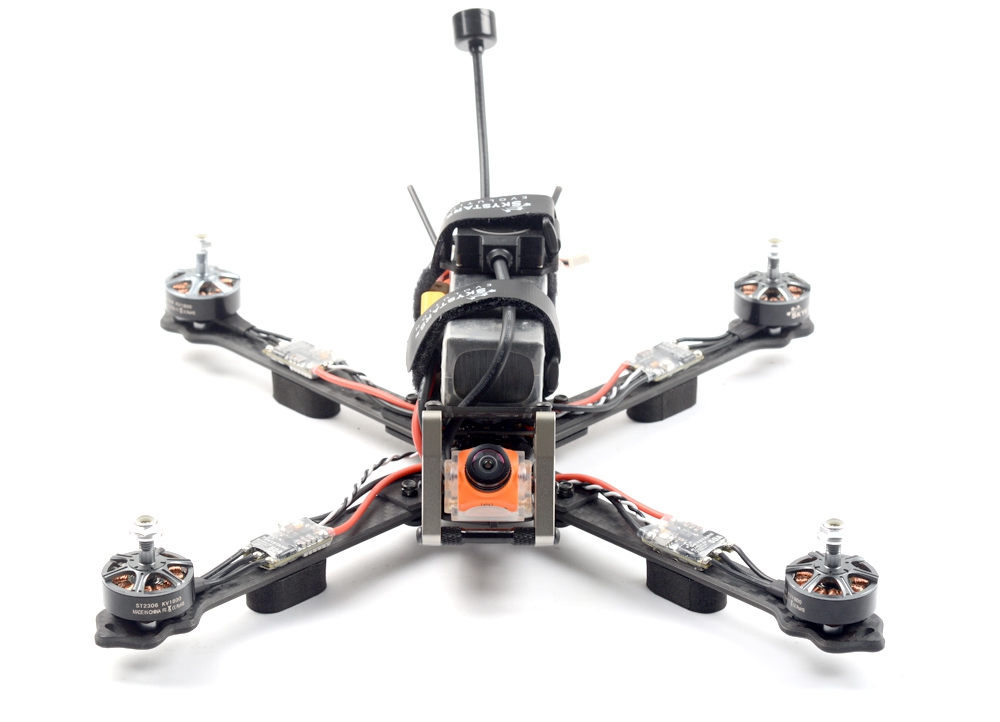

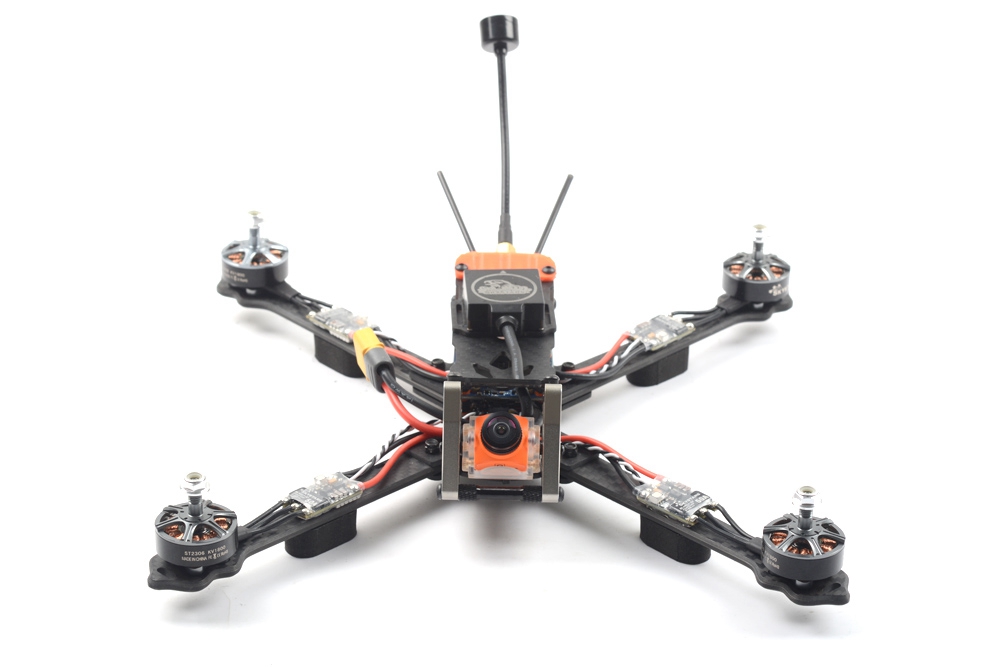

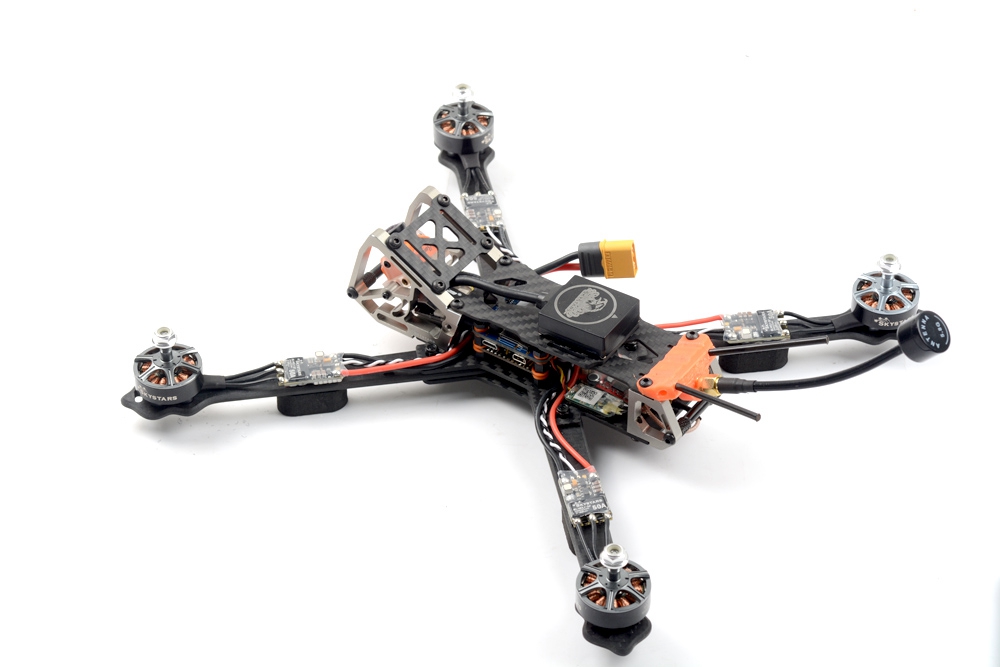

1 X Skystars G730L HD GPS Racing Drone(BNF Version) |
