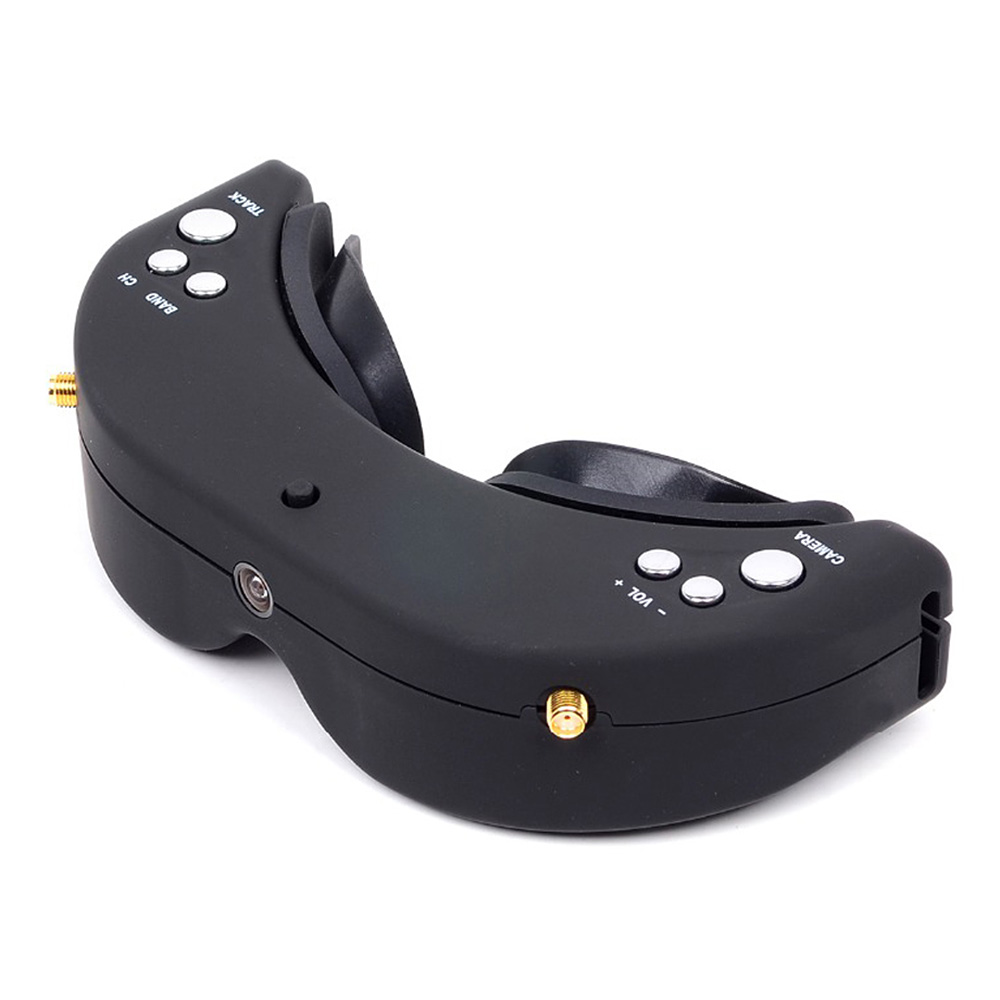

Skyzone SKY01S 5.8G 48CH 854X480 FPV Goggles with Front Camera Head Tracking System - Black

Brand: Skyzone
Item N0.: SKY01S
Item Name: FPV Goggles

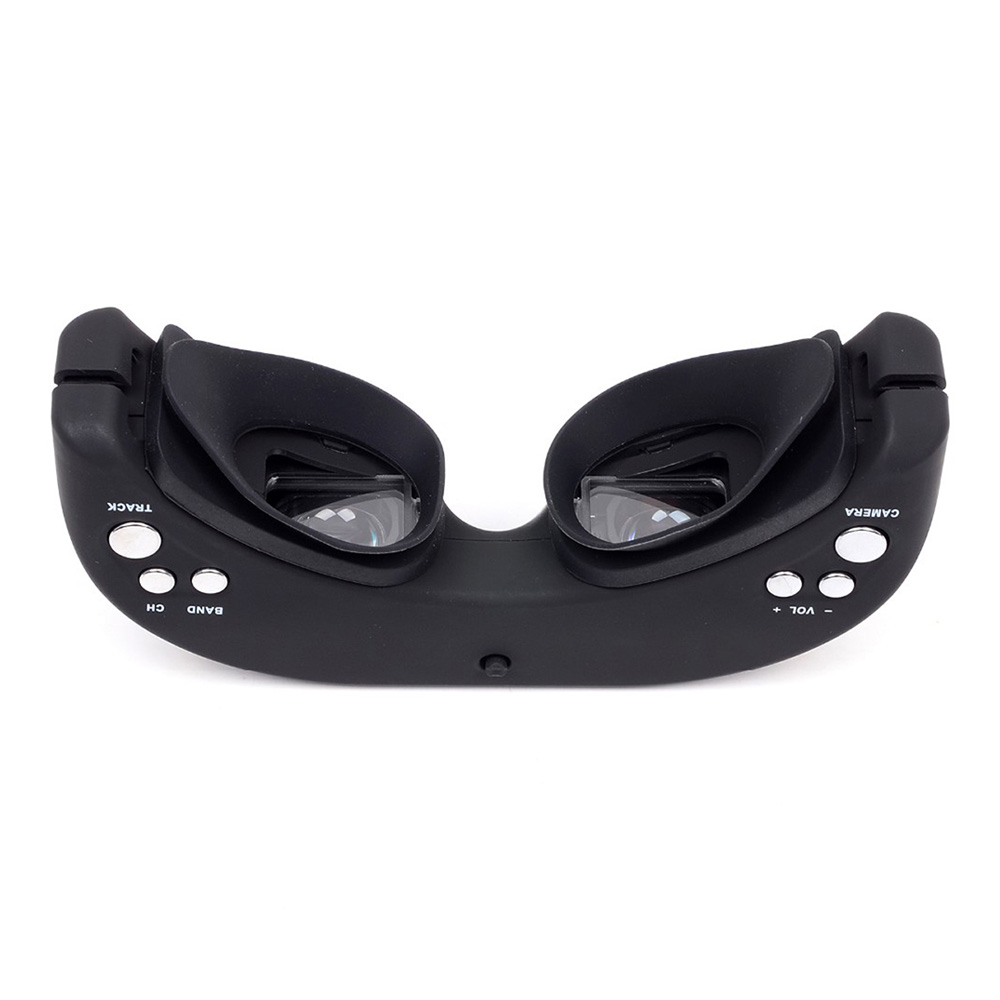

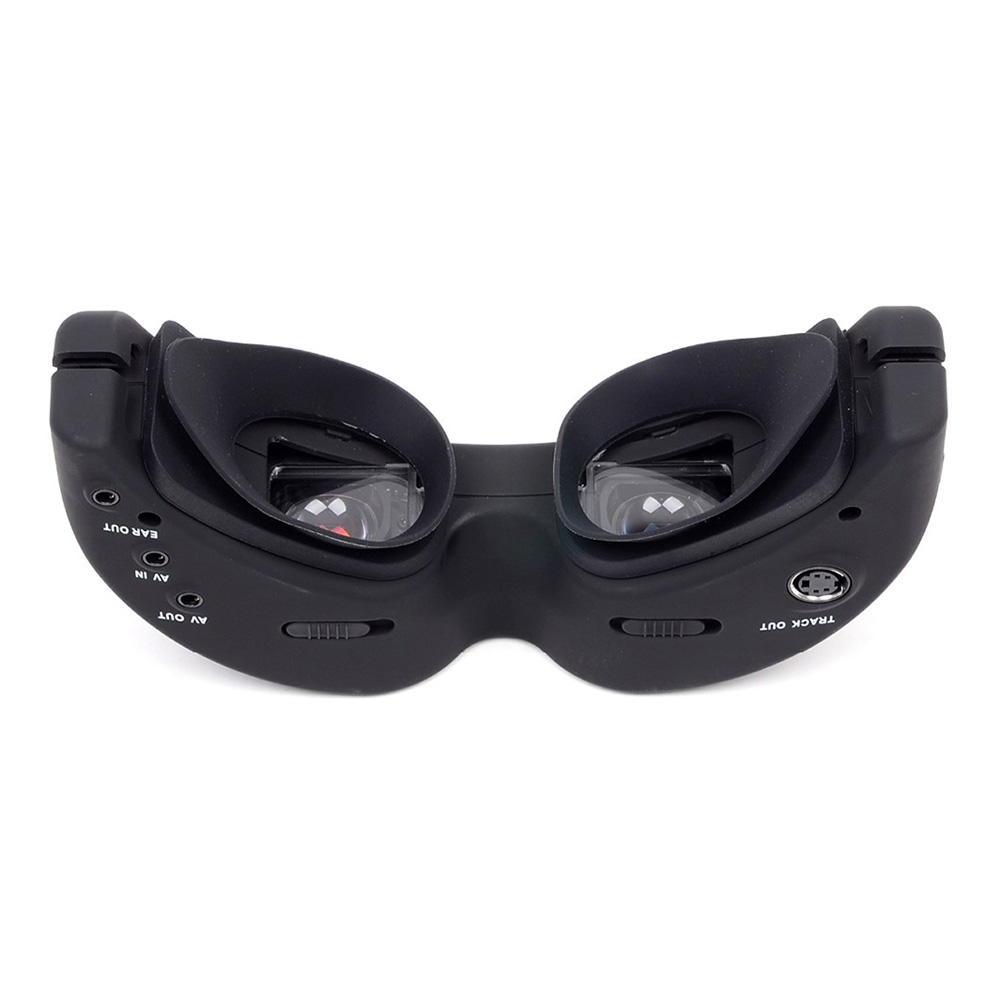

Binocular Display:
FOV: 30 Degrees (Diagonal)
Resolution: 854 X 480(WVGA), 1,229,760 Color Sub-Pixels
Brightness: 350cd/m²
Interpupillary Distance(IPD): 60-68mm Adjustable

Wireless Receiver:
ISM 5.8GHz 48 Channel, Diversity Receiver.
Band     CH 1     CH2     CH3     CH4     CH5     CH6     CH7     CH8
A     5865M     5845M     5825M     5805M     5785M     5765M     5745M     5725M
B     5733M     5752M     5771M     5790M     5809M     5828M     5847M     5866M
E     5705M     5685M     5665M     5645M     5885M     5905M     5925M     5945M
F     5740M     5760M     5780M     5800M     5820M     5840M     5860M     5880M
R     5658M     5695M     5732M     5769M     5806M     5843M     5880M     5917M
L     5362M     5399M     5436M     5473M     5510M     5547M     5584M     5621M
Sensitivity: -90dBm±1dBm
Antenna Port: 2 X SMA,50ohm
Video Standard: NTSC/PAL
Video Output Level: 1.0Vp-p Typ / 75ohm
Audio Output Level: 1.0Vp-p Typ / 10Kohm

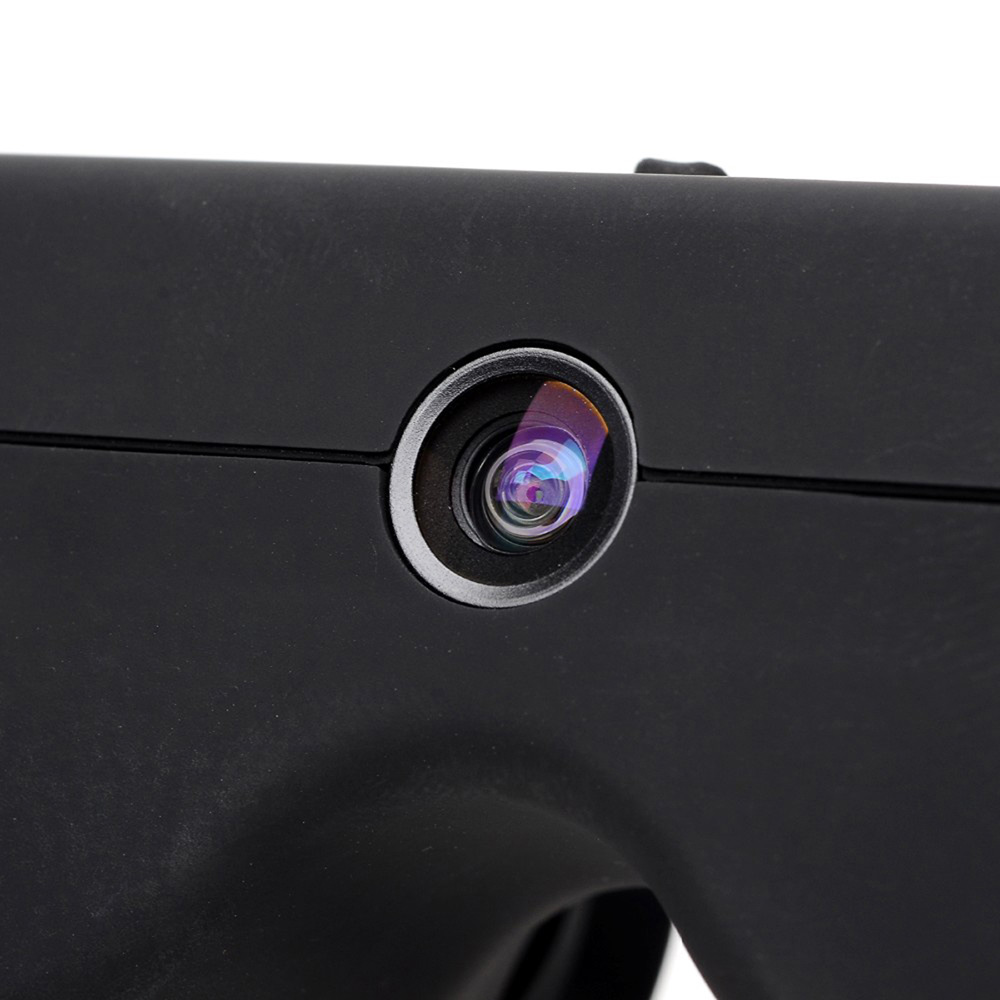

Front Camera:
FOV: 120 Degrees (Diagonal)
Resolution: 640 X 480(VGA)
FOCAL LENGTH: f=0.95mm
Fno: 2.0

Head Tracker
Sensor: Magnetic, Inertial And Gyro
Output: PPM 8 Channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH

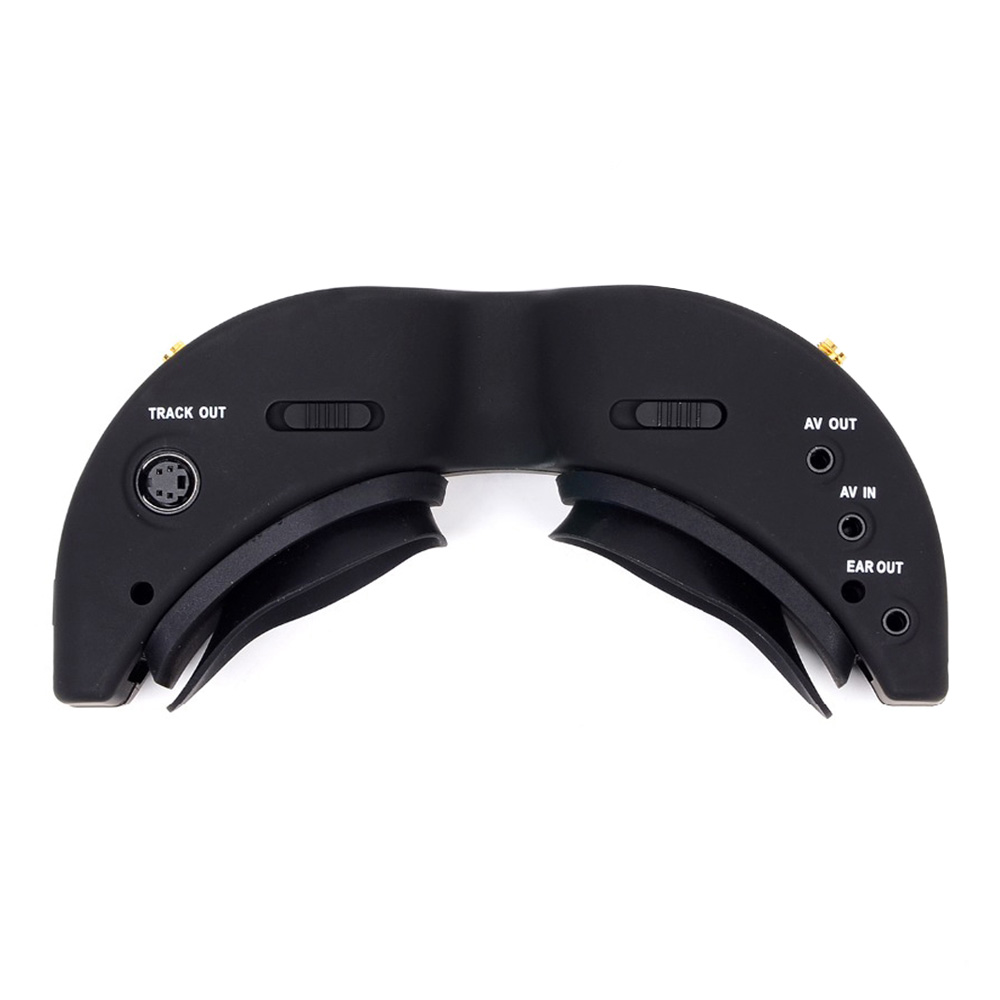

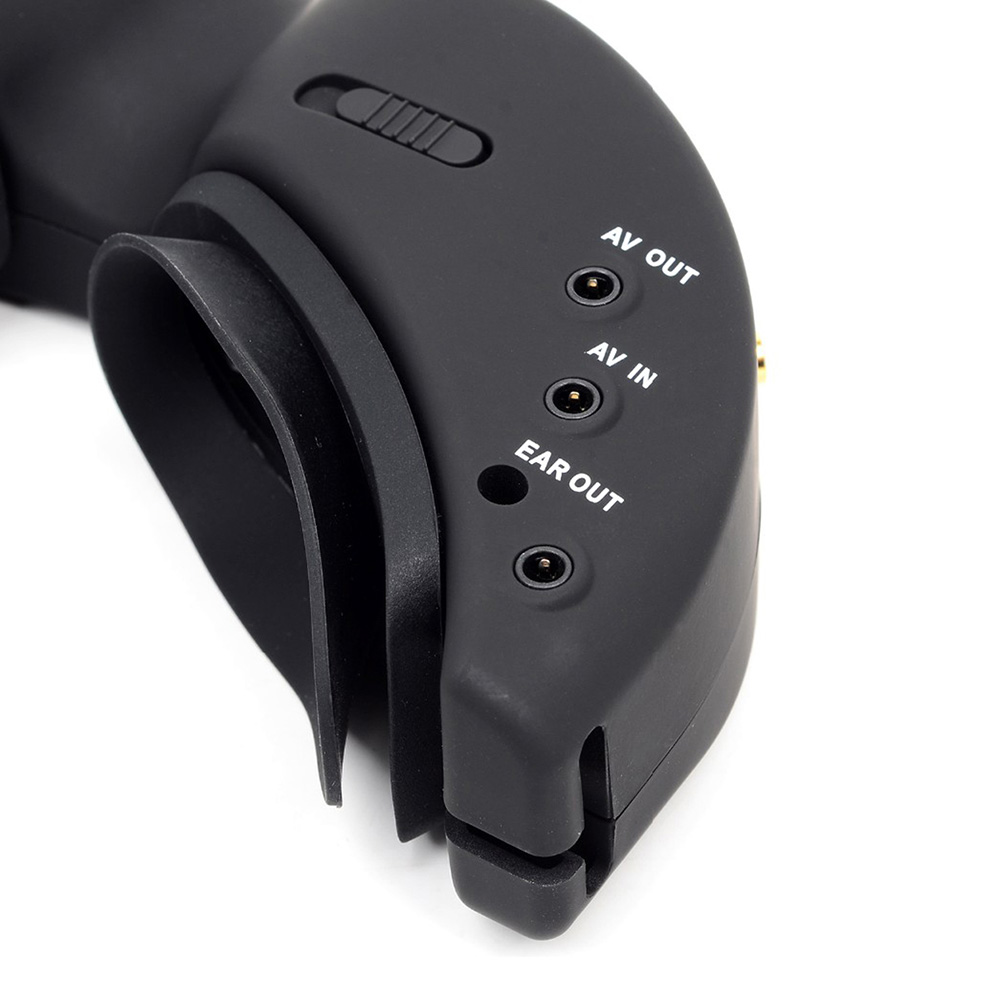

AV Port:
Div. AV OUT(3.5mm4P): Diversity Video,Audio Output
EAR OUT(3.5mm3P): 32Ω/75mW or 16Ω/105mW  With Volume Control
AV IN(3.5mm4P): Video,Audio Input

Power Supply:

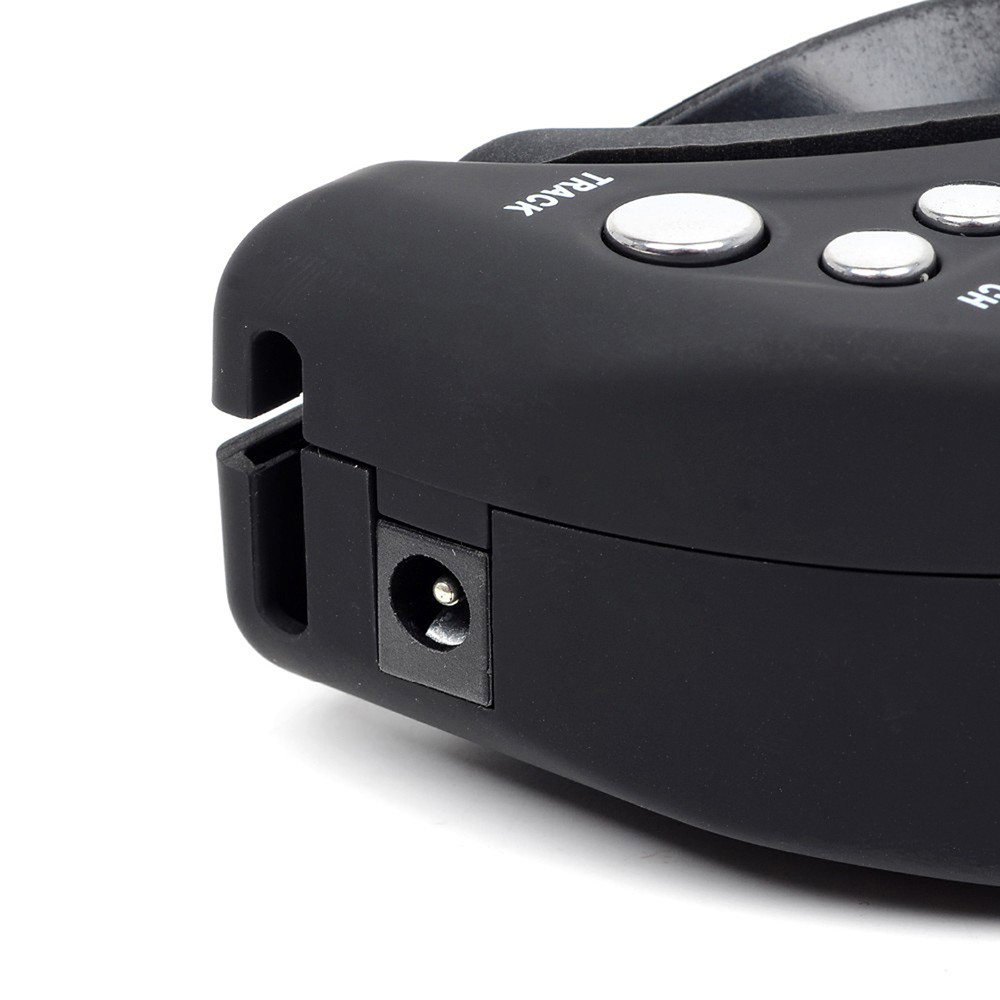

DC IN: DC 7-28V/1A
Power Consumption: 12V
Input: 4.3W
Dimensions: 168 X 92.5 X 41mm (Not Include Prominent Part)
