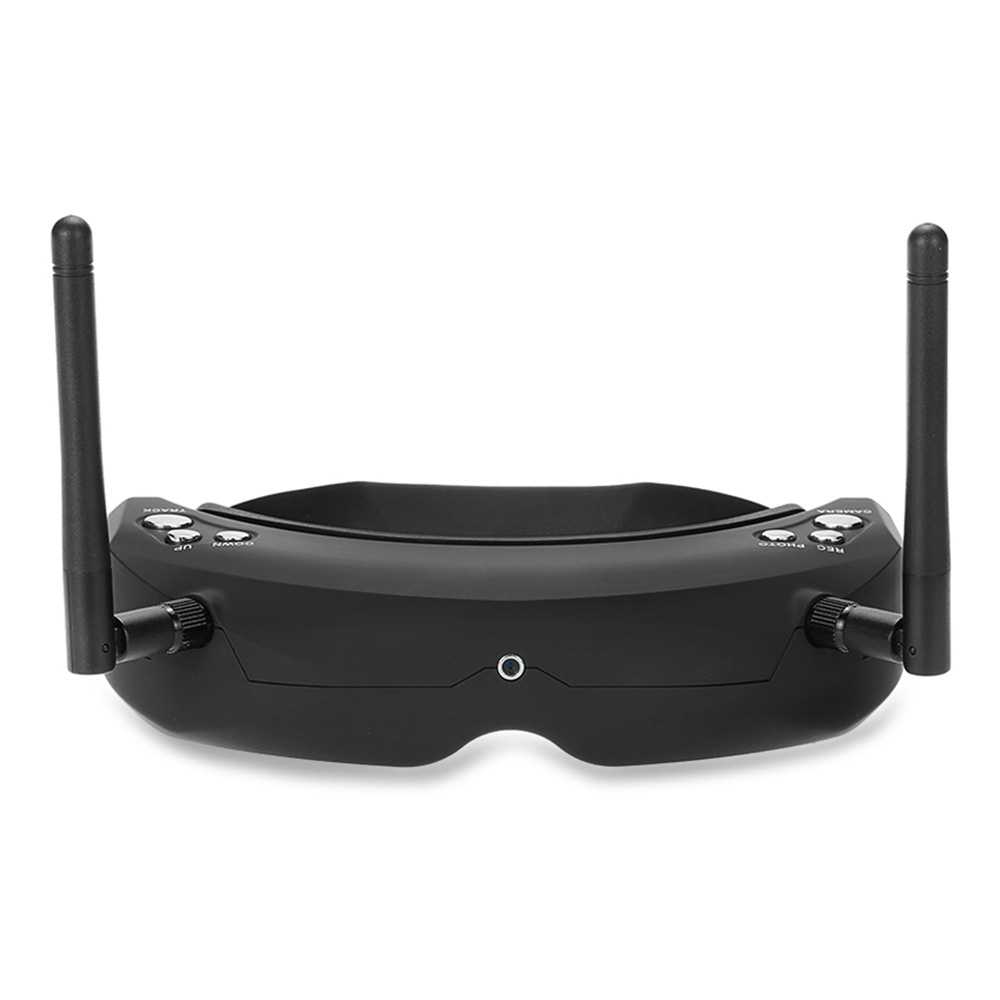

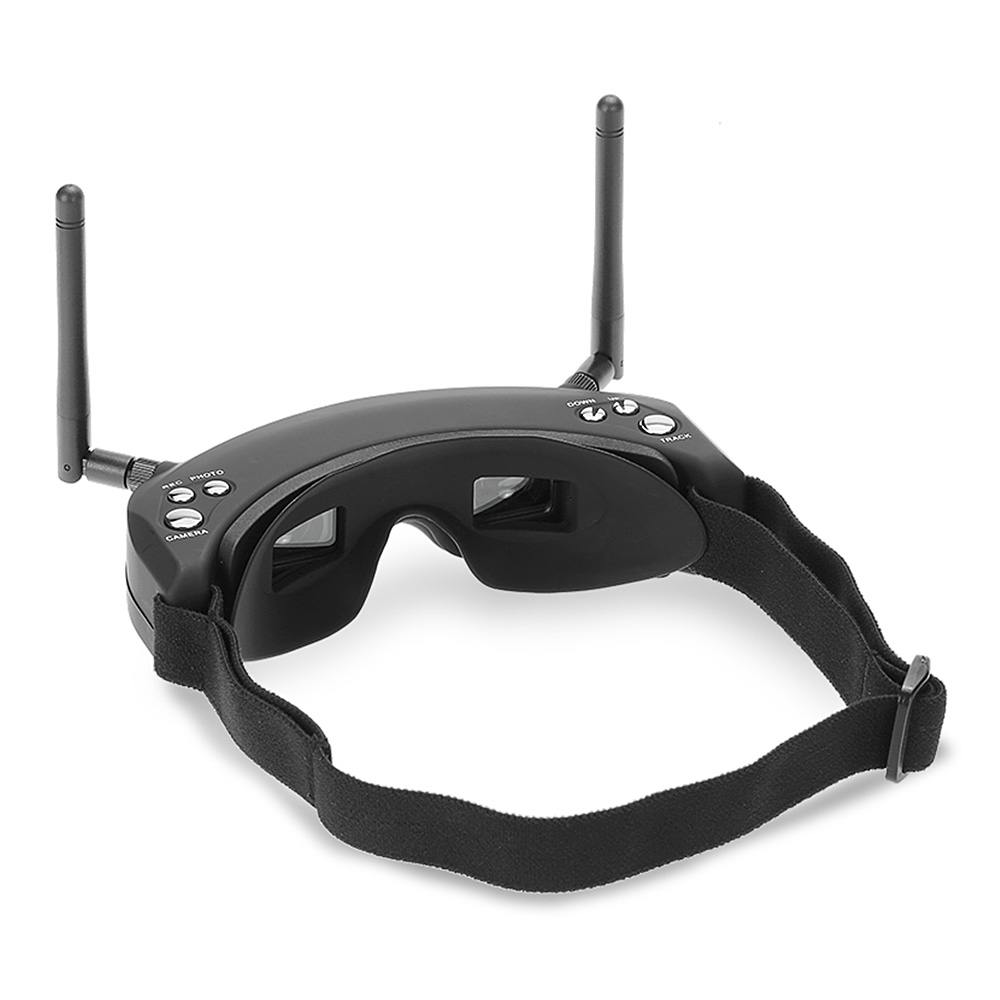

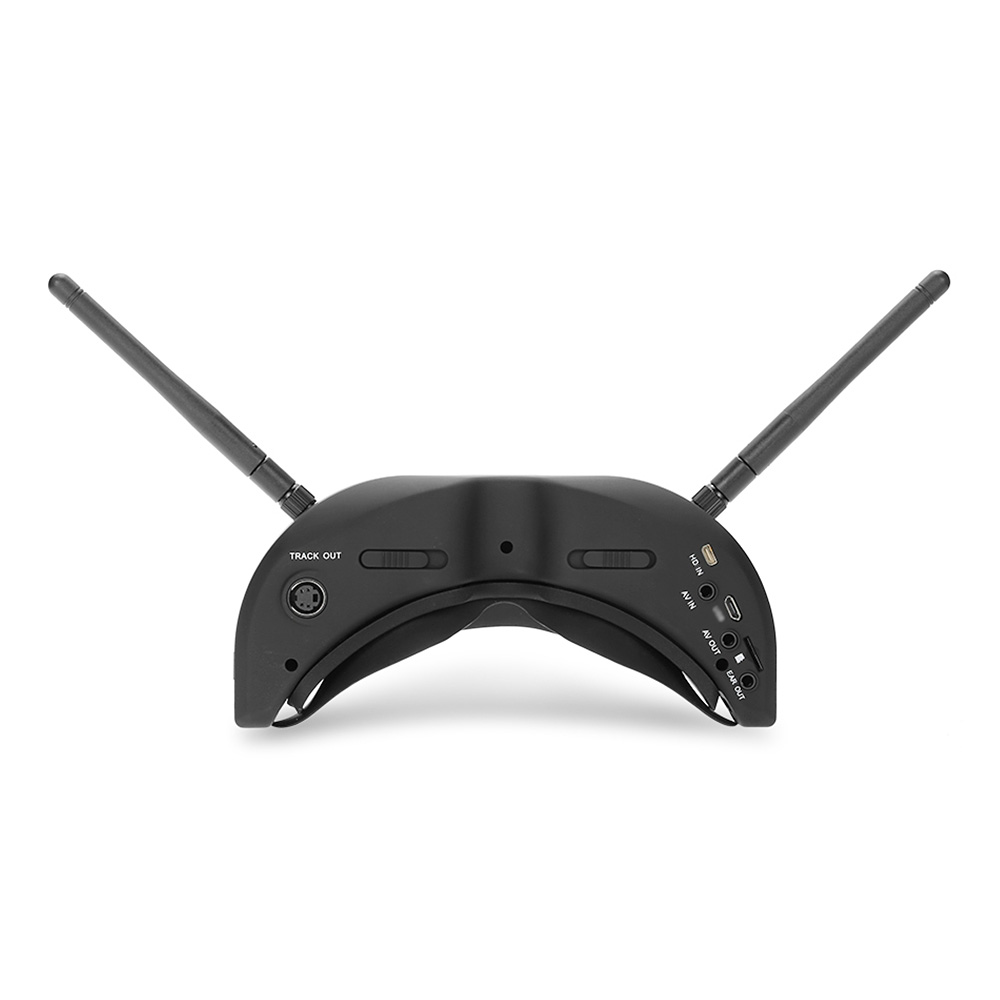

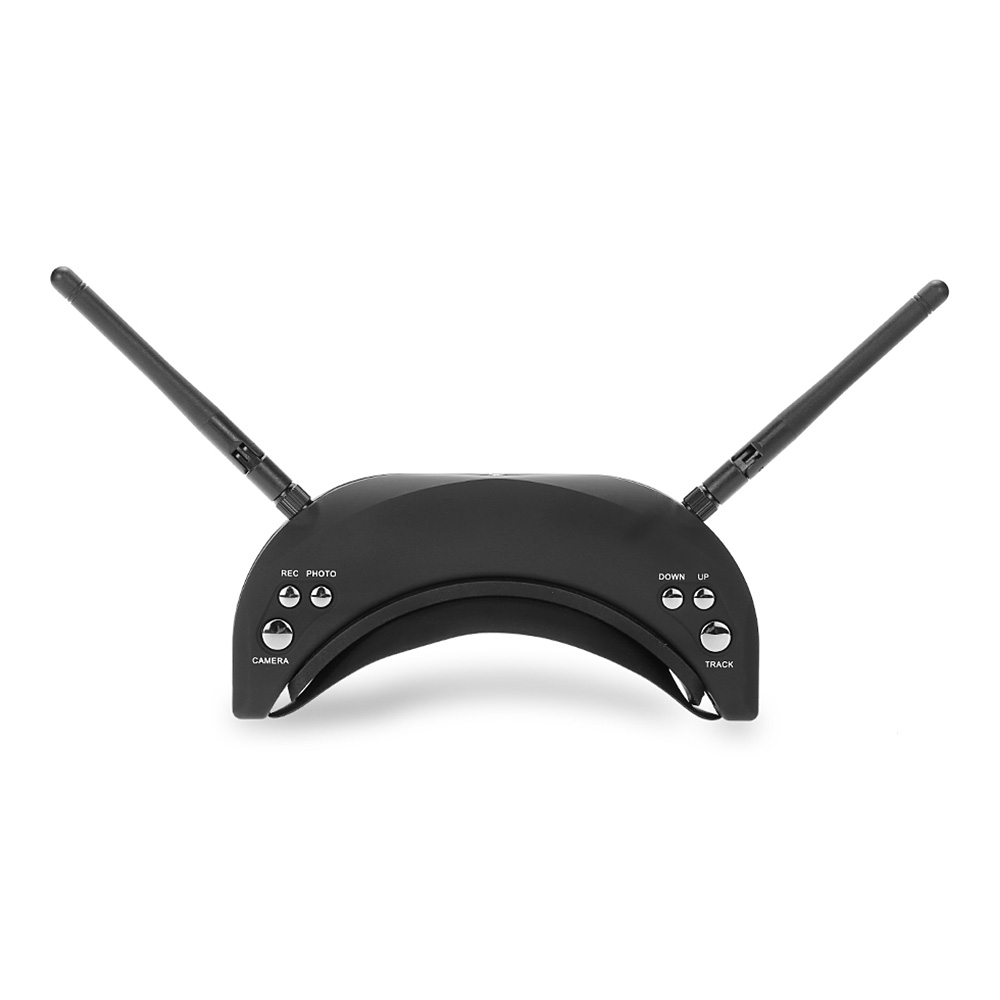

Skyzone SKY02S V+ 5.8G 48CH 854X480 3D FPV Goggles with Head Tracking HD Port DVR Playback - Black

Brand Name: Skyzone
Item No.: SKY02S V+
Item Name: FPV Goggles
Color: Black

Binocular Display:
FOV: 30 Degree(Diagonal)
Resolution: 854 X 480(WVGA)  1,229,760 Color Sub-Pixels
Brightness: 350cd/m²
Interpupillary Distance(IPD): 59-69MM Adjustable
Sensitivity: -90dBm±1dBm
Antenna: SMA 50ohm

Front Camera:
FOV: 60 Degree(Diagonal)
Resolution: 640 X 480(VGA)
Focal Length: Fno=4.0mm
Fno: 2.8

Head Tracker:
Sensor: Magnetic,Inertial And Gyro
Output: PPM 8CH, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH
Micro SD: Support To 32GB
Compression: MJPEG, 30FPS, AVI
Picture: JPEG
Record Rate: 6Mbps
Video Standard: NTSC/PAL
Video output level: 1.0Vp-p Typ. / 75ohm
Audio output level: 1.0Vp-p Typ. / 10Kohm
Div. AV OUT(3.5mm4P): Diversity Video, Audio Output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video ,Audio Input
HD Port IN(Micro HD Port/D-Type): HD Port 1.4 Specification
                                                            1920x1080p60, 1920x1080p50, 1920x1080i60,
                                                            1920x1080i50,1280x720p60, 1280x720p50,
                                                             576p, 576i, 480p, 480i, PC Format(Not all)
DC IN: DC 7-26V/ 1A
Power Consumption: 12V Input, 5.4W
Dimensions: 168 X 92.5 X 41mm

ISM 5.8GHz 48 Channel, Diversity Receiver.
Band     CH 1     CH2     CH3     CH4     CH5     CH6     CH7     CH8
A     5865M     5845M     5825M     5805M     5785M     5765M     5745M     5725M
B     5733M     5752M     5771M     5790M     5809M     5828M     5847M     5866M
E     5705M     5685M     5665M     5645M     5885M     5905M     5925M     5945M
F     5740M     5760M     5780M     5800M     5820M     5840M     5860M     5880M
R     5658M     5695M     5732M     5769M     5806M     5843M     5880M     5917M
L     5362M     5399M     5436M     5473M     5510M     5547M     5584M     5621M

RF Mode:
3D Mode, only available under the RF mode.
2D Mode
