Highlights

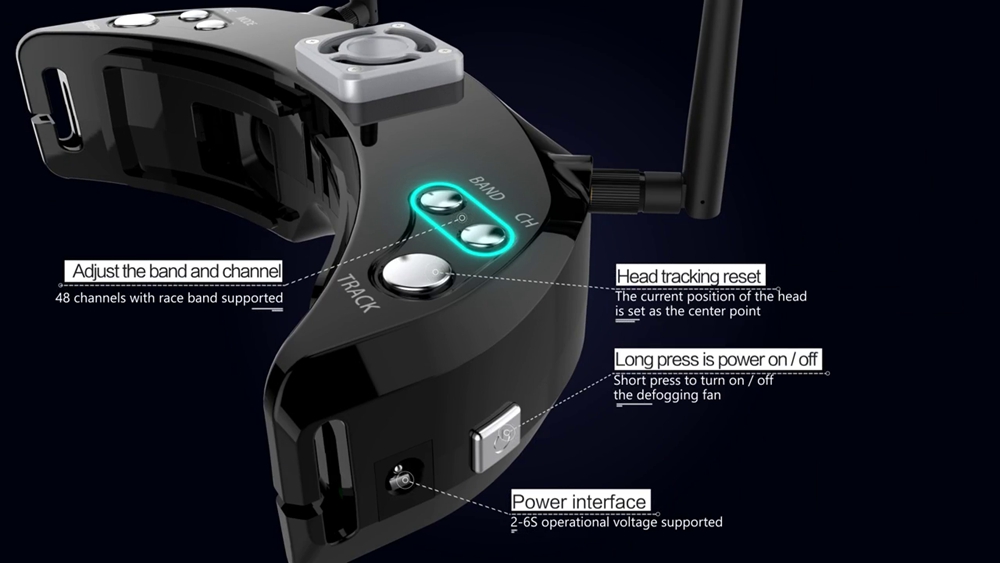

Head Tracking Function

Skyzone SKY03 gives you a truly unique head tracking FPV experience.

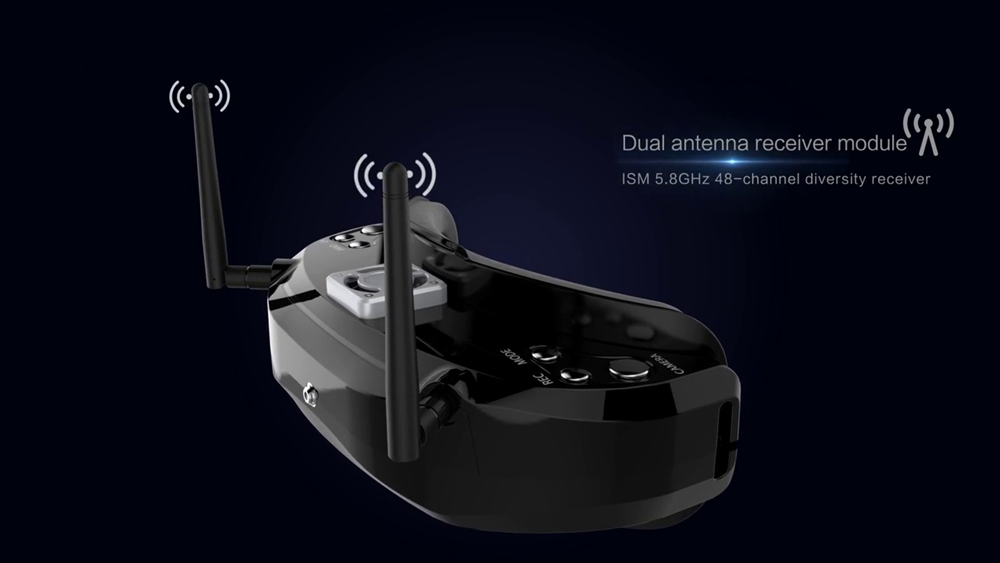

Dual Antenna Receiver Module

ISM 5.8GHz 48CH diversity receiver module with dual antennas.

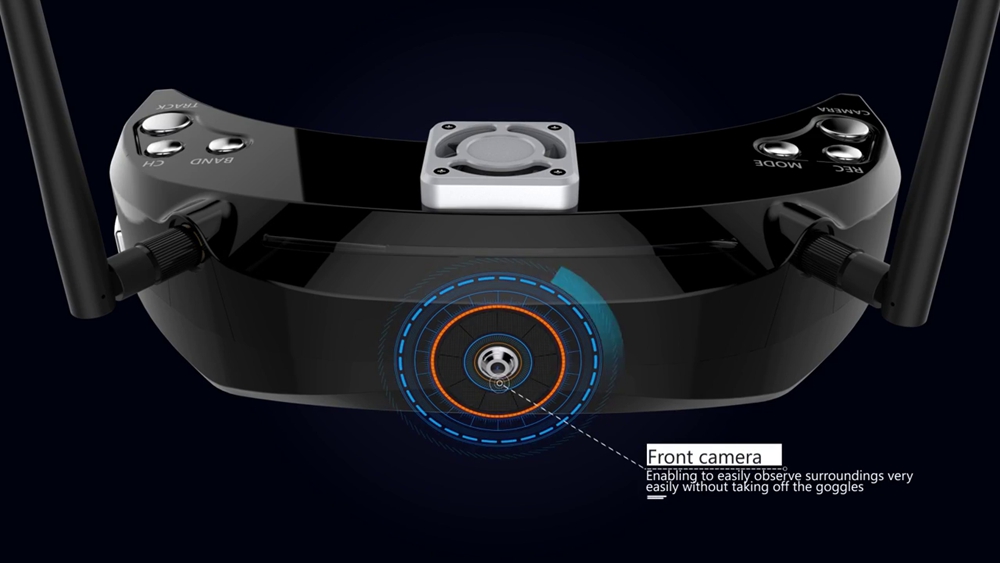

Front Camera

Enabling to easily observe surroundings very easily without taking off the goggles.

Multiple LED Light

Multiple LED light effect mode support.

Up to 39 Degree FOV

Precision aspherical lens providing FOV up to 39 degree without distortion.

Binocular Display

SVGA 800X600 resolution,binocular display.

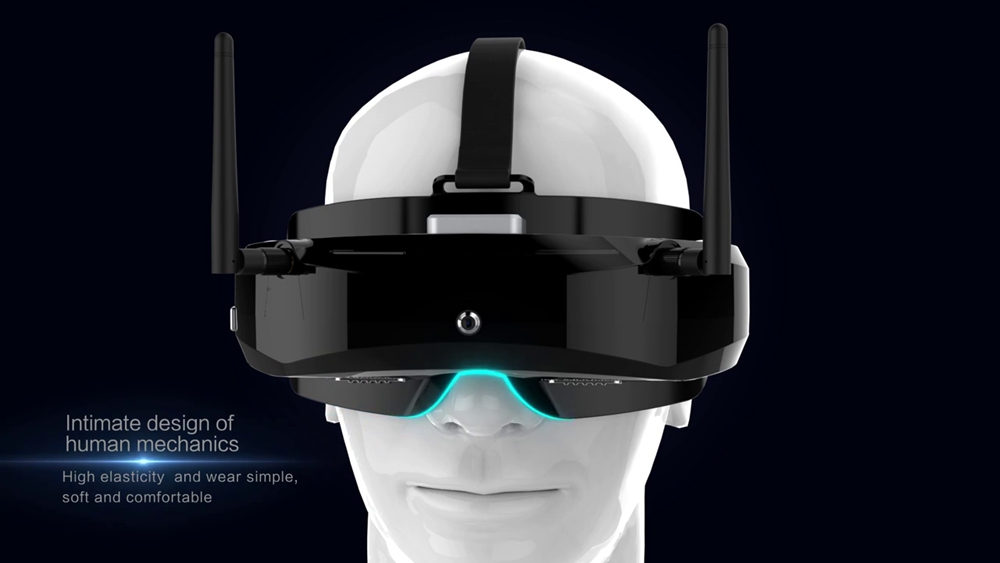

Intimate Design of Human Mechanics

High elasticity and wear simple,soft and comfortable.

Skyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVRSkyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVR

Specification

General

Brand: Skyzone
Item Name: FPV Goggles
Item No.: Sky03

Product Details

Binocular Display:
FOV: 39 degrees (Diagonal)
Resolution: 800X600(SVGA), 1,440,000 color sub-pixels
Brightness: 200cd/m²
Interpupillary: 57.5 to 69.5mm Adjustable
distance (IPD)
3D Display: Side-by-Side(half)

Wireless Receiver:
ISM 5.8GHz 48 Channel, Diversity receiver.
Band   CH 1       CH2        CH3      CH4      CH5     CH6       CH7      CH8
   A      5865M    5845M    5825M   5805M  5785M   5765M   5745M   5725M
   B      5733M    5752M    5771M   5790M  5809M   5828M   5847M   5866M
   E      5705M    5685M    5665M   5645M  5885M   5905M   5925M   5945M
   F      5740M    5760M    5780M   5800M  5820M   5840M   5860M   5880M
   R      5658M    5695M    5732M   5769M  5806M   5843M   5880M   5917M
   L       5362M    5399M    5436M   5473M  5510M   5547M   5584M   5621M
Sensitivity: -90dBm±1dBm
Antenna port: 2 X SMA,50ohm

Front Camera:
FOV: 60 degrees (Diagonal)
Resolution: 640X480(VGA)
Focal length: f=4.0mm
F/NO: F/NO=2.8

Head Tracker:
Sensor: 3-axis Accelerometer, 3-axis gyroscope
Output: PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH

Record:
Micro SD: Support to 128GB (UHS-I Interface)
Compression: H264, 30fps,MOV
Data rate: 6Mbps

AV Signal
Video Standard: NTSC/PAL
Video output level: 1.0Vp-p Typ. / 75ohm
Audio output level: 1.0Vp-p Typ. / 10Kohm

AV Port:
AV OUT(3.5mm4P): Diversity receiver, Video, Audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video, Audio input
HDMI IN(C-Type): HDMI 1.4 specification: 1920x1080p60, 1920x1080p50,1920x1080i60, 1920x1080i50,1280x720p60, 1280x720p50, 576p,576i, 480p, 480i, PC Format(Not all)

Power Supply:
DC IN: DC 7~26V/ 1A
Power Consumption: 12V input: 5.8W (RF mode)

Operating Temperature: 0°C~+60°C

Size & Weight Dimensions: 170(L) X 83(W) X 44(H)mm (Not include prominent part)
Weight: 231g (Not include package box)
Package Contents 1 X SKY03 FPV Goggle
1 X Futaba data cable
1 X JR Data Cable
2 X 5.8G 2dBi Antenna
1 X AV Cable
1 X Power Cable
1 X Carry Case
1 X Manual
