SpeedyBee F4 AIO Flight Controller OSD 5V PDB Built-in LC Filter Integrated BLE Module for FPV Racing Drone

Brand: SpeedyBee
Item Name: F4 AIO Flight Controller
MCU: STM32F405
IMU: MPU6000

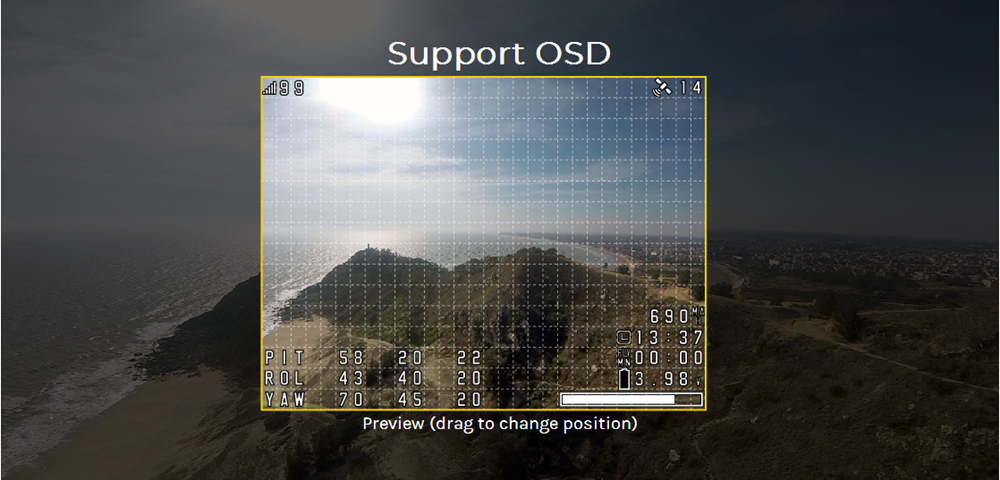

OSD: BetaFlight OSD w/ AT7456E chip
BLE Module: Inner connect to UART5 for remote setting with SpeedyBee App or other similar apps
Black Box: 2MB onboard dataflash
Current Sensor: 200A(Scale 302)
Power Input: 3s - 6s Lipo

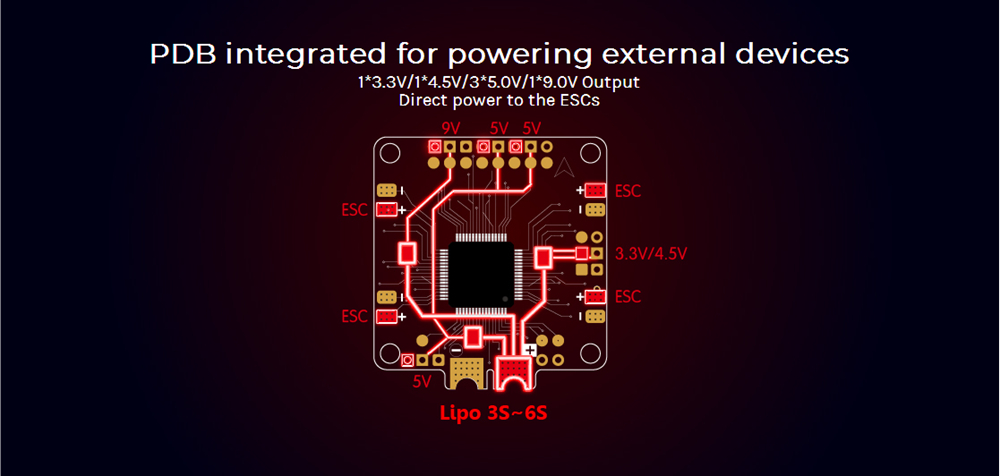

Power Output: 4.5V x 1 , 3.3V x 1, 5V x 3 , 9V x 1
Cam And VTX power output: Built-in LC-Filter for 5V and 9V
ESC power output: 4 x VCC output
UART: UART Pads * 3(UART1, UART3, UART4)
UART2 for Receiver: Built in inverter of RX2 for SBUS input through SBUS pad, RX2 pad used for PPM, DSM2, DSMX, IBUS
RSSI input: RSSI input solder pad
I2C: Used for external GPS, Barometer module
Buzzer: Buz- and 5V pad used for 5V Buzzer
ESC signal: s1 - s7
LED pin: Used for WS2812 LED
Boot button: Used to easy enter DFU mode
Weight: About 8.8g
Dimension: 36 x 39 x 7mm

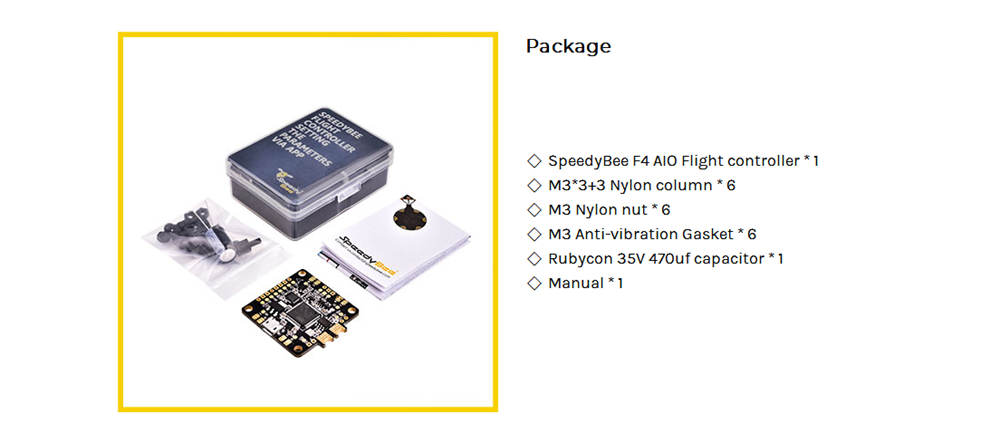

1 x SpeedyBee F4 AIO Flight Controller
6 x M3*3+3 Nylon Column
6 x M3 Nylon Nut
6 x M3 Anti-vibration Gasket
1 x Rubycon 35V 470uf Capacitor
1 x Manual
