Highlights
- Tarot 1806-2280KV self-locking brushless motor is suitable for Tarot Mini 200(TL200A/TL200B) and Tarot Mini 250(TL250A/TL250B) quadcopter frame.Tarot has optimized 1806 brushless motors, so that its center of gravity is lower, more in line with multicopter design requirements.
- MT1806 brushless motor using 0.20mm ultra thin high efficiency silicon,which can make motor with low heat, efficiency higher characteristic.Propeller mounting base and motor cover integration processing, one threaded shaft motor cover, can be directly installed clip (axis native folder structure) their concentricity can be the best guarantees.Motor cover active mat with efficient design to achieve lower operating temperatures which means higher productivity.

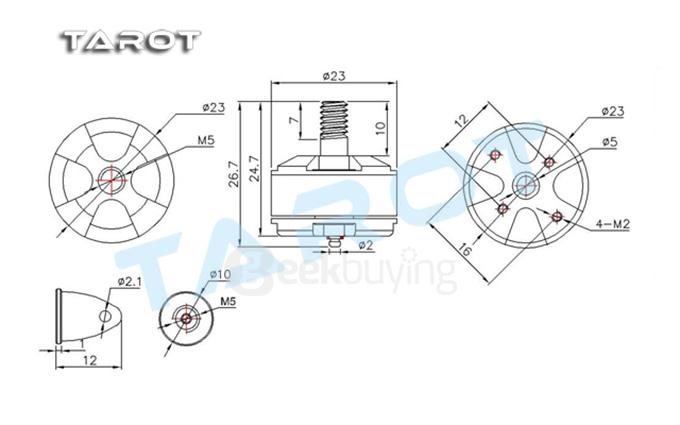

- MT1806 brushless motor with dynamic balance of performance, each motor prior to shipment are subject to high precision dynamic balance measuring instrument, to ensure stability while the motor is running. Motor mounting as sets of mounting holes (holes as shown in figure), rack mounting your compatible on the market mainstream, traditional motor retains the look and consistency, high loft coil to a protective effect.
Specification
| General | |
|---|---|
| Type | CCW Motor |
| Model | TL300H2 |
| Propeller | Prop Diameter:5mm Propeller: 5 inch clover prop TL300E |
| Stator | Stator Diameter:18mm Stator End Thickness:6.0 Stator End Quantity:12 |
| Power Supply | 2-3S |
| Non-load Current | 0.4A-0.7 |
| Max Thrust | 460g |
| Interphase Resistance | ≤4mΩ |
| Rotate Speed | 2280KV ± 5% |
| Size | Motor Outer Diameter:23mm Axis Diameter:2mm Motor Length:26.5mm Motor Weight:18g |
| Notice | Please read the instructions in detail before assembly. Non-professionals are supposed to assemble it under guidance of professionals. |
| Package Contents | |

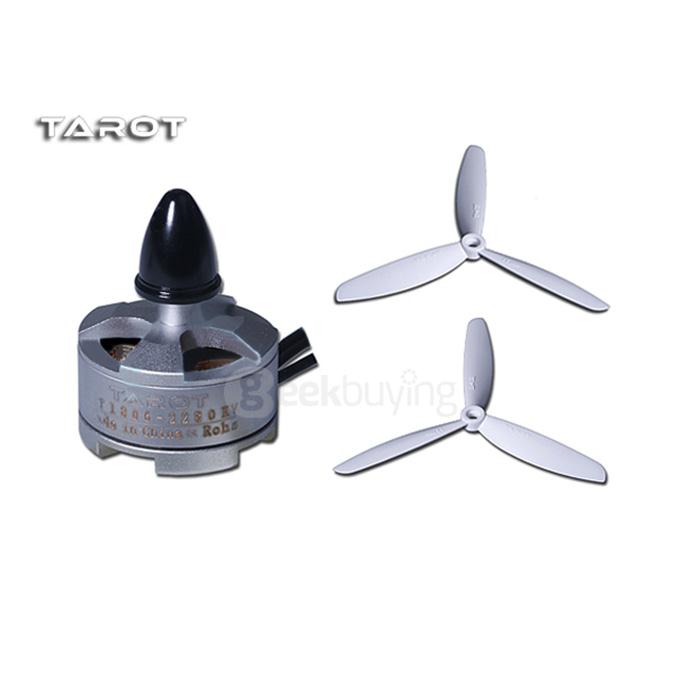

| 1x MT1806-2280KV CCW motor | |
| 1 x 5 inch clover prop TL300E pair | |
