Highlights

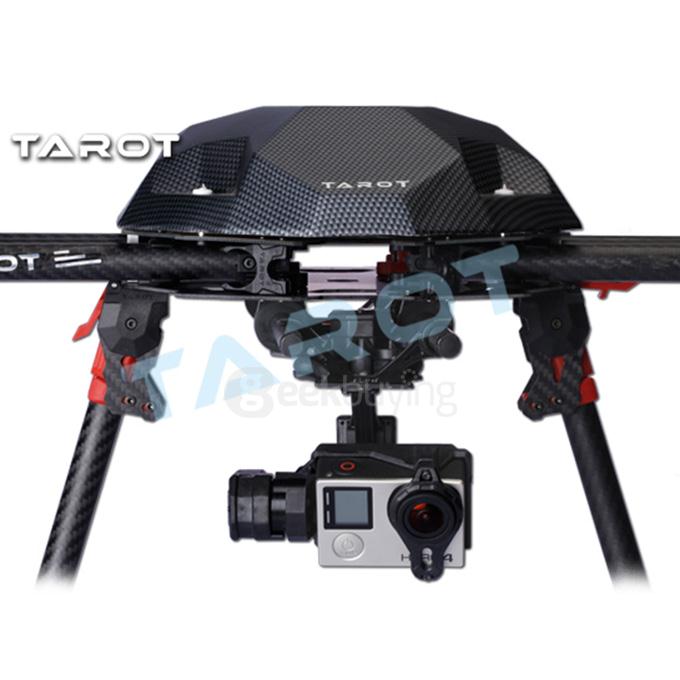

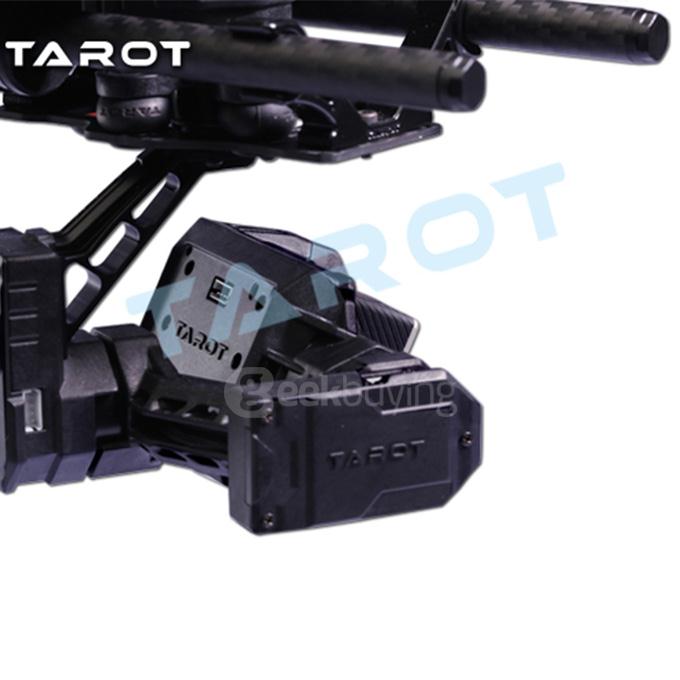

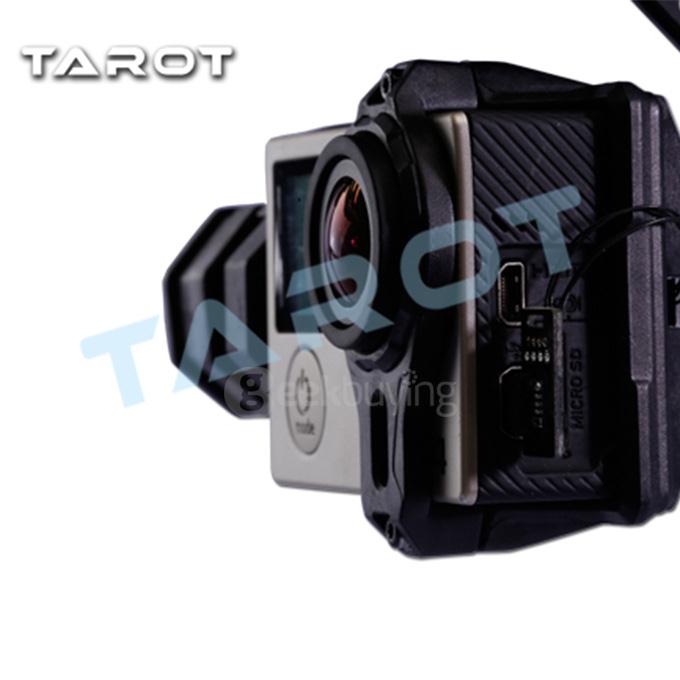

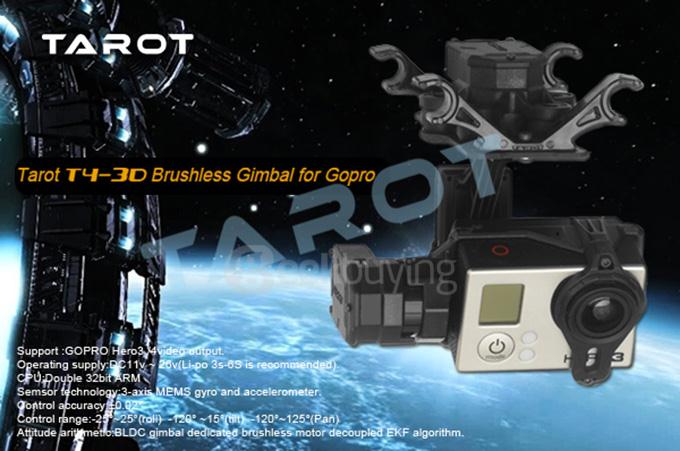

- Tarot T4-3D Brushless Gimbal integrates the high-end technology of all the Tarot series products and designs for GOPRO HERO3/HERO4 and the same size and weight of the camera.
- Adopt the combination of aluminum and engineering plastics
- Extreme lightweight and the strongest stability
- Lock camera accurately and maitain stability even in harsh environments
- Support PC interface Settings
- Mode:PF and FPV
- Built-in independent IMU module
- Gimbal dedicated servo driver module
- AV output interface
- Support the wide range input voltage
- Support the general receivers/S-Bus receivers/DSM receivers
- Support the type of cameras:GOPRO HERO3/HERO4 and the same size and weight of the camera
- Output delicate industrial-grade picture of the extreme experience
- Adopts advance attitude arithmetic:BLDC gimbal dedicated brushless motor decoupled EKF
- Built-in independent IMU to control gimbal's attitude precisely.
- Integrated gimbal and servo drive module
- Support two kinds of working mode:PF and FPV.
- All of the power supply and signal lines skillfully embedded in yuntai structure
- Speed of the pitch axis is controlable.
- In a word,it's the best choice of professional film and television camera crews and FPV fans.
Specification
| General | |
|---|---|
| Brand | Tarot |
| Model | TL3D01 |
| Quantity | 1 Piece |
| Specification | |
| Input | 2S-6S LiPo battery(7.4V-22.2V) |
| Control Accuracy | ±0.02 degrees |
| The Largest Controllable Speed | ±200 degrees /s(Titl) |
| Control Range | -120 to 15 degrees (Titl) -120 to 125 degrees (Pan) -25 to 25 degrees (Roll) |
| Working Current | 30mA(@25V) 50mA(@12V) |
| Locked rotor Current | 350mA(@25V) 700mA(@12V) |
| Working Temperature | -20 degrees |
| Dimensions & Weight (Main Product) | |
| Dimension | 99mm*88.5mm*105.6mm |
| Weight | 178g |
| Package Contents | |

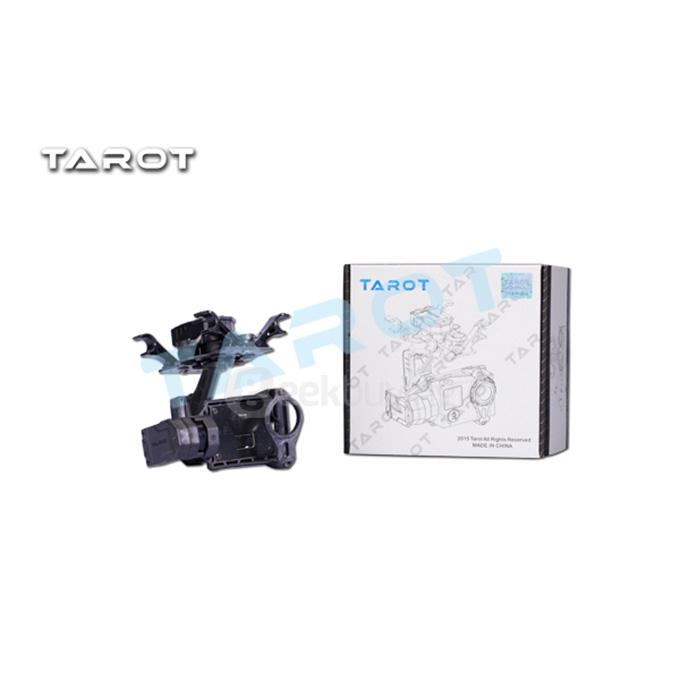

| 1 x T4-3D Brushless gimbal | |
| 1 x main gimbal control module | |
| 1 x cable linking gimbal and control module | |
| 1 x 5V output,a receiver and video line | |
| 1 x USB module | |
| 1 x flight control cable | |
