Highlights
- High-sensitivity 1/4 inch CMOS sensor (300,000 pixels).
- Optimized MJPEG video compression for transmission.

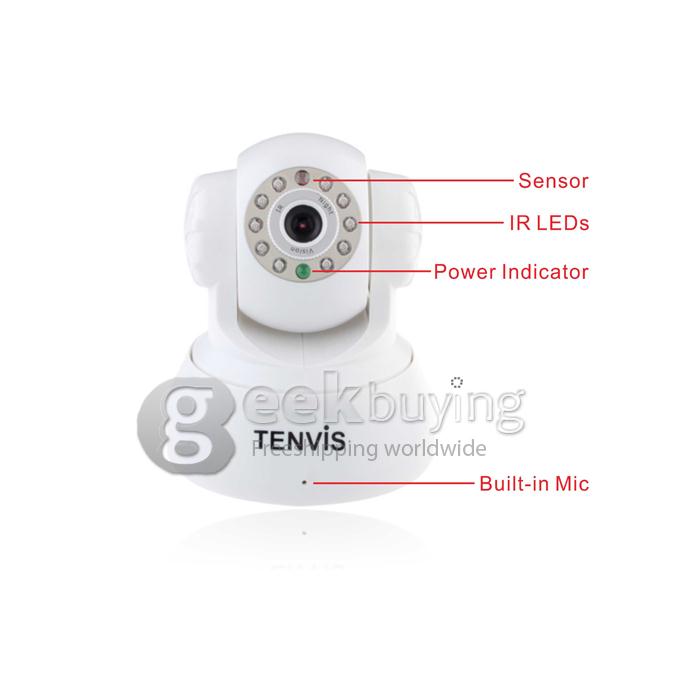

- Auto IR-LED illumination for night vision (up to 10 meters).
- Two way audio monitoring, Microphone and Speaker built-in.
- Wi-Fi compliant with wireless standards IEEE 802.11b/g.

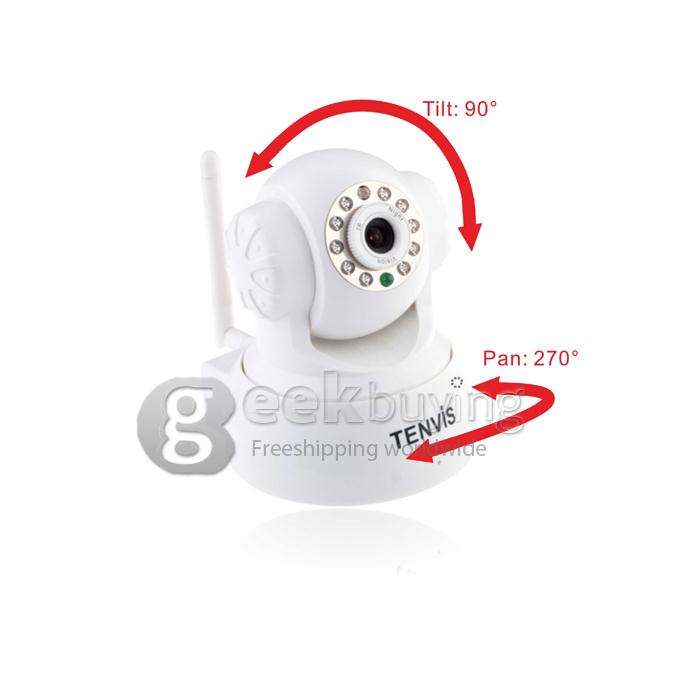

- Supports remote Pan/Tilt control (pan: 270°& Tilt: 90°).
- Support smart mobile surveillance & P/T Control via iPhone, Android, Windows Mobile, Java, etc.
- Supports IE/Firefox/Google browser or any other standard browsers.

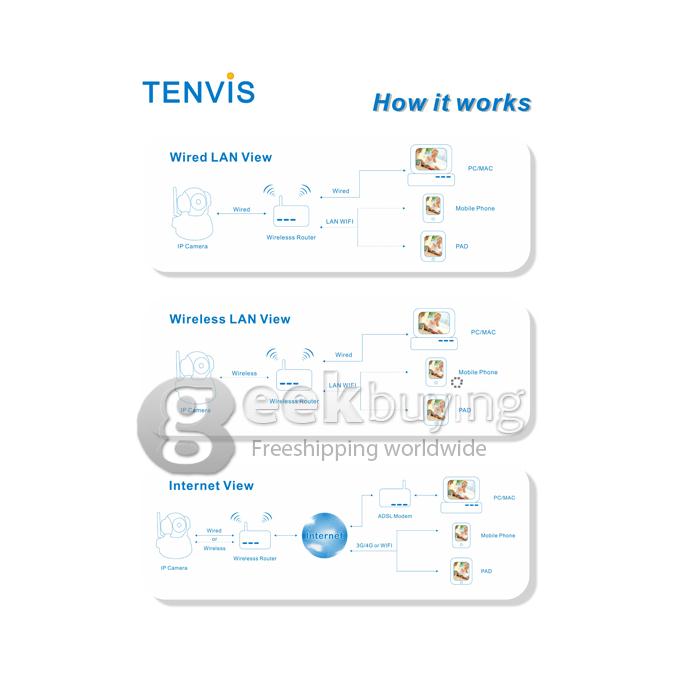

- Supports remote viewing & record from anywhere anytime.
- Support motion detection alert via email or upload image to a specified FTP server.
- Support image full screen and image snapshot.
- Multi-level users management and passwords definition.
- Multi-Protocol support and Transportation (such as TCP/IP, SMTP, HTTP and etc).
- Support both WEP & WPA WPA2 Encryption.

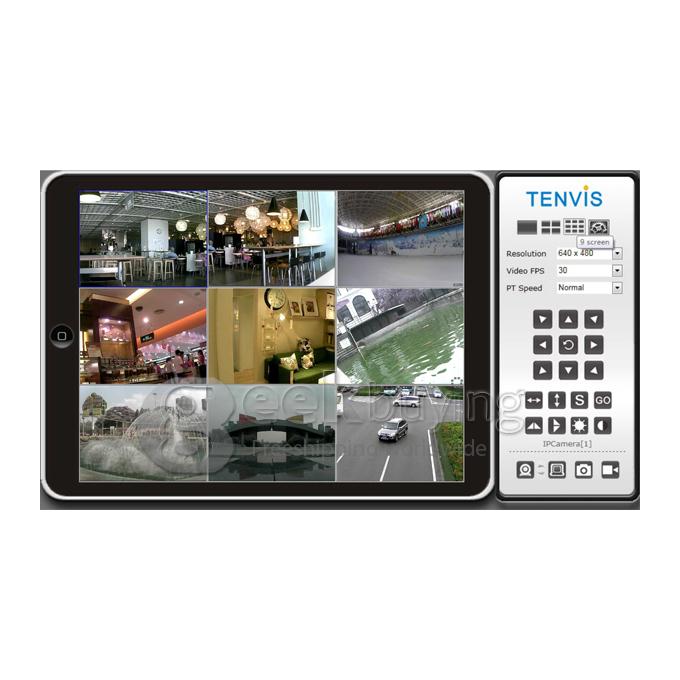

- Friendly IP Camera Setup Wizard, friendly Graphical User Interface, DIY installation.
- Multi-Language Support Built-In Web Interface: English, Deutsch, French, Italian, Japanese, Korean and Chinese.
- Video/Snapshot Storage on Local Hard Drives.
| ITEMS | JPT3815W | |
| Image Sensor | Image Sensor | 1/4 Inch Color CMOS Sensor |
| Display Resolution | 640 x 480 Pixels(300K Pixels) | |
| Lens | f=3.6mm | |
| Visual Angle | 62.2 Degree | |
| Infrared LED | ø5, 10 PCS | |
| Minimum Illumination | 0.1 Lux | |
| Lens | Lens Type | Glass Lens |
| Viewing Angle | 67 Degree | |
| Audio | Input | Built-in Microphone |
| Output | Built-in Speaker | |
| Audio Compression | ADPCM | |
| Video | Image Compression | MJPEG |
| Image Format | PAL/NTSC | |
| Image Frame Rate | 25fps (Max.) | |
| Image Resolution | 640 x 480(VGA), 320 x 240(QVGA) | |
| Flip Mirror Images | Vertical/ Horizontal | |
| User Authentication | Authentication: User/Password; | |
| Users Group | Administrator/Operator/Visitor | |
| Simultaneous Viewers | 10 viewers(320x240) & 4 viewers(640x480) | |
| Mobile View | Supports smart phones with Iphone/Android/ Java and other smart mobile phones | |
| Night Visibility | Φ5mm, 10 IR LED lights, Wireless night visibility up to 10 meters | |
| Light Frequency | 50Hz, 60Hz | |
| Infrared Mode | Automatic, Manual (on/off) | |

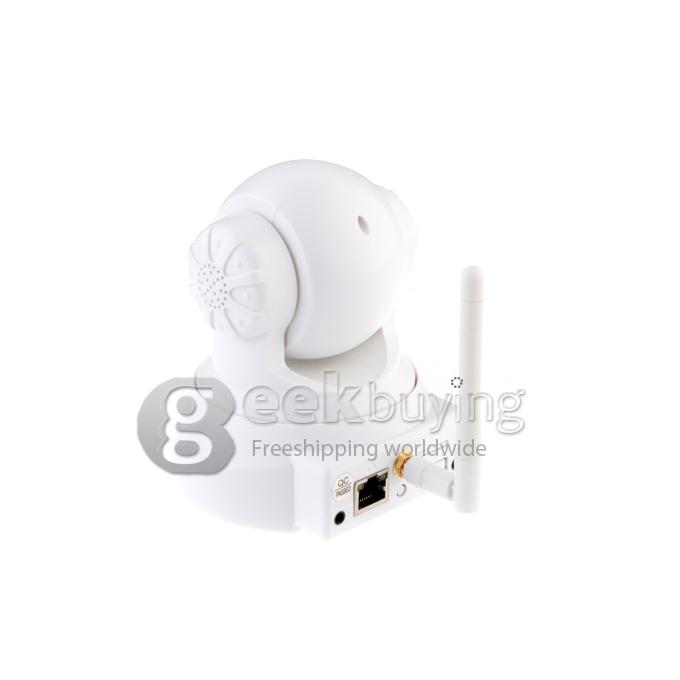

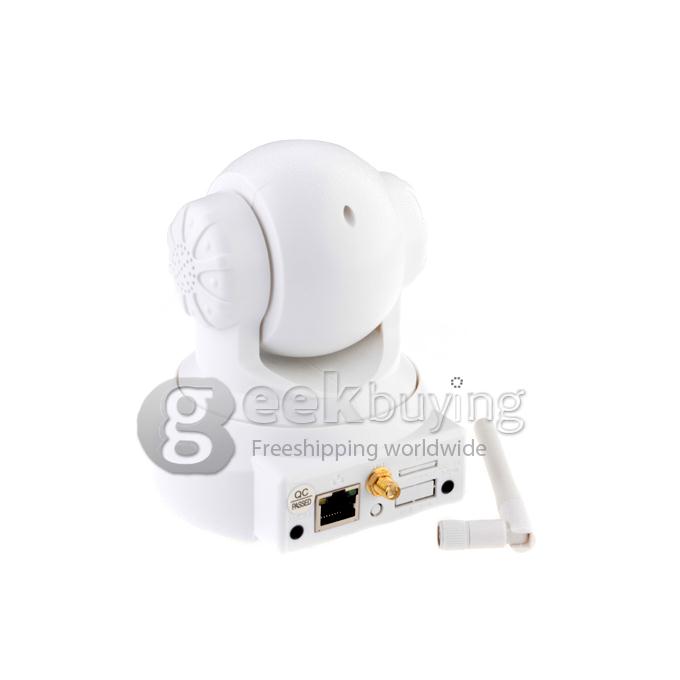

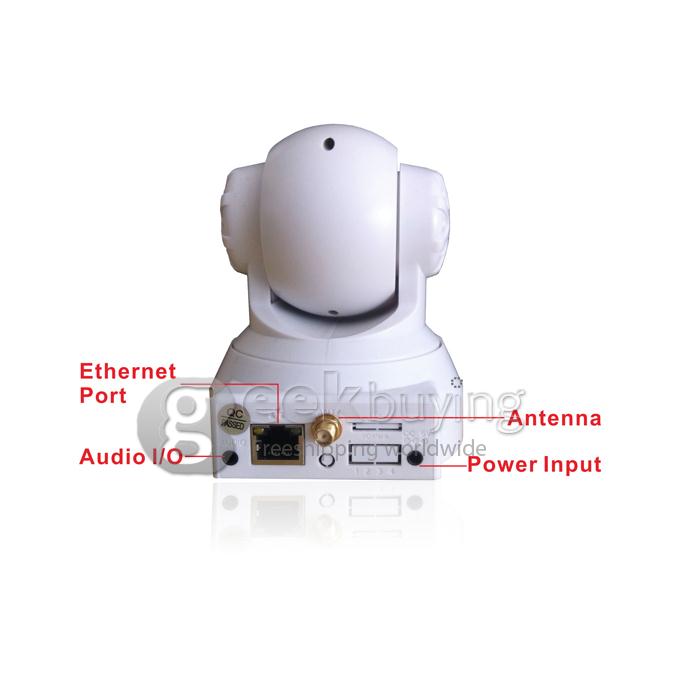

| Network | RJ-45 (10 BASE-T/ 100 BASE-TX) | |
| Supported Protocols | TCP/ UDP/ IP/ ARP/ ICMP/ DHCP/ DNS/ HTTP/FTP/ SMTP/ NTP/ PPPOE/ UPNP/ DDNS | |
| Wireless Standard | IEEE 802.11b/g | |
| Wireless Security | WEP/ WPA/ WPA2 Encryption | |
| Alarm | Motion Detection | Support motion detection and image snapshot |
| Alarm Events | • Notification via email, FTP | |
| • Video recording to local storage | ||
| Physical Property | Color | Calx and Silver |
| Pan/Tilt Angle | Horizontal:270° & Vertical: 90° | |
| Package Dimension | 200(L) x120(W) x180mm(H) | |
| Gross Weight | 580g (box included) | |
| Net Weight | 370g ( accessories included) | |
| Power | Power Supply | DC 5V/2A (EU, US, AU adapter or other types optional) |
| Power Consumption | 4 Watts (Infrared off )/ 6 Watts (Infrared on) | |
| Operating Environment | Using Environment | Indoor |
| Operating Tempt. | -10° ~ 55°C (14°F ~ 131°F) | |
| Operating Humidity | 20% ~ 80% RH (non-condensing) | |
| Storage Tempt. | -20°C ~ 60° (-4°F ~ 140°F) | |
| Storage Humidity | 20% ~ 95% RH (non-condensing) | |
| PC Configuration | CPU | 2.0GHZ or above (suggested 3.0GHz) |
| Memory | 256MB or above (suggested 1.0GHz) | |
| Graphics Card | 64M or above | |
| Supported OS | Microsoft Windows 2000/XP/Vista/ MAC OS | |
| Supported Browsers | IE 6.0 or above version, Firefox, Safari, Opera, Chrome or others | |
| Certification | CE, FCC, RoHS | |
| Warranty | One year Warranty | |

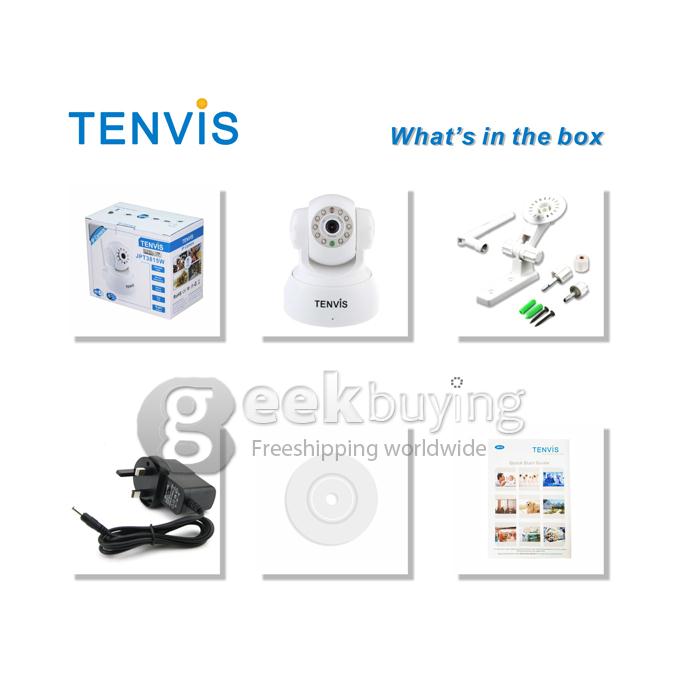

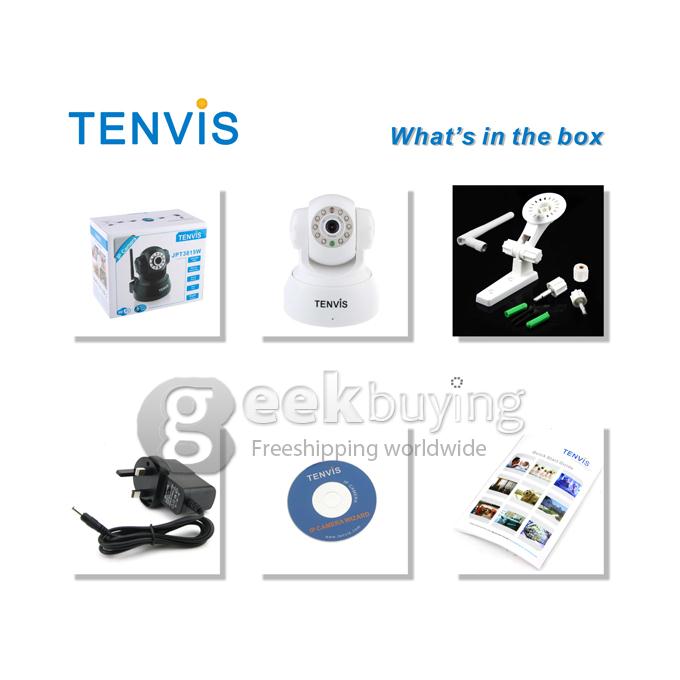

What's in the box?
- 1 x Wireless IP Camera JPT3815W
- 1 x power Adapter for Camera
- 1 x Wi-Fi Antenna
- 1 x User Manual
- 1 x CD (Driver and Tool)
- 1 x Mounting Bracket
