ToolkitRC M6 150W 10A 2-6s Lipo Battery LCD Screen Multi-function Micro Smart DC Balance Charger Discharger - White

General

Brand: ToolkitRC
Model: M6
Color: White
Quantity: 1

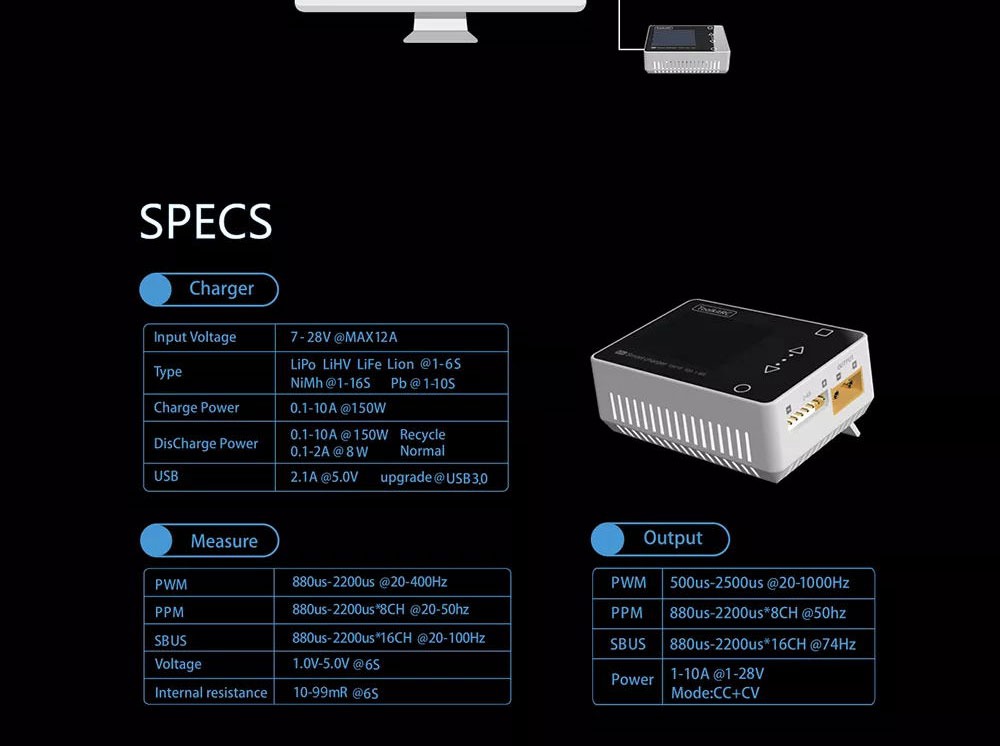

Specification

Input voltage: 7.0-28V  @MAX 12A
Type of battery: Lipo  LiHV  LiFe Lion @1-6S
                  NiMh @1-16S   Pb @1-10S
Charge Power:150W @MAX 10A
Discharge Power:150W @MAX 10A Recycle mode
                8W@2A Normal mode
USB: 2.1A @5.0V  or  Upgrade
Dimensions: 68*49*26 mm
Weight: 80g
LCD: 1.8inch TFT RGB, 160*128 Pixel

Measurement
PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-6S
IR: 10-99mR @1-6S

Output
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @50Hz
SBUS: 880-2200us*16CH @74Hz
Power: 1-10A  @1-28V Mode:CC+CV

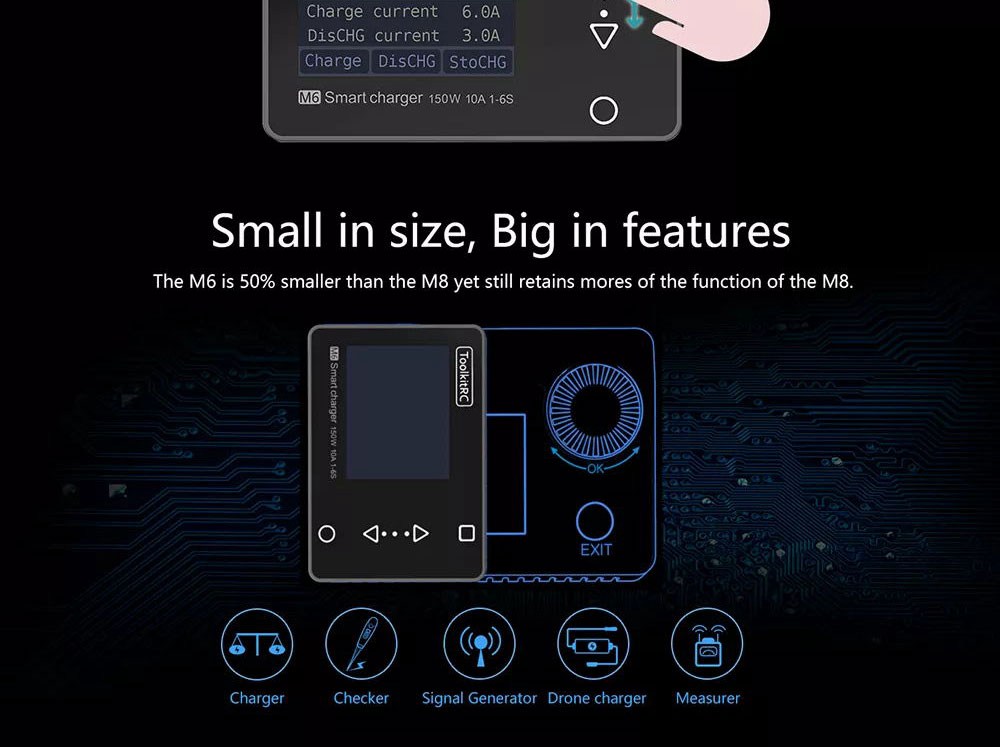

Functions

Lithium battery cut-off voltage can be set (TVC function)
Measure battery voltage, internal resistance, balance
Measure PWM / PPM / xBUS signal values, Accuracy 1ms
Output PWM / PPM / xBUS standard signal, Accuracy 1ms
Customizable 1-28V constant voltage, 1-10A constant current
Charge the drone battery, activate and charge.
Multi-language optional
USB 2.1A@5.0V Output,for Mobile devices

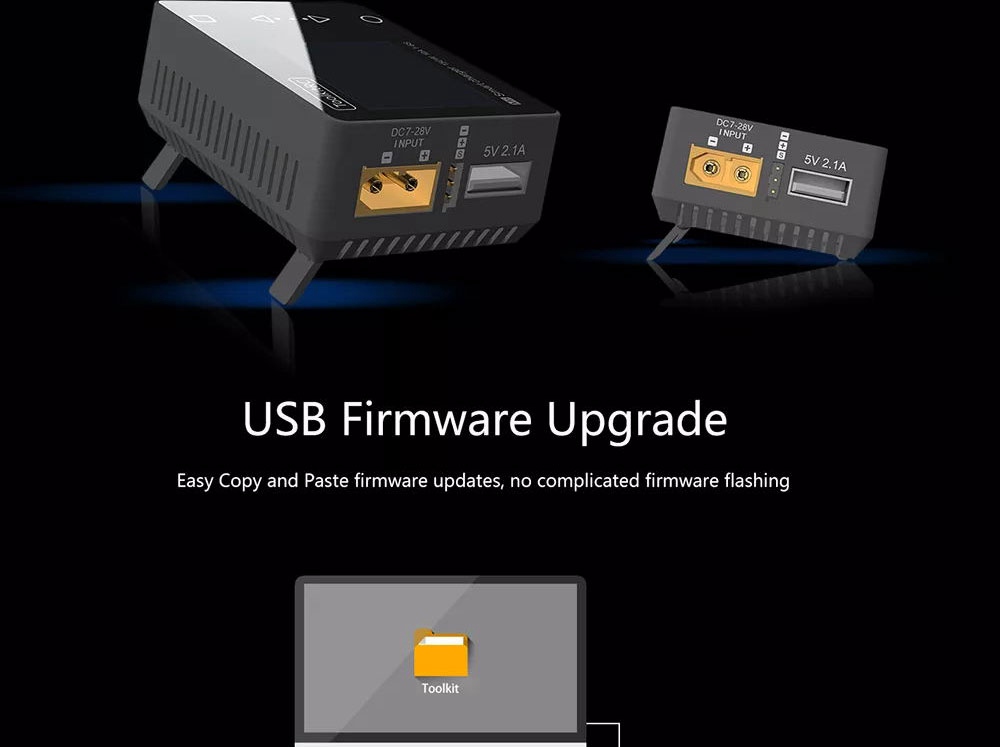

Udisk firmware upgrade (Slave device)

Weight & Dimensions

Package weight: 0.14kg

Package size (L x W x H): 8 x 8 x 3.5cm

Package Contents

1 X ToolkitRC M6 Charger
1 X USB Data Wire
1 X Manual
