Highlights

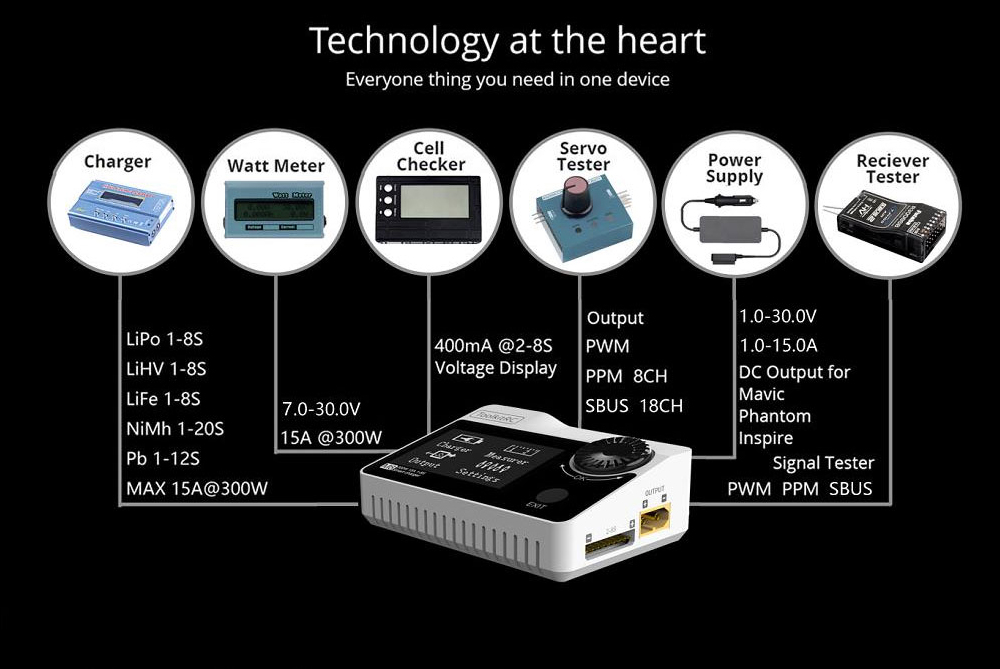

Functions
Charges, discharges and balance management supports Lipo 8S, LiHV 8s,LiFe 8S, NiMh 20s ,Pb 12S battery;
measures PWM / PPM / SBUS / DBUS and other signal values,including battery voltage, battery internal resistance, ESC watt meter;
outputs PWM / PPM / xBUS standard signal, constant current constant voltage source, and USB5.0V.
Others
Charger current: MAX 15A @300W; Discharger current: reccycle mode 15A@300W Nomal:3A@20W;
Lixx Battery full voltage controllable (TVC function); Multi-language optional;

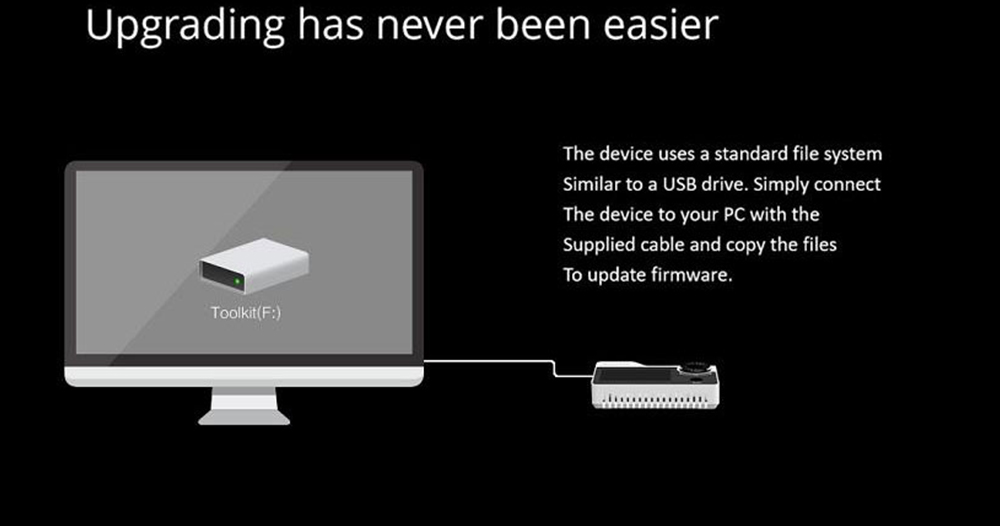

Udisk firmware upgrade(Slave device)
Specification
| General | Item Name: Balance Charger Discharger Input voltage: 7.0-30.0V @MAX 16A Type of battery: Lipo LiHV LiFe @1-8S NiMh @1-20S Pb @1-10S Balance current: 400mA @2-8S Charge power: 300W @MAX 15A Discharge power: 300W @MAX 15A Recycle mode 12W @ 3A Normal mode USB: 2.1A @5.0V or Upgrade Dimensions: 98*68*35mm Weight: 142g LCD: 2.2inch, 132*64 Pixel, black and white Package Size: 10.7 x 8 x 4.5cm Package Weight: 0.223kg |
| Measurement | PWM: 500-2500us @20-1000Hz PPM: 880-2200us*8CH @20-50Hz SBUS: 880-2200us*16CH @20-100Hz Voltage: 1.0-5.0V @1-8S IR: 10-500mR @1-8S ESC: 300W @Max 15A |
| Output | PWM: 500-2500us @20-1000Hz PPM: 880-2200us*8CH @20-50Hz SBUS: 880-2200us*16CH @20-100Hz Power: 1.0-30.0V @1.0-15A Mode:CC+CV OverCurrent Cut Off time: 50ms |
| Package Contents | 1 x Balance Charger |
