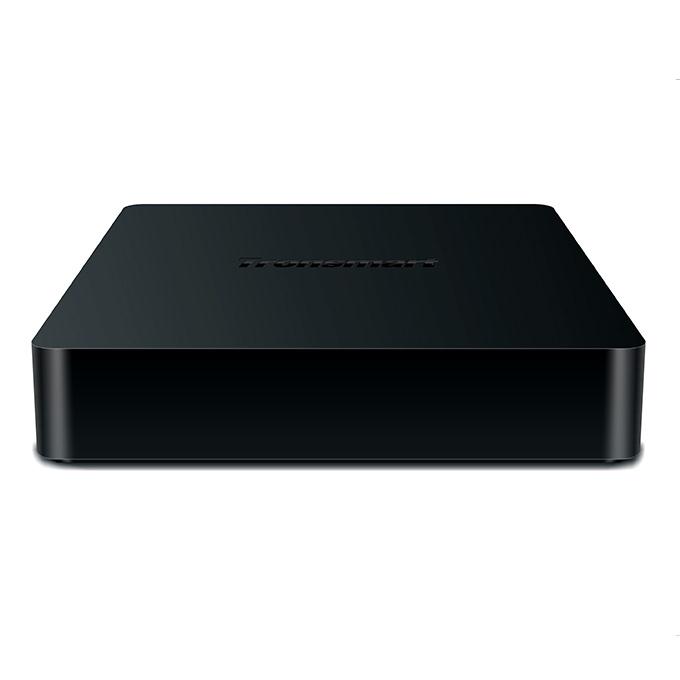

    Tronsmart Orion R68 Pro Android 5.1 Lollipop 4K*2K TV Box KODI Rockchip R3368 Octa Core 1G/8G Bluetooth 4.0 HDMI 2.0

    Ship to:
    United States
    Select the desired shipping method
    Shipping Company Estimated Delivery Time Shipping Cost
    *Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
    0 item(s) added
    View CartContinue Shopping
    • Description
    • Reviews
    • Q&A
    • Support & Firmware
    • Sold Out

    Tronsmart Orion R68 Pro is out of stock, you can choose another version R68 Meta. It is 2GB RAM and 16GB ROM version.

    Highlights

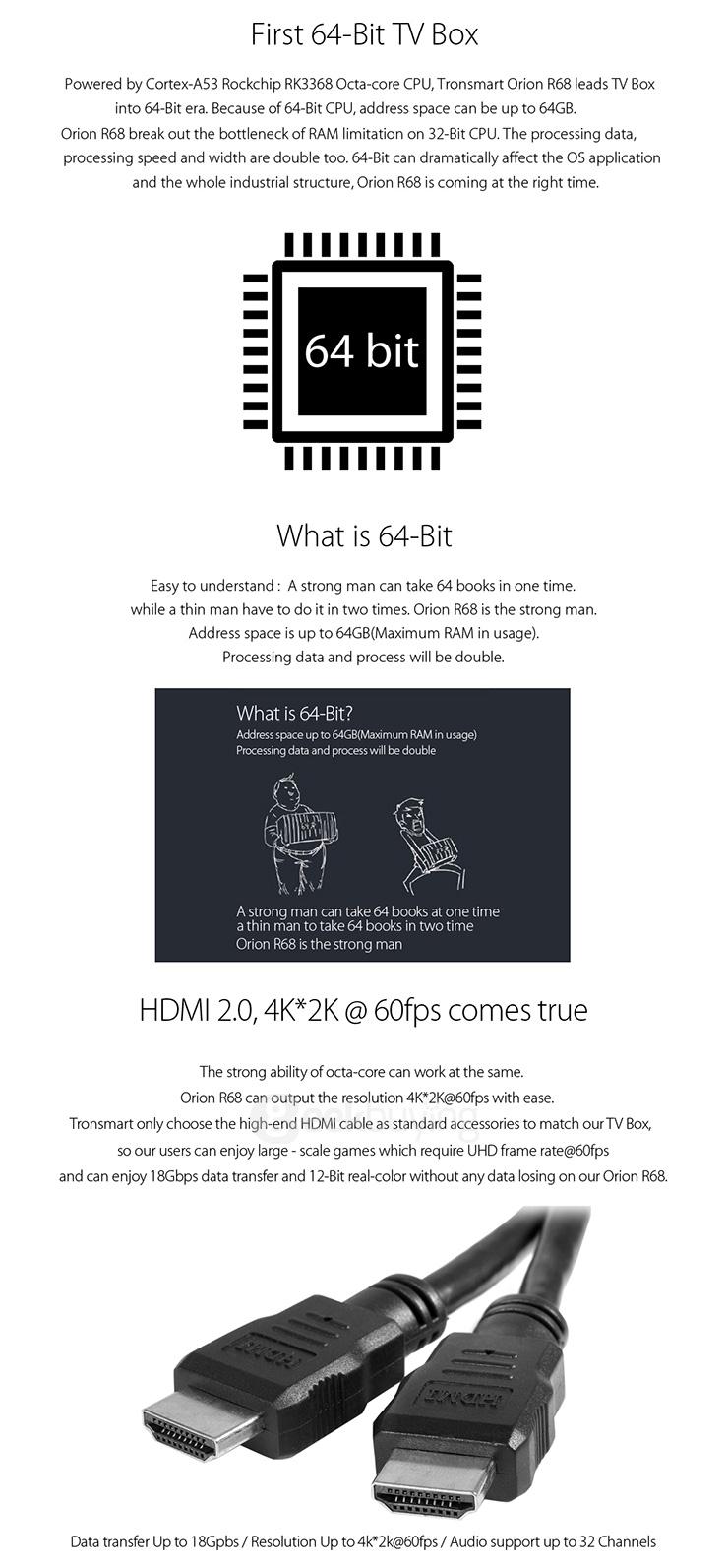

    • Tronsmart Orion R68 is the first 64bit TV Box
    • Built-in Android 5.1 Lollipop OS
    • Rockchip RK3368 Octa Core CPU

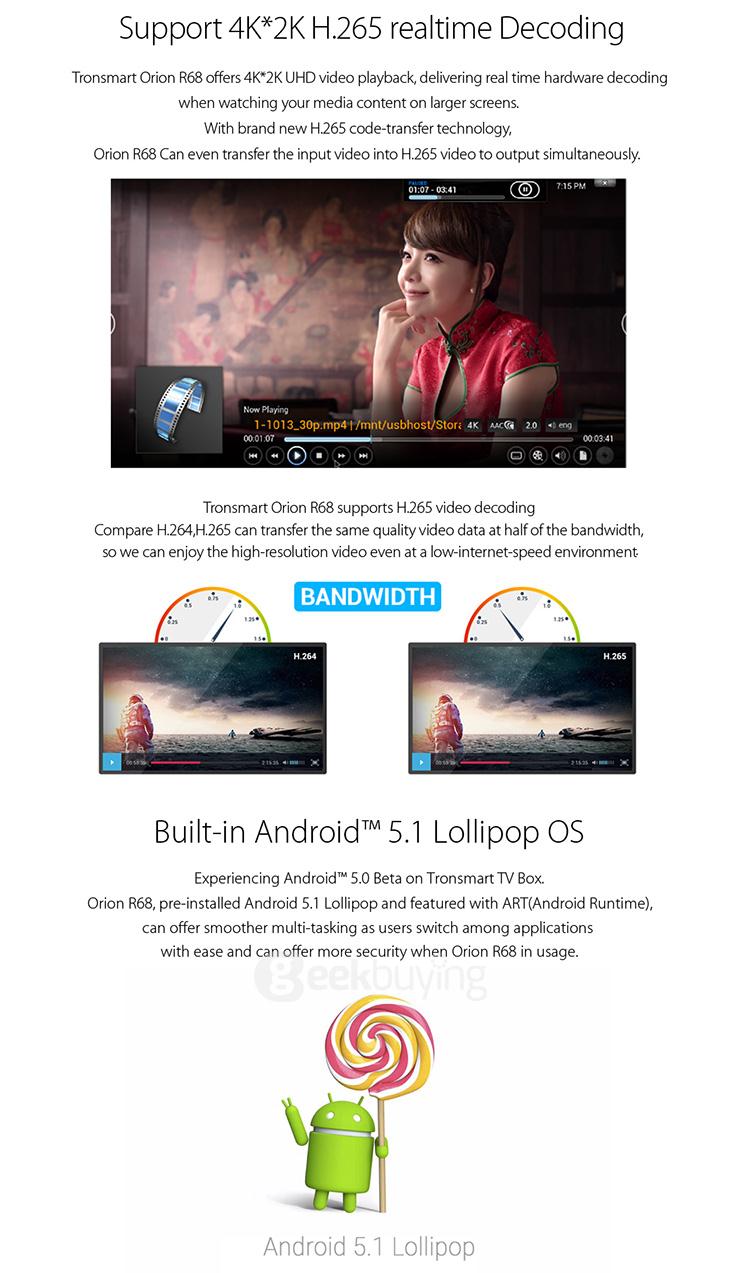

    • Support 4K*2K H.265 Decording
    • HDMI 2.0, 4K*2K @60fbps
    • 2.4GHz&5GHz Dual Band Wi-Fi
    • OTA Updates
    • SGX6110 GPU

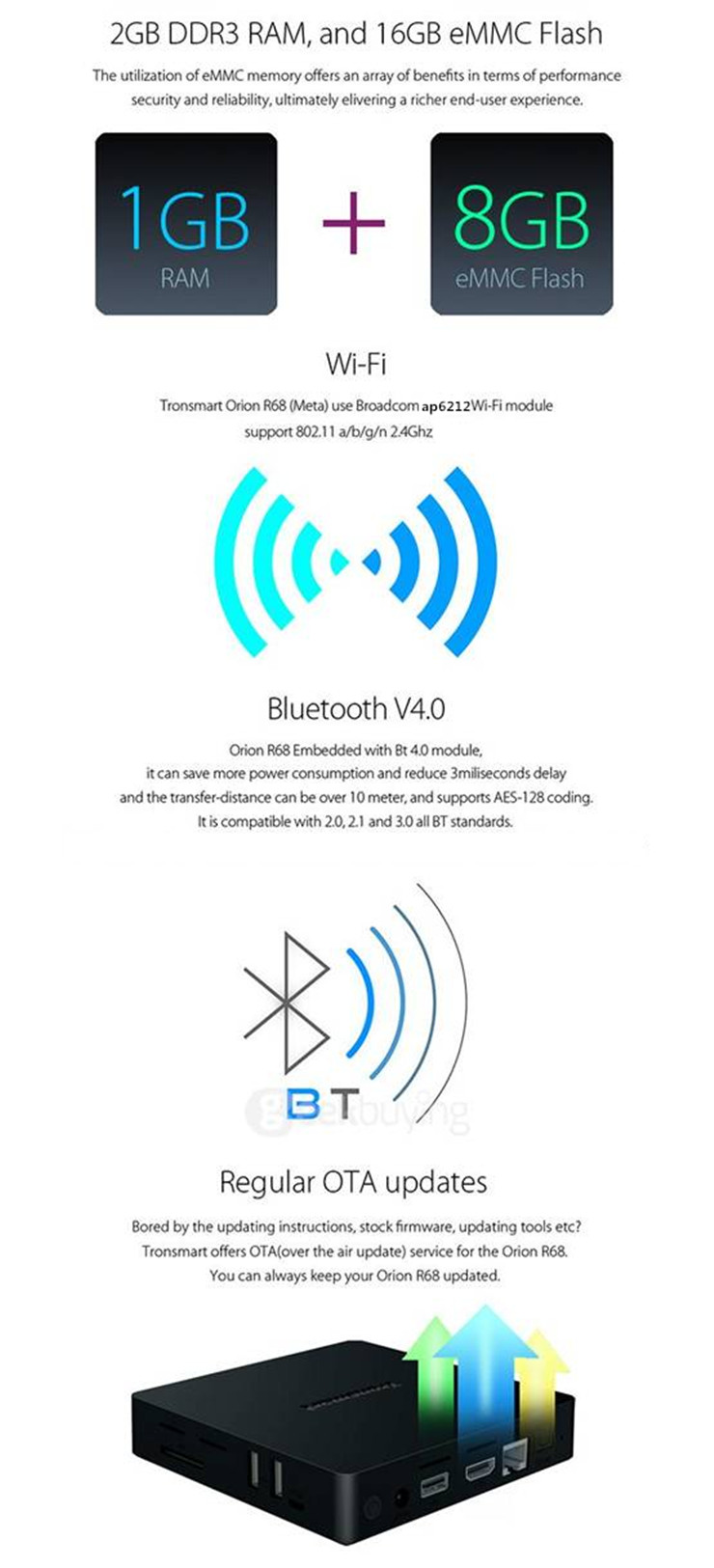

    • DDR3 1G and eMMC Flash 8GB
    • IEEE 802.11a/b/g/n/mimo, 2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
    • Bluetooth  4.0
    • Built-in common software, such as Google Play Store, YouTube, Skype, etc.
    • Built-in latest KODI
    • Mobile phone control support
    • Miracast/ DLNA: projecting mobile phone/tablet data to TV screen (PS: incompatible with Sony, Samsung, HTC mobiles, due to HDCP limitations)
    • Prominent hardware design
    • Accessorized with quality HDMI cable, power adapter,etc

    Video

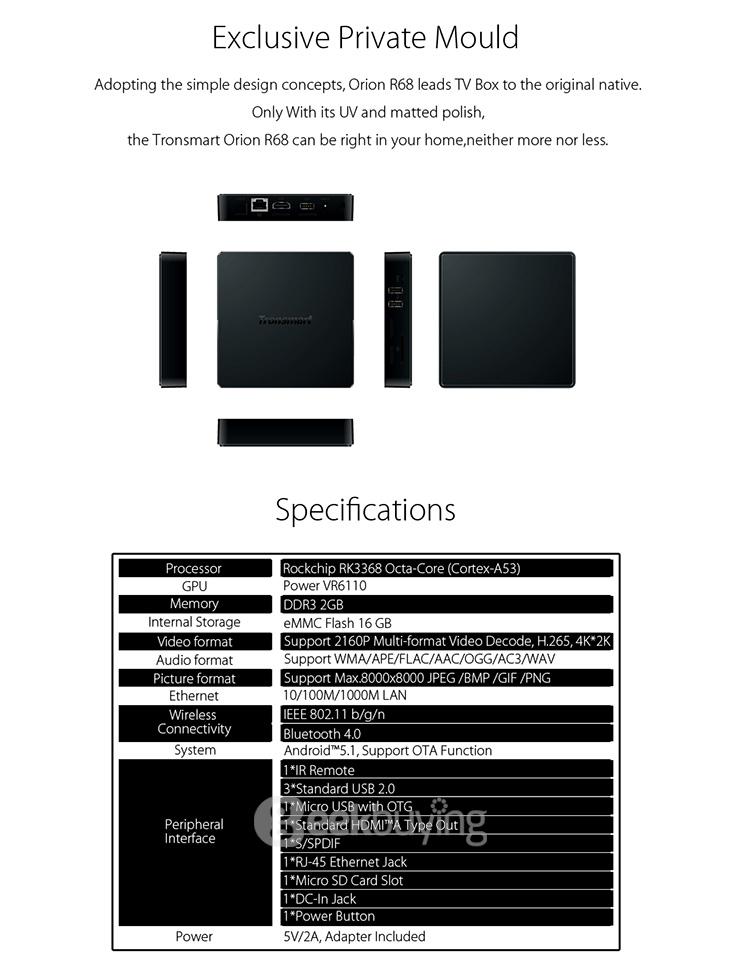

    Specification

    General
    Brand Tronsmart
    Model Orion R68 Pro
    Color Black
    Material Plastic
    System
    Operating System Google Android 5.1
    CPU Rockchip R3368 Octa Core up to 1.6GHz (Cortex-A53 64bit)
    GPU SGX6110; support 4K*2K H.265/H.264
    RAM DDR3 1G
    ROM Onboard eMMC Flash 8GB
    Extended Storage Micro SD Card (Maximum support 32GB)
    Communication
    Wifi Connectivity

    IEEE 802.11a/b/g/n/mimo, WiFi compliant; 2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band) AP6212

    Ethernet 10/100M LAN
    Bluetooth BT 4.0
    Media
    Video/Picture Supported HEVC/H.265 decoder
    Support up to 4096x2304 resolution
    Support up to 100Mbps bit rate
    Embedded memory management unit(MMU)
    Stream error detector (28 IDs)
    Internal 128k cache for bandwidth reduction
    Multi-clock domains and auto clock-gating design for power saving
    Real-time video decoder of MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC
    Error detection and concealment support for all video formats
    Output data format is YUV420 semi-planar, and YUV400(monochrome) is also supported for H.264
    H.264 up to HP level 5.2:4Kx2K@30fps (4096x2304)
    MPEG-4 up to ASP level 5:1080p@60fps (1920x1088)
    MPEG-2 up to MP:2160p@30fps (3840x2160)
    MPEG-1 up to MP:1080p@60fps (1920x1088)
    H.263:576p@60fps (720x576)
    Sorenson Spark:1080p@60fps (1920x1088)
    VC-1 up to AP level 3:1080p@30fps (1920x1088)
    RV8/RV9/RV10:1080p@60fps (1920x1088)
    VP6/VP8:2160p@24fps (3840x2160)
    AVS:1080p@60fps (1920x1088)
    MVC:2160p@30fps (3840x2160)
    For AVS, 4:4:4 sampling not supported
    For H.264, image cropping not supported
    For MPEG-4, GMC(global motion compensation) not supported
    For VC-1, upscaling and range mapping are supported in image post-processor
    For MPEG-4 SP/H.263/Sorenson spark, using a modified H.264 in-loop filter to implement deblocking filter in post-processor unit
    Resolution 4K*2K

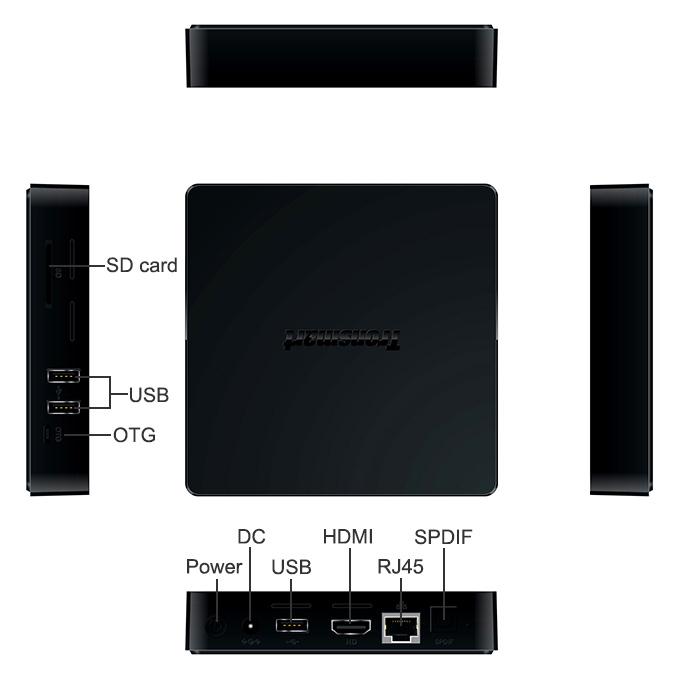

    Interfaces
    HDMI Port Standard HDMI female, v2.0
    Other Interfaces 3* Standard USB; 1* micro USB with OTG; 1*DC in Jack; 1*H DMI IN Port; 1*S/SPDIF (2CH,  5.1CH); 1*RJ45; 1* SD card
    Power Adapter 5V 2A
    IR Sensor 1*IR
    Power LED 1* power LED with two - color
    Button 1*Power Button
    1*Update Button(via one pin hole)
    Other Features
    Other Function

    Antenna: Built-in antenna for WIFI
    Keyboard: Qwerty keyboard
    Miracast/DLNA Support
    Support original ecology and custom UI

    Work Environment 5- 35 Degrees, 30%--90% Humidity
    Storage Environment -20 - 60 Degrees, 10%--90% Humidity
    Language Multilanguage
    Dimension & Weight (Main Product)
    Dimension 119*119*23mm
    Package Contents
    1 x TV box
    1 x IR remote control
    1 x HDMI cable
    1 x Power adapter (A right AC Adapter will be sent as your shipping country)
    1 x User manual
