Tubular Motors with Controller

Featuring powerful traction capacity and programmable timer function, this tubular motor and controller set will be a great choice operating your shutters in offices, residential, hotels, showrooms, villas, and many other places. This tubular motor is mainly used for automation of awnings, garage doors, rolling shutters and sun screens to name just a few. With low noise, small size, and easy installation, tubular motors have been widely used in offices, residential, hotels, showrooms, villas, and many other places. It is equipped with 1,2 meter cable and mechanical limit switches for easy set-up and regulation. With our rotary motor controller, operating your shutters, awnings and blinds will be a piece of cake. This controller is suitable to control 1 rotary motor with 24hr / 7d programmable timer function. You can easily set up weekly schedule, or schedule for a certain day. It has 6 easy-operating buttons and a big monochrome display. Delivery contains a tubular motor and a controller.

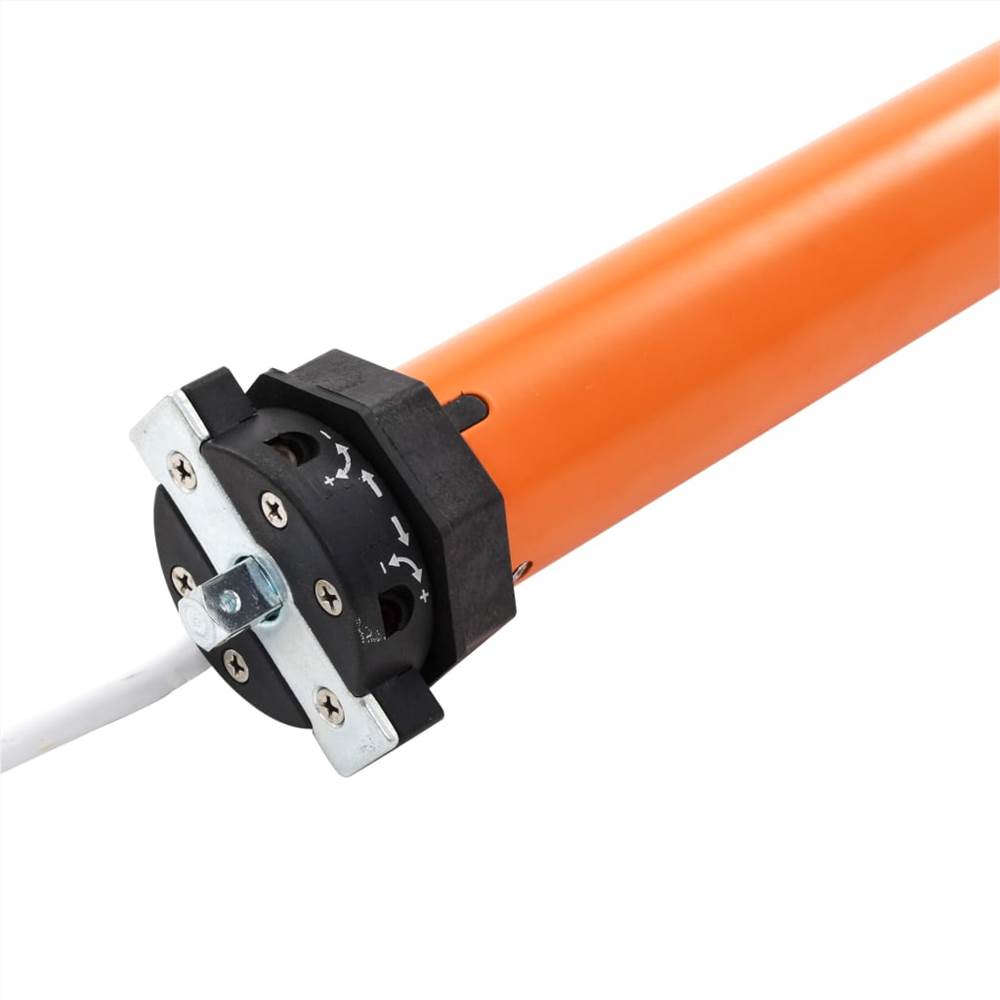

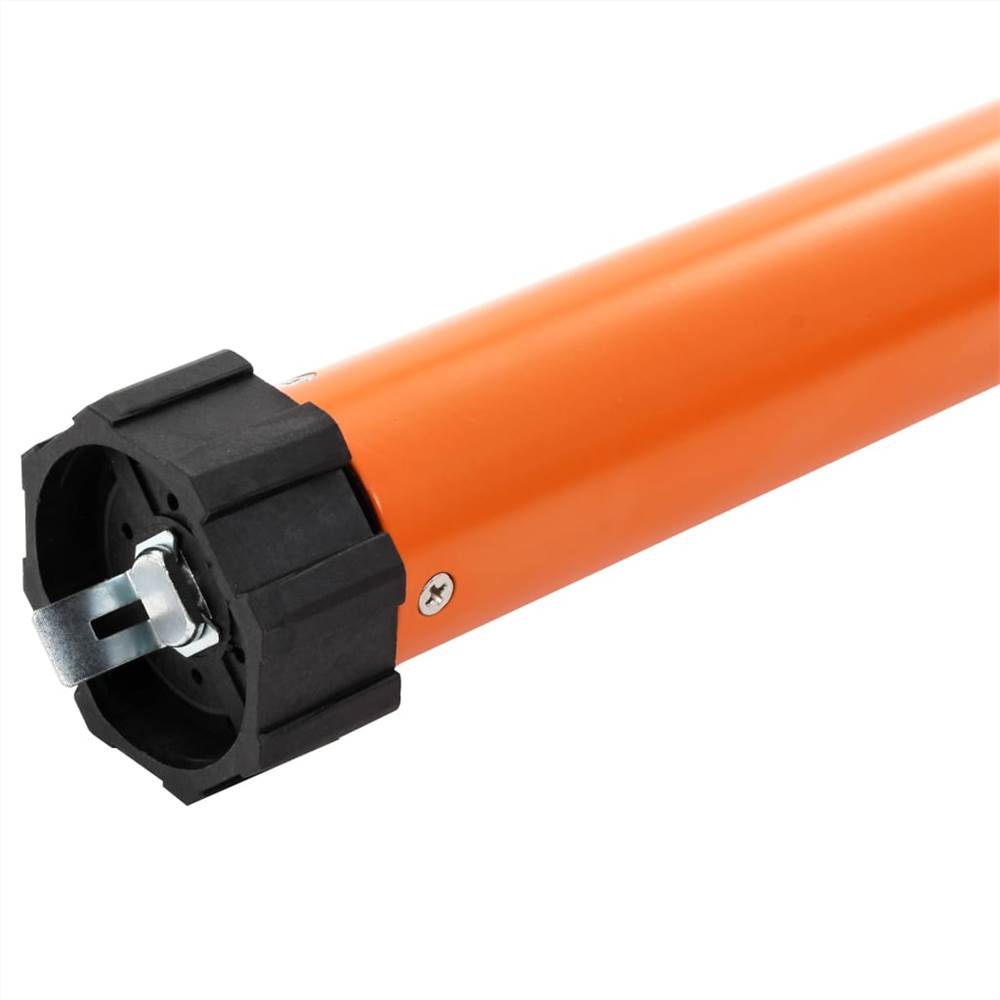

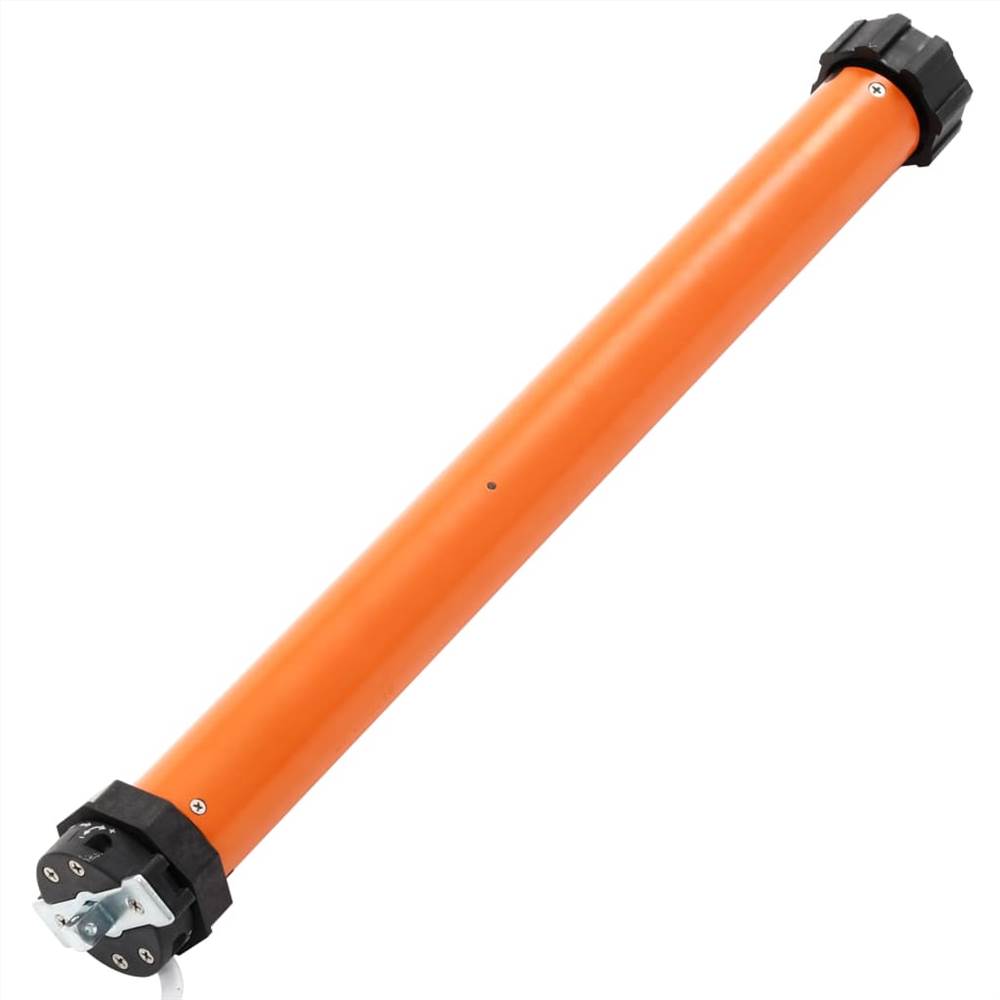

• Tubular motors:
• Colour: Orange
• Material: Metal

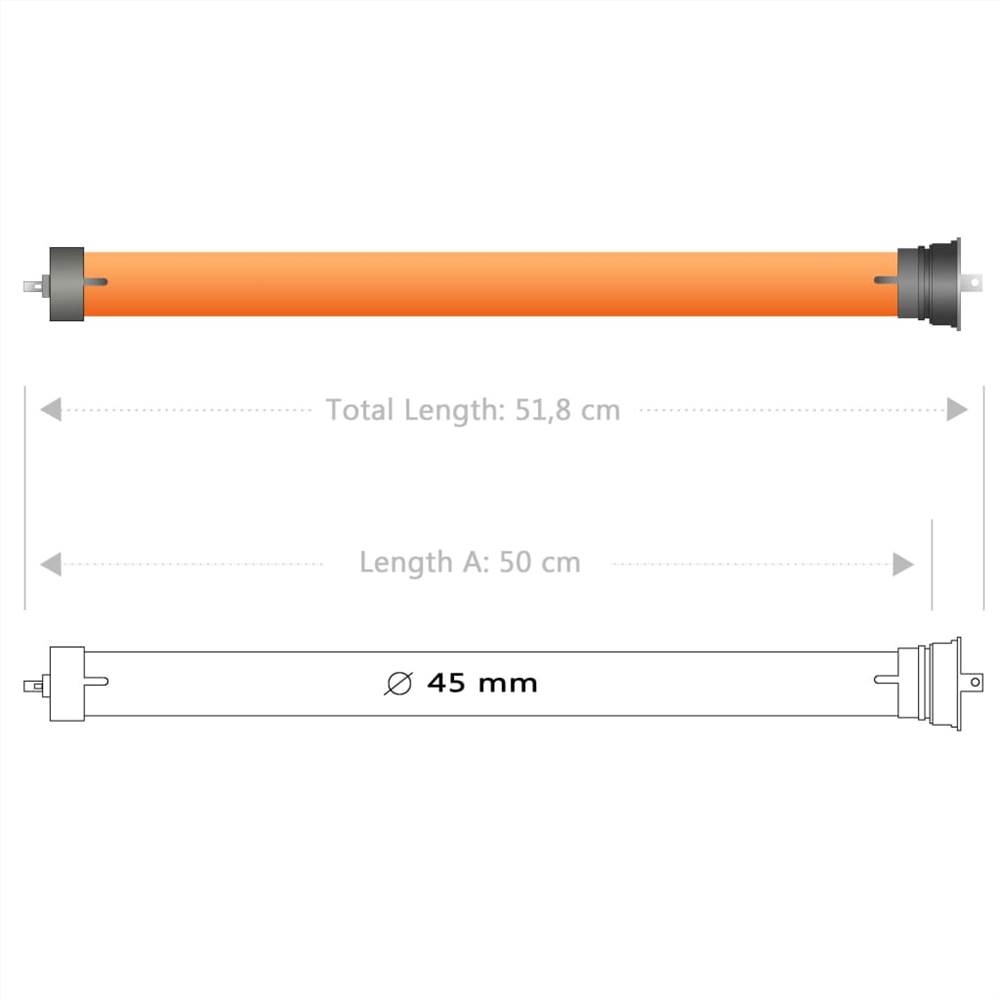

• Diameter: 45 mm
• Output torque: 40 Nm
• Power supply: 230 V
• Frequency: 50 Hz
• Rated power: 230 W
• Electric current: 1 A
• IP rating: IP44
• Traction capacity: 70-80 kg
• Rolling speed: 15 rpm
• With 1,2 m cable
• Assembly required: Yes

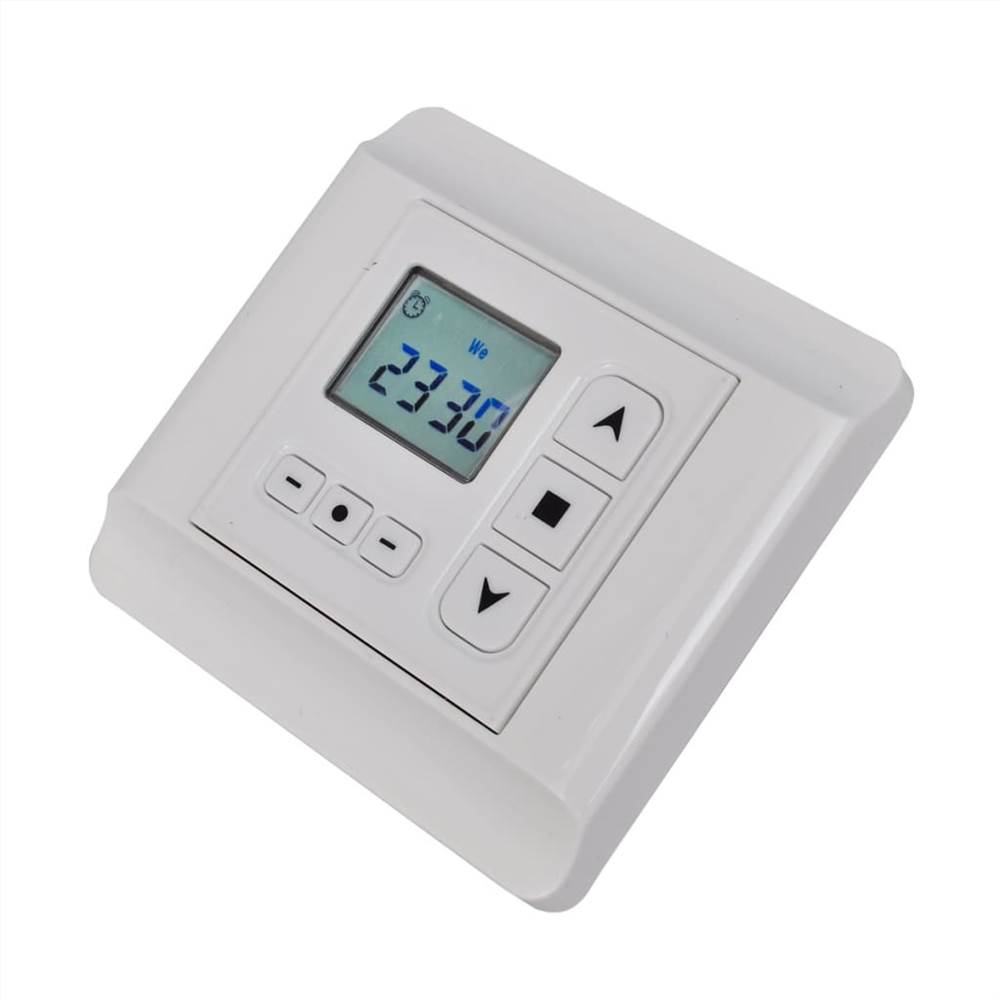

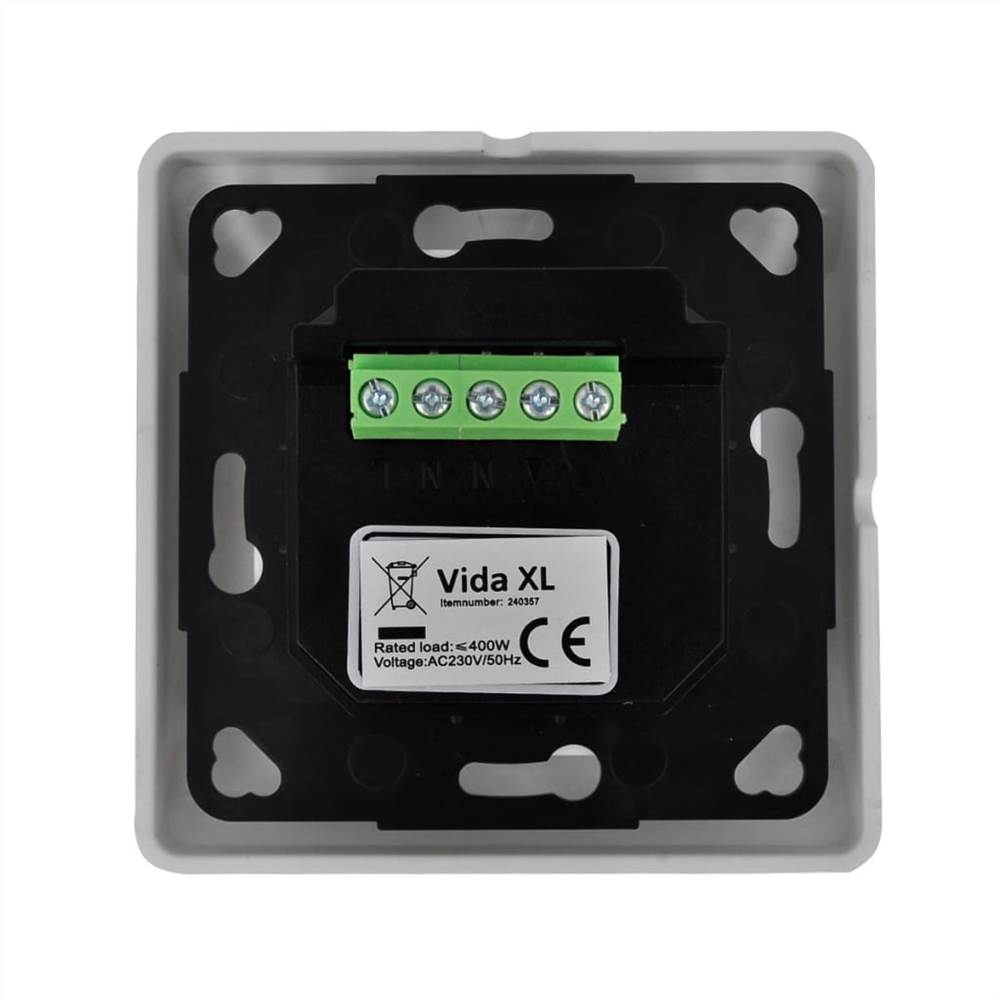

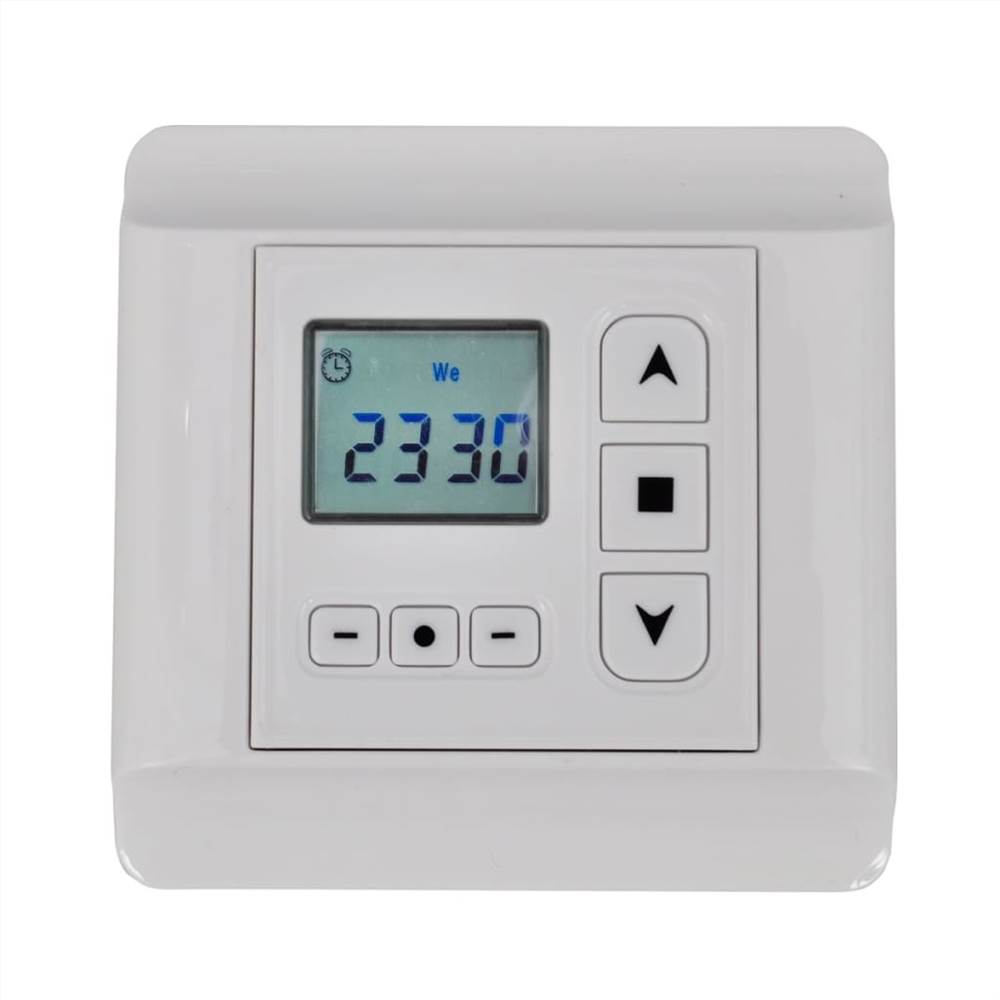

• Controller:
• Colour: White
• Material: Plastic, metal
• Dimensions: 80 x 80 x 45 mm (L x W x H)
• IP rating: IP30
• Power supply: 230 V~
• Frequency: 50 Hz
• Network load: 400 W
• Stand-by consumption: <0;5 W
• Duty cycle: 4 min
• 24hr / 7d programmable timer function: Yes
• Assembly required: Yes

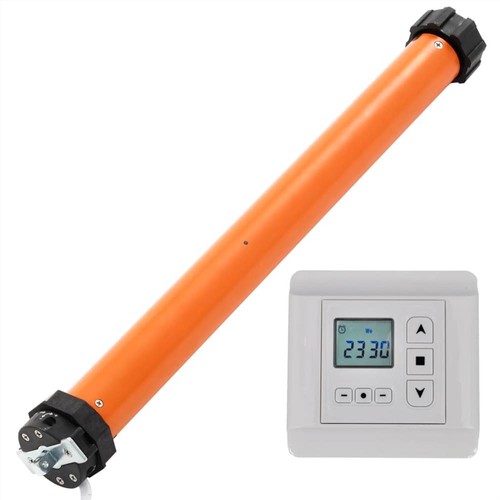

• Delivery contains:
• 1 x Tubular motor
• 1 x Controller
