Highlights
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q)
- Crystal (NEO-M8N)

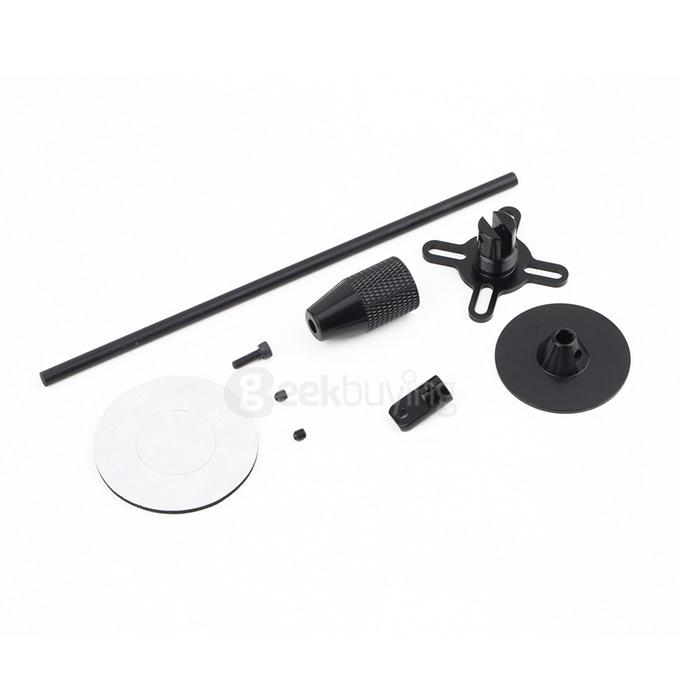

- WIth GPS folding antenna base
- Noise Figure On-chip LNA (NEO-M8M). Extra LNA forLowest Noise Figure (NEO-M8N/Q)
- Ublox new generation GPS NEO-M8N is very quick to searching signal, of high positioning precision and efficiency.
- This NEO-M8N GPS adopts original imported M8N chip, function module group is optimized, built in electric compass, updating rate has been improved to 10GHZ
- Supported Antennas: Active and Passive
- Odometer Travelled Distance
- Support European, Russian GLONASS, Japan , China
- Module supports GPS+Big Dipper+SBAS or GPS+GLONASS+SBAS
- RoHS Compliant (lead-free)
- Manufactured and fully tested in ISO/TS 16949 certified production sites
Specification
| General | |
|---|---|
| Type | Flight Controller |

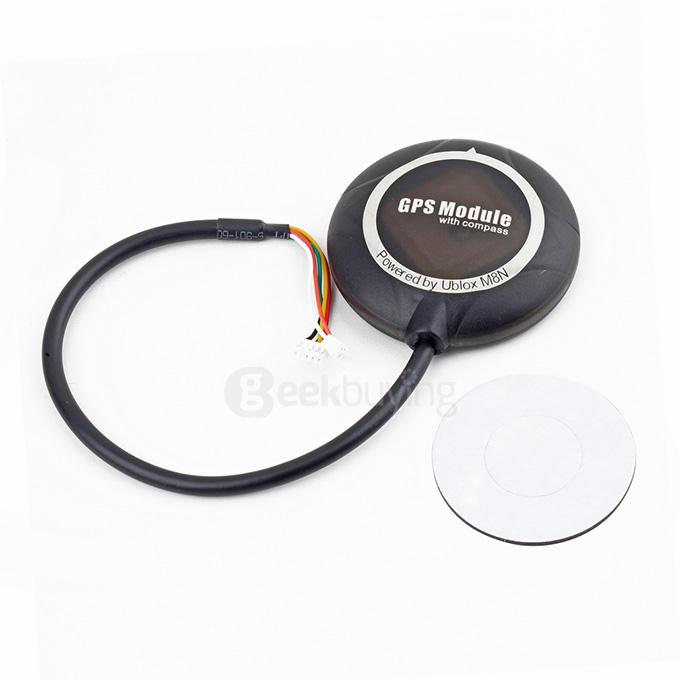

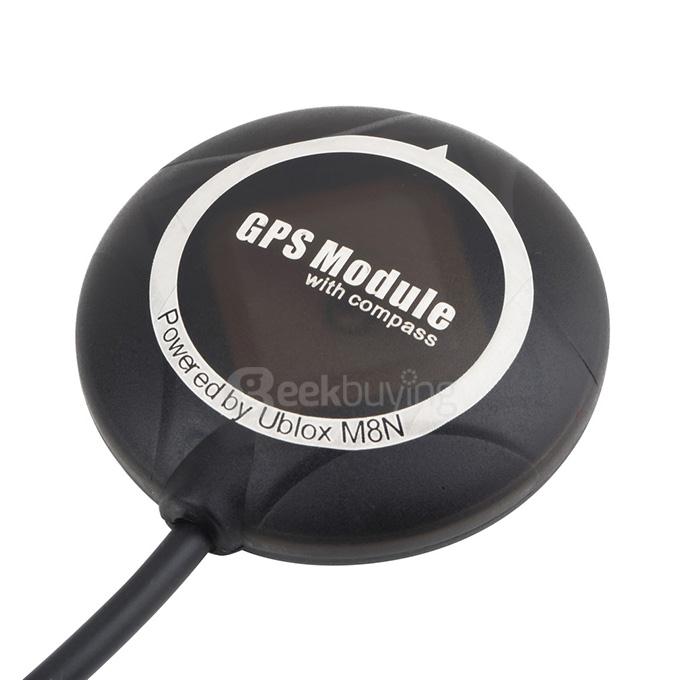

| Model | Ublox NEO-M8N |
| Receiver |
72-channel u-blox M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
|
|
Nav. Update Rate
|
Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
|
|
Position Accuracy
|
2 2.0 m CEP |
|
Acquisition
|
2 Cold starts: 26 s Aided starts: 2 s Reacquisition: 1.5 s |
|
Sensitivity
|
Tracking & Nav: –167 dBm Cold Starts: –148 dBm Hot Starts: –156 dBm |
|
Built-In
|
RTC Crystal Anti Jamming Active CW Detection and Removal. Extra Onboard SAW Band Pass Filter (NEO-M8N/Q) Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N) Data-logger For position, velocity, and time (NEO-M8N) |
| Temperature | Operating Temperature: –40 Degrees to 85 Degrees Storage Temperature: –40 Degrees to 85 Degrees NEO-M8N/Q; –40 Degreesto 105 Degrees NEO-M8M |
| Power Supply |
Supply Voltage: 1.65 V to 3.6 V (NEO-M8M) 2.7 V to 3.6 V (NEO-M8N/Q)
Power Consumption:4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode (1 Hz, GPS mode only)
Backup Supply: 1.4 to 3.6 V
|
| Compatible | PX4/PIX4 APM2.6/2.8 Mini APM Built-in Compass |
| Package Contents | |
| 1* Flight Controller | |
| 1* Accessory kit | |
