Highlights
- FS-Th9X has revolutionized the way people experience RC, and now this radio transmitter can stand up to the top competitions.
- AFHDS (automatic frequency hopping digital system), is developed by FLYSKY for all the Radio Control model lovers and is patented by FLYSKY at home. The system is specially developed for all the Radio control models, that offers super active and passive anti-jamming capabilities, very low power consumption and high receiver sensitivity. With extreme rigorous testing by engineers and studying the markets for years, FLYSKY AFHDS is now considered to be the one of the best systems available in the market.
- 2.4GHz is the standard of new generation radio system because it has a lot of advantages. Operating at 2.4 GHz puts the radio control out of the frequency range of any 'noise' generated by the other electronic components on your helicopter - such as the brushless motor, Electronic speed controller, Servos and any metal to metal noise - eliminating interference and glitching that can affect traditional frequency system.

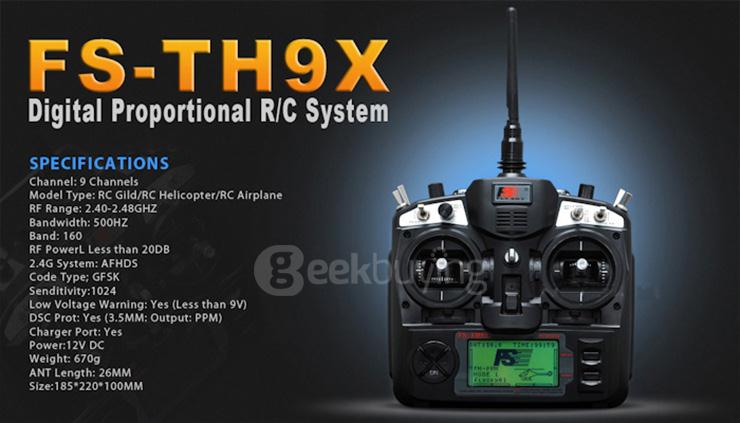

Specification
| General | |
|---|---|
| Type | 2.4G 9CH Transmitter |
| Model | FlySky FS-TH9XB |
| Quantity | 1 Piece |
| Channels | 9 Channels |
| RF Range | 2.40-2.48GHz |
| Bandwidth | 500Hz |
| Band | 160 |
| RF Power | Less than 20DB |
| 2.4G System | AFHDS |
| Modulation | GFSK |
| Code Type | PPM/PCM |
| Senditivity | 1024 |
| LCD Type | 128 x 64 dot |
| Low Voltage Warning | Yes (less than 9V) |
| DSC Port | Yes (3.5mm:output:PPM) |
| Charger Port | Yes |
| Power: | 12VDC or 8 x 1.5AA |
| Mode | Mode 2 |
| Control Range | 350-400m |
| Weight | 670g |
| Size | 180 x 220 x 70 mm |
| Model Type | Quadcopter,glider, helicopter, airplane, also car or boat |
| Functions | Throttle curves Pitch curves Endpoint adjustments Subtrim Swash AFR mixes Servo reversing Timer Dual rate Exponential Flaperons V-Tail mixing Elevons |

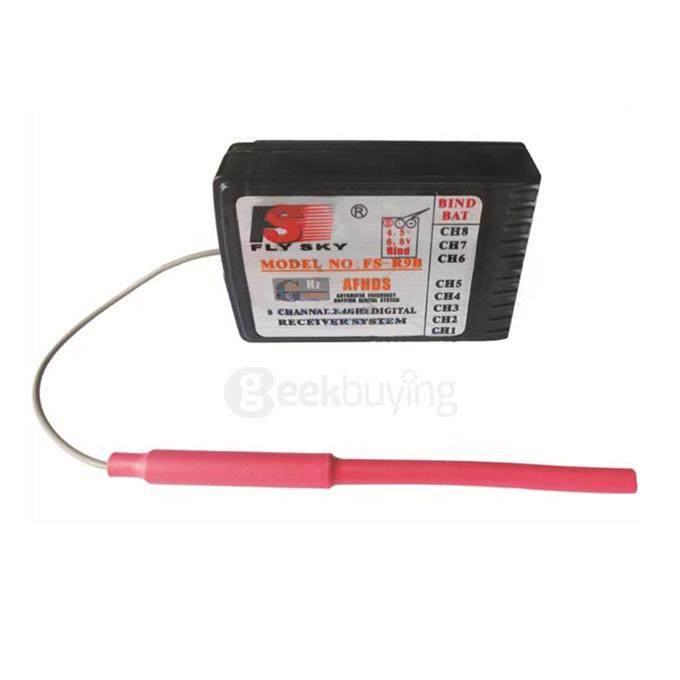

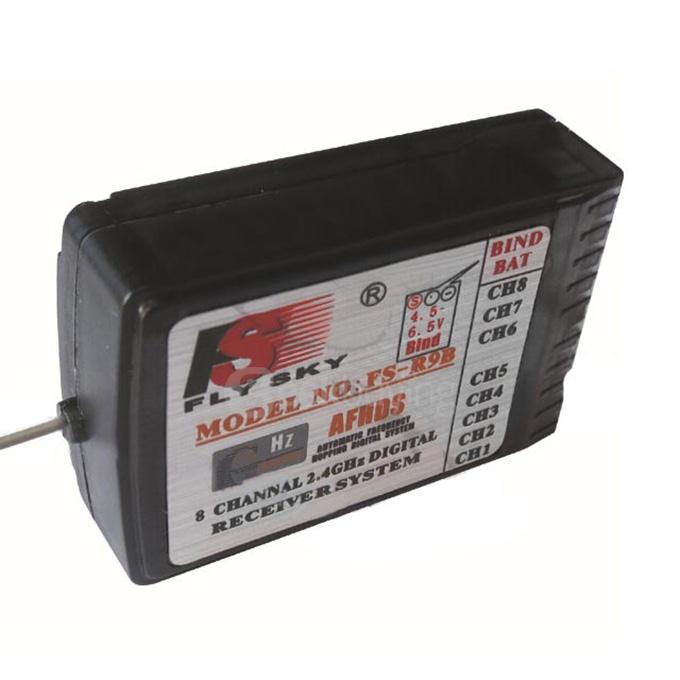

| Flysky FS-R9B 2.4G Receiver | Product Number: FS-R9B Channels: 8 Channels Receiving Sensitivity: -105dBm Frequency Range: 2.4-2.48GHz Frequency Width: 500KHz Wave Band: 160 Modulation: GFSK 2.4G Mode: Automatic FM digital system Channel Resolution: 1024 classes Power: 4.0-6.55V DC Weight: 18g Antenna Length: 26mm Size: 52*35*15mm Color: Grey Certificate: CE,FCC |
| How to bind the RX (receiver) to the TX (transmitter) | 1. Plug bind plug into BAT, turn on plane/heli, the LED light should flash (make sure power is connected to RX via ESC) 2. Hold down bind button on transmitter module while turning on the TX 3. The light should go steady now 4. Let go of bind button, turn off plane/heli, remove bind plug, turn off TX 5. Turn on TX and then turn on plane/heli |
| Package Contents | |
| 1 x FlySky FS-TH9X-B (FS-CT9B) 2.4G 9CH Transmitter Mode 2 | |
| 1 x FS-R9B 8CH 2.4GHz Receiver | |

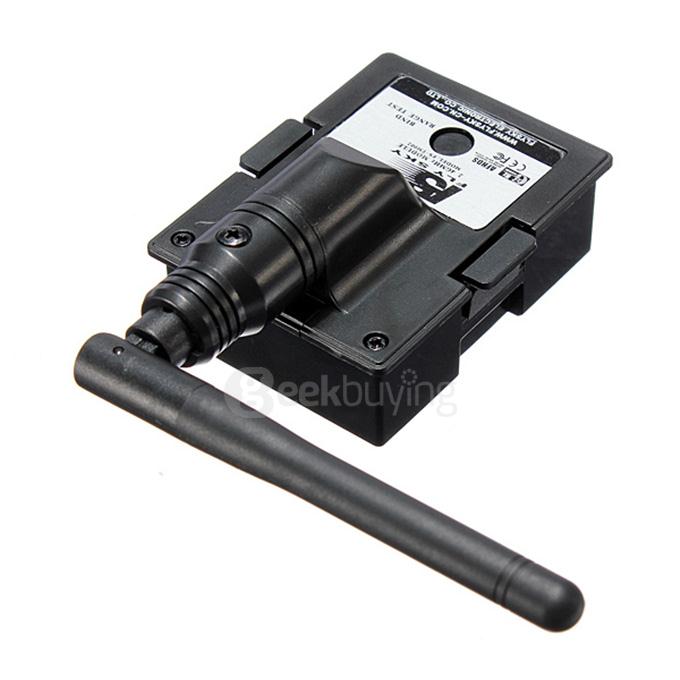

| 1 x RM002 2.4GHz Module | |
| 1 x Bind Plug | |
