Highlights

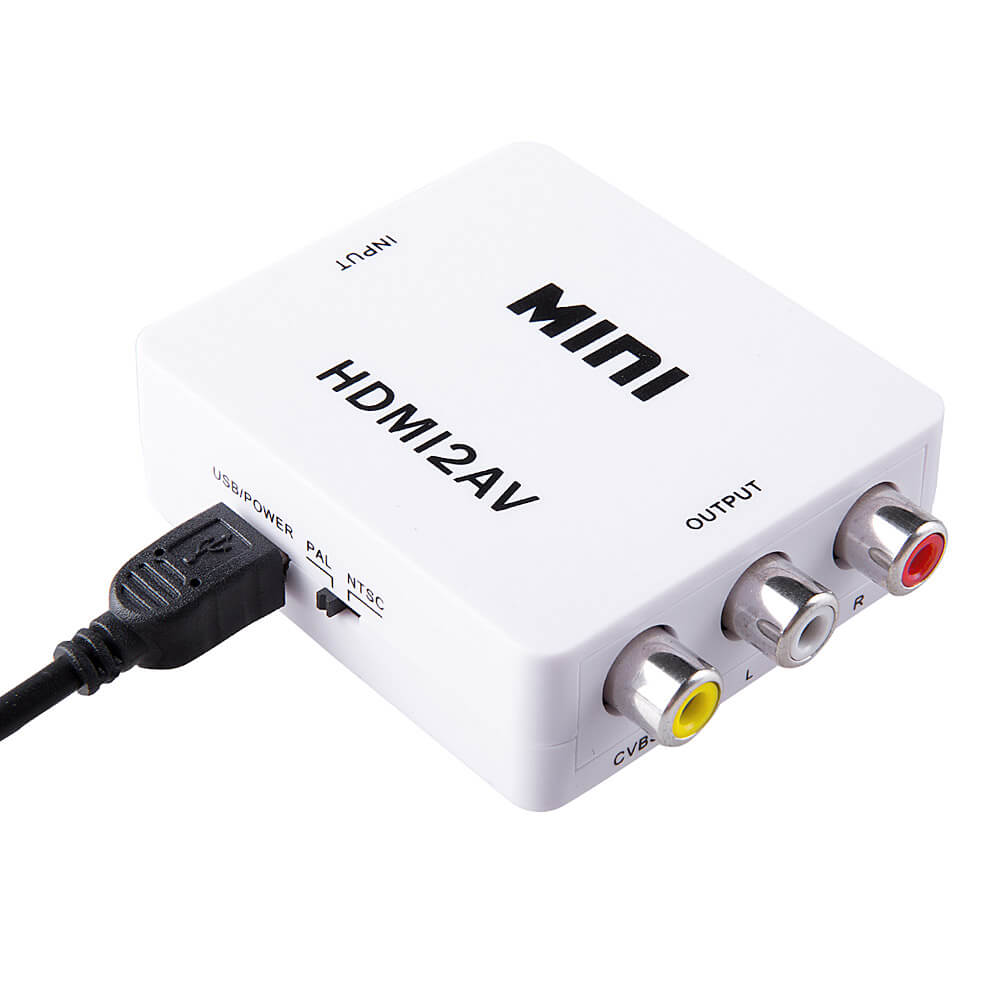

- The MINI HDMI to AV signal converter converts HDMI video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, and it supports DVI system sideline signals. Ideal for users to convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i) which can be played on TV, VHS VCR, DVD recorders, etc. Support Both NTSC and PAL TV formats.
- No need to install drivers, portable, flexible, plug and play
- Provide advanced signal processing with great precision, colors, resolutions, and details
- Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input
- Support HDMI 1080P or 720P output
- Compatible HDMI 1.3 and HDCP 2.0

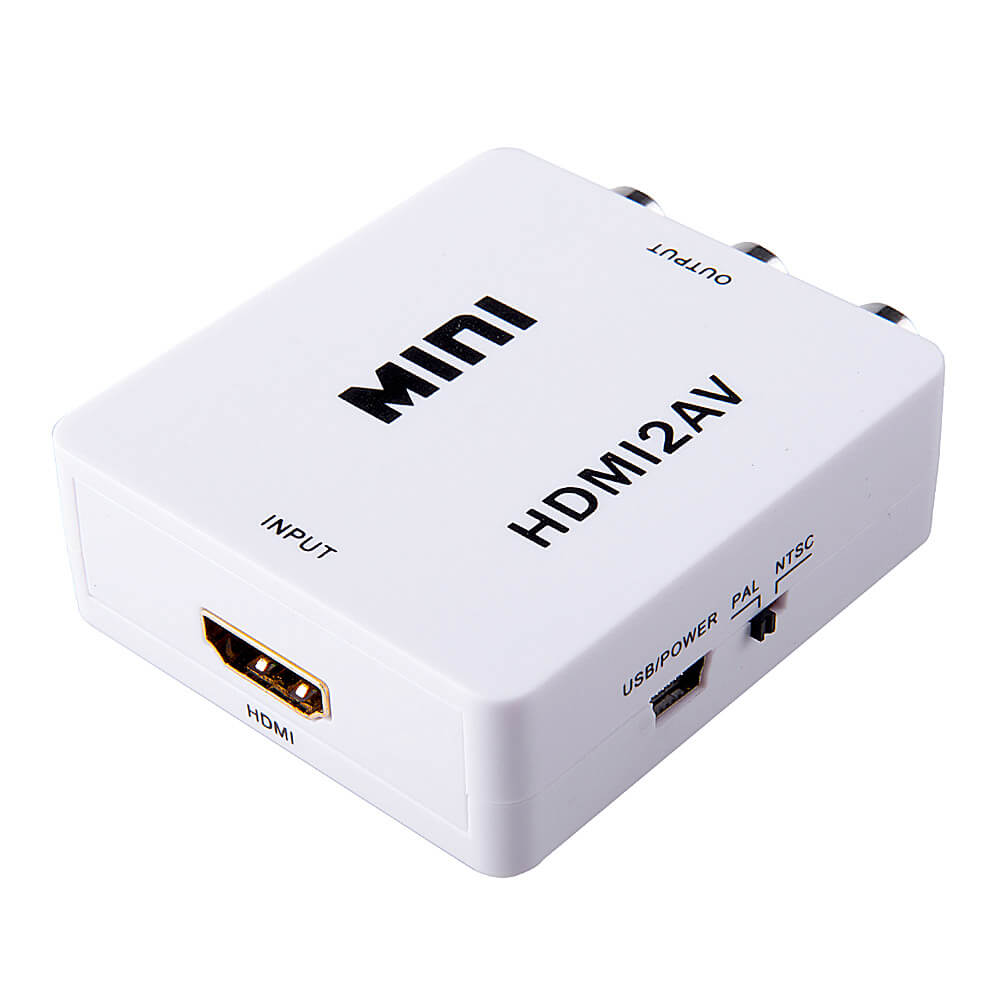

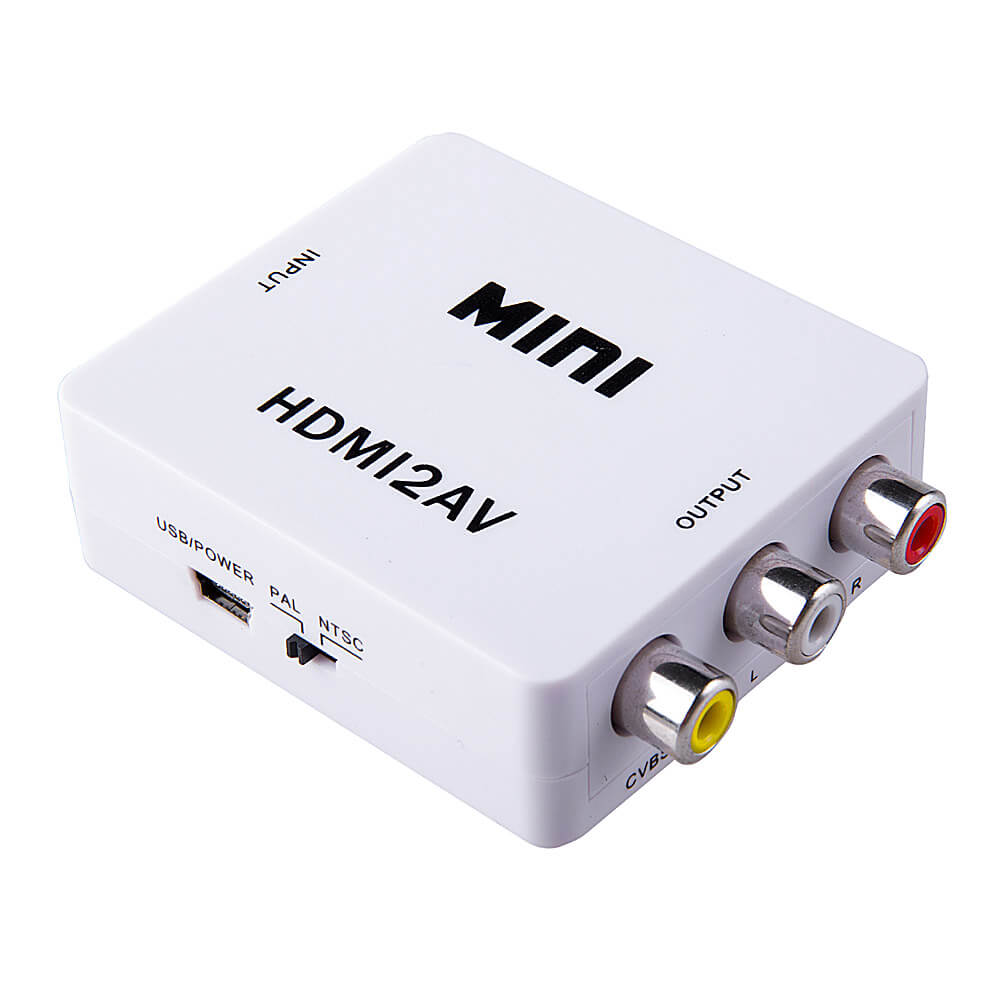

- 1 x HDMI Input, 1 x RCA Output (Yellow, White, Red)
- Low power, no power adapter
Specification
| General | |
|---|---|
| Model | VK-126 |
| Type | Converter |
| Material | ABS |
| Connector | HDMI to AV/CVBS |
| Power | DC 5.0V |
| HDMI Version | HDMI 1.3 |
| Input Port | 1 x HDMI |
| Output Port | 1 x RCA (Yellow, White, Red) |
| Input Signal | NTSC, N4, PAL, PAL M, PAL N, Secam |
| Output Signal | NTSC 3.58, PAL |
| Digital Code Bit | R G B: 8bits |
| Sampling Frequency | Y: 13.5 MHz; R-Y: 6.75 MHz; B-Y: 6.75 MHz |
| Resolution | 640x480/60Hz, 800x600/60Hz, 1024x768/60Hz, 1280x720/60Hz,1280x1024/60Hz, 1360x768/60Hz,1600x1200/60Hz, 720P 50/60Hz, 1080i 50/60Hz,1080P 50/60Hz, 480P/60Hz, 576i/60Hz, 576P/60Hz, 1920x1080/60Hz, 480i/60Hz |
| Dimension | 5.9cm x 5.7cm x 2.0cm |
| Net Weight | 62g |
| Package Contents | |

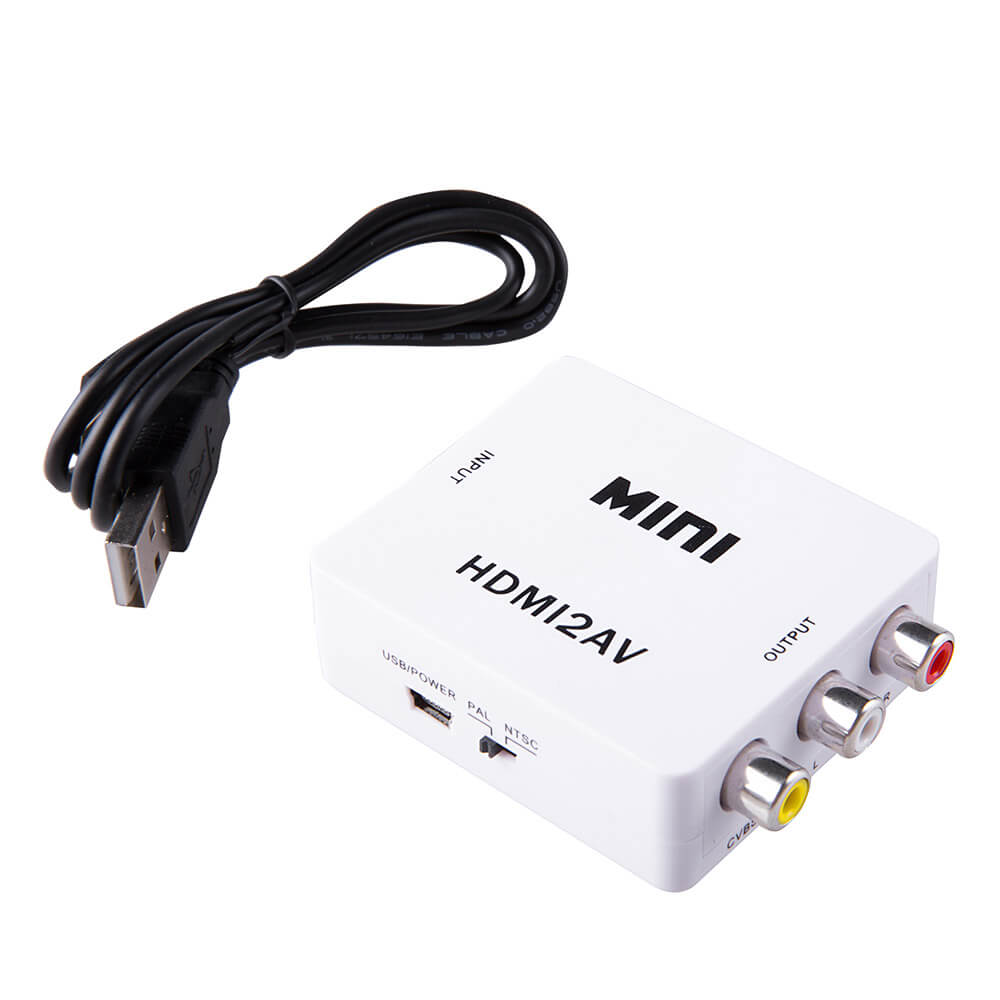

| 1 x Mini HDMI to AV Converter, 1 x USB Cable, 1 x User Manual | |
