Highlights
H.264, 1.0 megapixel, 720P IP camera
2pcs array Led, 15m night vision distance
Wi-Fi/802.11/b/g/n, DC 12V1A
Built-in IR Cut, provide clear picture
Plug&play, view the camera via P2P ID by Phone and PC directly
Onvif protocal, support NVR (Above Onvif version 2.4.2)

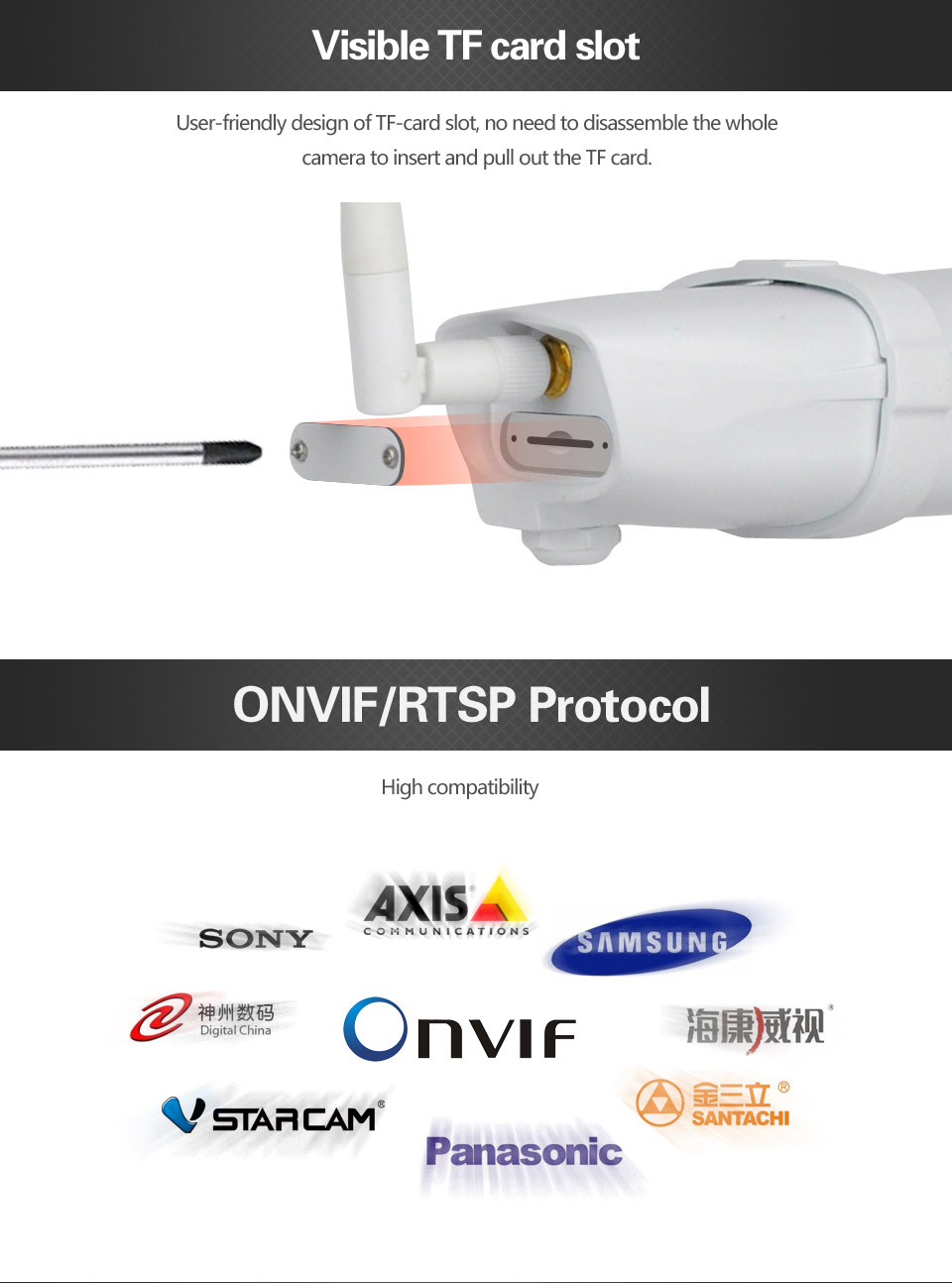

Micro SD card record, up to 128G. (only support FAT32 file system),support remote playback
Motion detection alarm, phone push alarm
CMS software "eye4", support 1,4,9,16 channel IP camera centralized monitor, record and playback

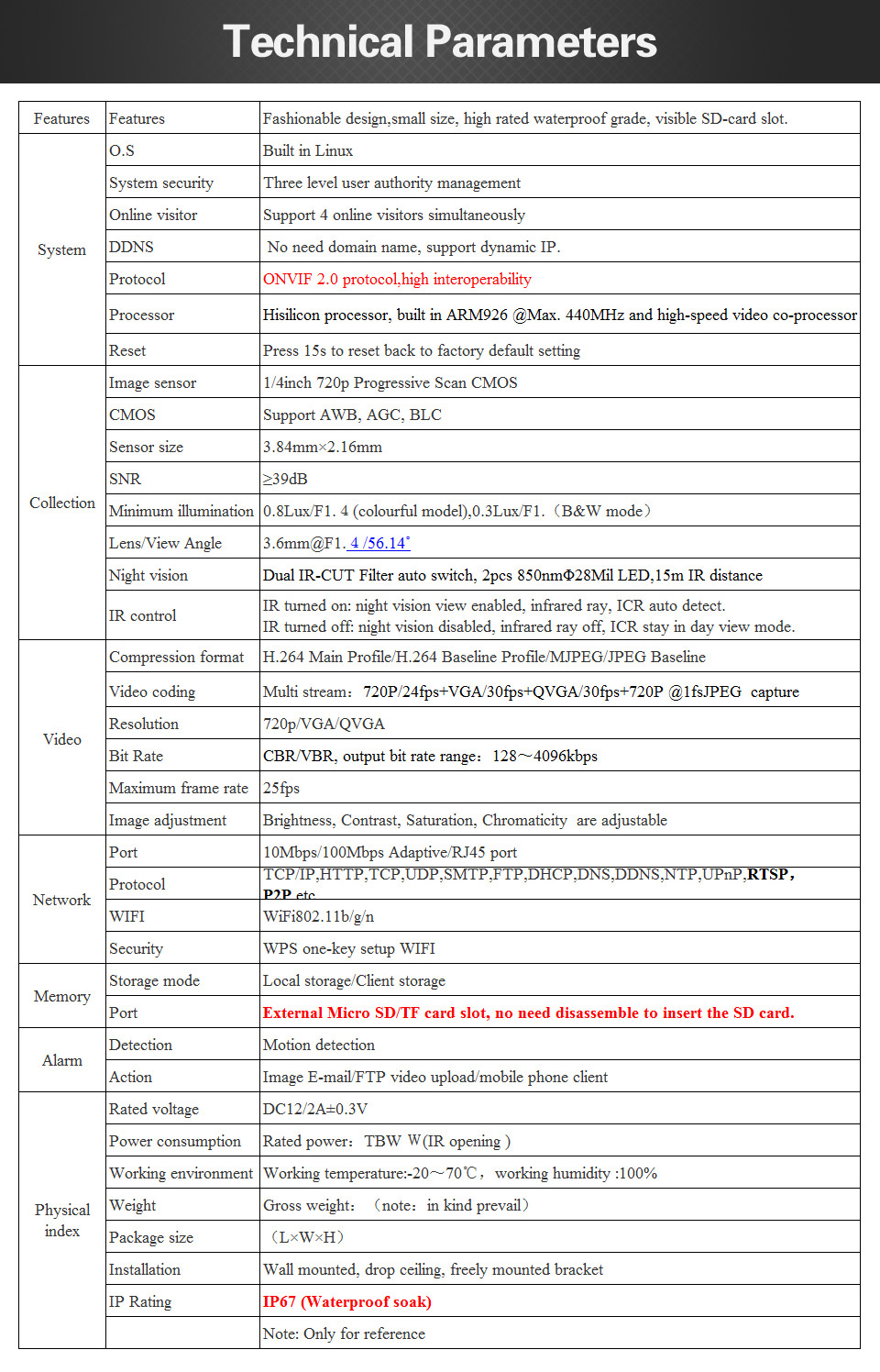

Specification
| General | Brand: VStarcam Model: C7816WIP Color: White |
| Product Details |

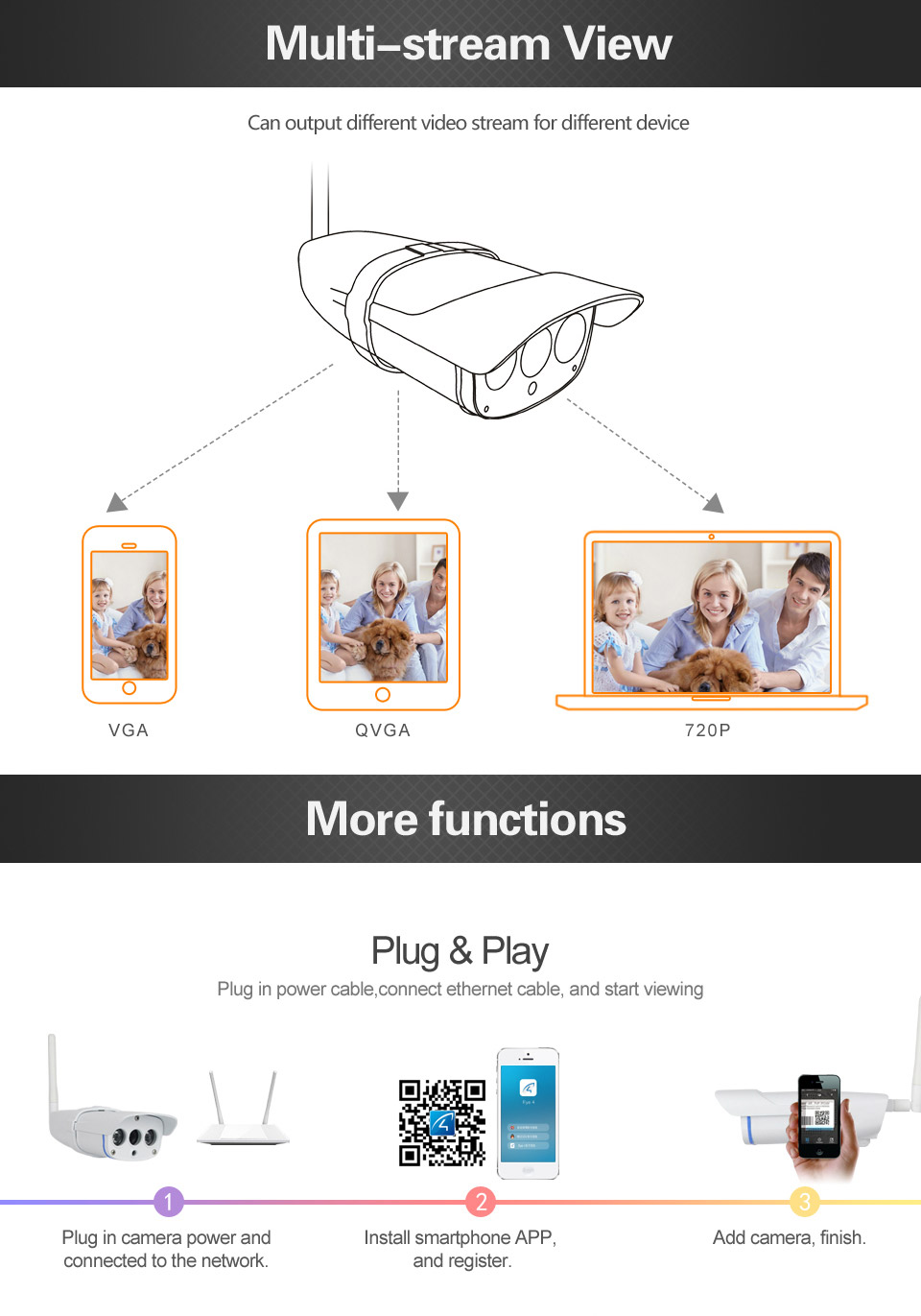

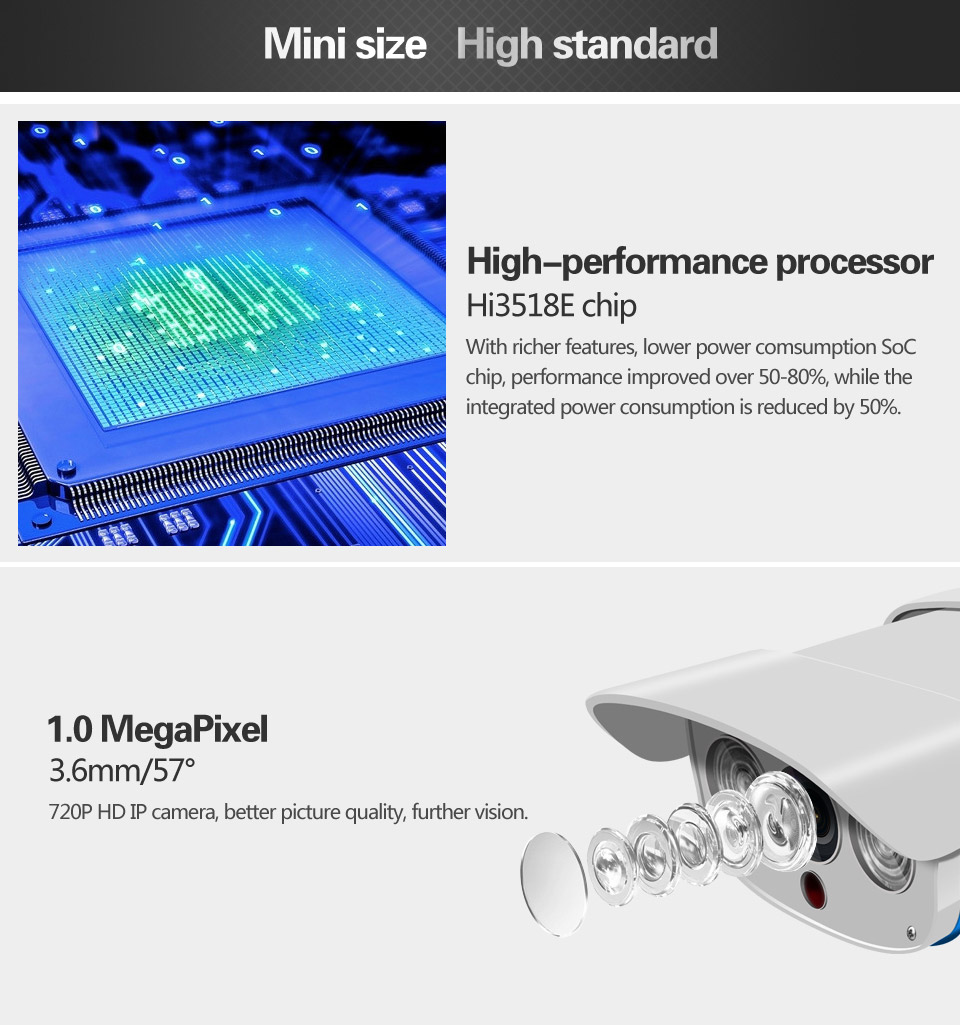

O.S: Built in Linux System security: Three level user authority management Online visitor: Support 4 online visitors simultaneously DDNS: No need domain name, support dynamic IP. Protocol: ONVIF 2.4 protocol,high interoperability Processor: Hisilicon processor, built in ARM926 @Max. 440MHz and high-speed video co-processor Reset: Press 15s to reset back to factory default setting Image sensor:1/4inch 720p Progressive Scan CMOS CMOS: Support AWB, AGC, BLC Sensor size: 3.84mm x2.16mm SNR : >=39dB Minimum illumination: 0.8Lux/F1.4(colourful model),0.3Lux/F1.(B&W mode) Lens/View Angle: 3.6mm@F1.4/56.14˚ Night vision: Dual IR-CUT Filter auto switch, 2pcs 850nmΦ28Mil LED,15m IR distance IR control: IR turned on: night vision view enabled, infrared ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. Compression format: H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline Video coding: Multi stream 720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG capture Resolution: 720p/VGA/QVGA Bit Rate: CBR/VBR, output bit rate range:128~4096kbps Maximum frame rate: 25fps Image adjustment: Brightness, Contrast, Saturation, Chromaticity are adjustable Port: 10Mbps/100Mbps Adaptive/RJ45 port Protocol: TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc WIFI WiFi: 802.11b/g/n Security: one-key setup WIFI Storage mode: Local storage/Client storage Card: suppot 64G TF record . Port: External Micro SD/TF card slot, no need disassemble to insert the SD card. Detection : Motion detection Action: Image E-mail/FTP video upload/mobile phone client Rated voltage: DC12/2A±0.3V Power consumption: Rated power:TBW w (IR opening ) Working environment: Working temperature:-20~70degree centigrade,working humidity :100% Weight Gross weight:(note:in kind prevail) Installation Wall mounted, drop ceiling, freely mounted bracket IP Rating: IP67 (Waterproof soak) |
| Dimension & Weight |
Package size: 176*166*110mm(L×W×H) |
| Package Contents | 1 x Outdoor camera 1 x Power Adapter 1 x User Manual |
